Parking Brake Cable: Service and Repair

PARKING BRAKE CABLE ASSEMBLY NO.3
REPLACEMENT

HINT: For parking brake cable assembly No. 2, follow the same procedures as for the RH.

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (M/T TRANSAXLE)
2. REMOVE CONSOLE BOX REAR COVER
3. REMOVE CONSOLE BOX CARPET
4. REMOVE CONSOLE BOX ASSEMBLY REAR
5. LOOSEN WIRE ADJUSTING NUT NO.1
a. Remove the wire adjusting nut No.1.
6. REMOVE FLOOR PANEL BRACE FRONT
a. Remove the 2 bolts and the floor panel brace front.
7. REMOVE EXHAUST PIPE ASSEMBLY FRONT

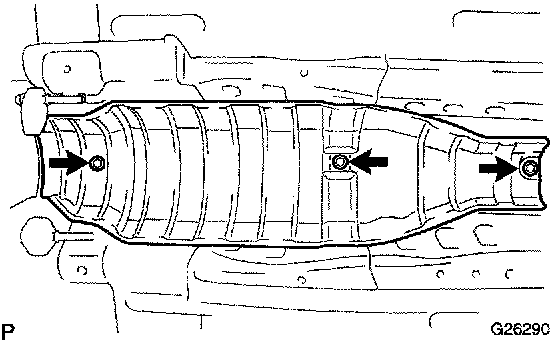

8. REMOVE FRONT FLOOR HEAT INSULATOR NO.2
a. Remove the 3 bolts and the front floor heat insulator No.2

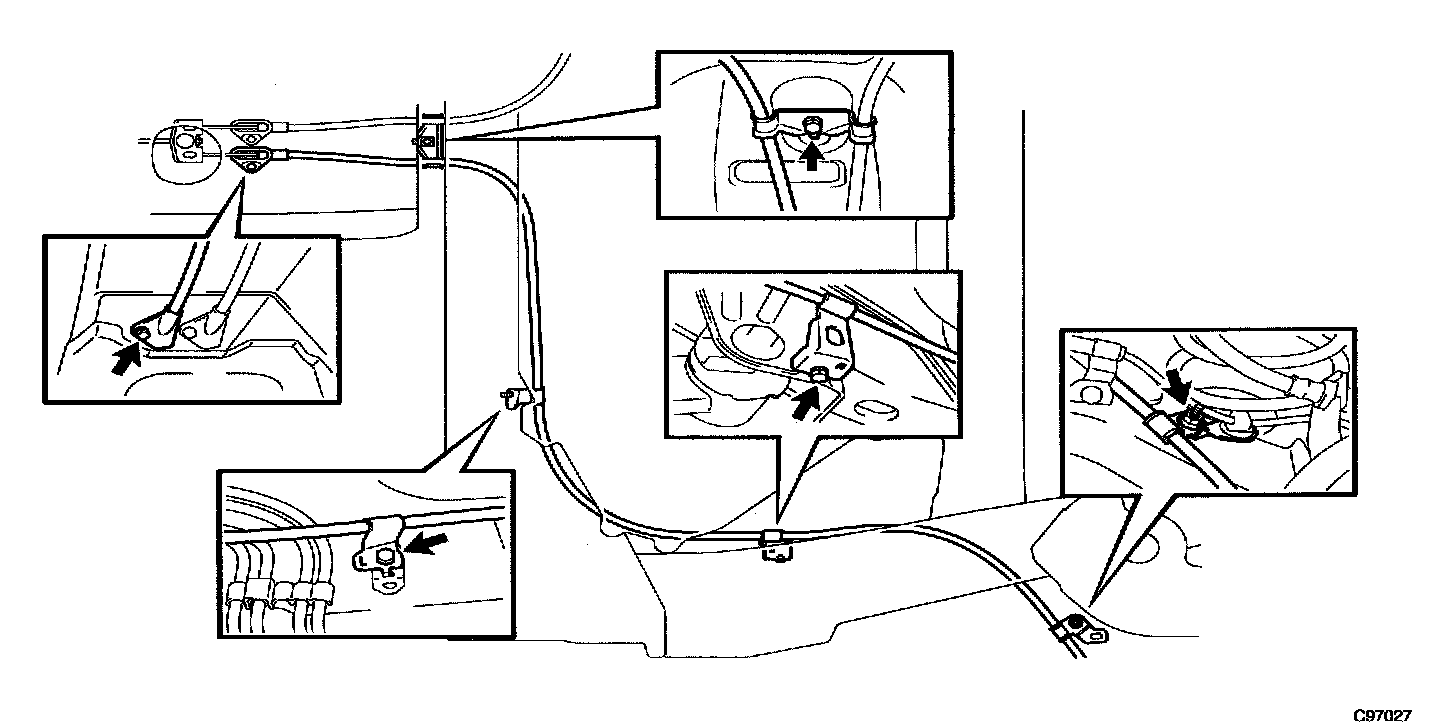

9. SEPARATE PARKING BRAKE CABLE ASSEMBLY NO.3
a. Remove the 4 bolts and disconnect the parking brake cable No. 3 from the body.
b. Disconnect the parking brake cable assembly No. 3 from the parking brake equalizer, and remove the parking brake cable No. 3.
10. REMOVE REAR WHEEL
11. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY
12. REMOVE FRONT BRAKE SHOE
SST 09718-00010
13. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH
SST 09718-00010
14. REMOVE REAR BRAKE SHOE
SST 09718-00010

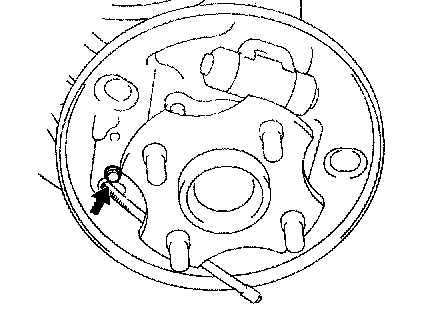

15. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.3
a. Remove the bolt, and disconnect the parking brake cable assembly No. 3 from the backing plate.





16. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3
a. Connect the parking brake cable assembly No. 3 to the parking brake cable equalizer.
b. Install the parking brake cable assembly No. 3 with the 4 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)





17. CONNECT PARKING BRAKE CABLE ASSEMBLY NO.3
a. Install the parking brake cable assembly No. 3 with the bolt to the backing plate.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
18. APPLICATION HIGH TEMPERATURE GREASE
19. INSTALL REAR BRAKE SHOE
SST 09718-00010
20. INSTALL REAR BRAKE SHOE RETURN SPRING
21. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER LH
SST 09718-00010
22. INSTALL FRONT BRAKE SHOE
SST 09718-0010
23. CHECK REAR DRUM BRAKE INSTALLATION
24. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
25. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
26. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
27. TEMPORARILY TIGHTEN WIRE ADJUSTING NUT NO.1
a. Install the wire adjusting nut No.1.

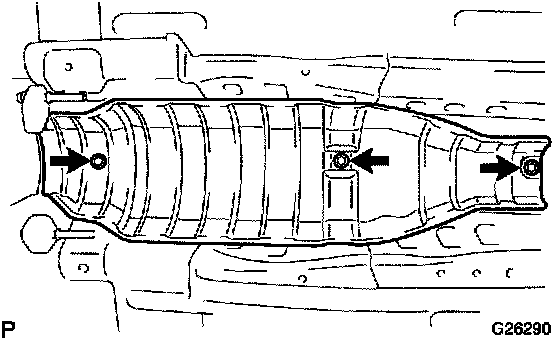

28. INSTALL FRONT FLOOR HEAT INSULATOR NO.2
a. Install the front floor heat insulator No.2 with the 3 bolts.
Torque: 5.5 Nm (55 kgf-cm, 48 inch lbs.)
29. INSTALL EXHAUST PIPE ASSEMBLY FRONT
30. INSTALL FLOOR PANEL BRACE FRONT
a. Install the floor panel brace front with the 2 bolts.
31. CHECK PARKING BRAKE LEVER TRAVEL
32. ADJUST PARKING BRAKE LEVER TRAVEL
33. CHECK EXHAUST LEAKAGE
