Parking Brake System: Adjustments
ADJUSTMENT1. REMOVE REAR WHEEL
2. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
3. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
4. CHECK PARKING BRAKE LEVER TRAVEL
a. Pull the parking brake lever all the way up, and count the number of clicks.
Parking brake lever travel: 6 to 9 clicks at 196 N (20 kgf, 44.1 lbs.)
5. ADJUST PARKING BRAKE LEVER TRAVEL
a. Remove the console box hole cover.
b. Remove the console box carpet.
c. Remove the console box assembly rear.

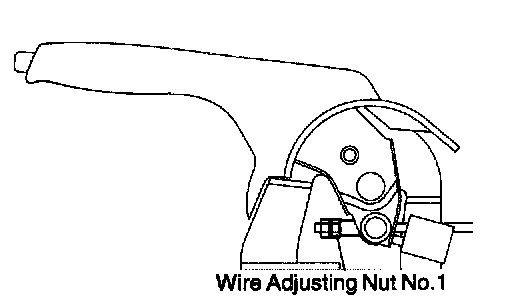

d. Turn the wire adjusting nut No.1 until the lever travel becomes correct.
e. Tighten the lock nut.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
