VSC Warning Light Circuit (Remains ON)

VSC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

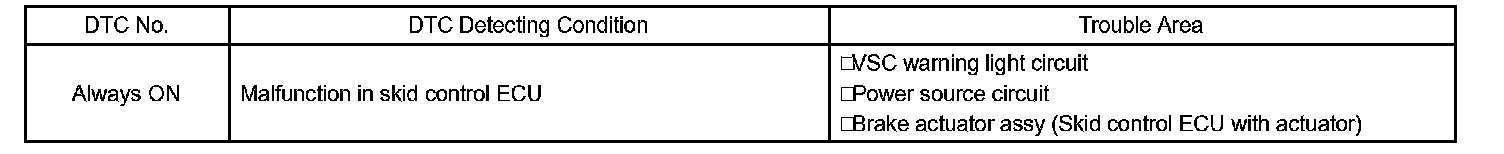

DTC Detecting Condition:

If the ECU stores DTC, the VSC warning light lights on the combination meter.

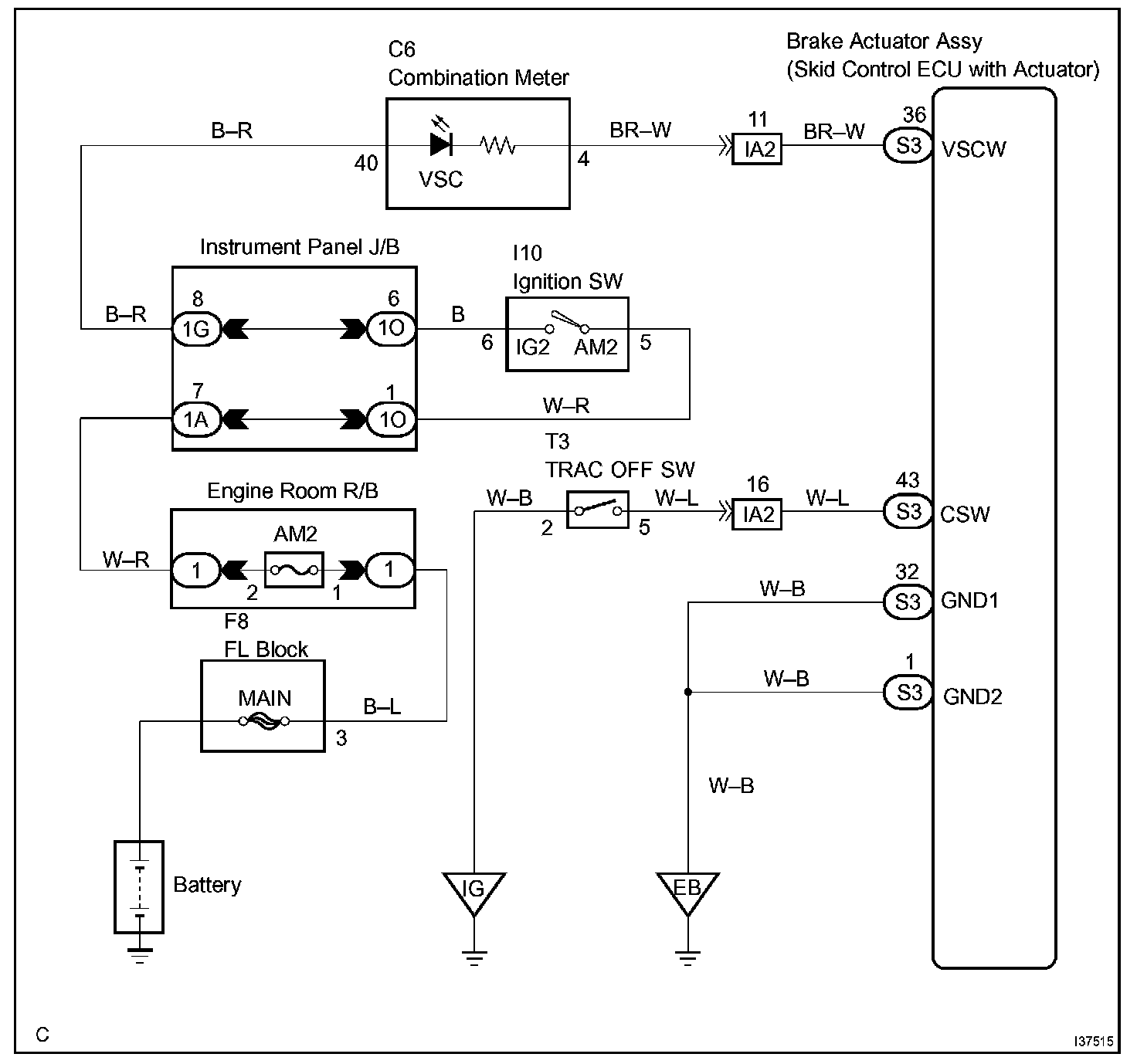

Wiring Diagram:

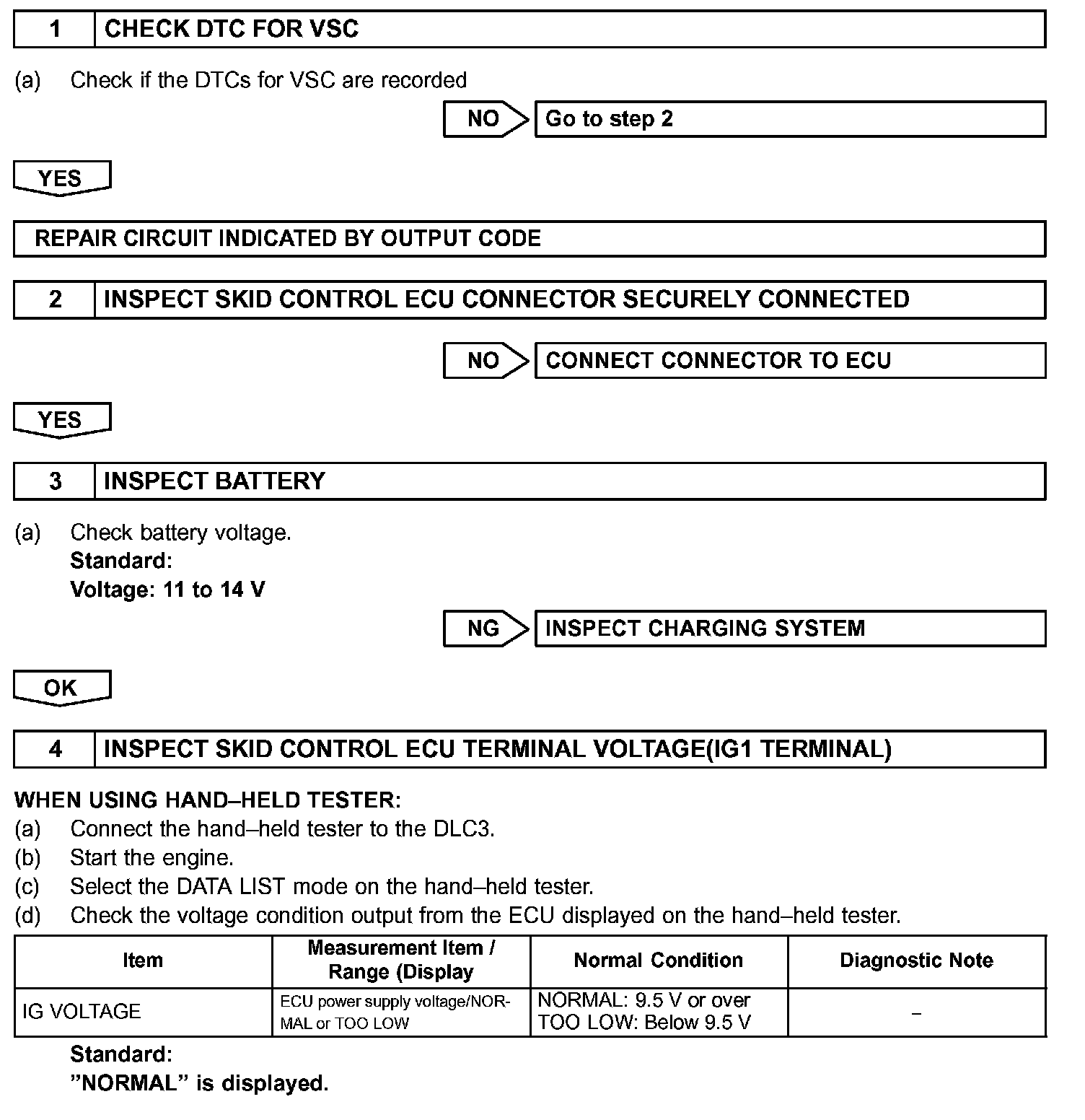

Step 1 - 4:

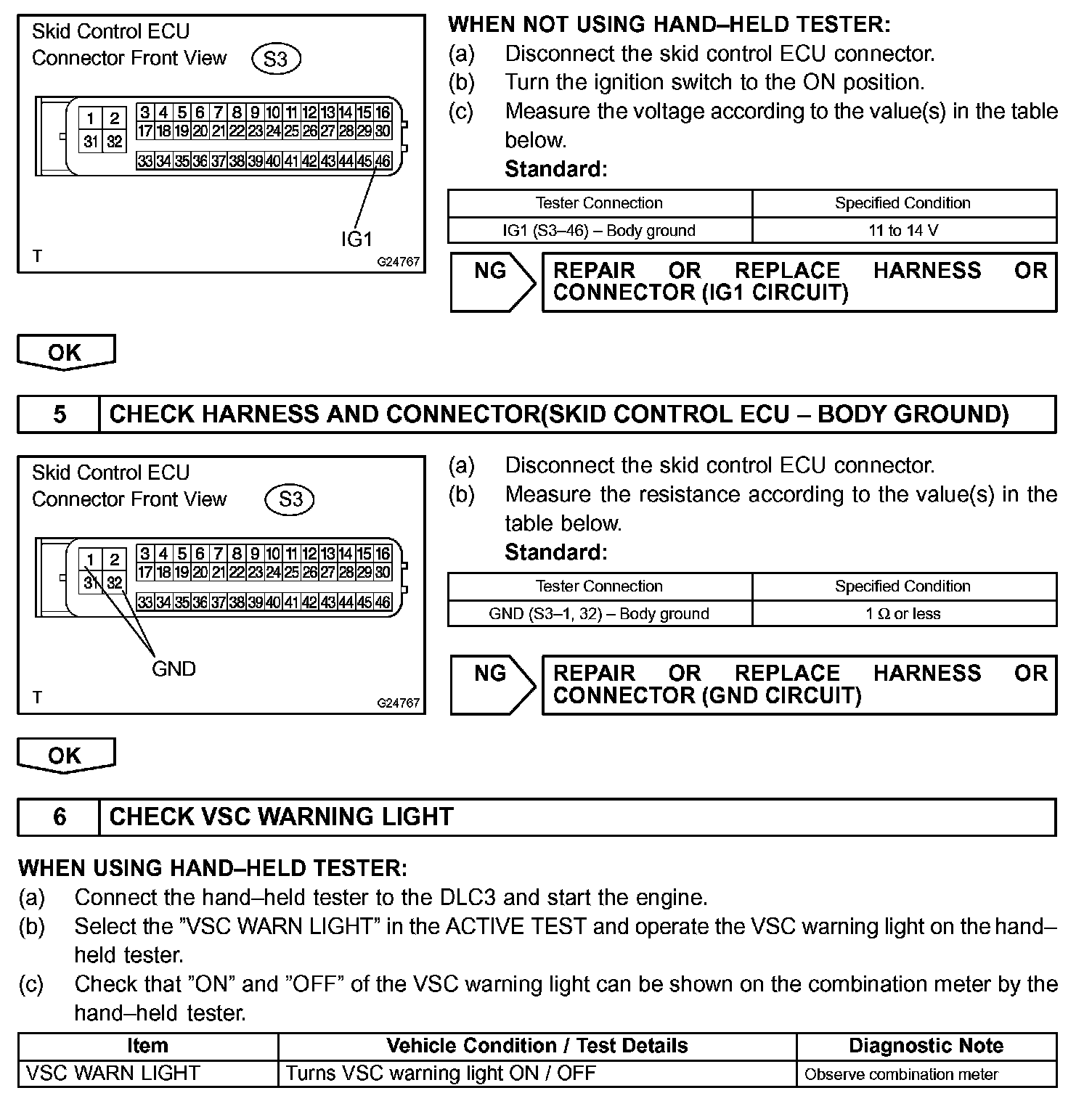

Step 4 (Contd.) - 6:

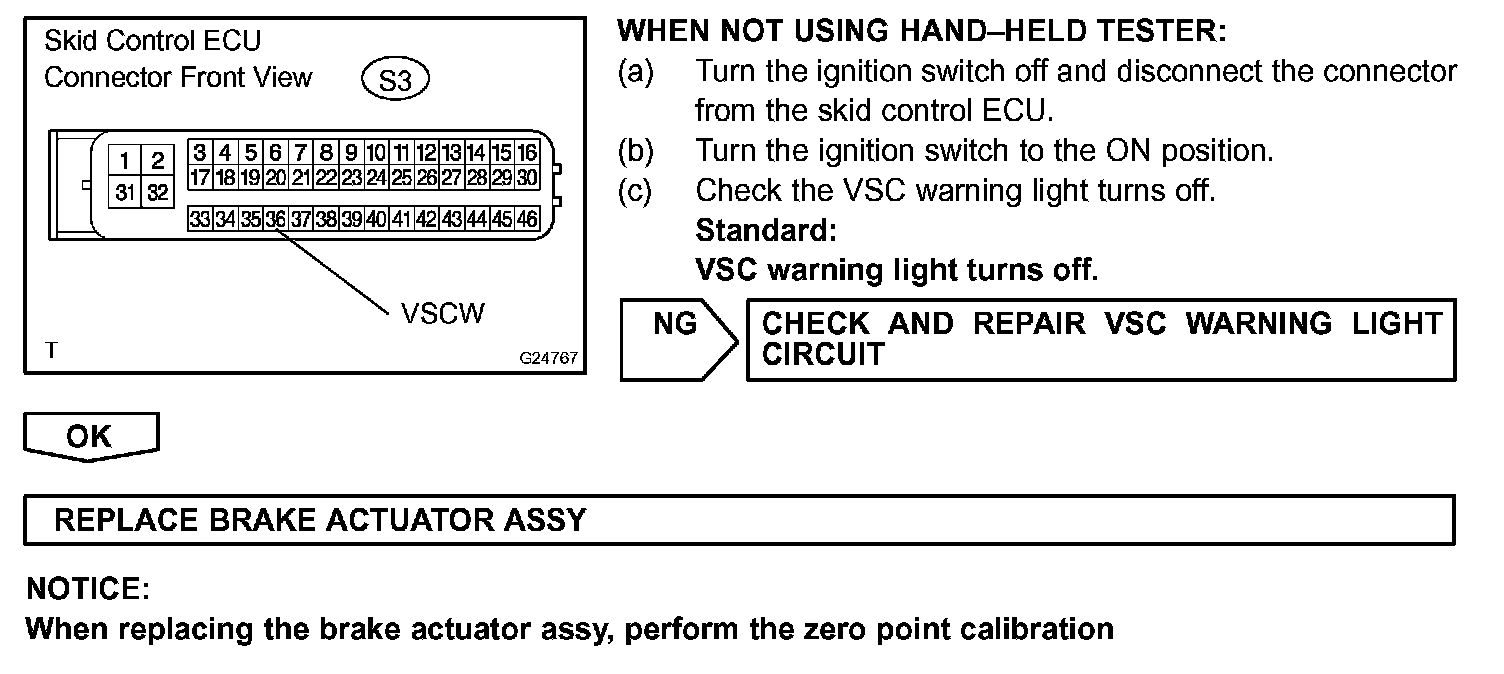

Step 6 (Contd.):

INSPECTION PROCEDURE
