CIRCUIT DESCRIPTION
This is the TRAC control main switch. When the TRAC control switch is pushed on, TRAC control goes off and the TRAC OFF indicator lights up. Turn the ignition switch off, TRAC control surely comes on when the ignition switch turns ON next time.

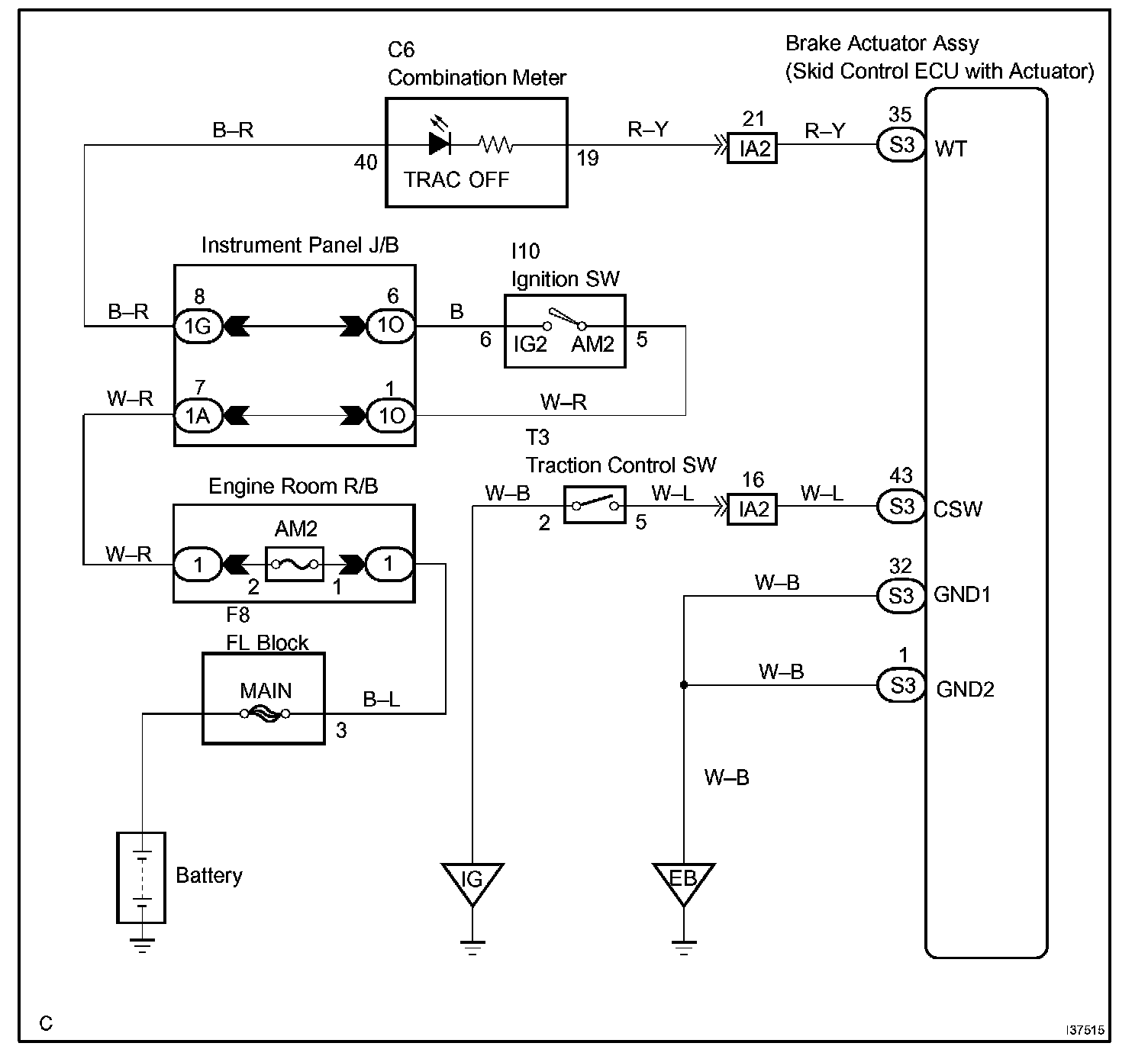

Wiring Diagram:

Step 1 - 2:

Step 3:

Step 4:

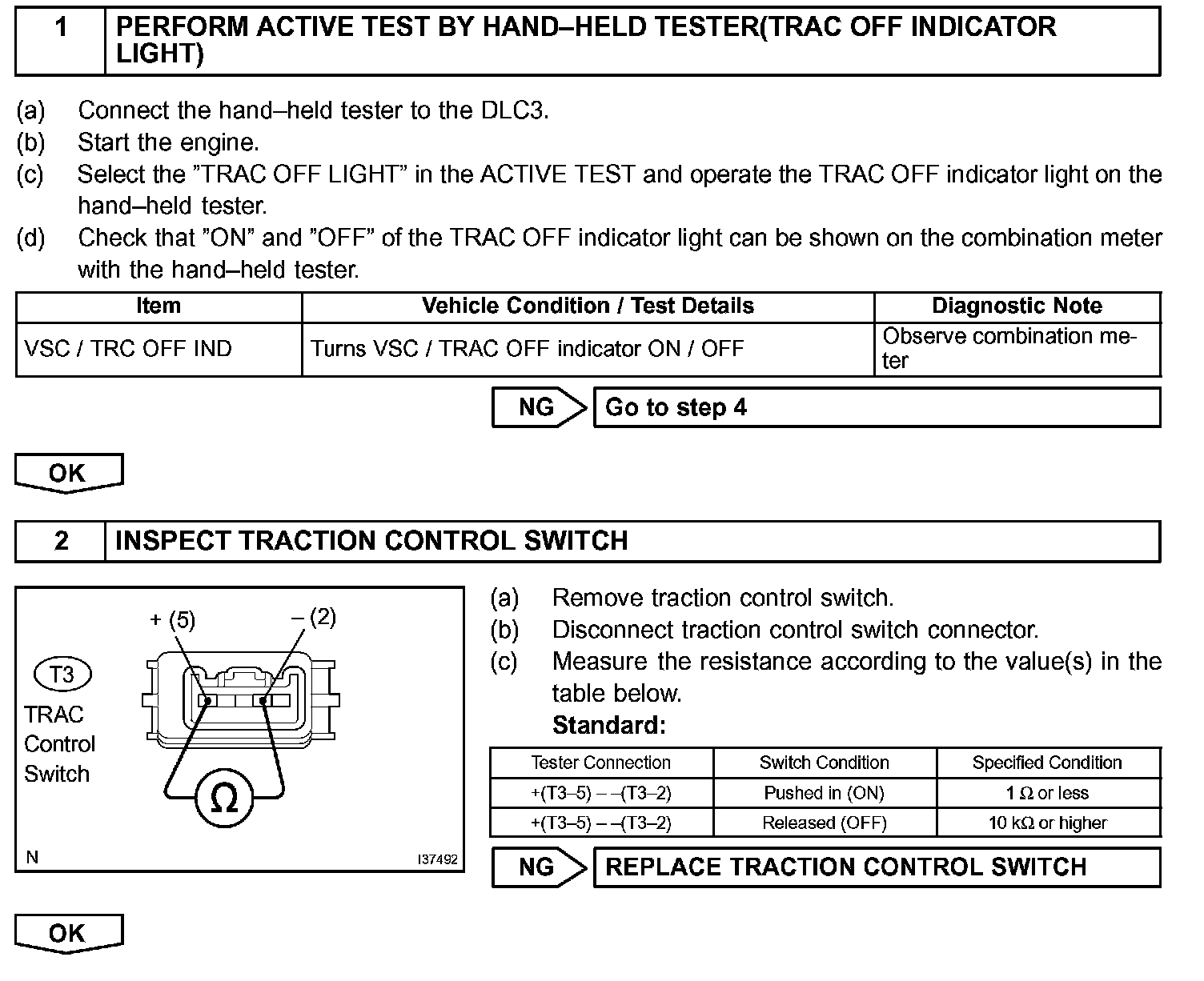

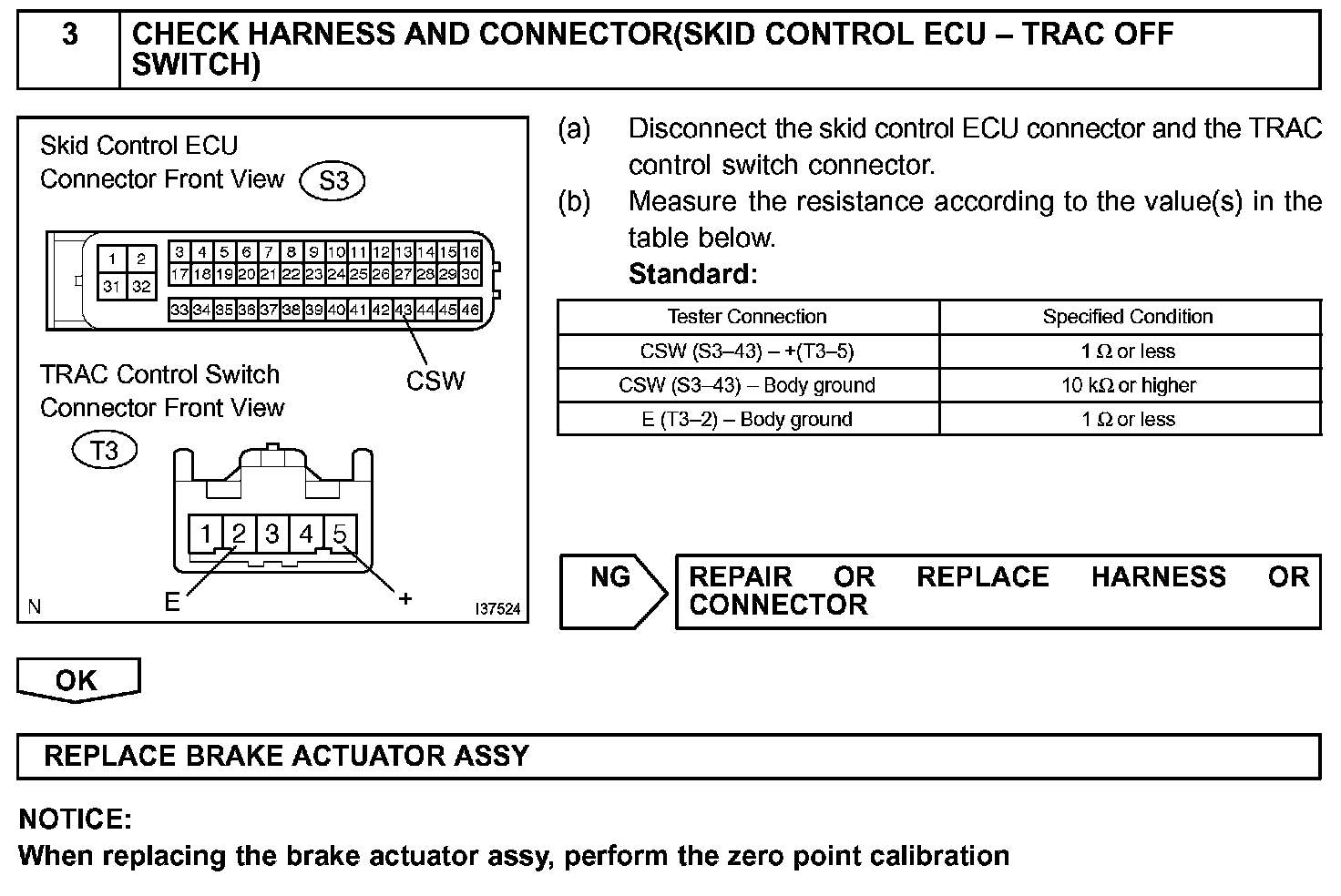

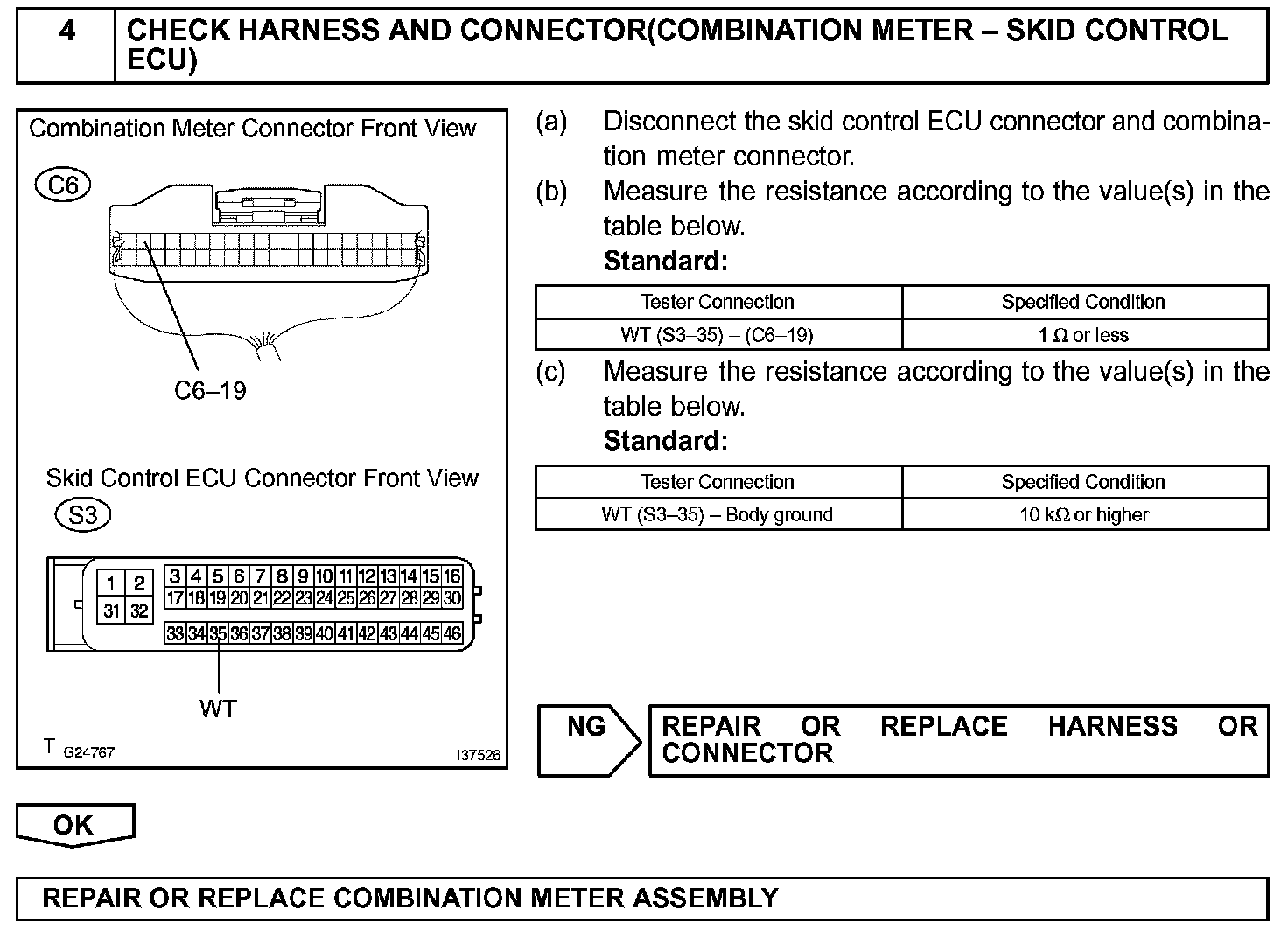

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
