Symptom Diagnostic Procedures

ABS WARNING LIGHT CIRCUIT (REMAINS ON)

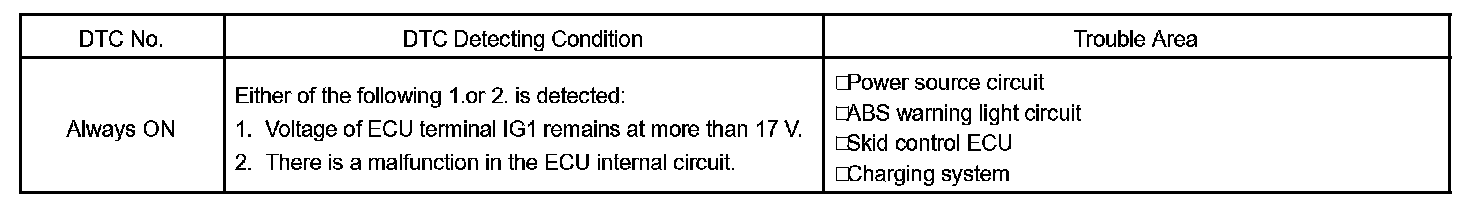

DTC Detecting Condition:

CIRCUIT DESCRIPTION

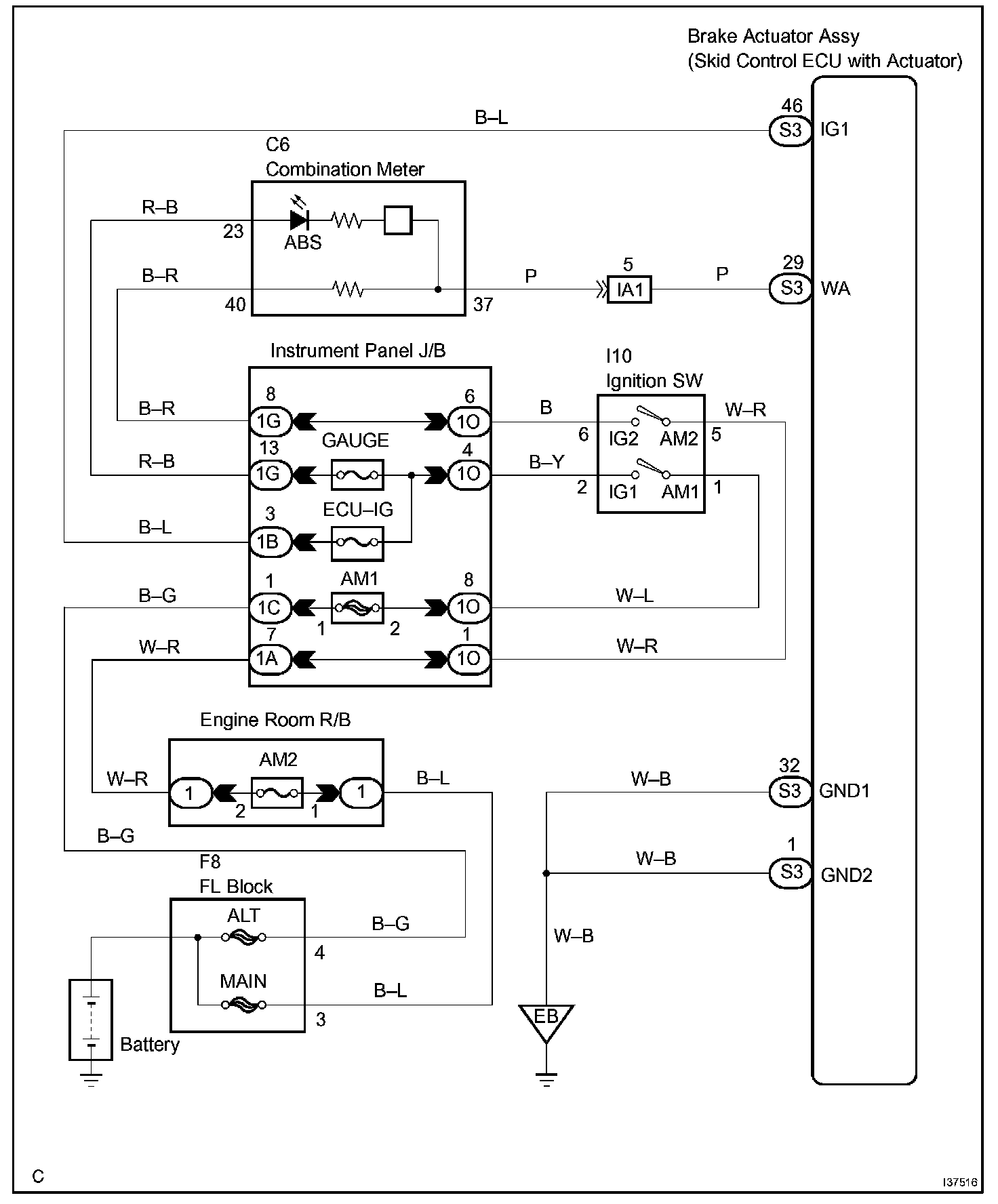

Wiring Diagram:

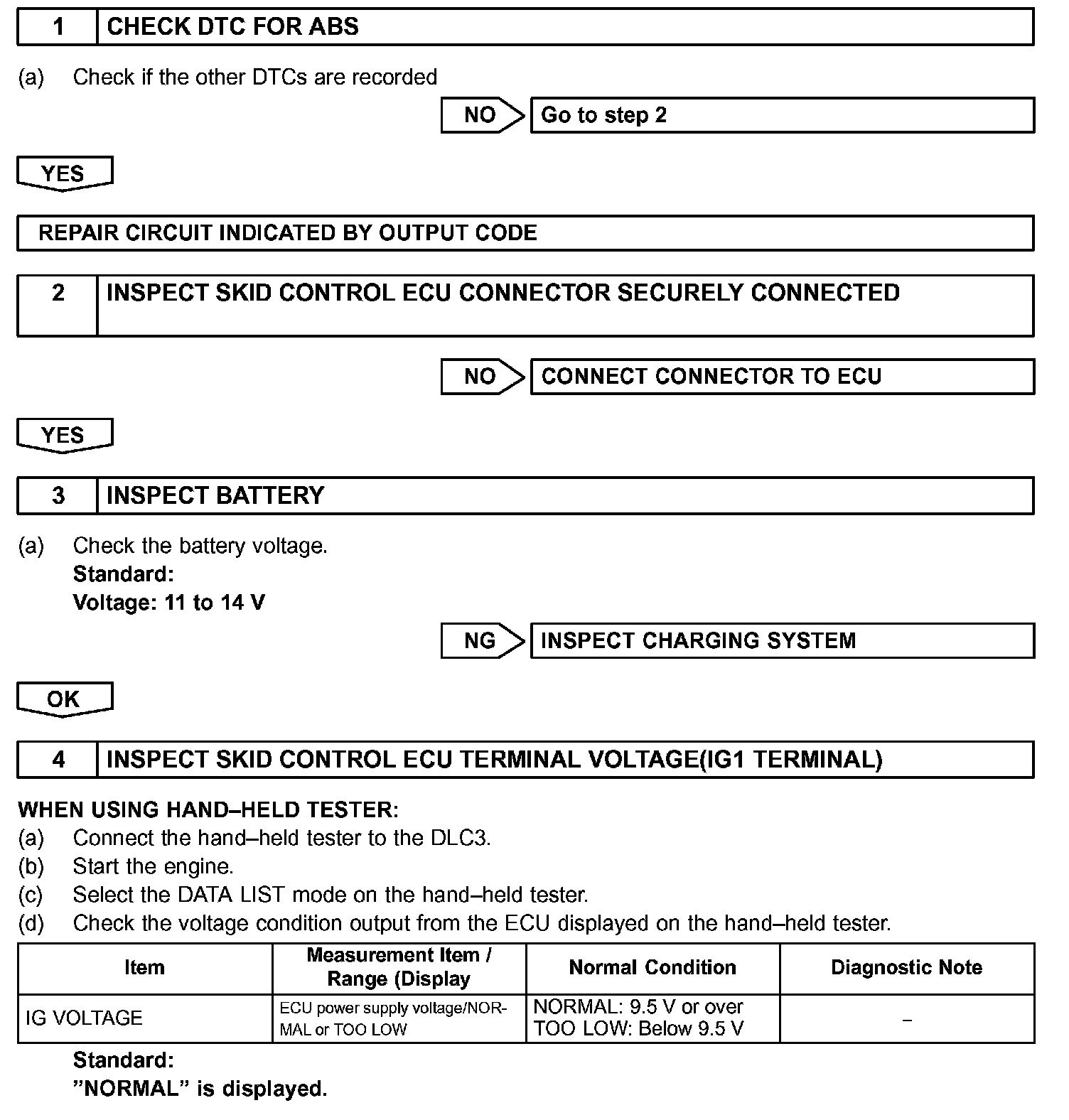

Step 1 - 4:

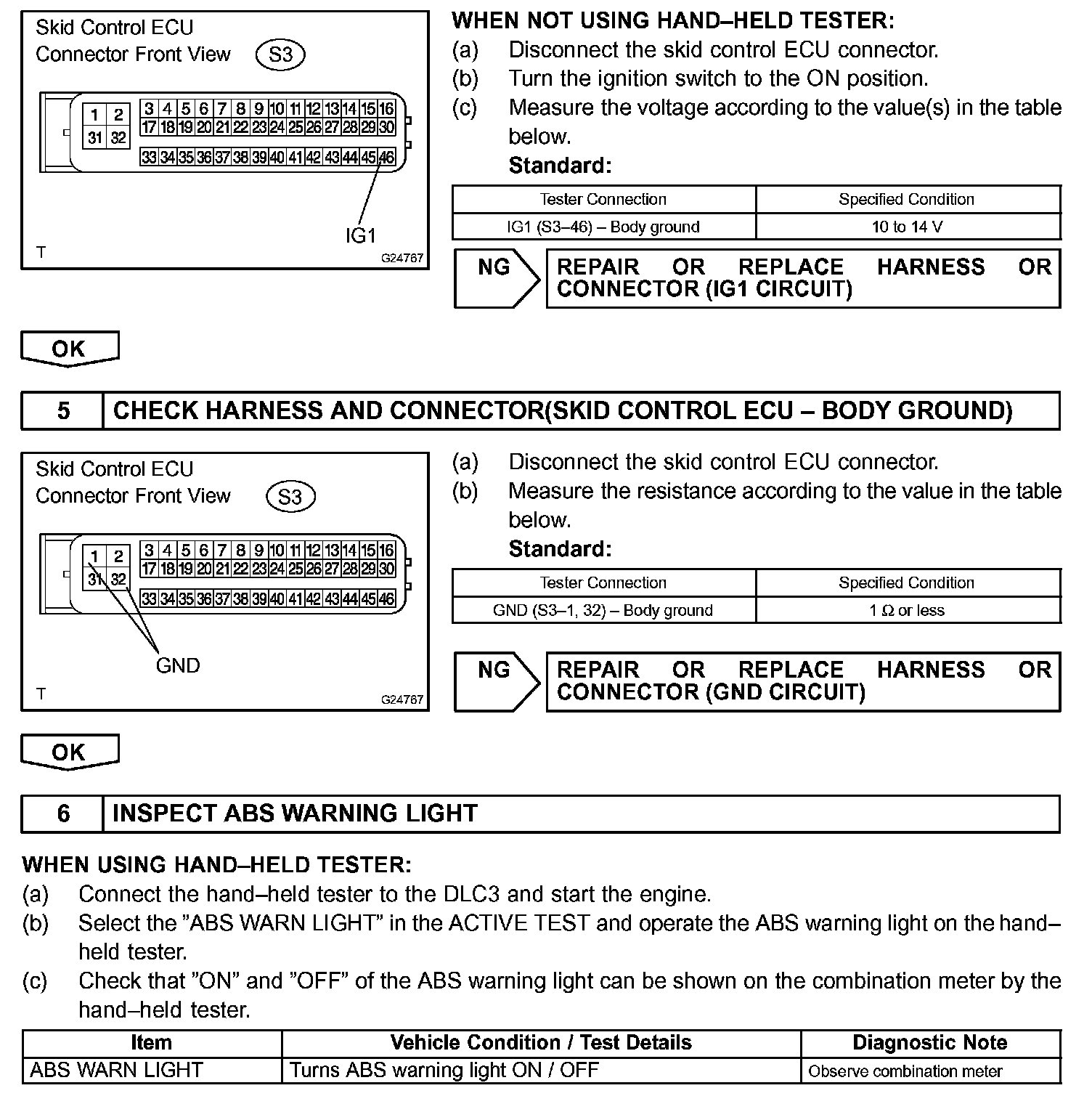

Step 4 (Contd.) - 6:

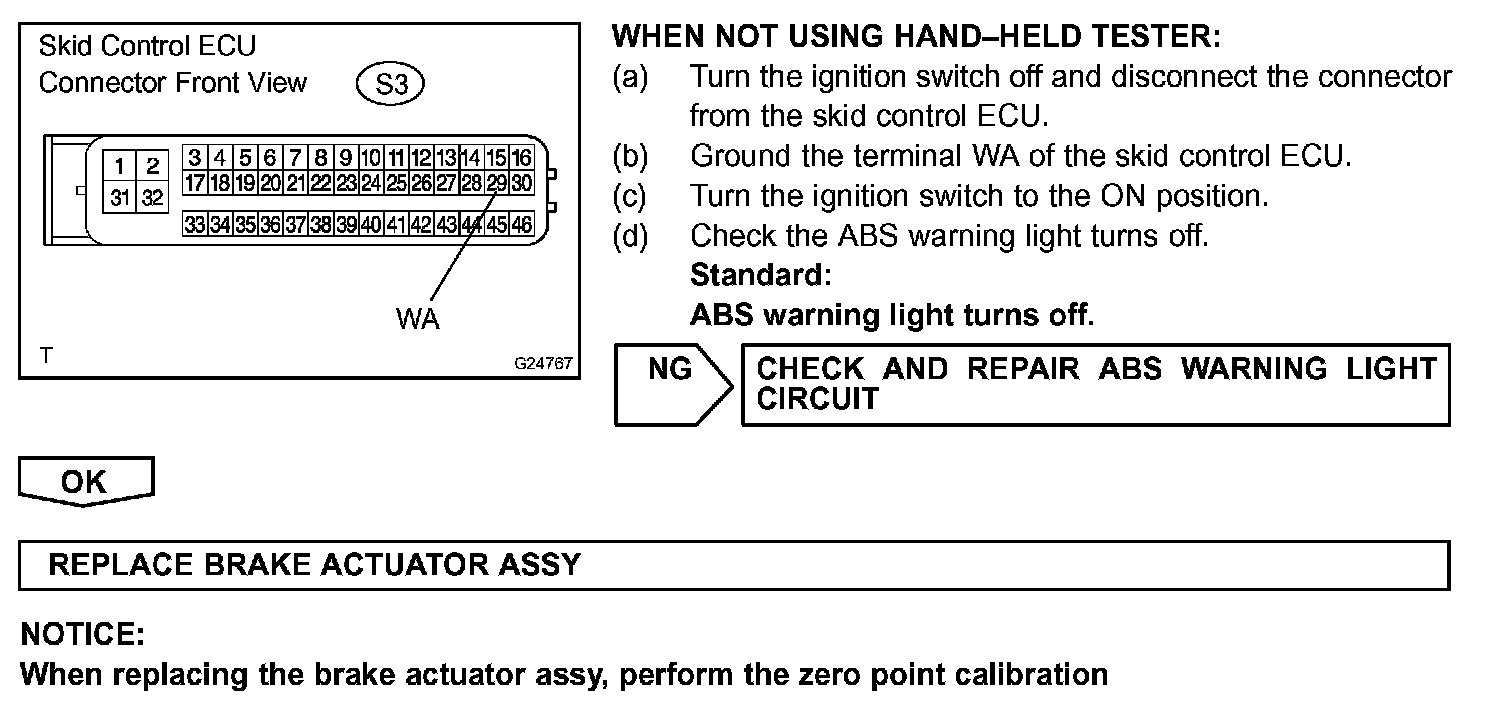

Step 6 (Contd.):

INSPECTION PROCEDURE
