Freeze Frame Data

FREEZE FRAME DATA OF ABS

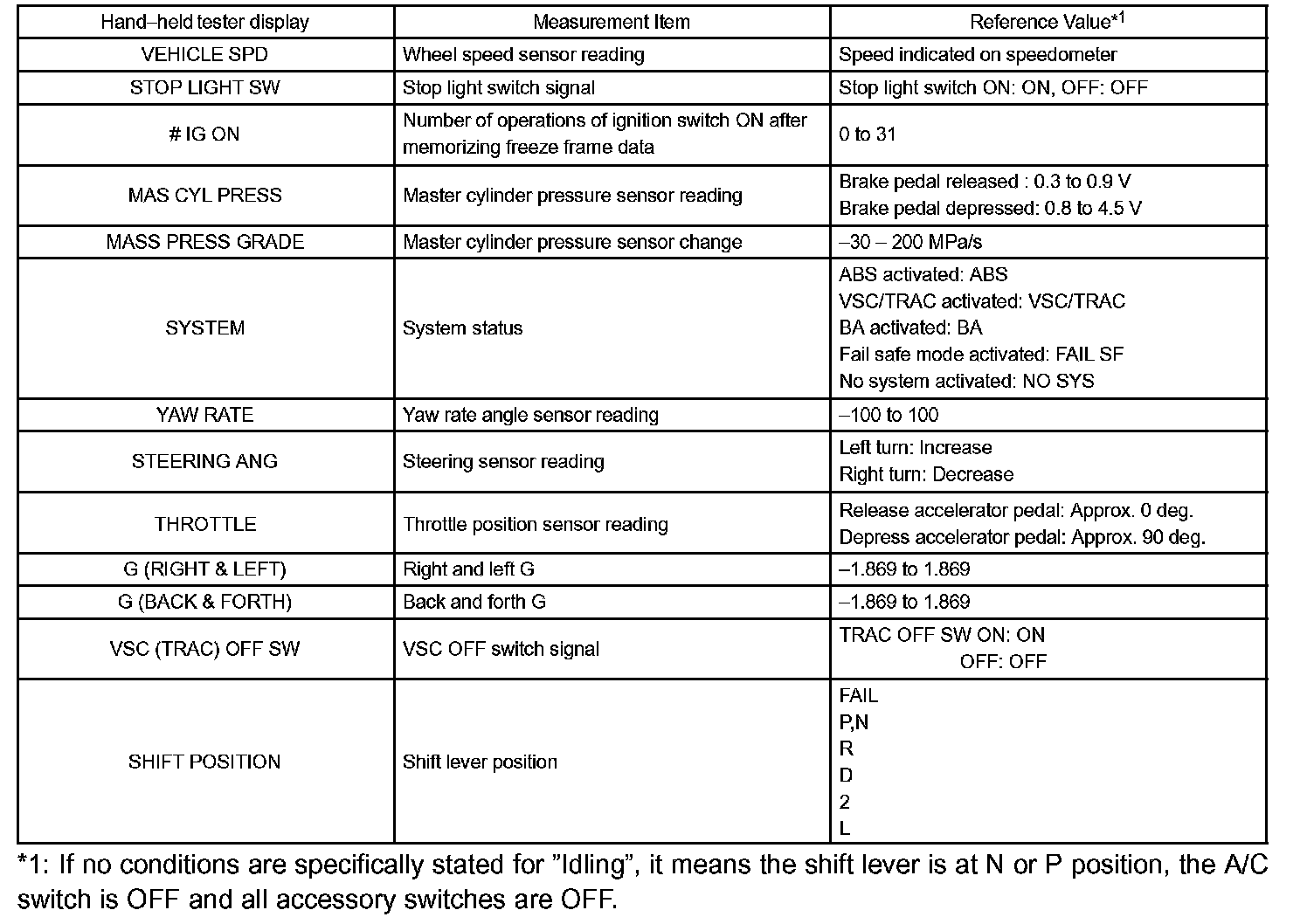

a. The vehicle (sensor) status stored during ABS and/or VSC operation or at the time of error code detection can be displayed by the hand-held tester.
b. Only one record of the freeze frame data is stored and the freeze frame data generated during ABS and/or VSC operation are updated whenever the vehicle status is changed. Also, the number of the operation of the ignition switch "ON" after the freeze frame data is stored can be stored up to 31 and it can be displayed.

HINT: If the ignition switch "ON" operation exceeds 31 times, "31" appears on the display.

c. If the diagnosis code malfunction occurs, the freeze frame data at the occurrence of the malfunction is stored but the ABS actuation data is deleted.
