Data List

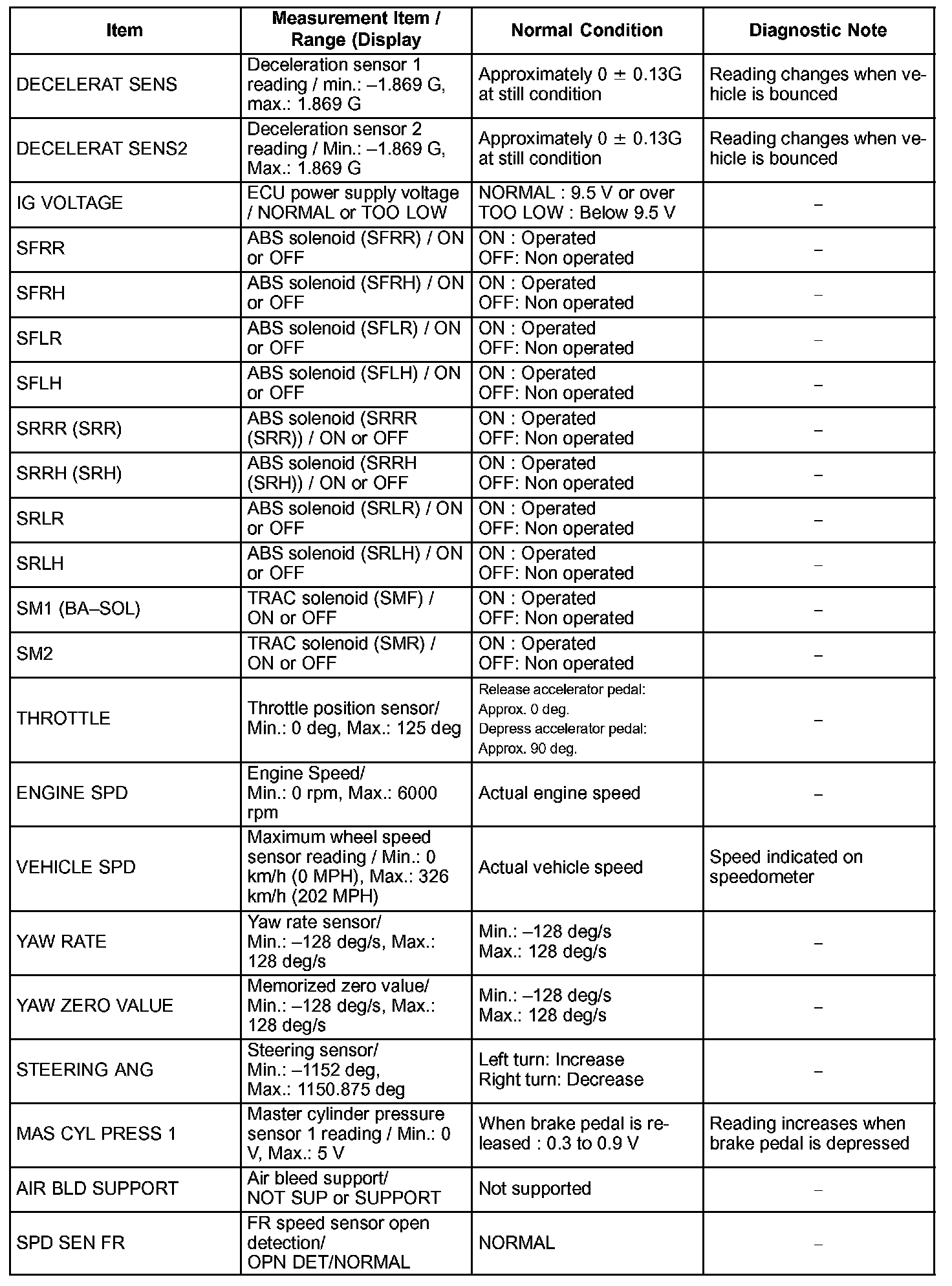

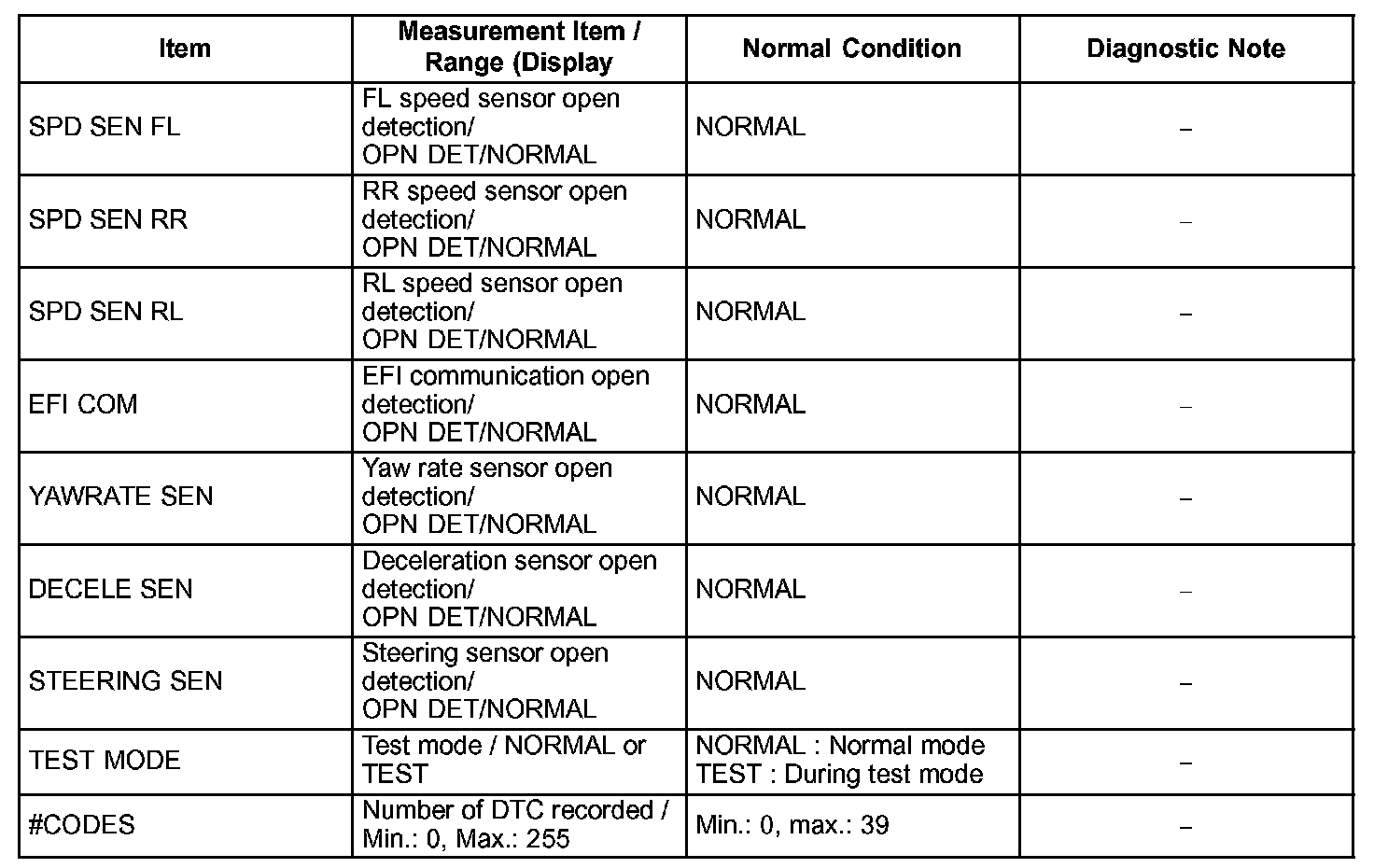

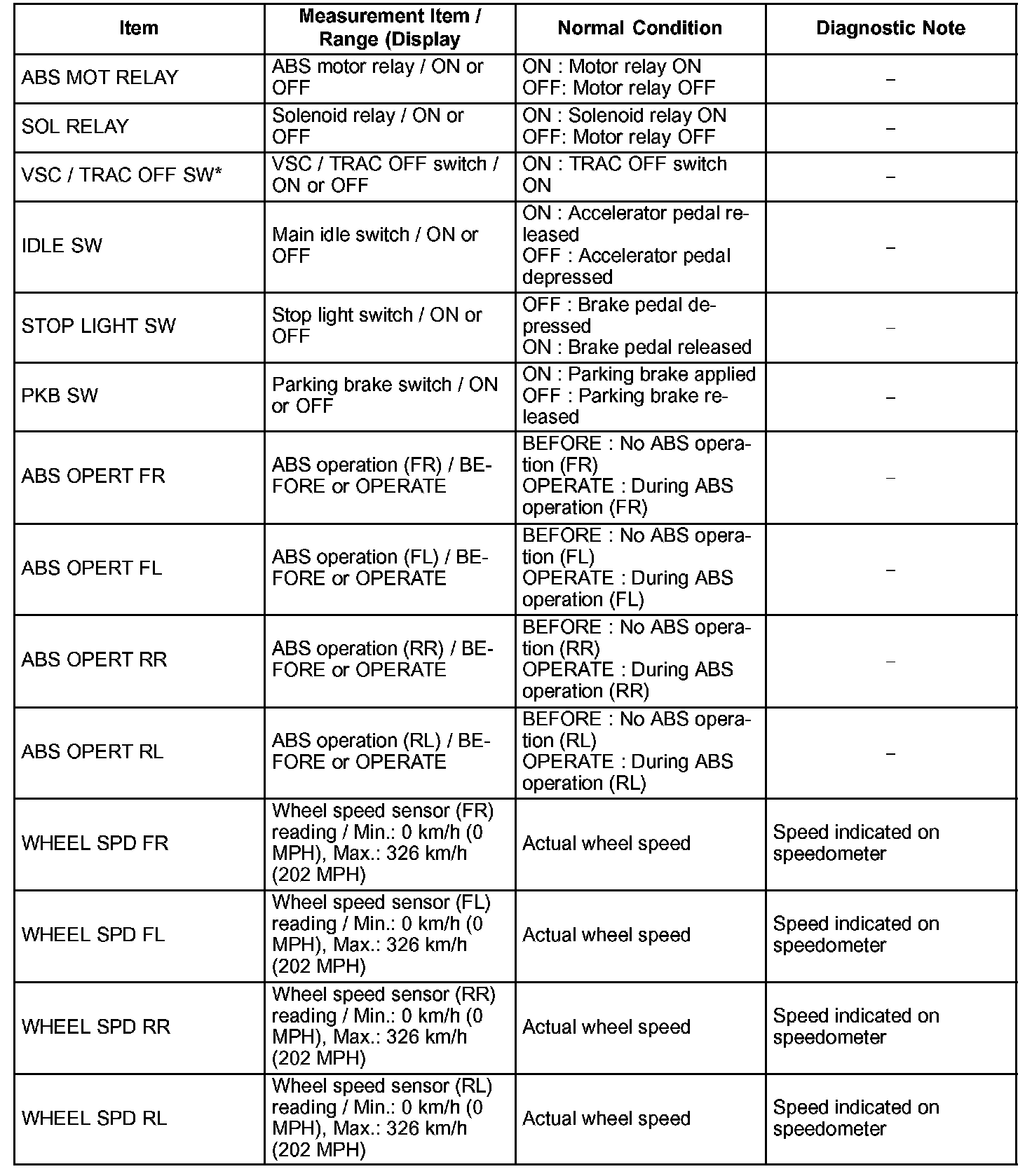

DATA LIST










With the hand-held tester connected to DLC3 and the ignition turned to ON, the ABS , TRAC and VSC data list can be displayed. Follow the prompts on the tester screen to access the Data List.
