Active Test

ACTIVE TEST

HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, actuator and so on to operate without removing any parts. Performing the ACTIVE TEST as a first step of troubleshooting is one of the methods to shorten the labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.







a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.

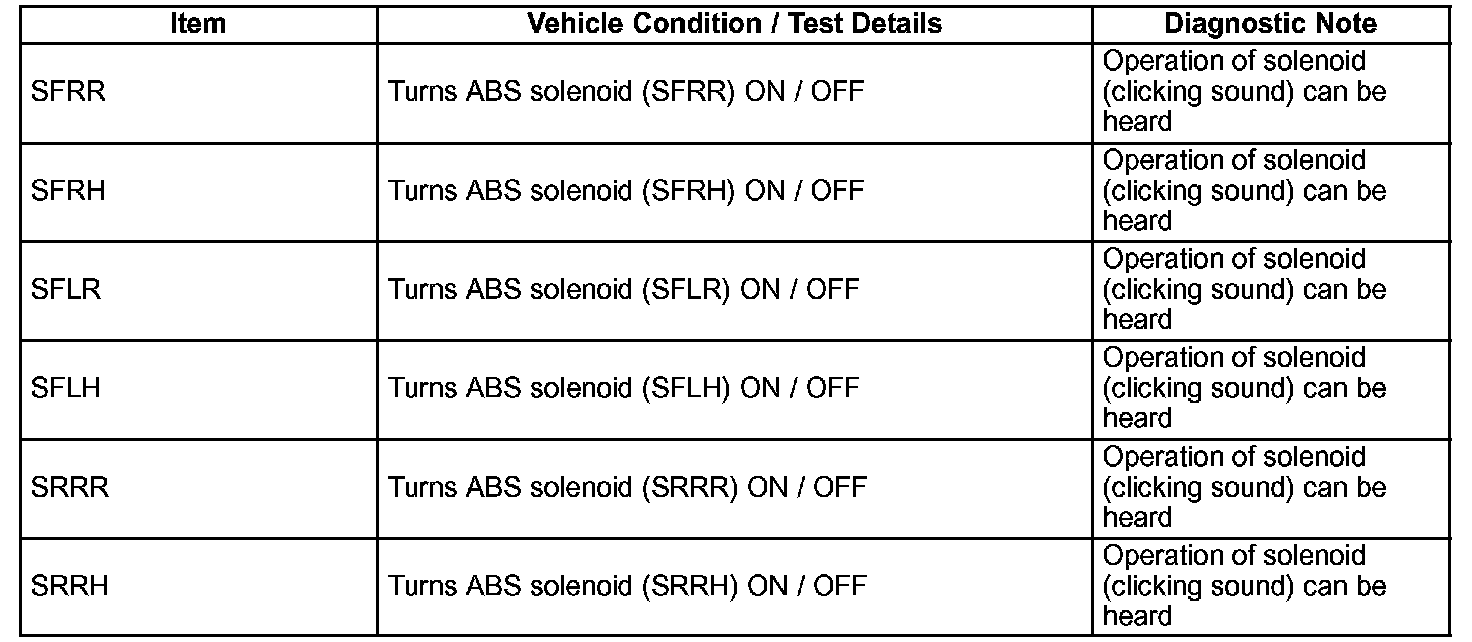

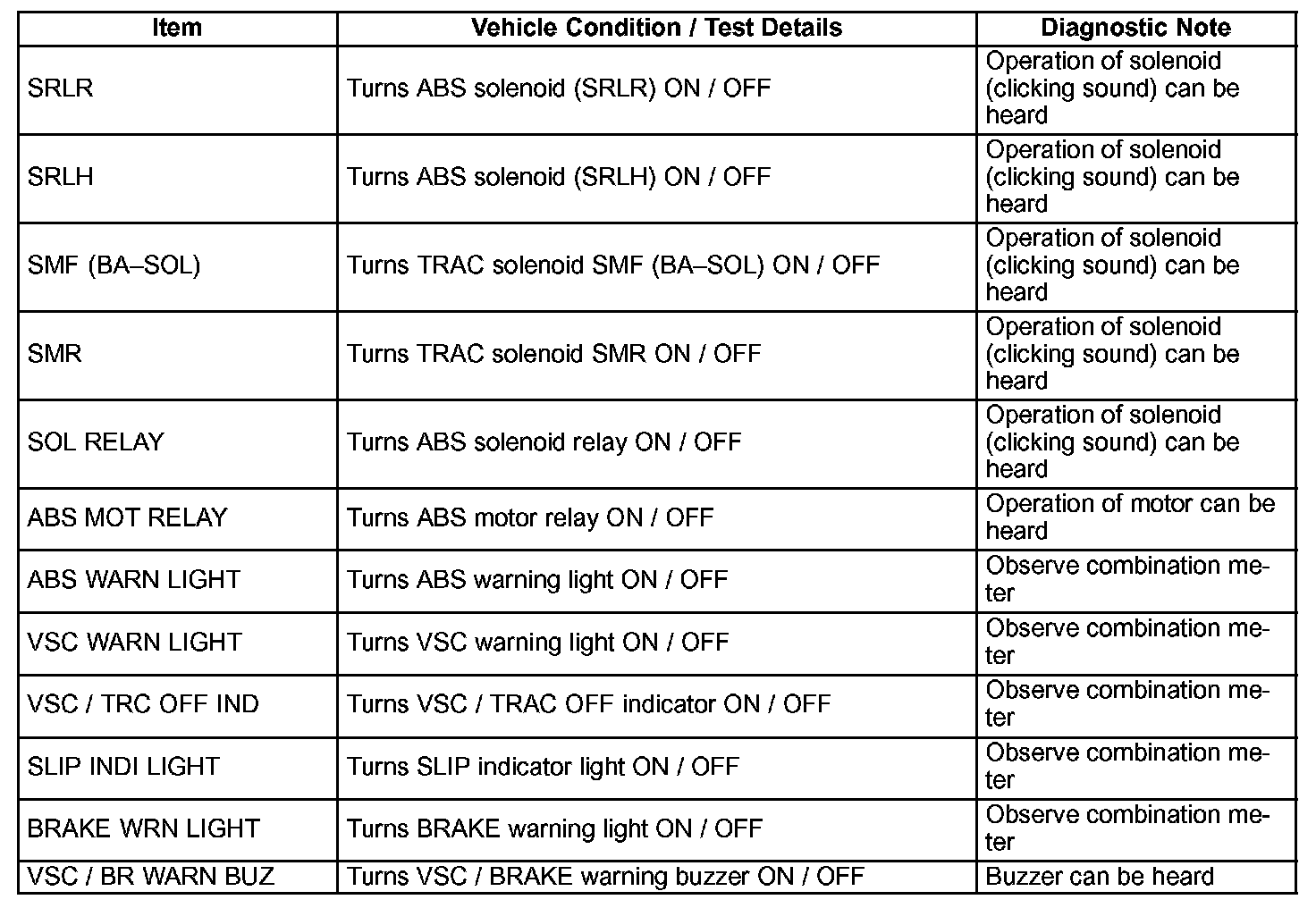

c. From to the display on the tester, select the "ACTIVE TEST".

HINT: IG must be turned ON to proceed Active Test using a hand-held tester.
