Slip Indicator Light Circuit

SLIP INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC & VSC operation.

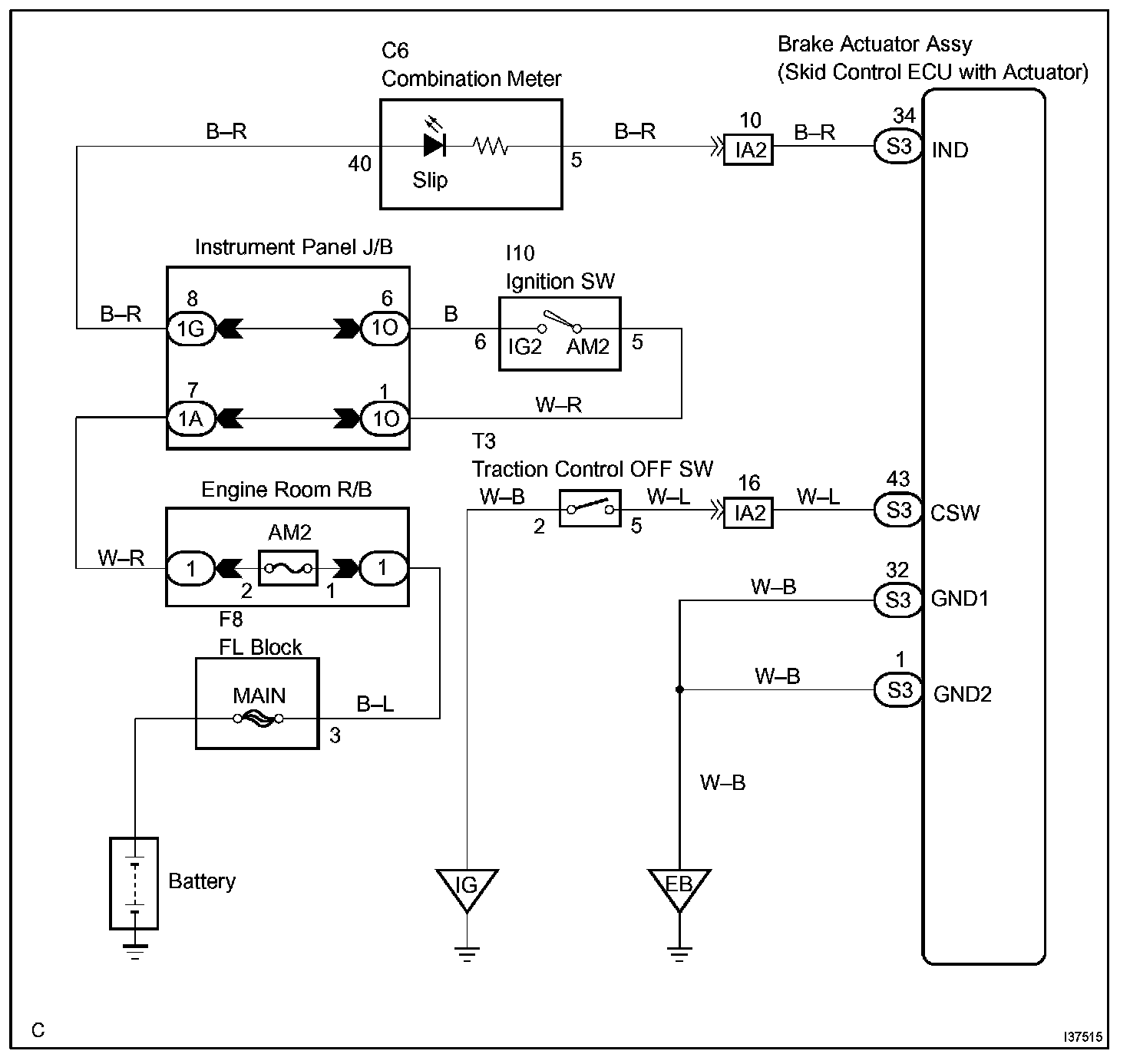

Wiring Diagram:

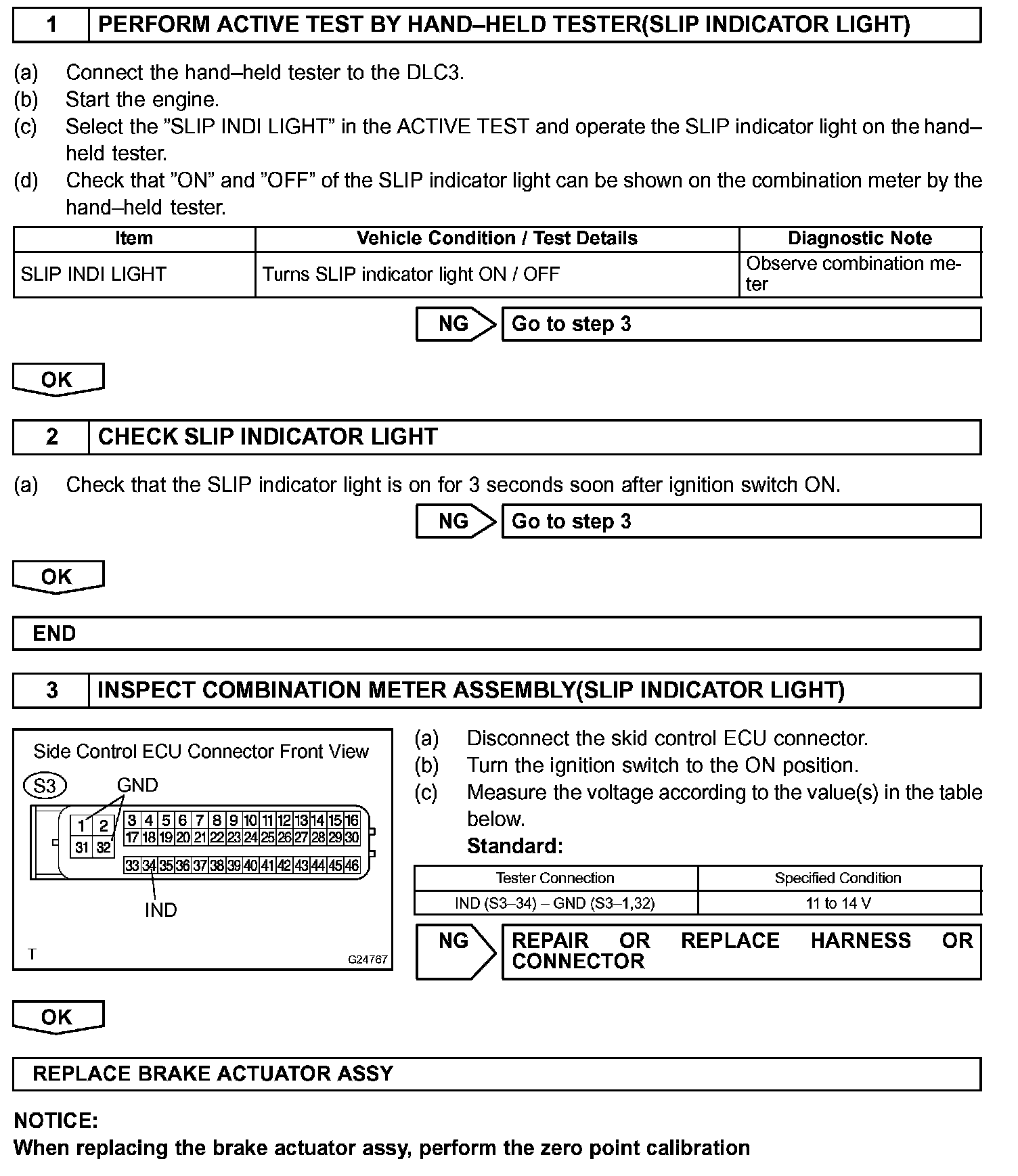

Step 1 - 3:




INSPECTION PROCEDURE
