Component Tests and General Diagnostics

INSPECTION

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

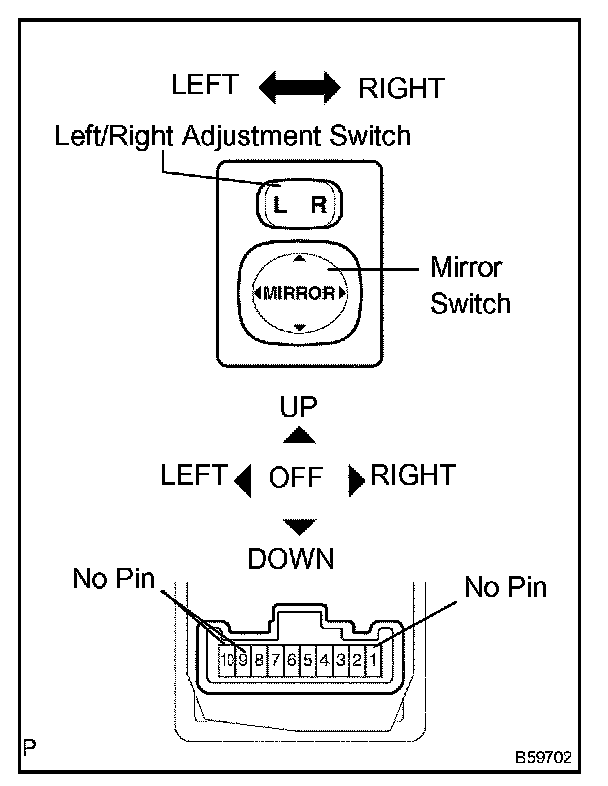

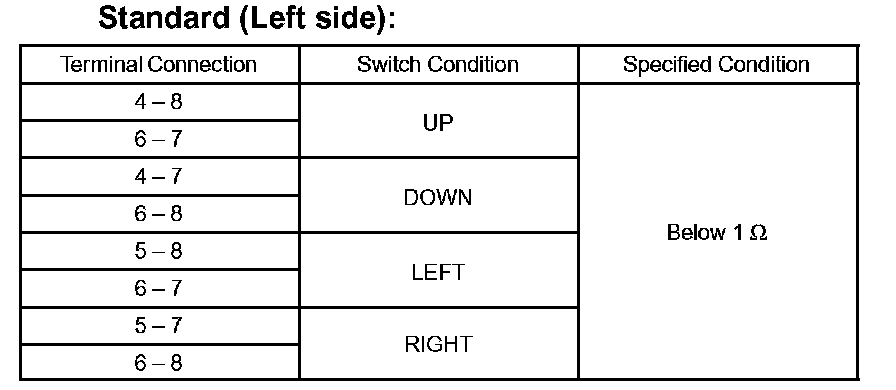

a. The L side of the left/right adjustment switch: Check the mirror switch resistance.
If the result is not as specified, replace the switch assembly.




b. The R side of the left/right adjustment switch: Check the mirror switch resistance.
If the result is not as specified, replace the switch assembly.




2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Disconnect the mirror connector.

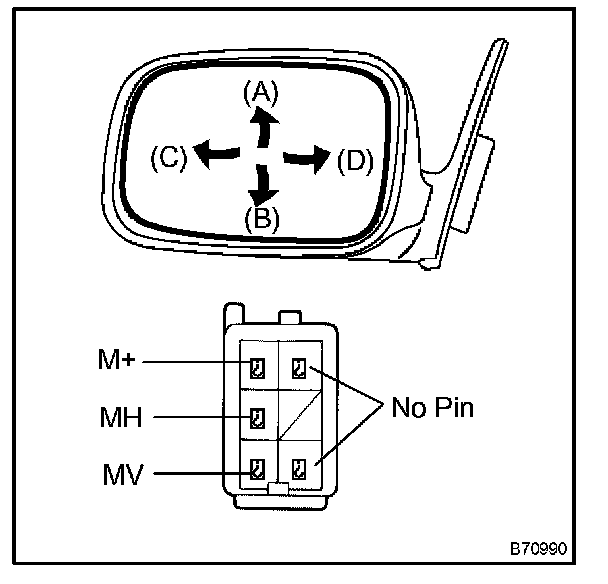

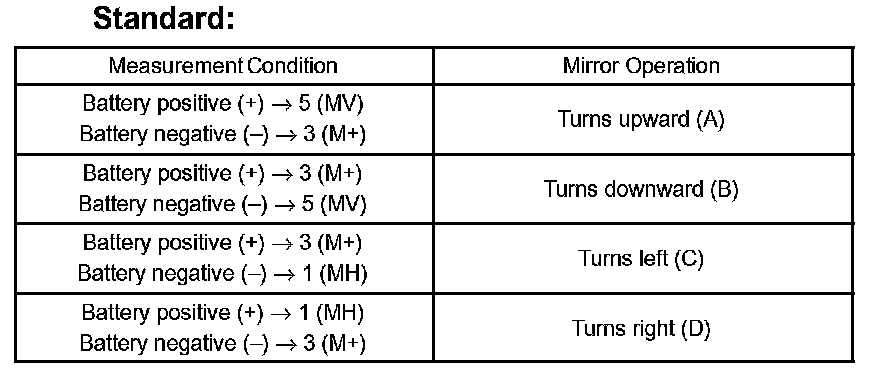

b. Apply battery voltage to the mirror terminals and check operation of the mirror face, as shown in the table and illustration.
If the result is not as specified, replace the mirror assembly.




3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
a. Disconnect the mirror connector.

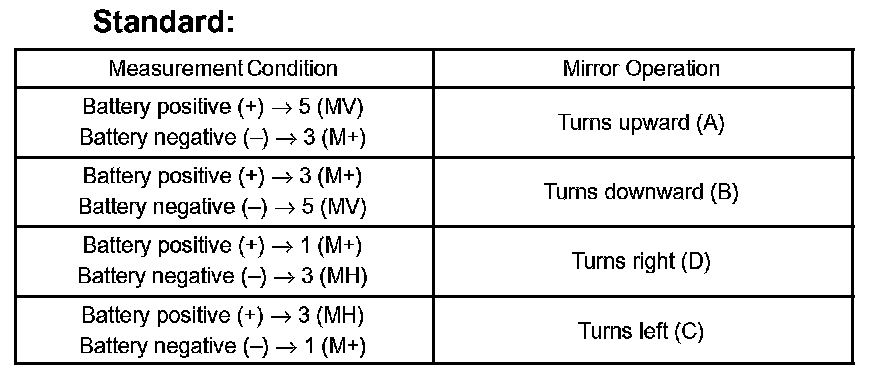

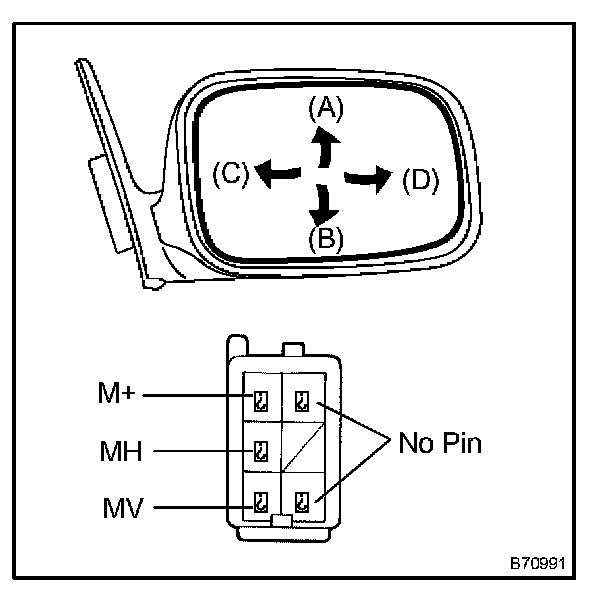

b. Apply battery voltage to the mirror terminals and check operation of the mirror face, as shown in the table and illustration.
If the result is not as specified, replace the mirror assembly.
