All Doors Cannot Be Locked/Unlocked Simultaneously

ALL DOORS CANNOT BE LOCKED/UNLOCKED SIMULTANEOUSLY

CIRCUIT DESCRIPTION

The door control relay drives the door lock motors with switch signals from the master switch, the door control switch, and the driver/passenger side door key cylinder.

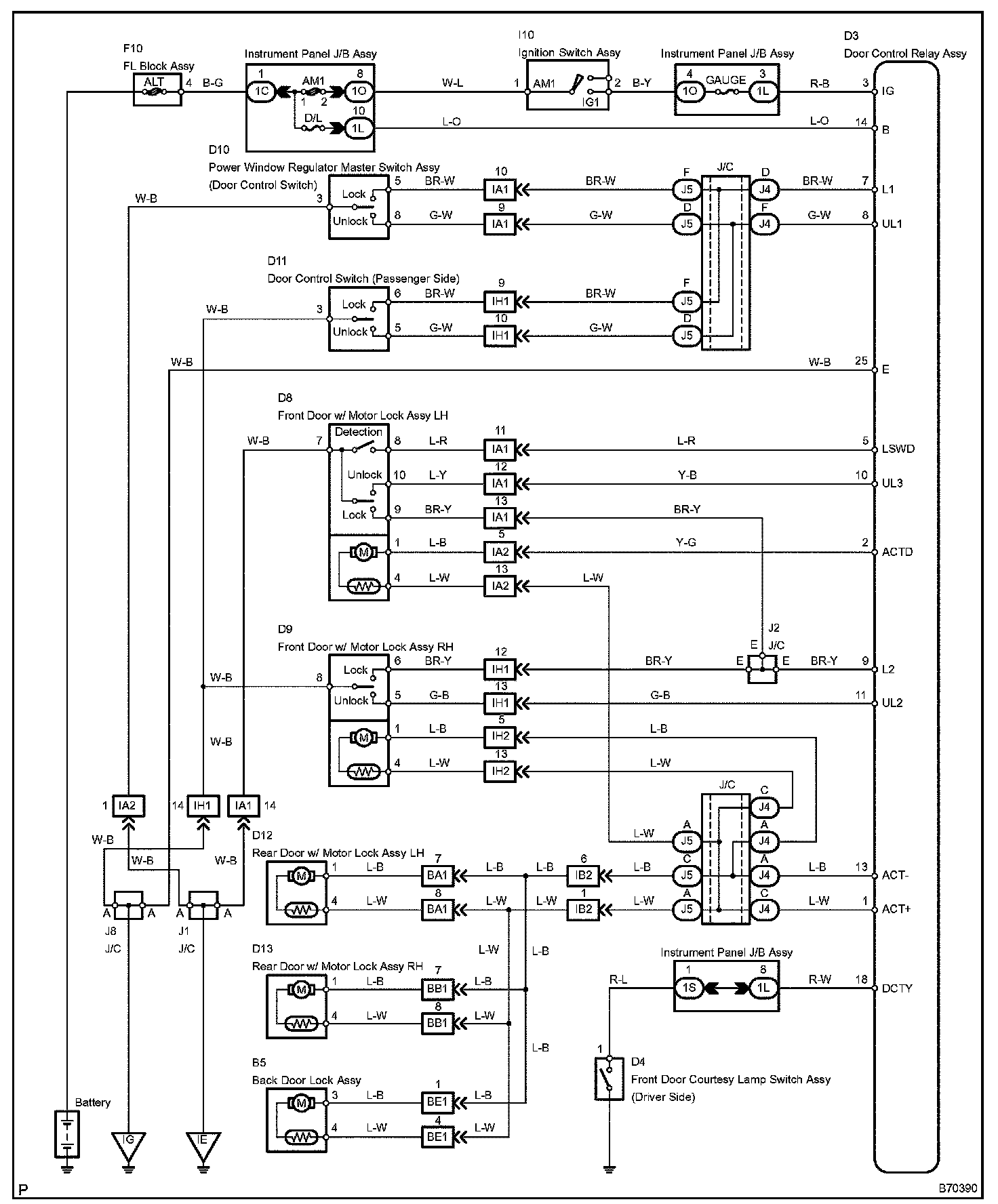

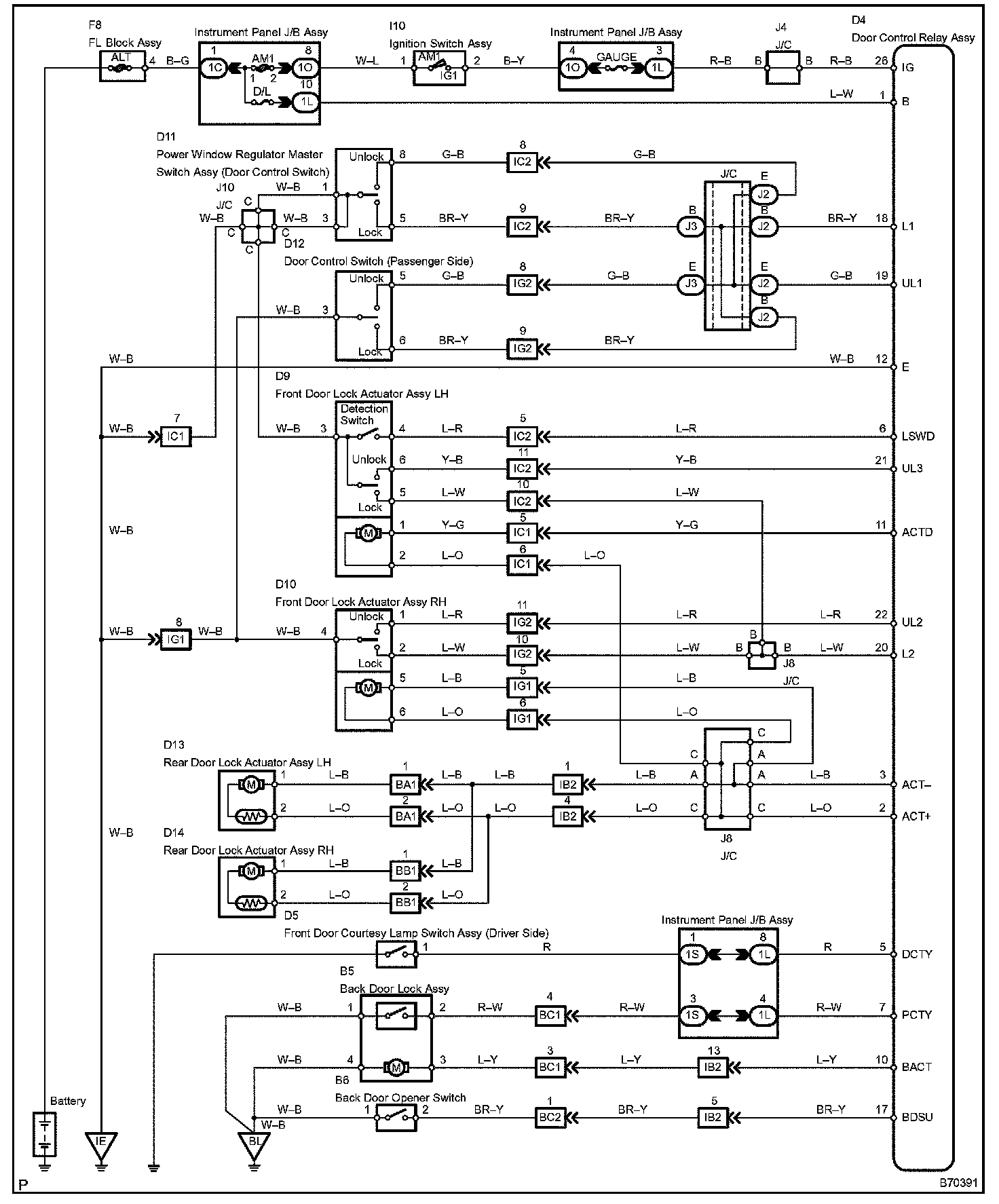

Wiring Diagram:

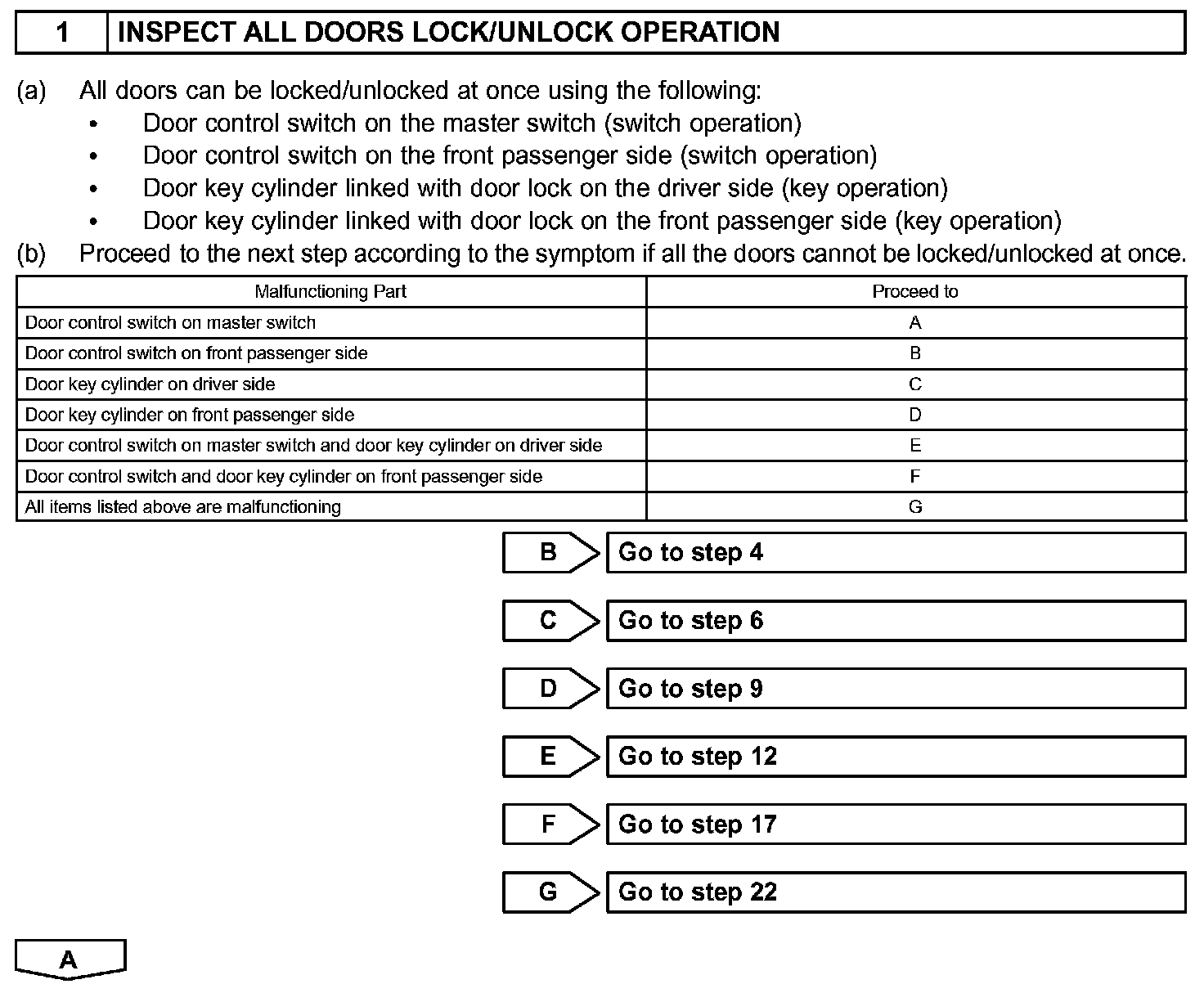

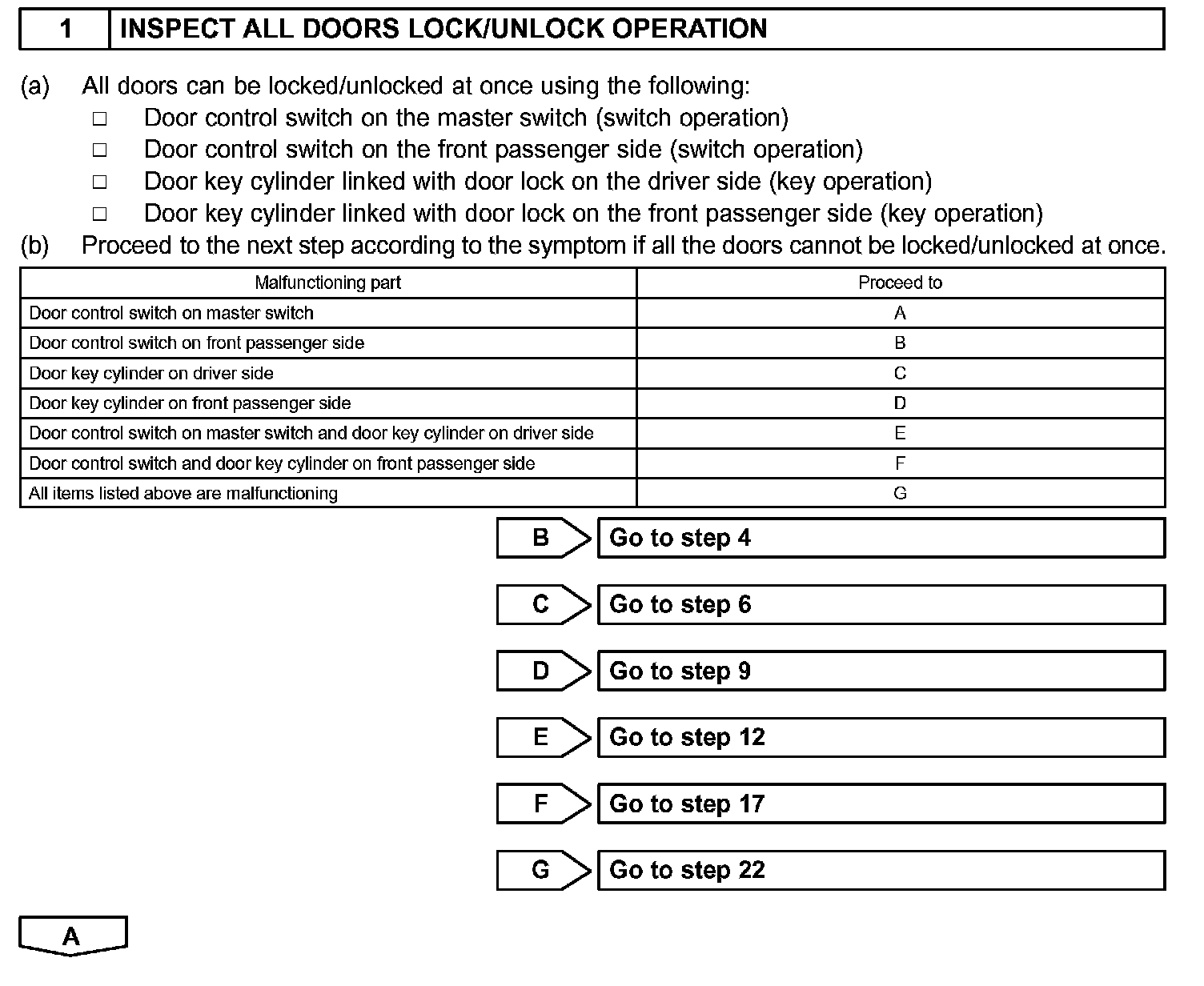

Step 1:

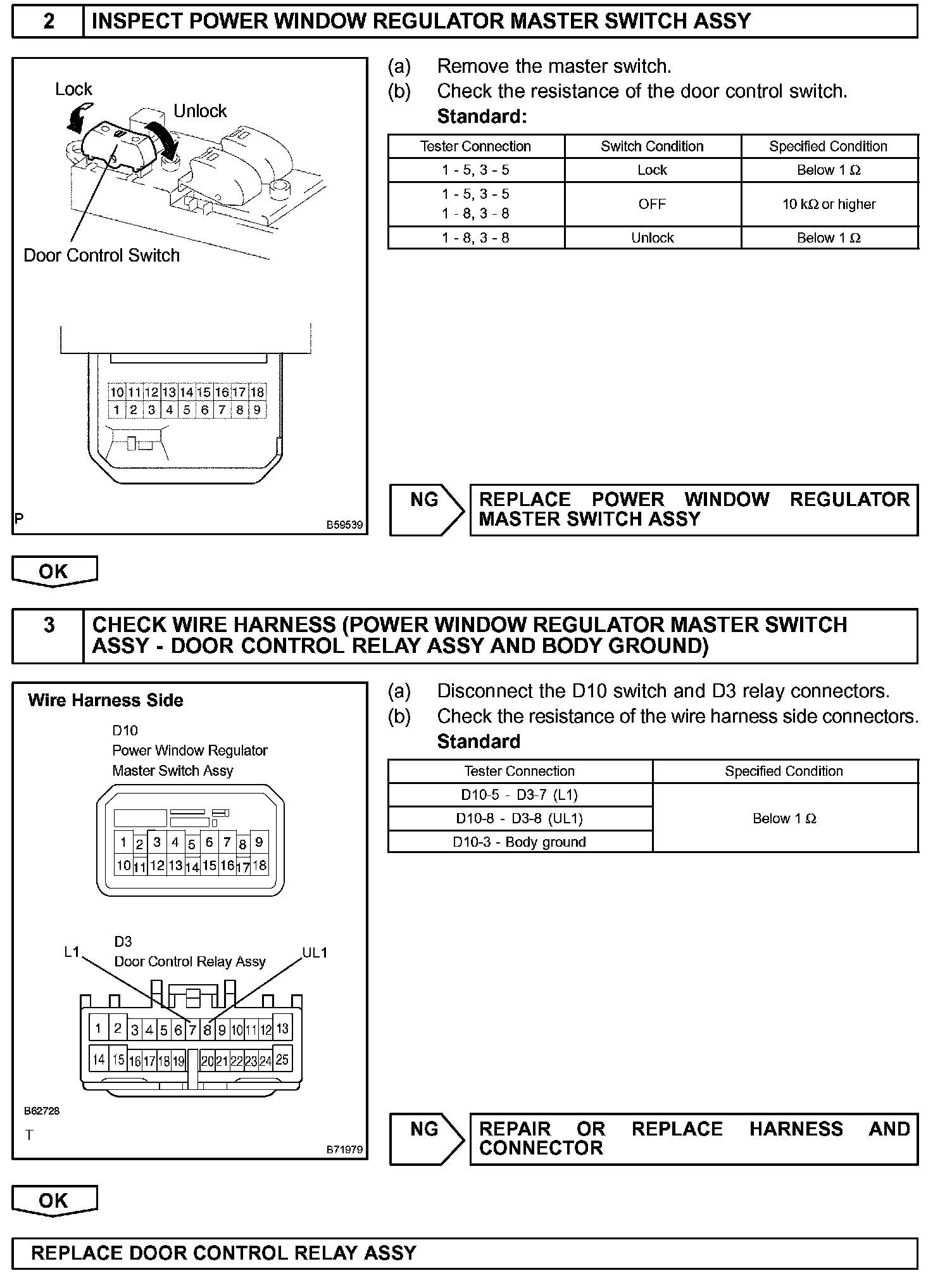

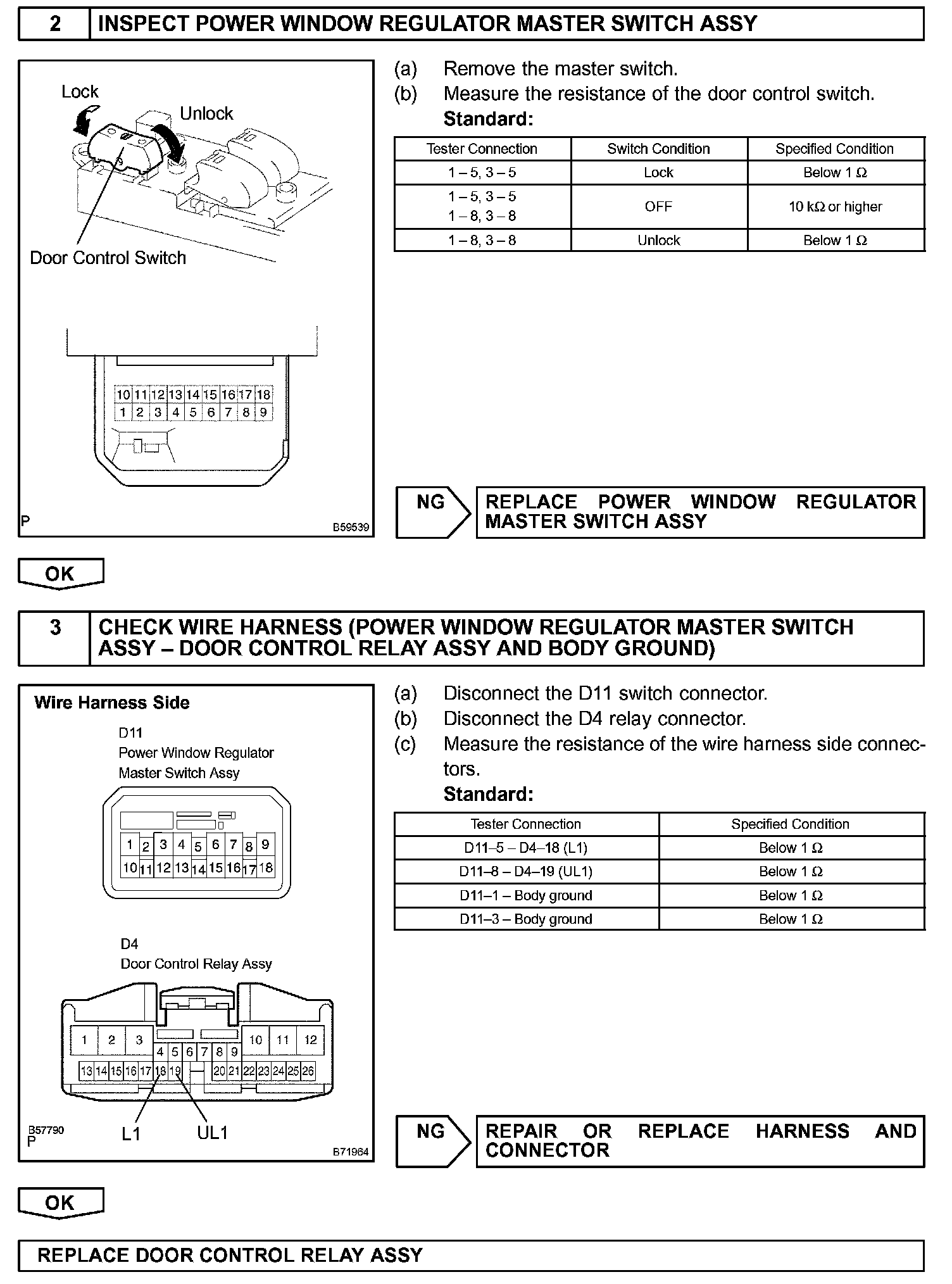

Step 2 - 3:

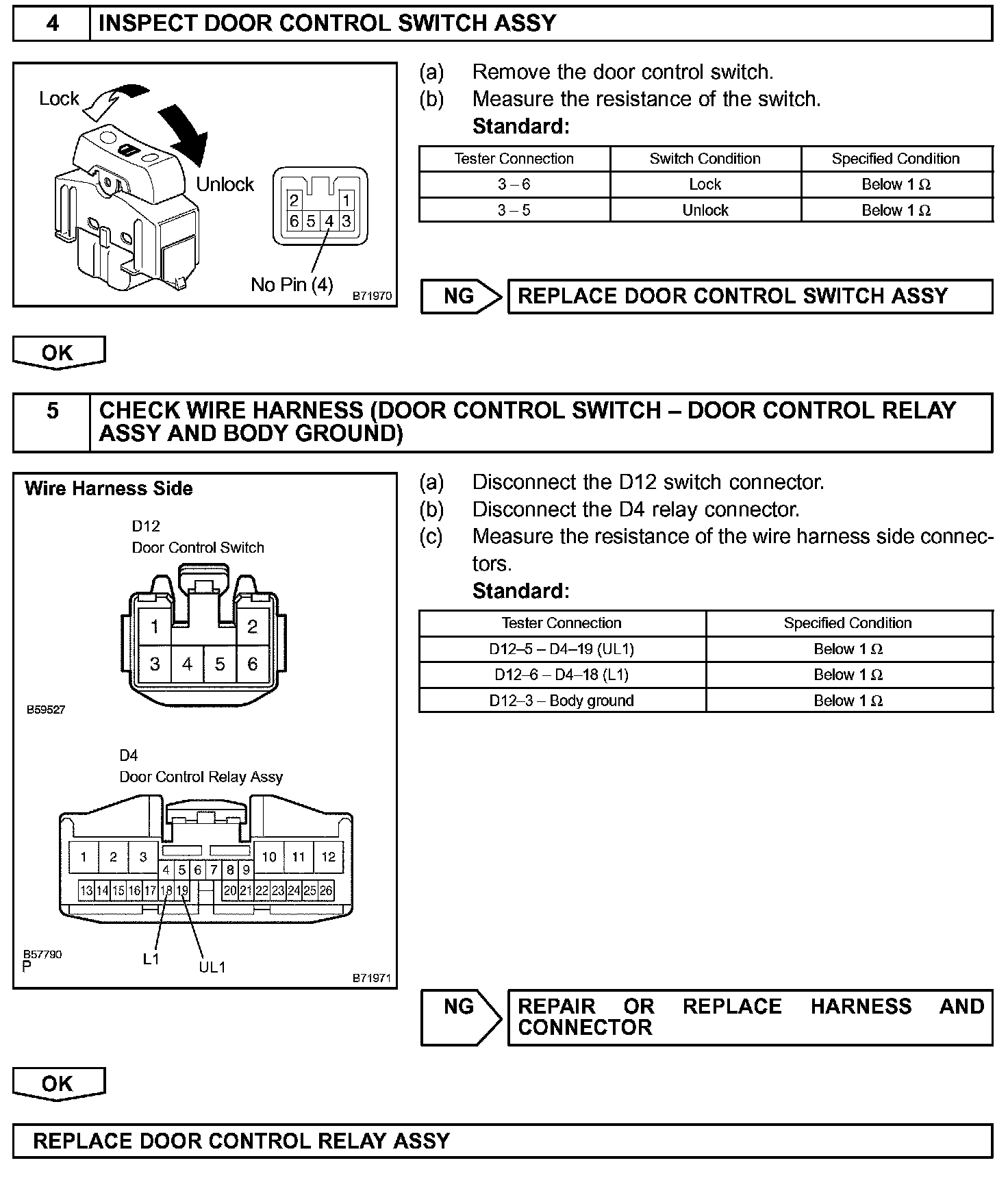

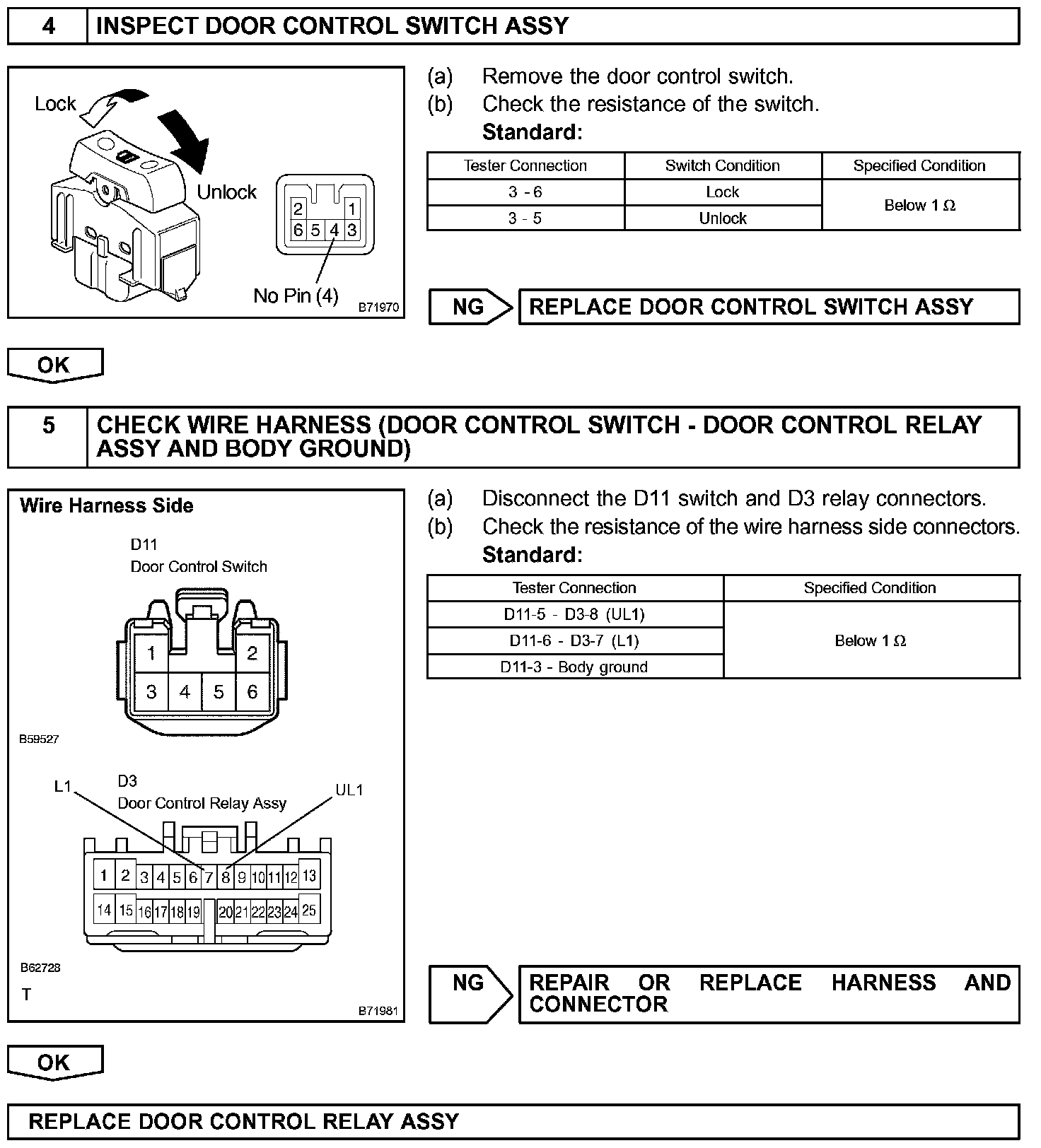

Step 4 - 5:

Step 6 - 7:

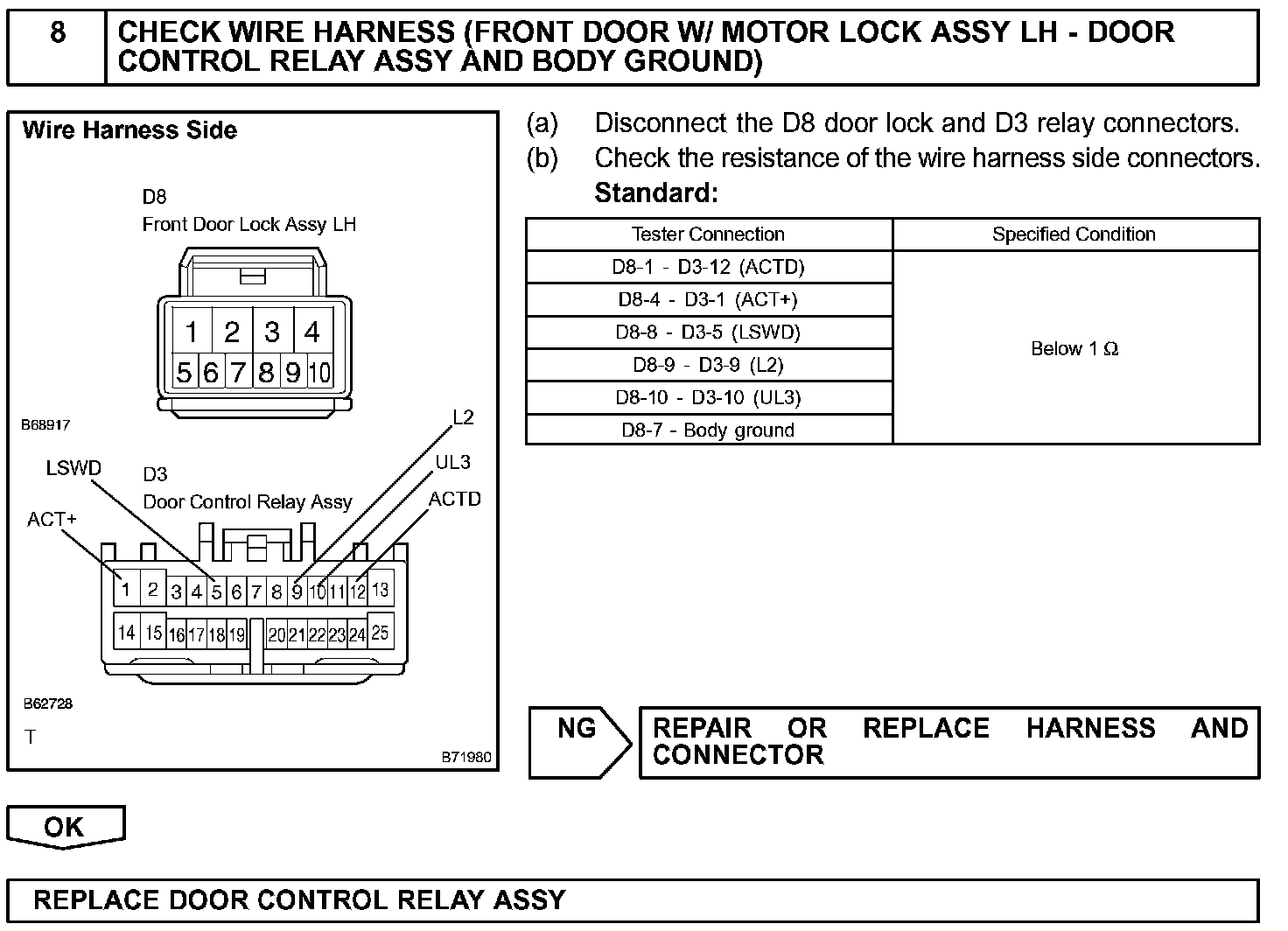

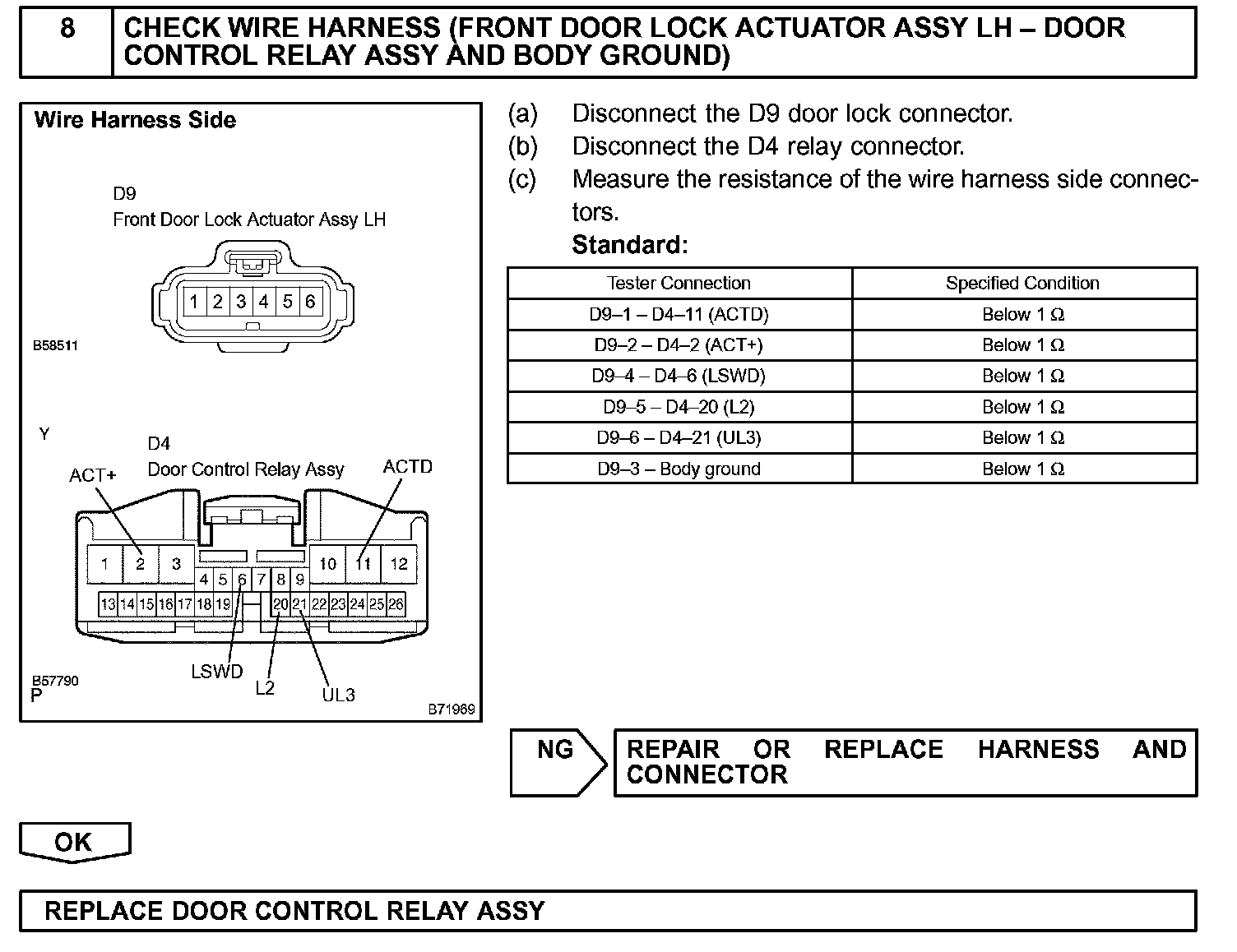

Step 8:

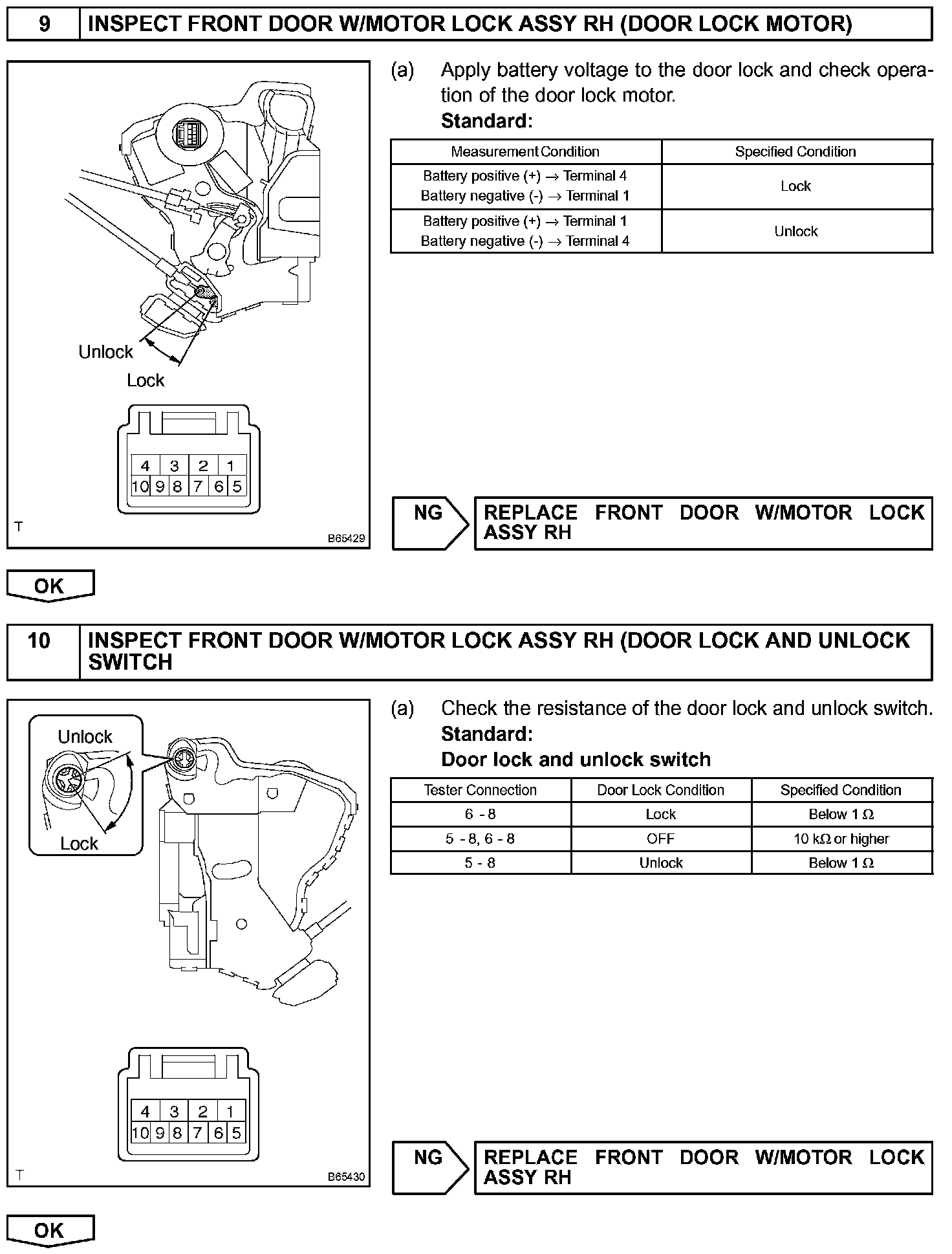

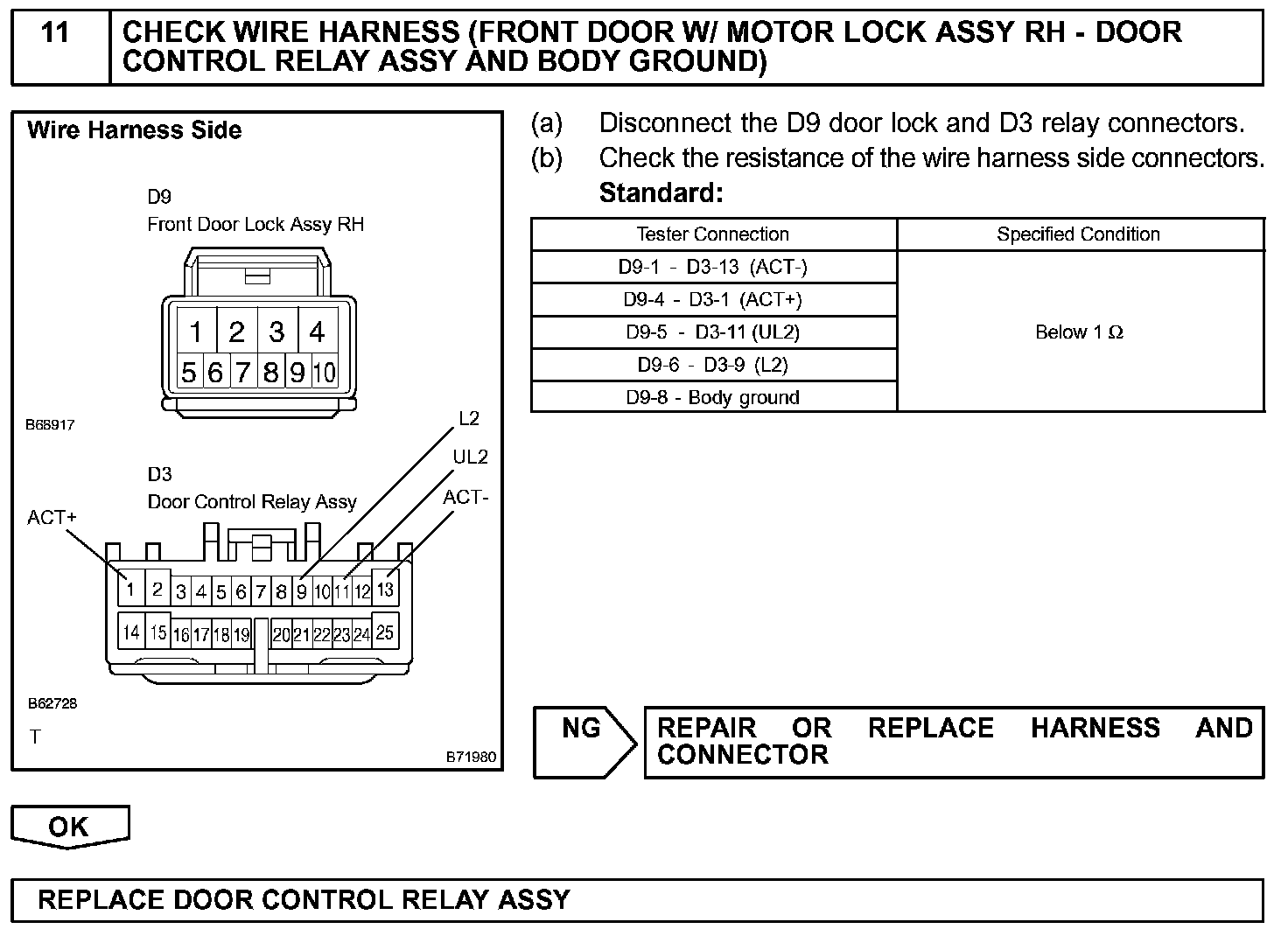

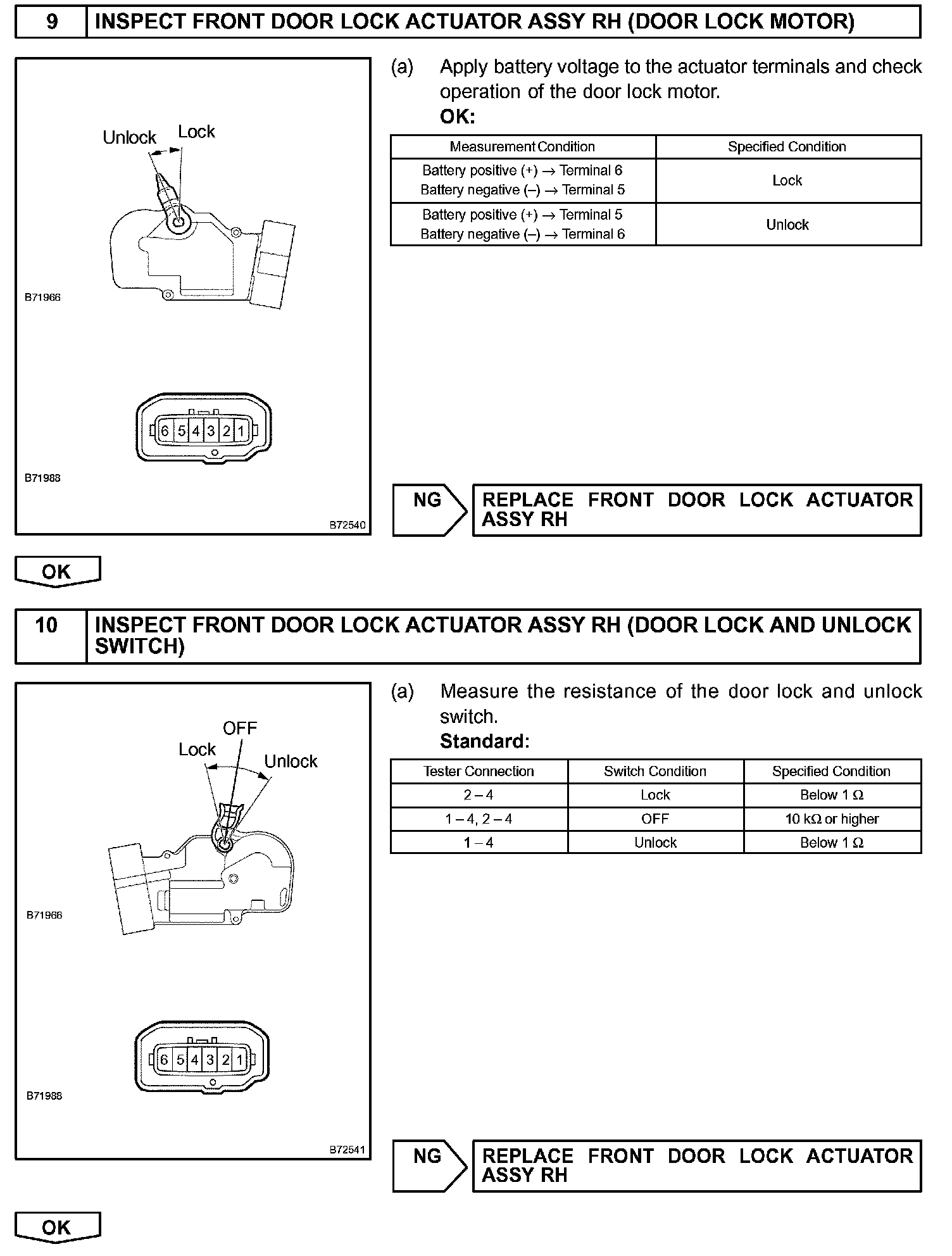

Step 9 - 10:

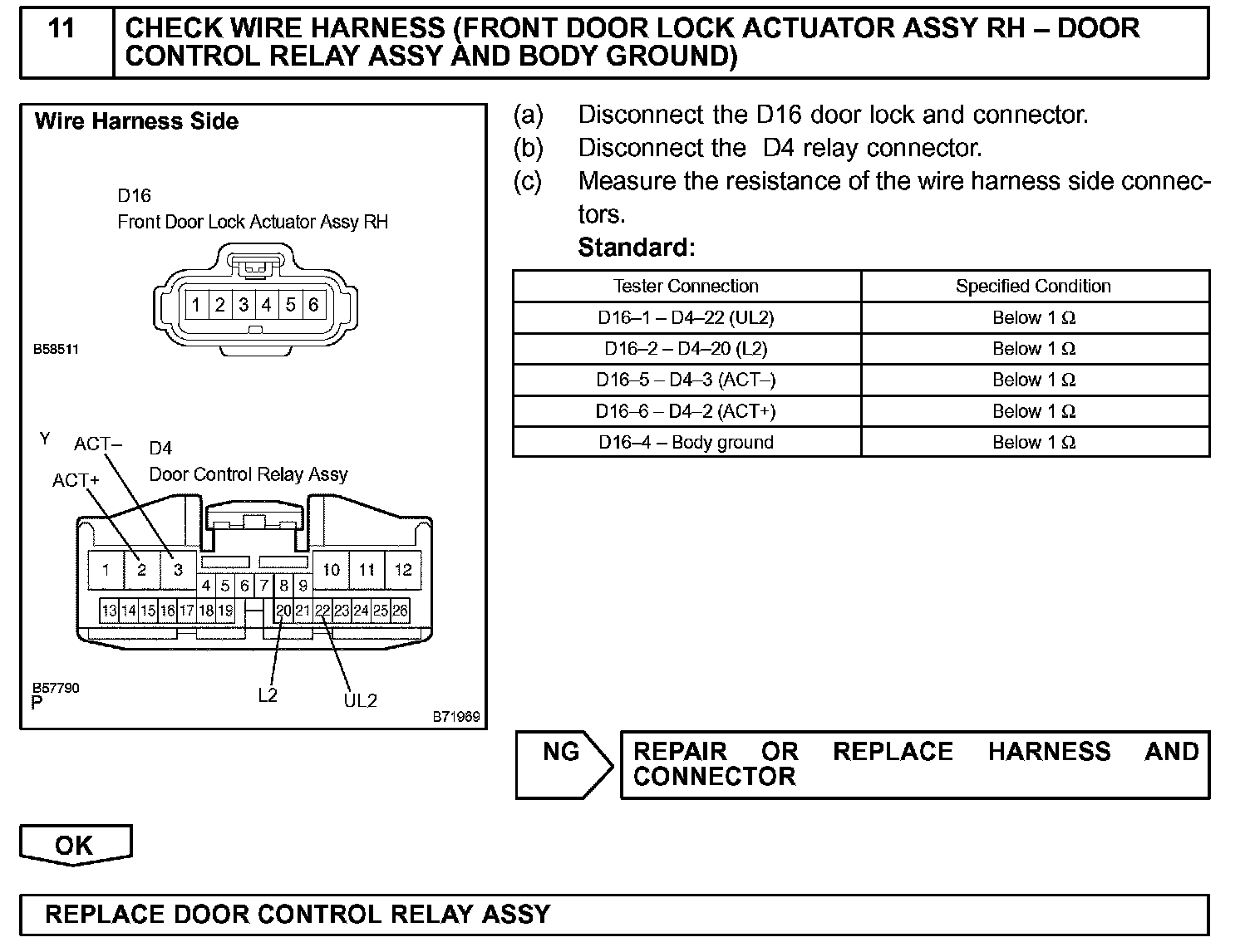

Step 11:

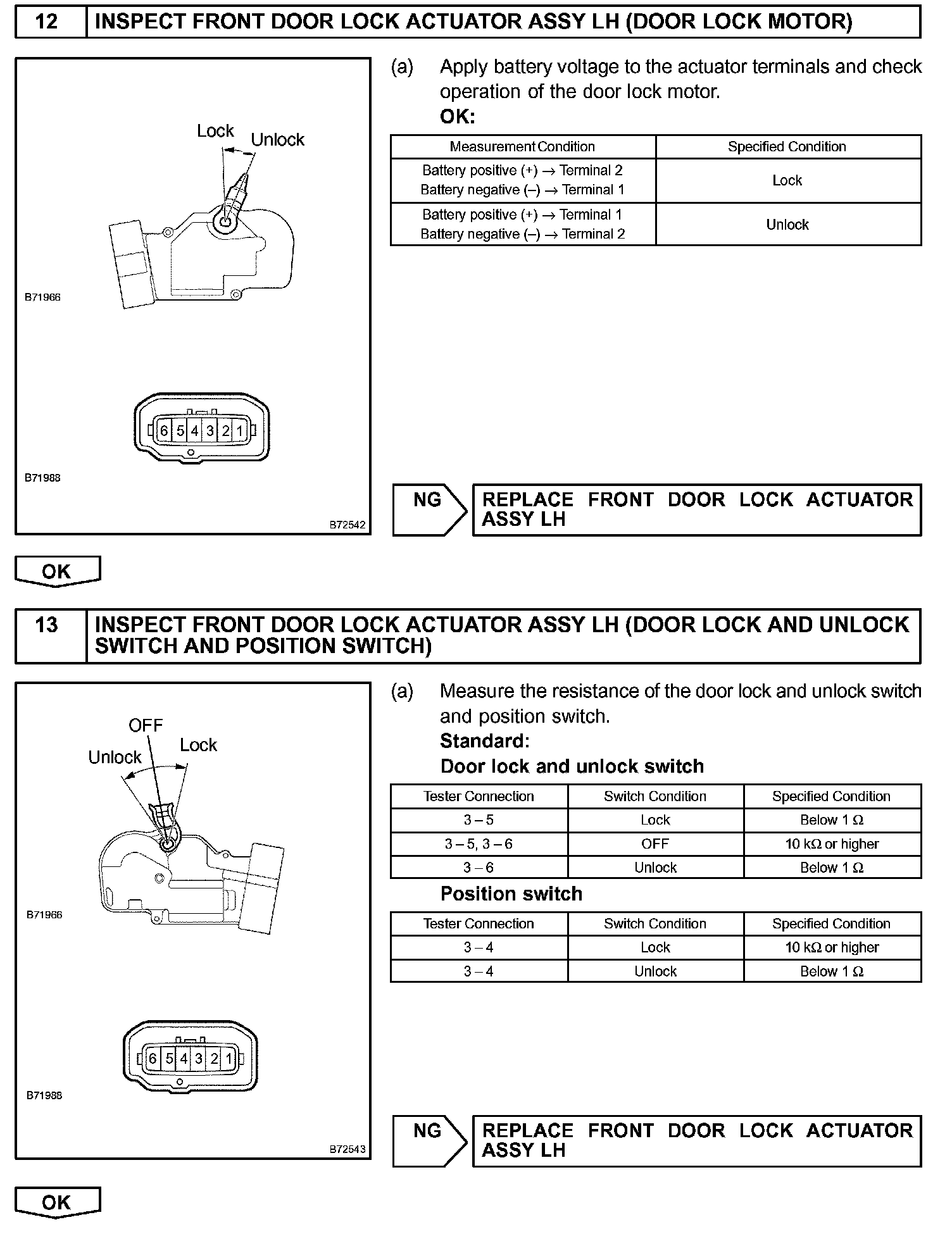

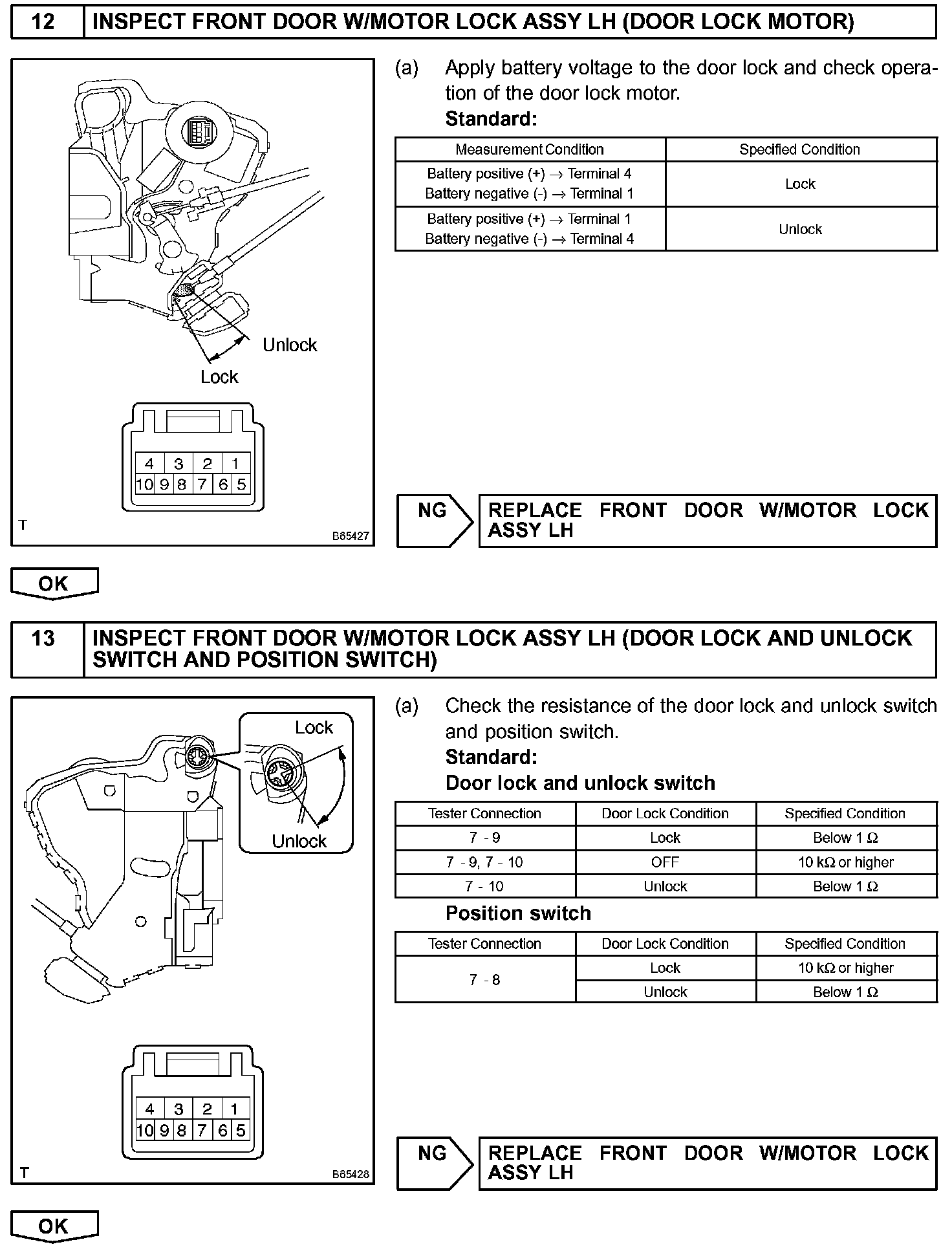

Step 12 - 13:

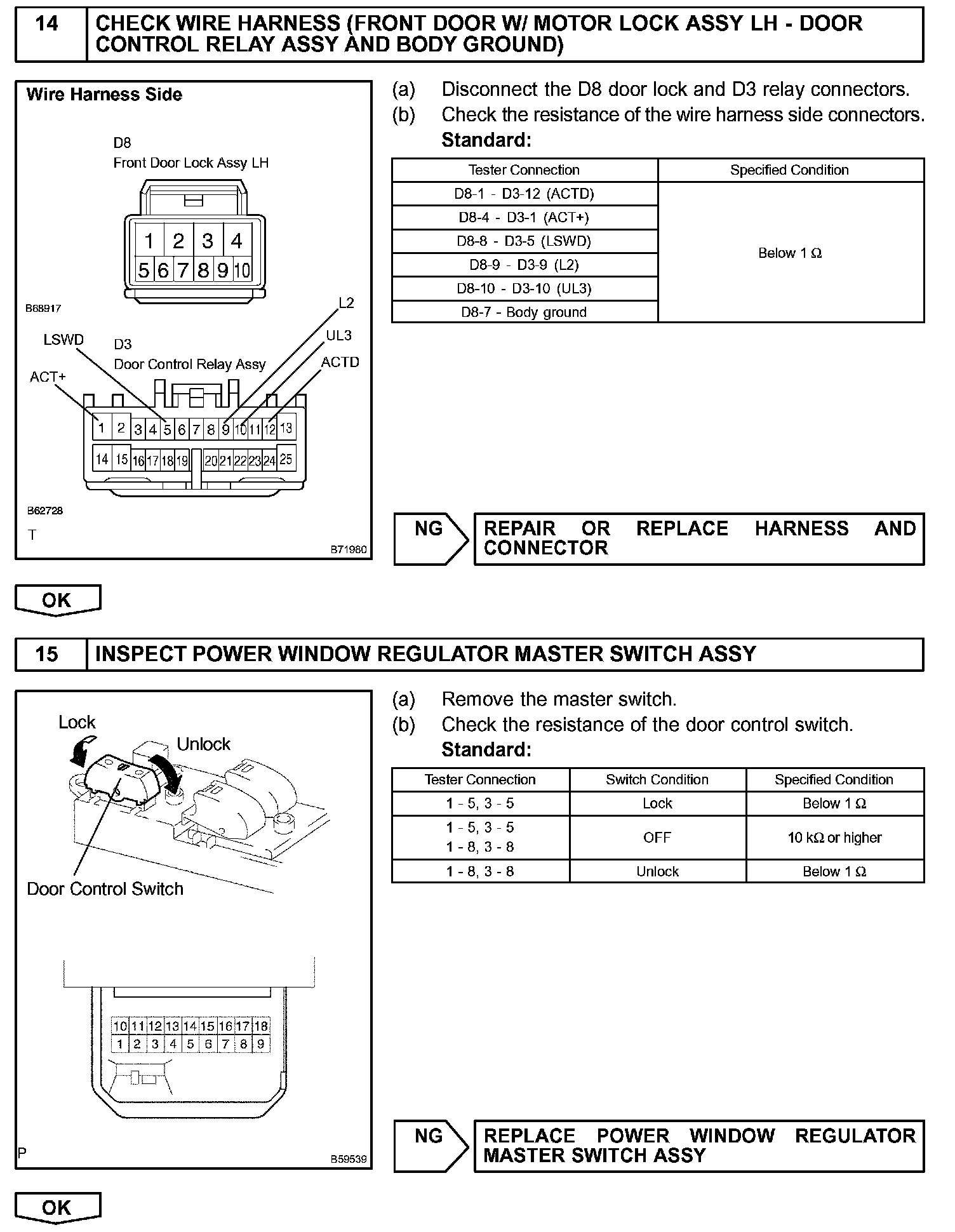

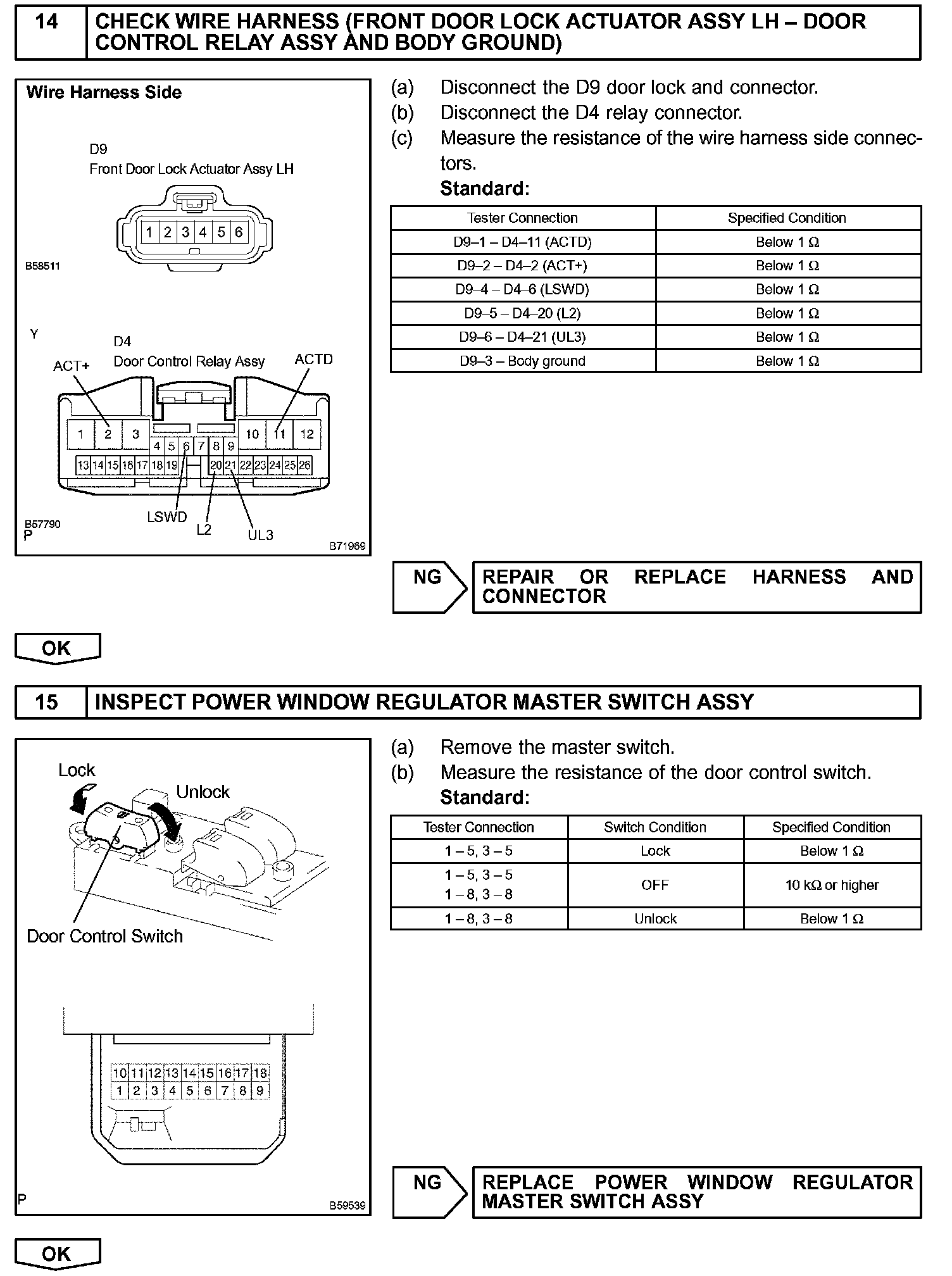

Step 14 - 15:

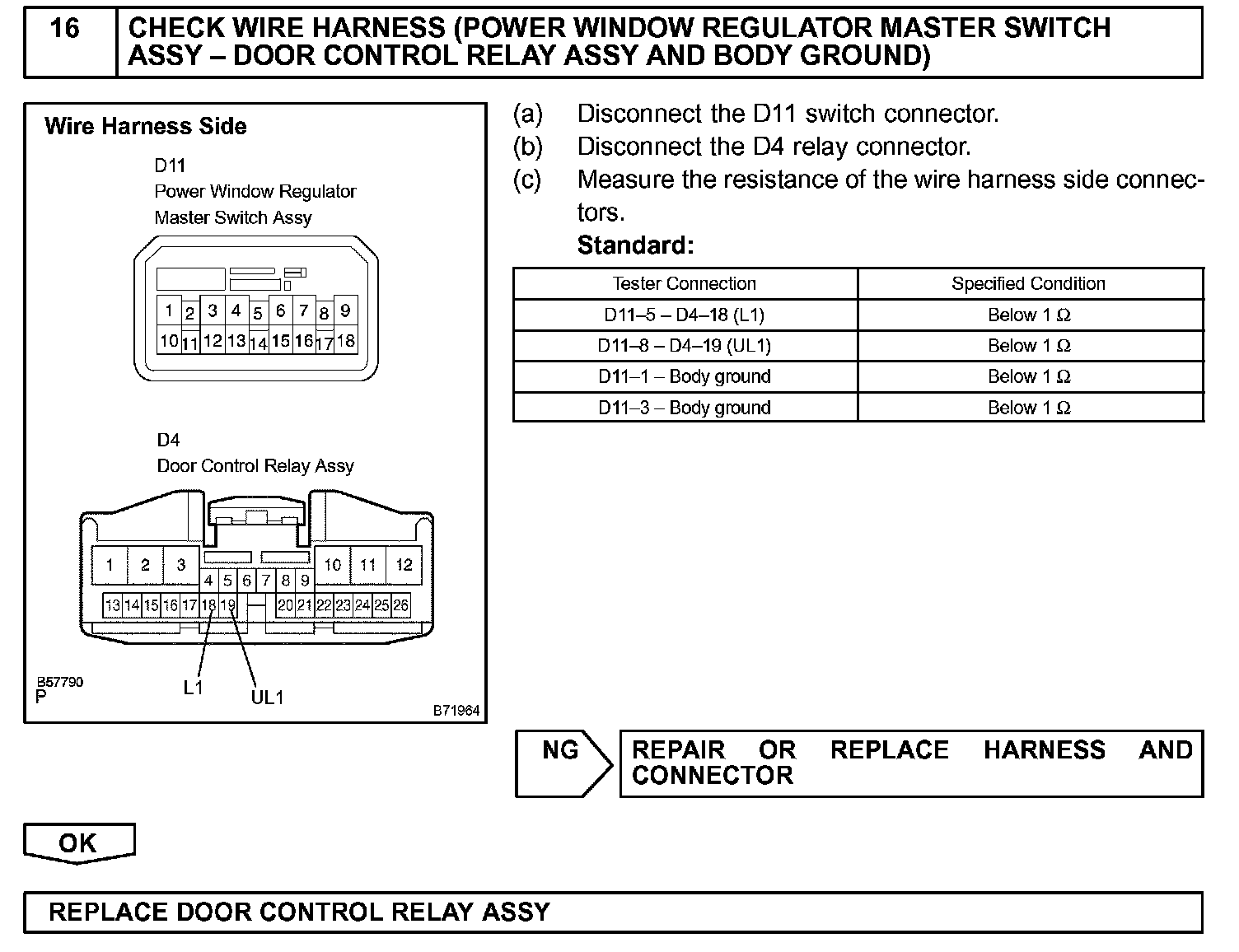

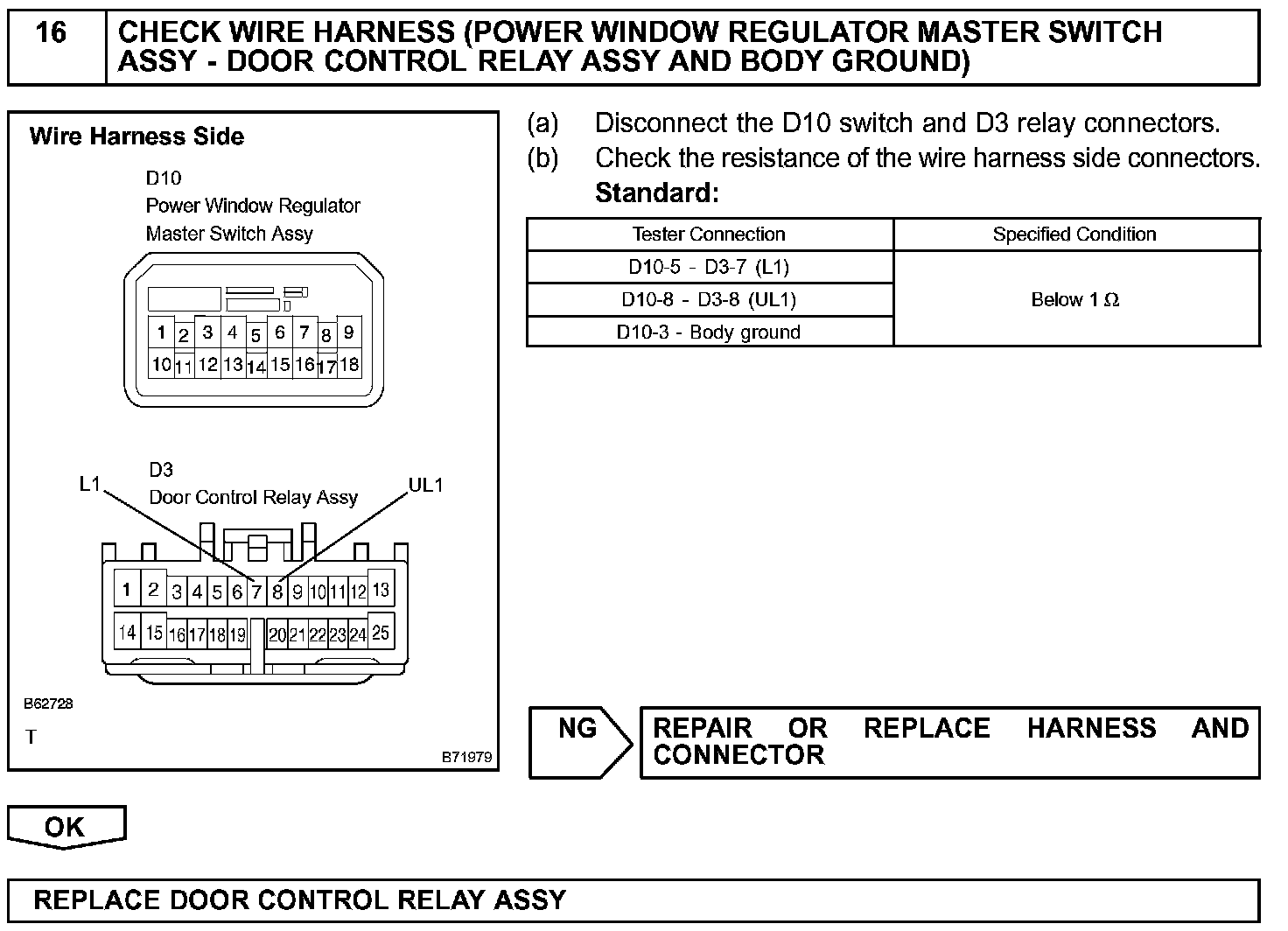

Step 16:

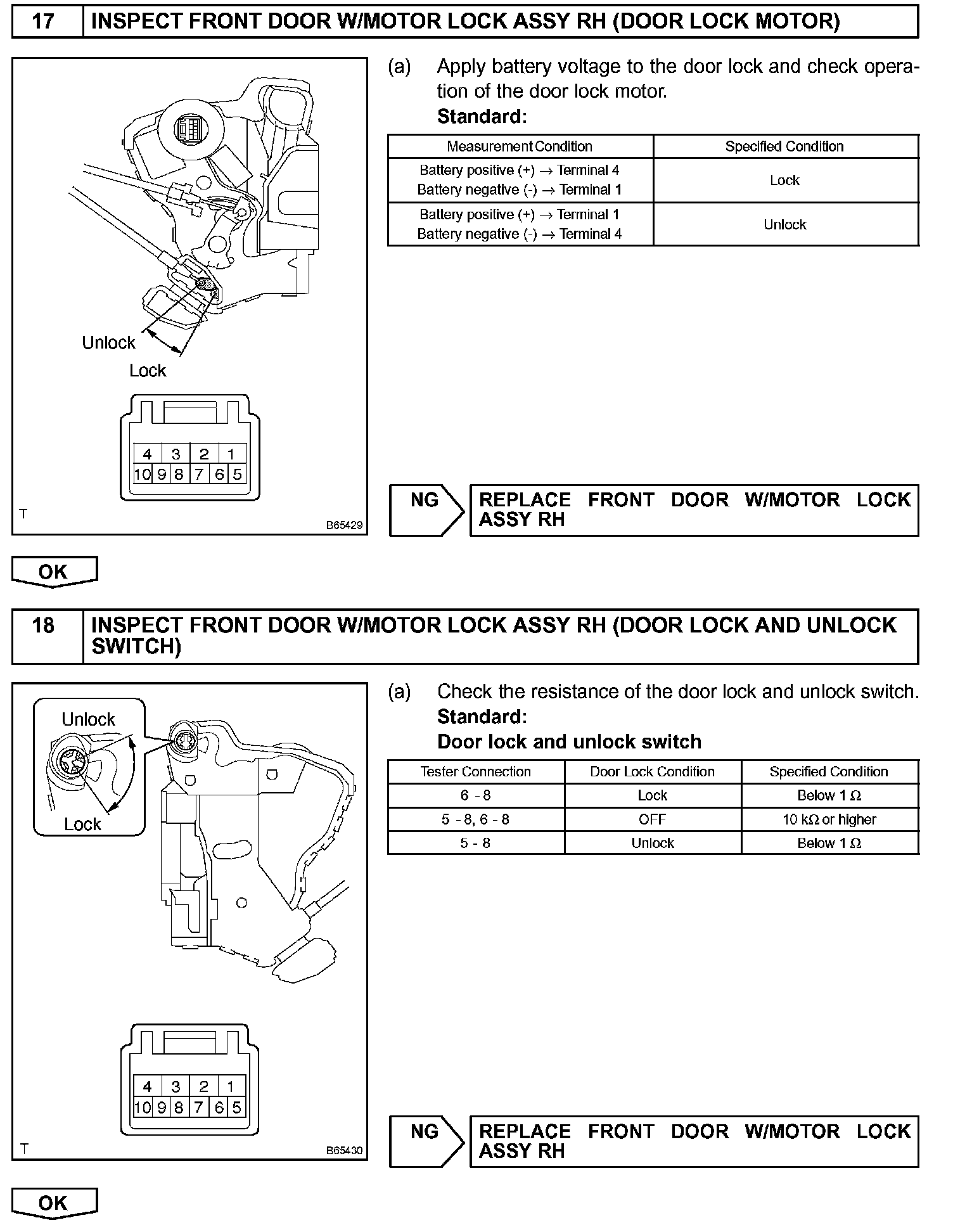

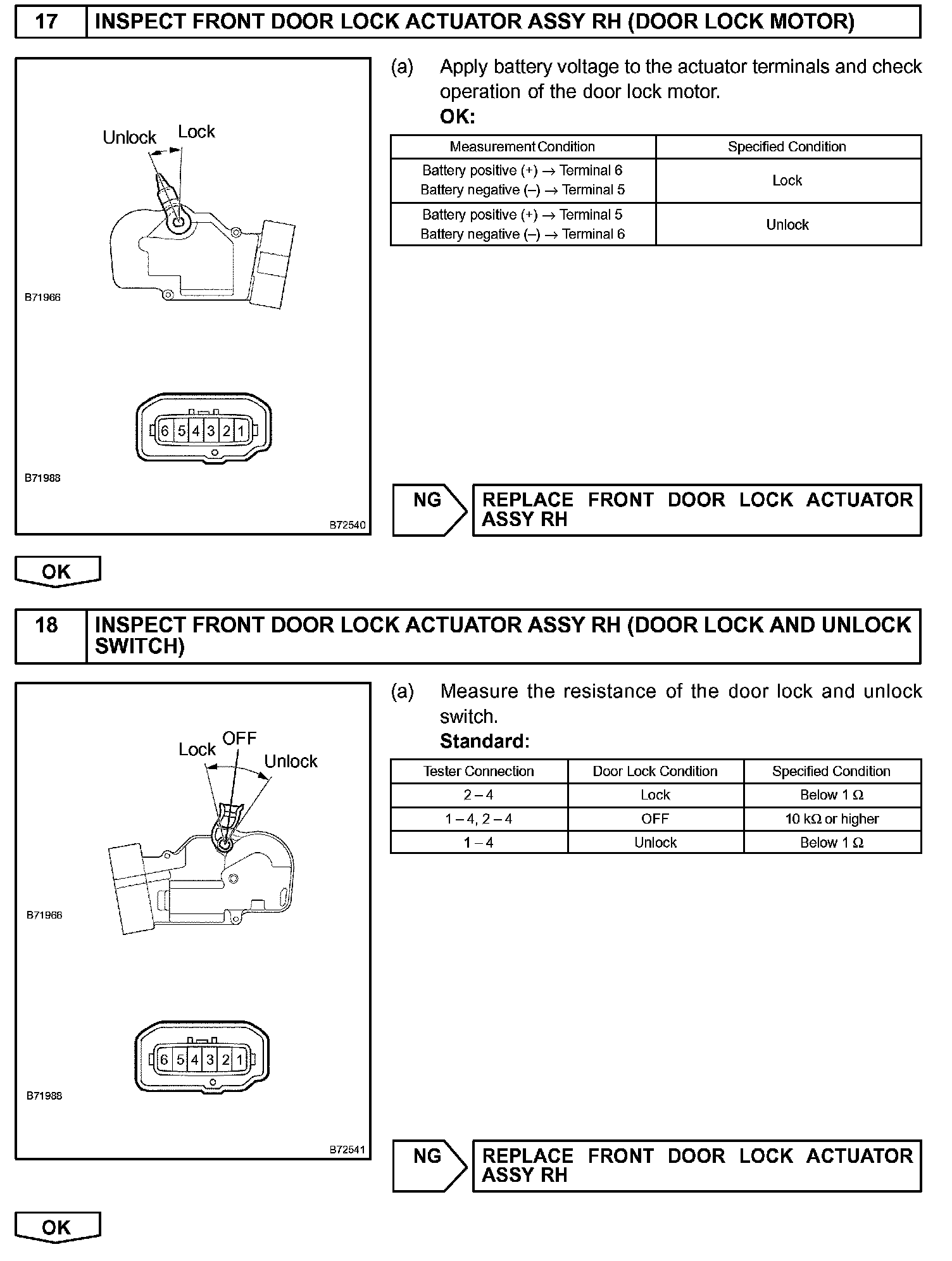

Step 17 - 18:

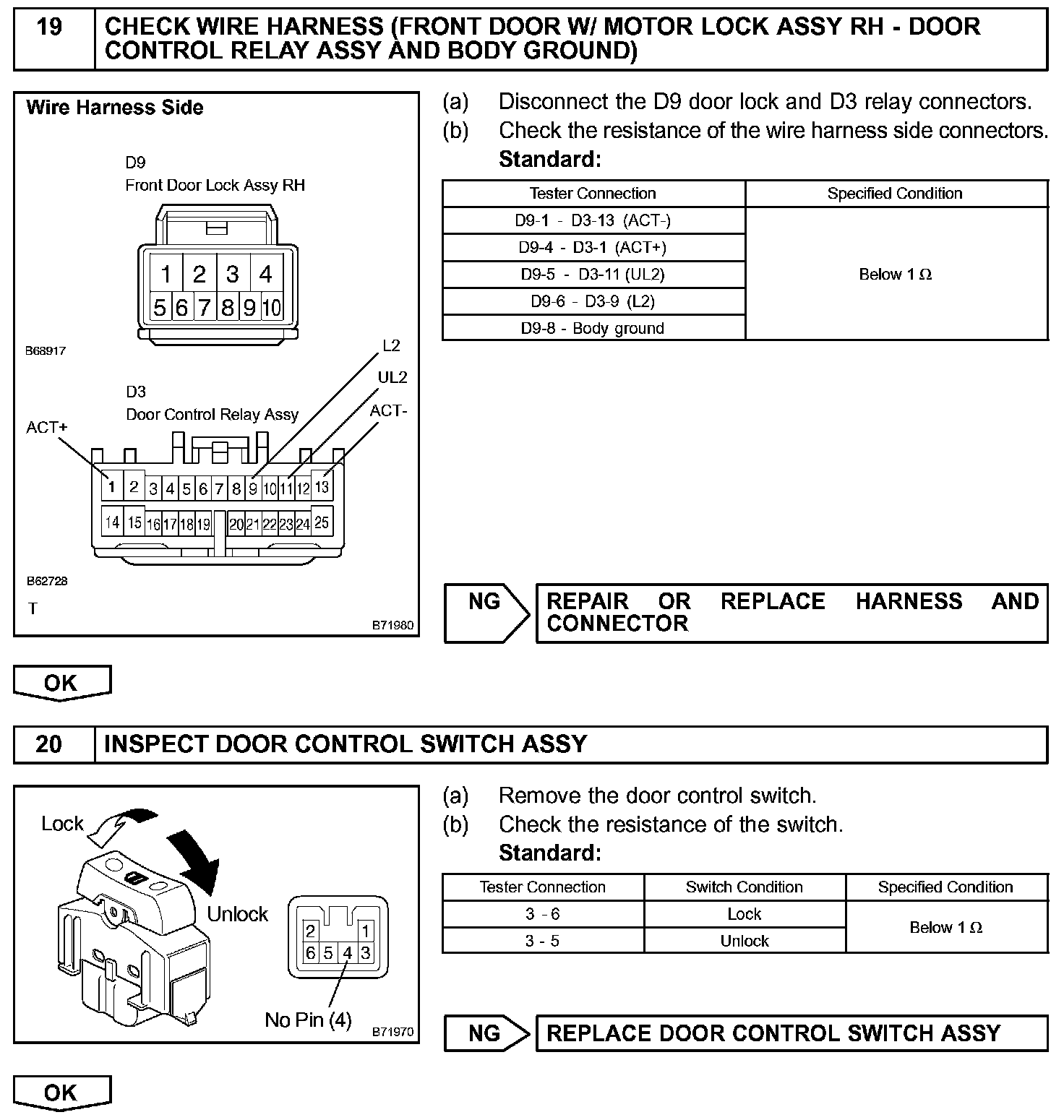

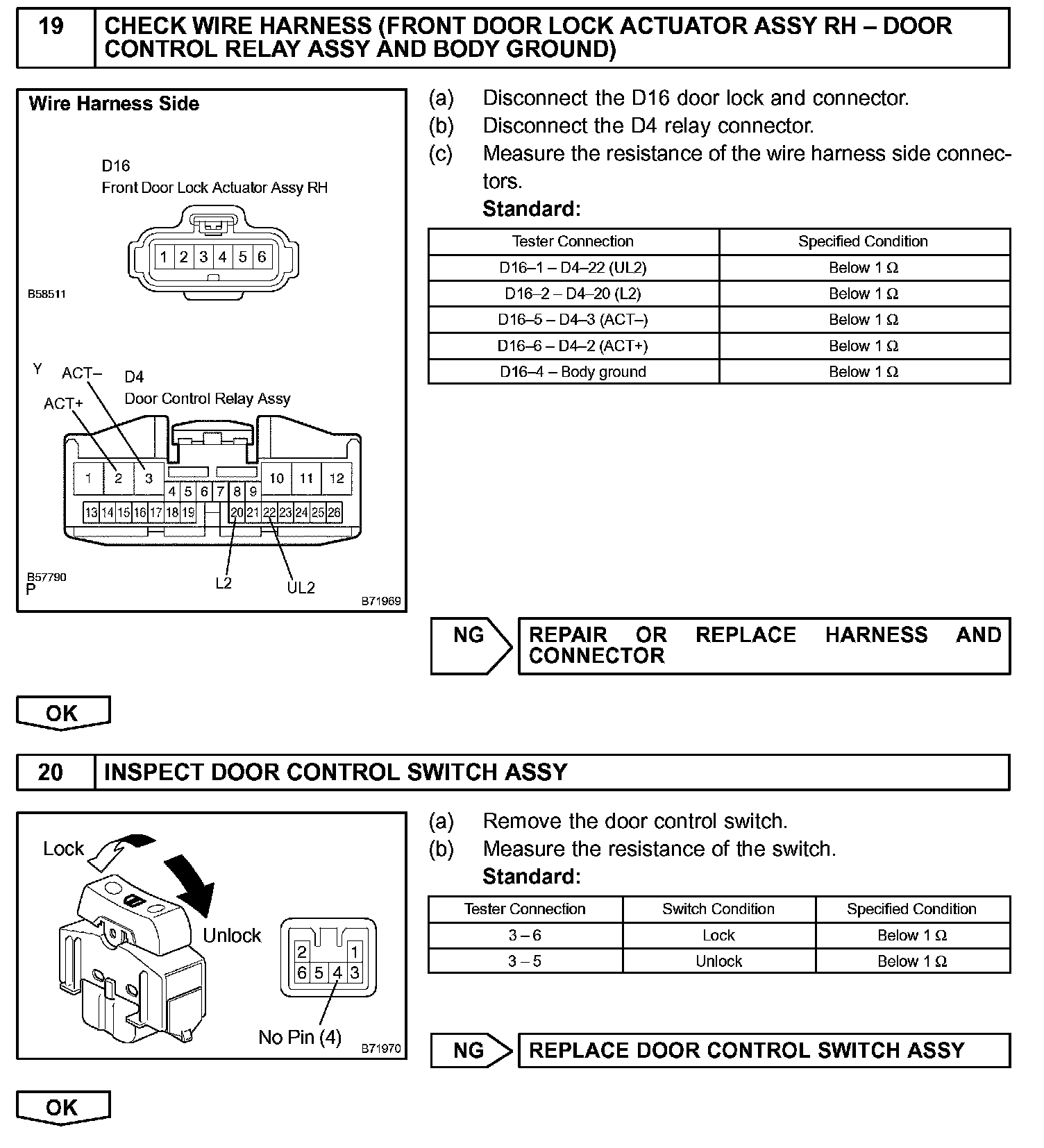

Step 19 - 20:

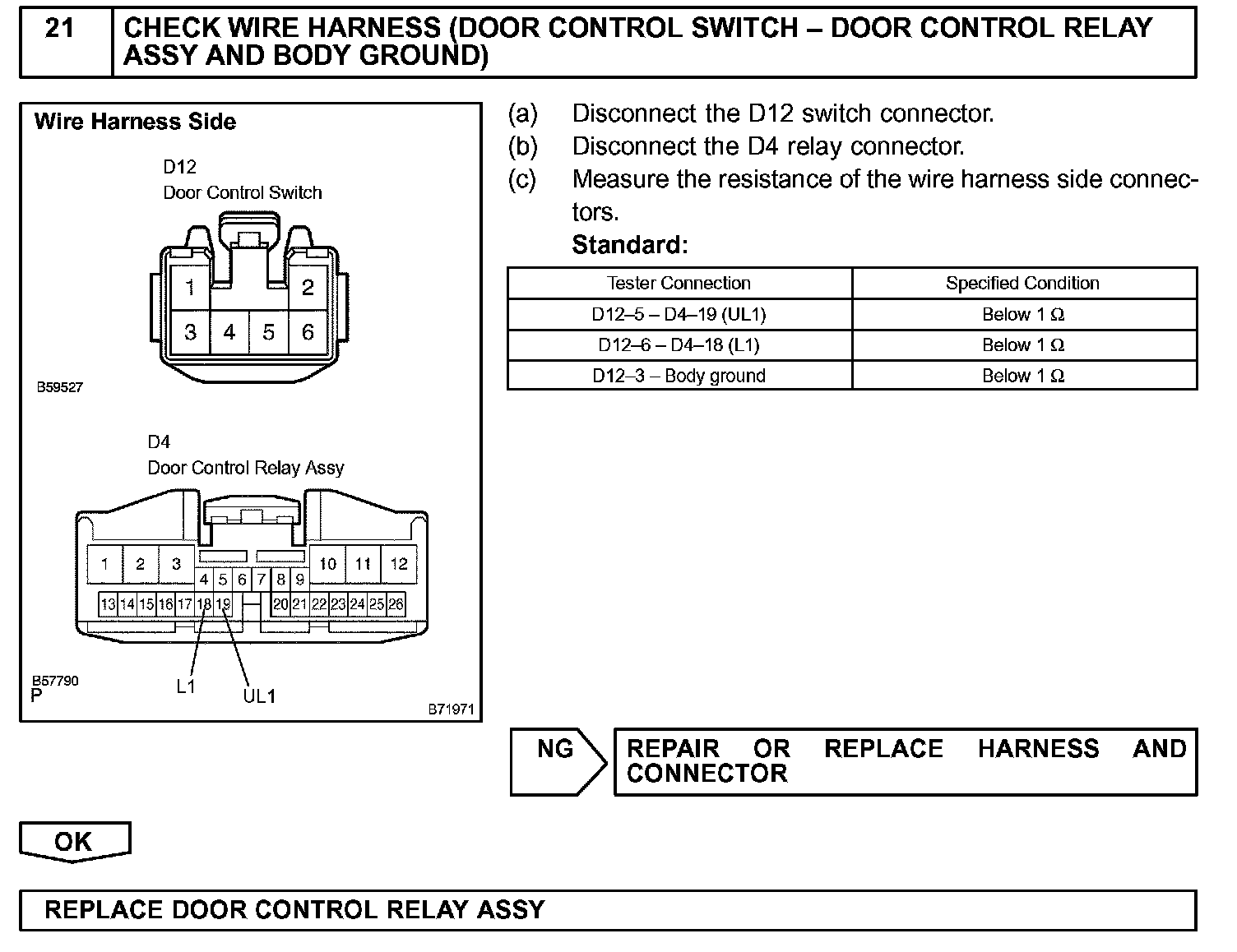

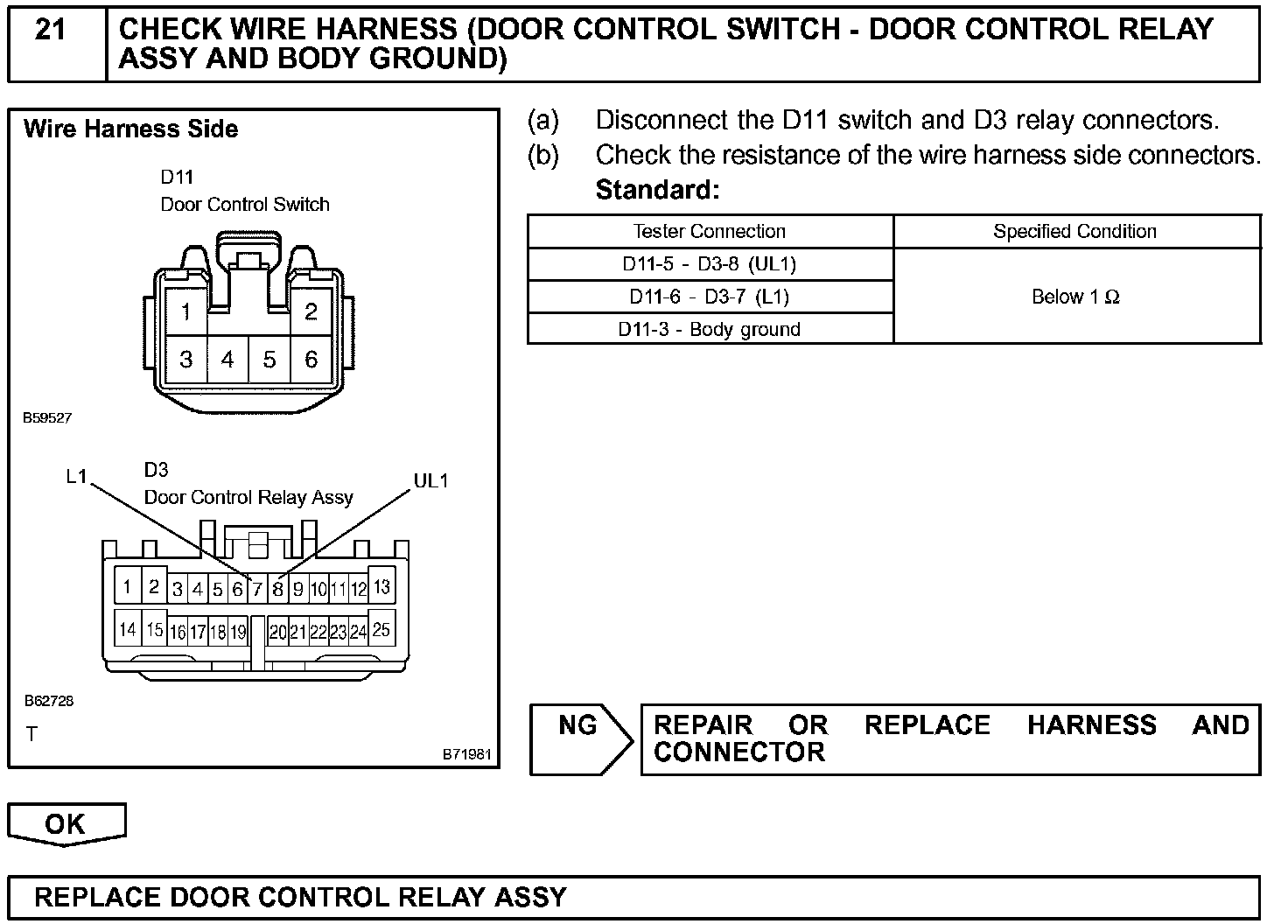

Step 21:

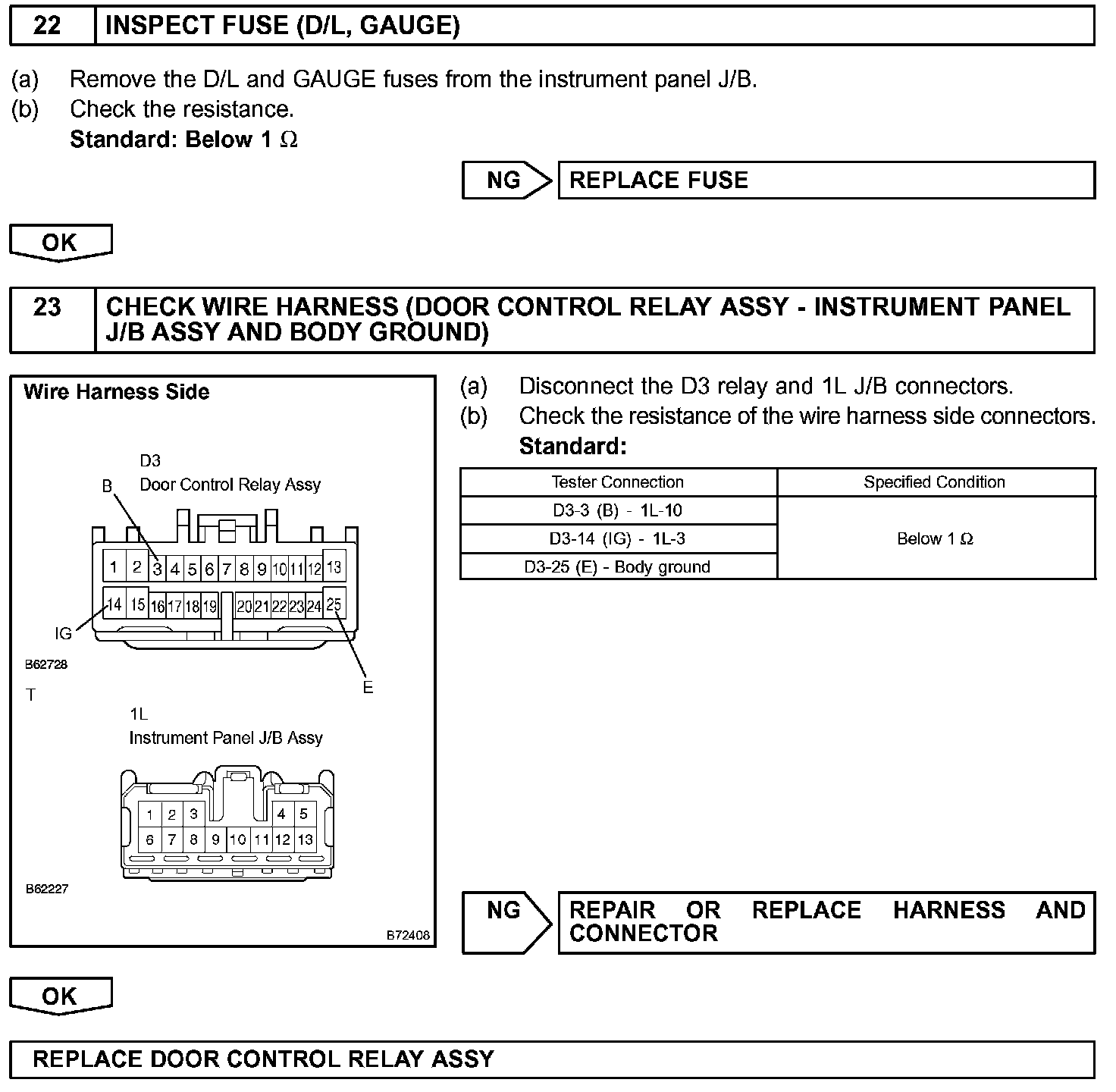

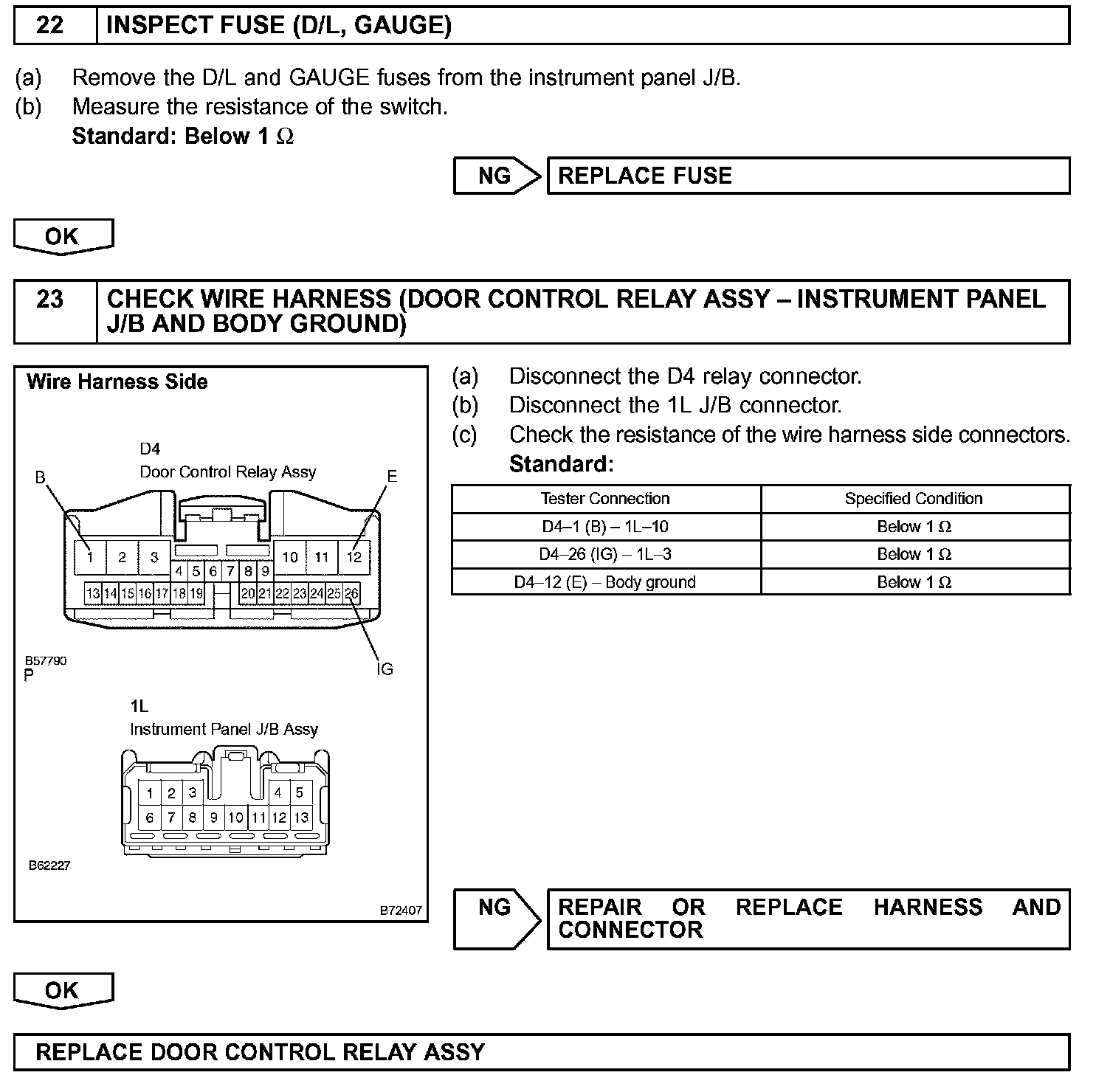

Step 22 - 23:

INSPECTION PROCEDURE
