Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. CHECK DOOR CONTROL RELAY ASSEMBLY

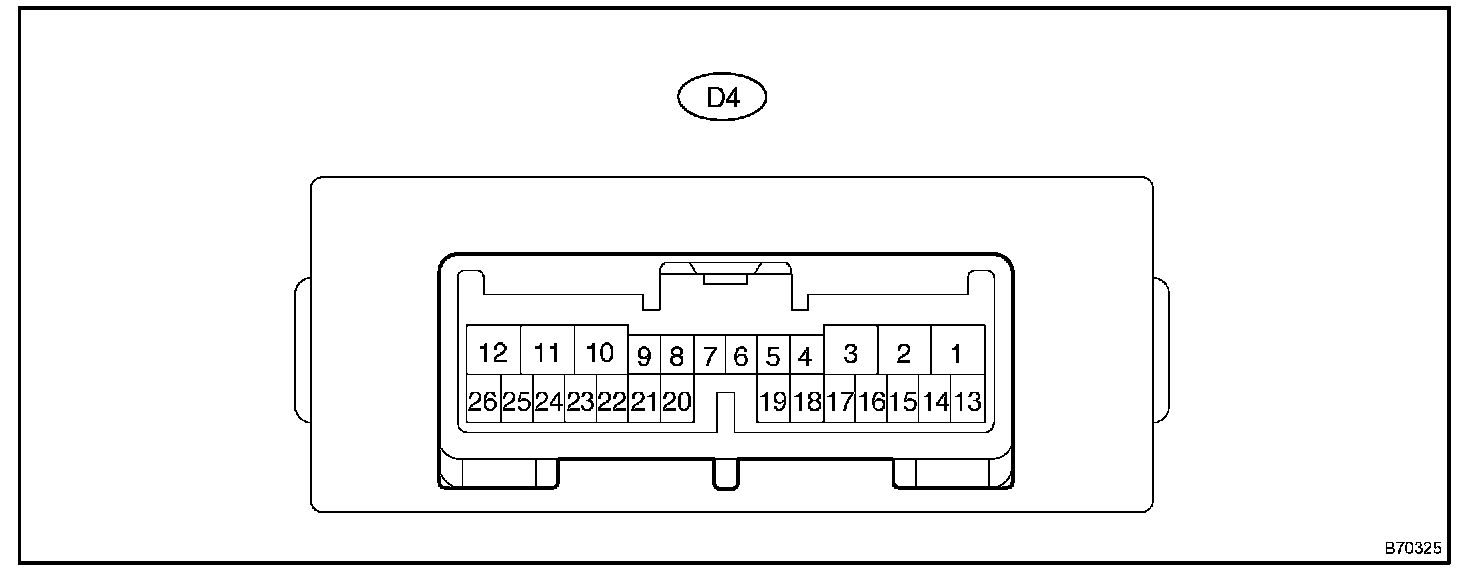

a. Disconnect the D4 relay connector.

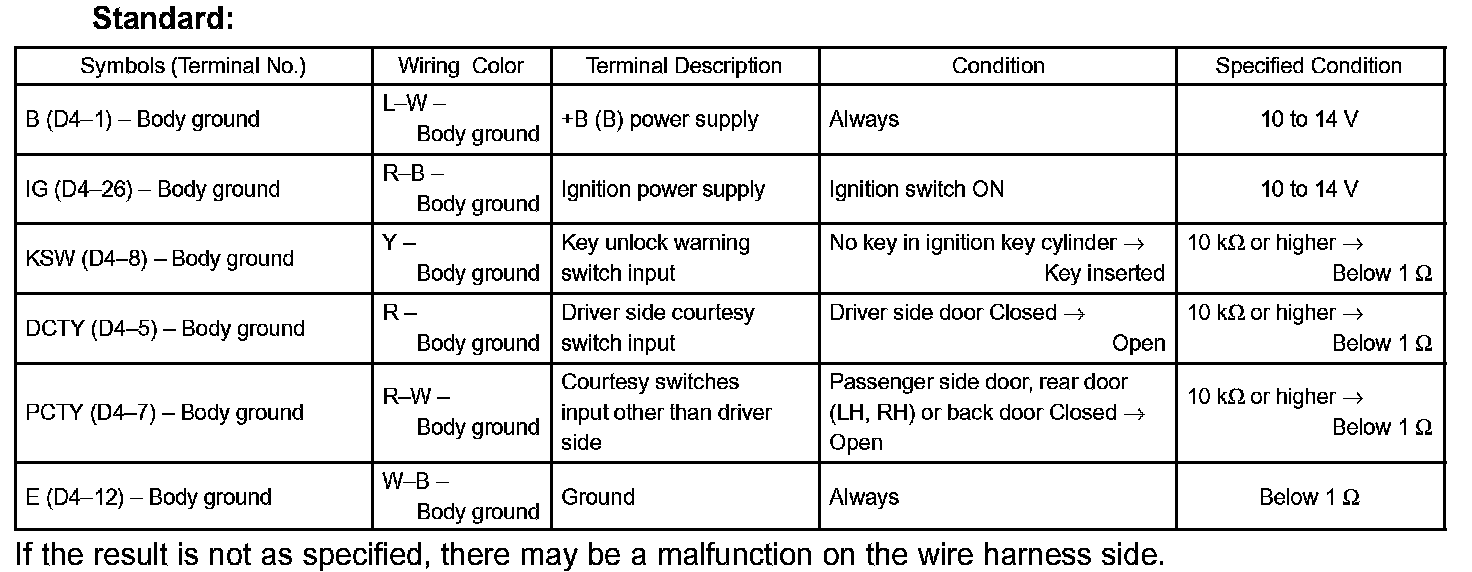

b. Measure the voltage and resistance of each terminal of the wire harness side connector.
c. Reconnect the D4 relay connector.

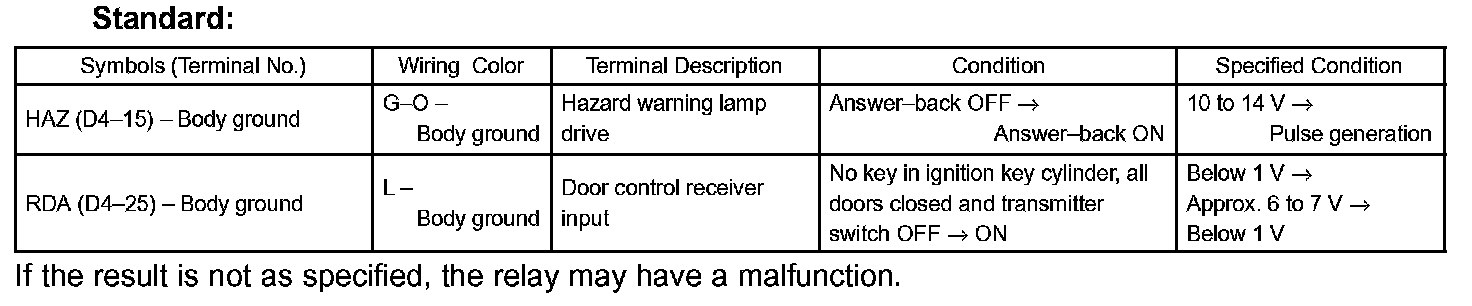

d. Check the voltage of each terminal of the connector.
