BACK DOOR STAY

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring addition information are included.
- Use the same procedures for the RH side and LH side.




1. REMOVE BACK DOOR STAY SUB-ASSEMBLY LH

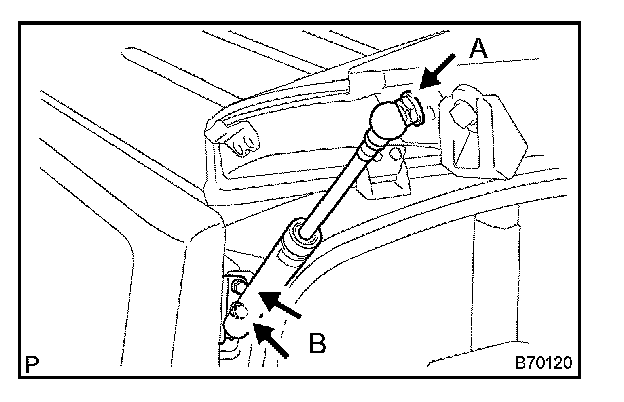

a. Remove bolt A from the door panel.

HINT: Remove the door stay while supporting the back door with your hands.

b. Remove the 2 bolts B and stay from the body panel.

2. INSTALL BACK DOOR STAY SUB-ASSEMBLY LH
a. Install the stay with the bolts.

Torque:
22.0 Nm (224 kgf.cm, 16 ft.lbf) for bolt A
8.0 Nm (82 kgf.cm, 71 in.lbf) for bolt B
