Disposal

DISPOSAL

HINT: Use the same procedures for the RH side and LH side.







1. DISPOSE OF BACK DOOR STAY SUB-ASSEMBLY LH
a. Horizontally fix the stay in a vise, with the piston-rod pulled out.

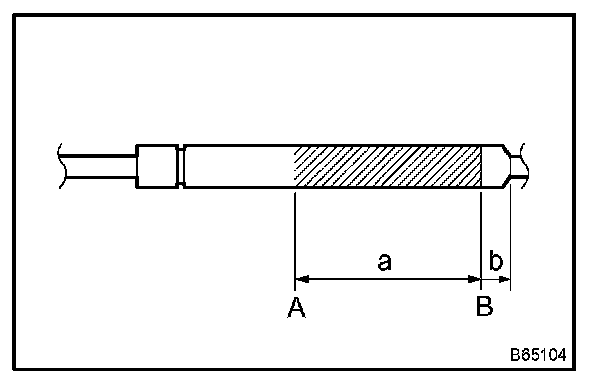

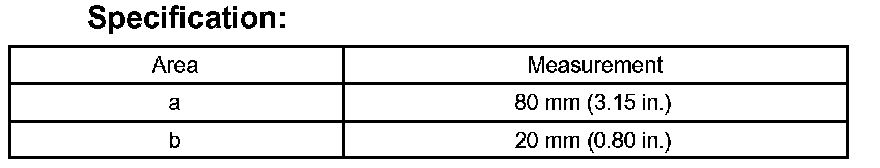

b. Wearing safety glasses, gradually cut a part between A and B as shown in the illustration using a metal saw to gradually release the gas.

NOTE: Be careful to cover the area that is being cut as there is a possibility that metal debris could be blown out by the gas (the gas is colorless, odorless and harmless).
