Radio/Stereo: Service and Repair

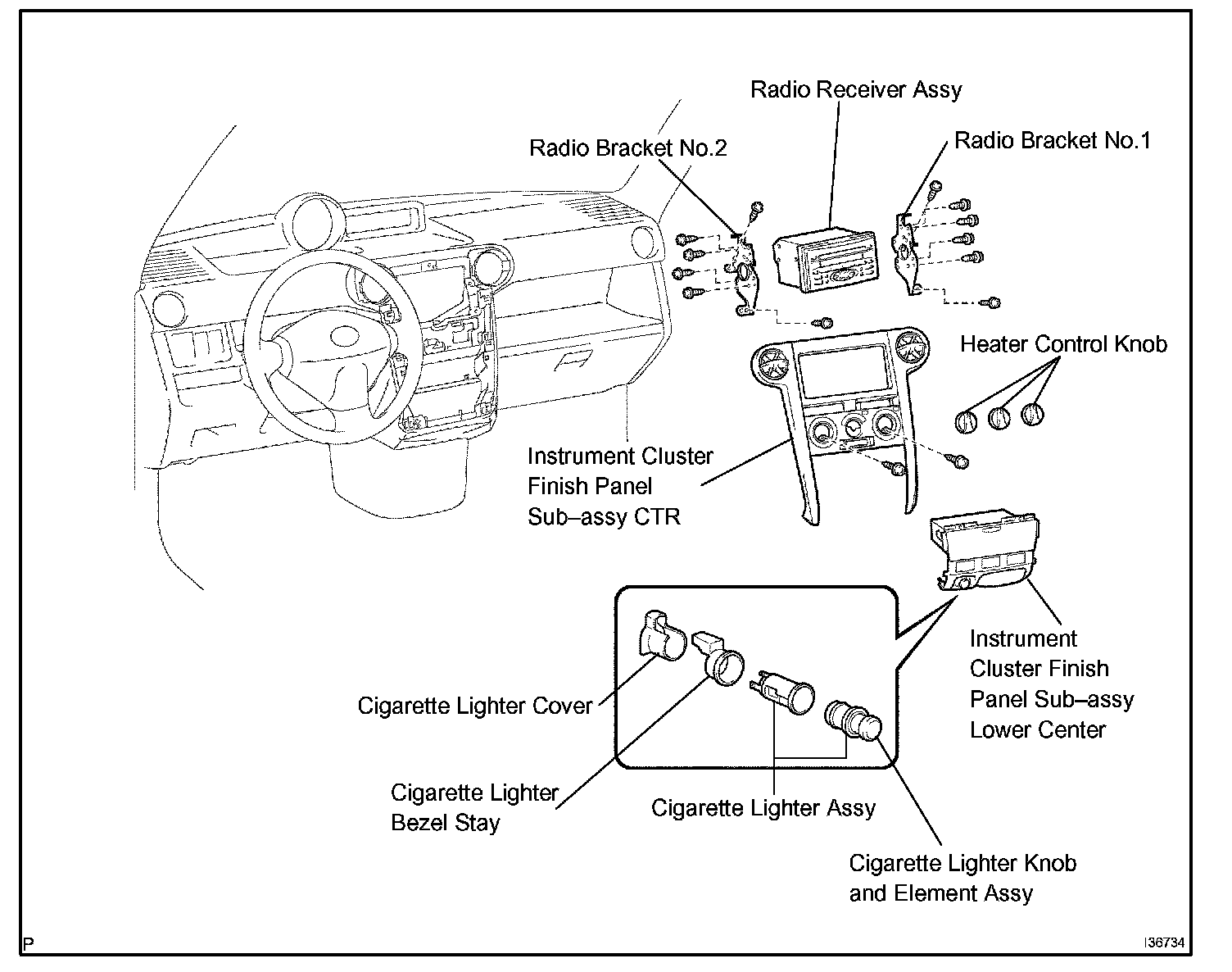

RADIO RECEIVER ASSEMBLY

REPLACEMENT

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CTR

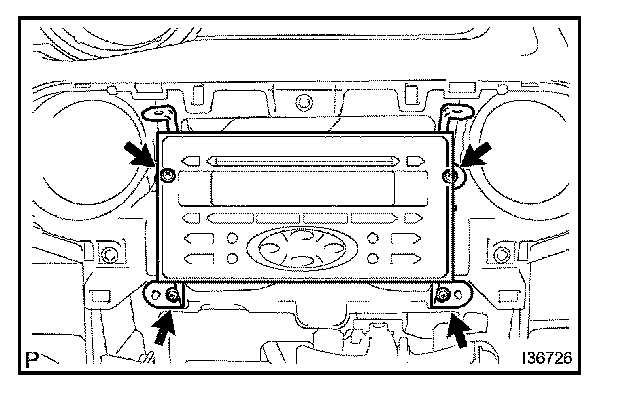

3. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
a. Remove the 4 bolts.
b. Disconnect the connector.
c. Remove the radio receiver assembly w/ bracket.

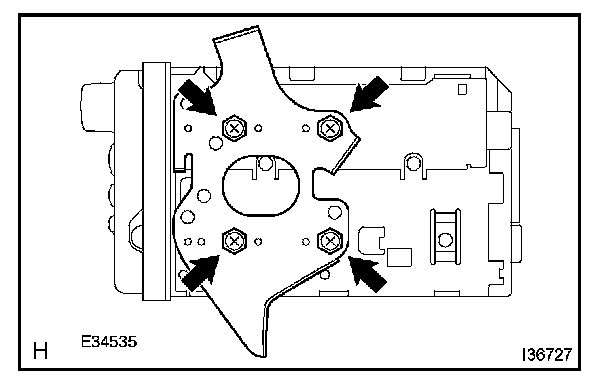

4. REMOVE RADIO BRACKET NO.1
a. Remove the 4 screws and the radio bracket No.1.

5. REMOVE RADIO BRACKET NO.2
a. Remove the 4 screws and the radio bracket No.2.
