Exterior Antenna

Audio & Visual System:

W/HOLDER ANTENNA ASSEMBLY

REPLACEMENT

1. REMOVE ROOF HEADLINING ASSEMBLY
2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

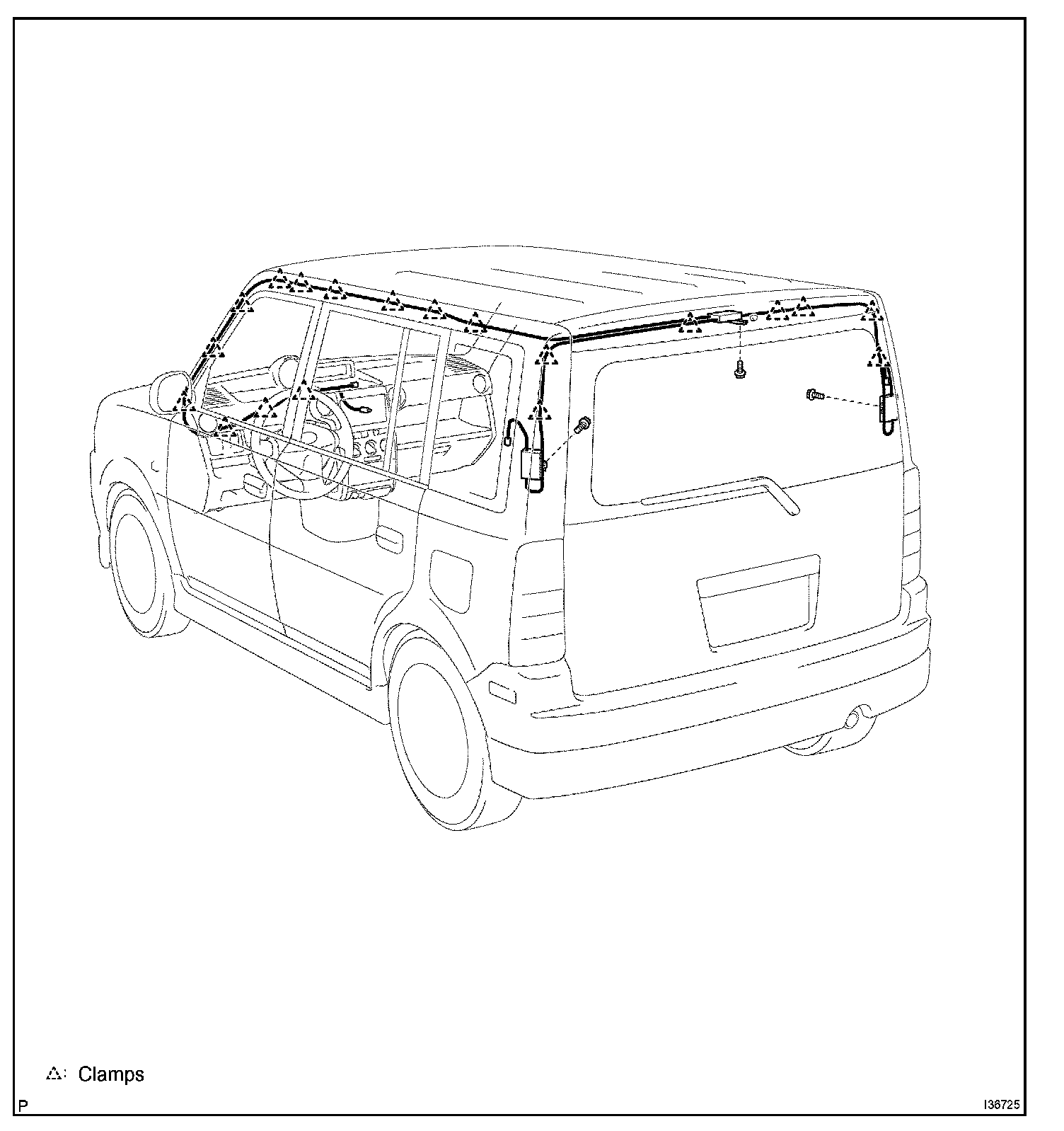

3. REMOVE W/HOLDER ANTENNA ASSEMBLY
a. Disconnect the connectors.
b. Remove the 12 clamps and the bolt.




c. Remove the w/ holder antenna assembly.

4. INSTALL ROOF HEADLINING ASSEMBLY
