P0788

DTC P0788 SHIFT/TIMING SOLENOID HIGH (SHIFT SOLENOID VALVE ST)

CIRCUIT DESCRIPTION

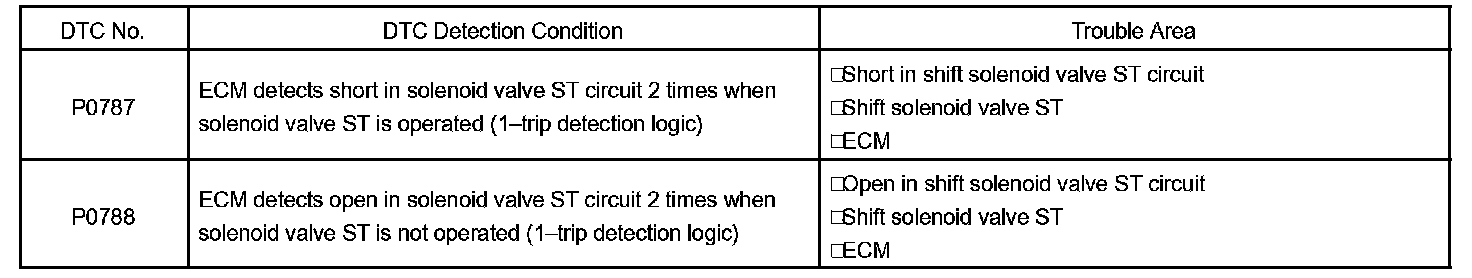

DTC Detection Condition:

Shift solenoid valve ST is switched ON-OFF by a signal from ECM so that let in or out timing of 2nd brake is adjusted by operating orifice control valve. Therefore, shift solenoid valve ST operates when letting in or out reverse clutch.

If it is broken, the shift shock becomes big.

MONITOR DESCRIPTION

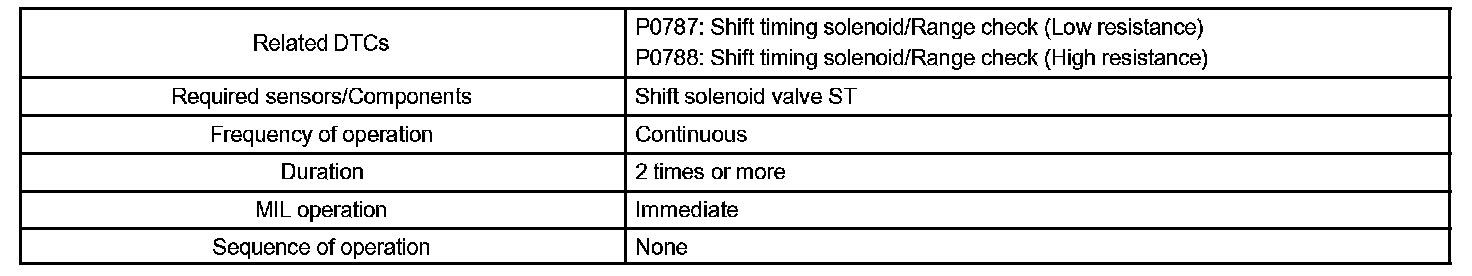

Monitor Strategy:

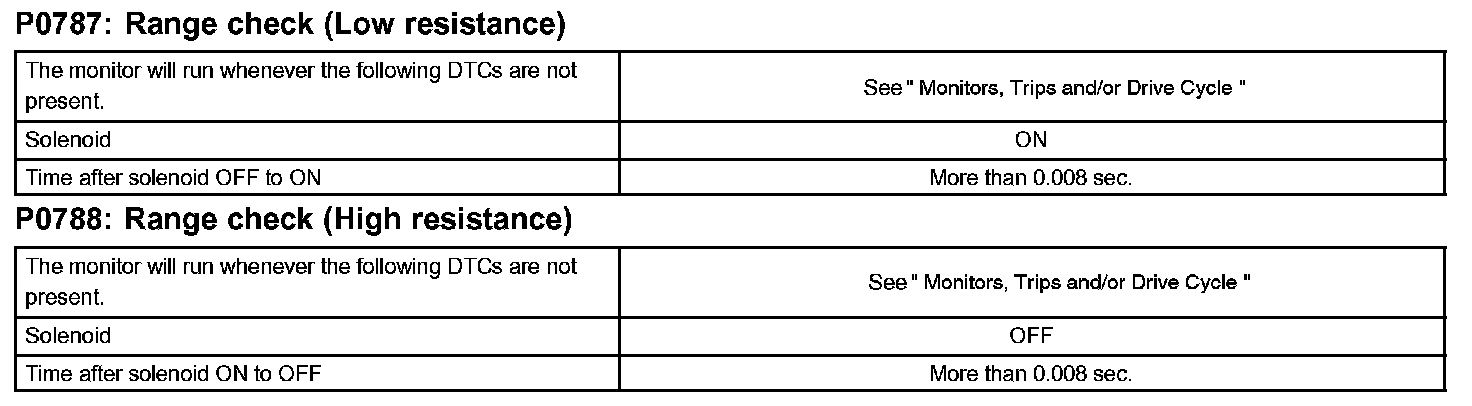

Typical Enabling Conditions:

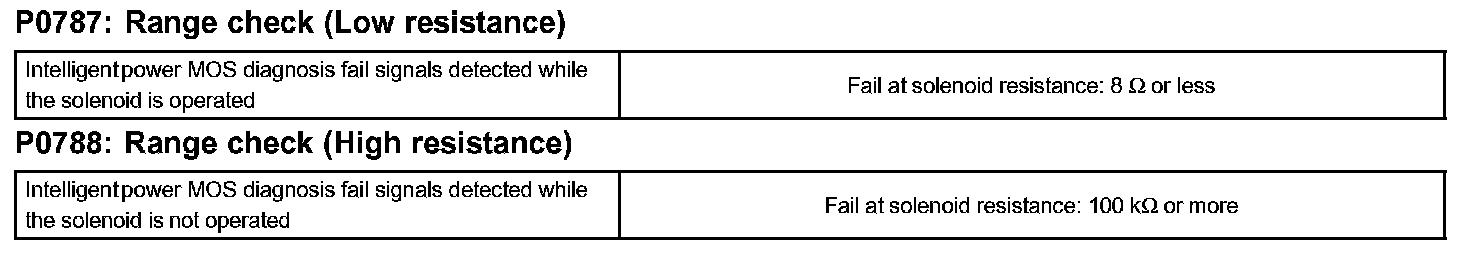

Typical Malfunction Thresholds:

Component Operating Range:

The ECM commands gearshift by turning the shift solenoid valves "ON/OFF". When there is an open or short circuit in any shift solenoid valve circuit, the ECM detects the problem and the MIL comes on. Illuminating the MIL, the ECM performs the fail-safe and turns the other shift solenoid valves in good condition "ON/OFF" (In case of an open or short circuit, the ECM stops sending current to the circuit.).

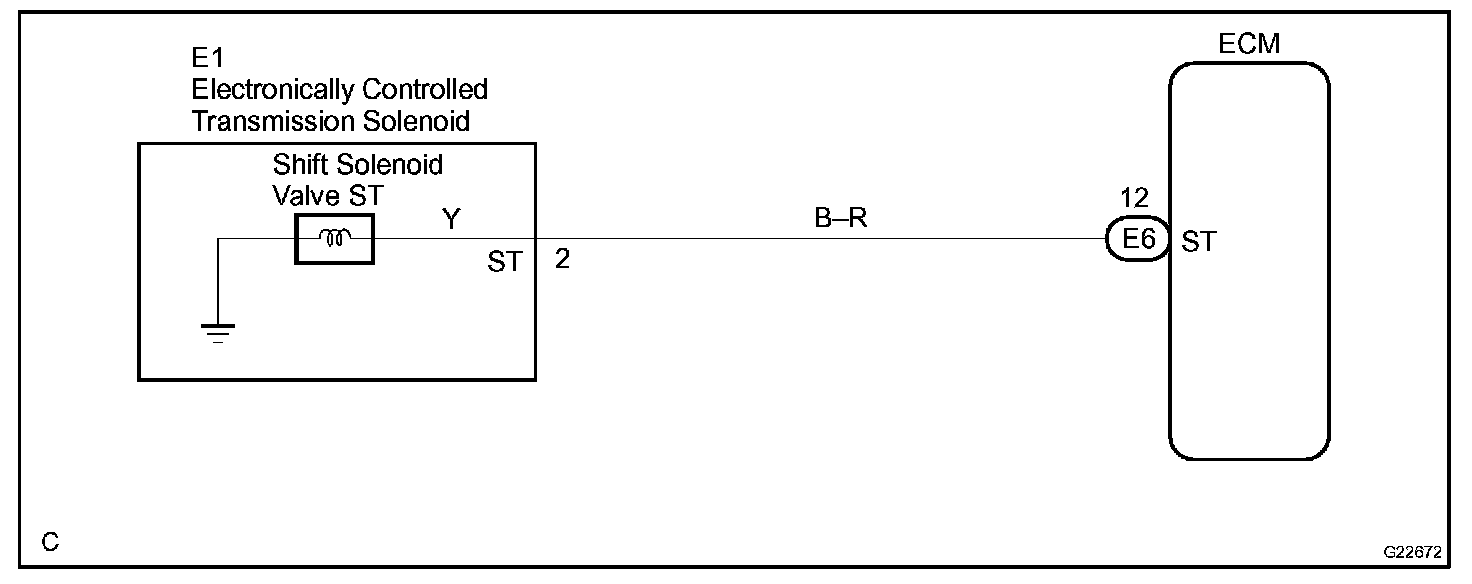

Wiring Diagram:

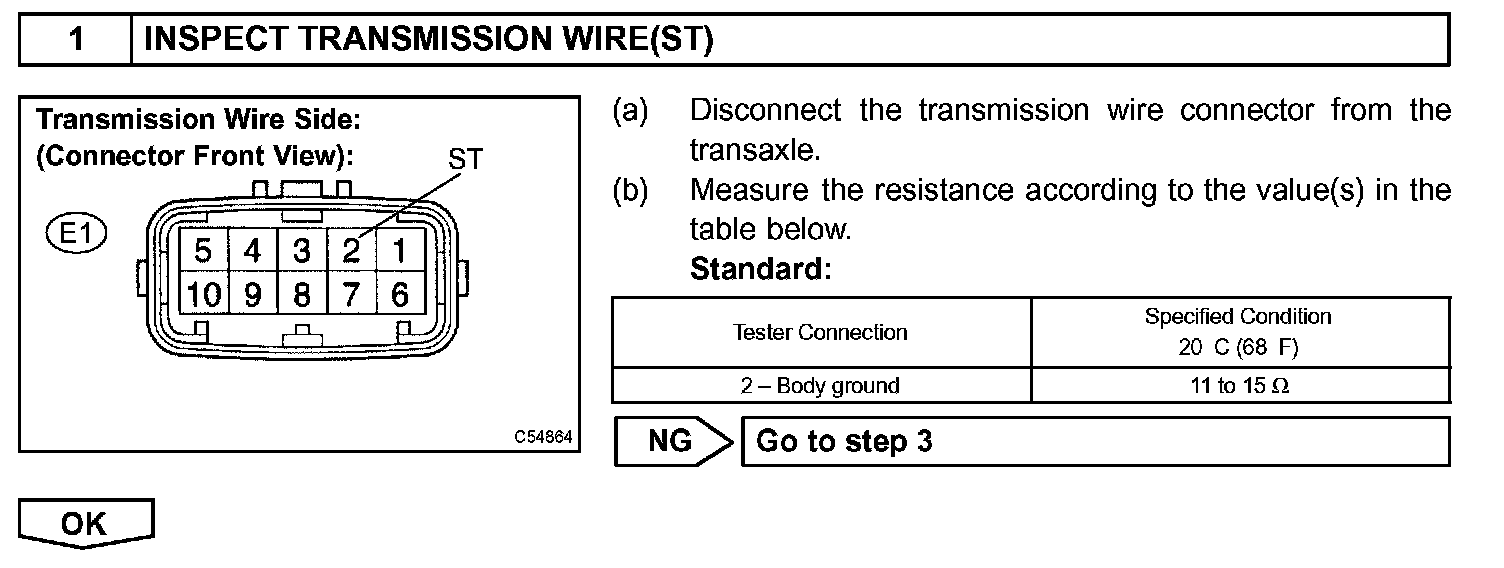

Step 1:

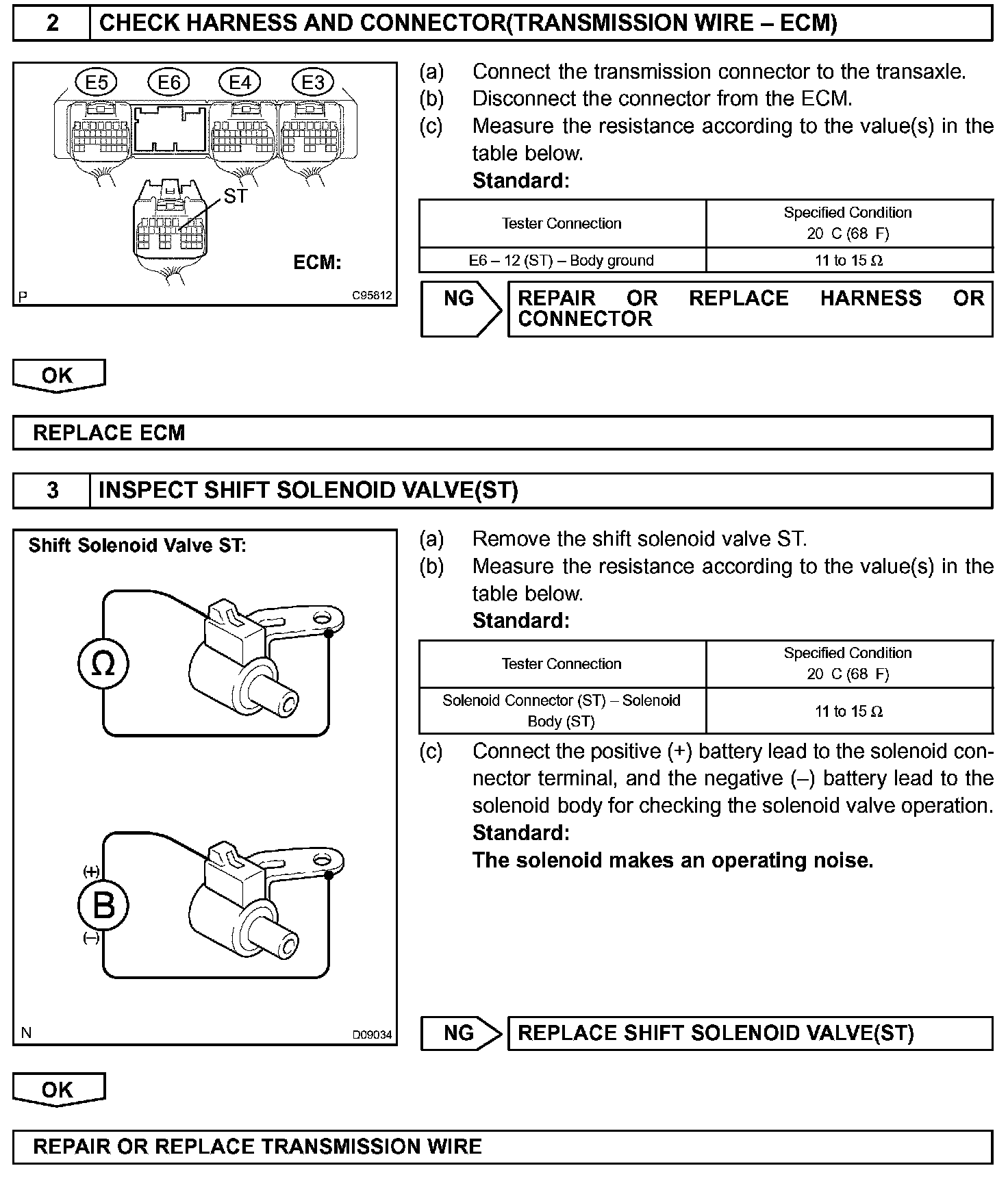

Step 2 - 3:

INSPECTION PROCEDURE
