P0751

DTC P0751 SHIFT SOLENOID "A" PERFORMANCE (SHIFT SOLENOID VALVE S1)

SYSTEM DESCRIPTION

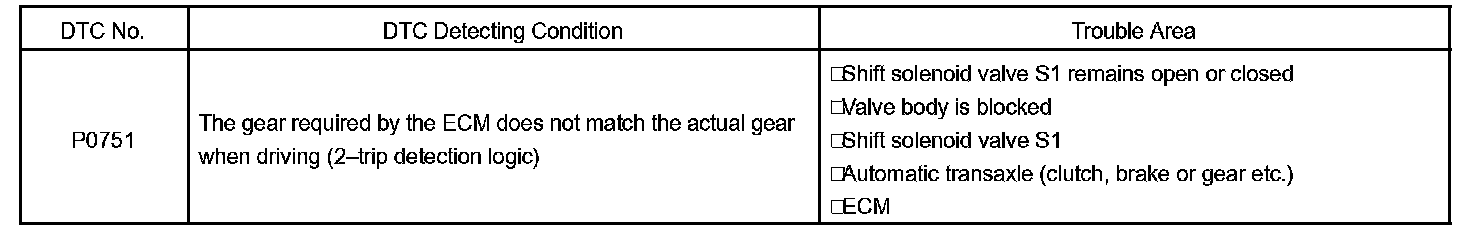

DTC Detecting Condition:

The ECM uses signals from the vehicle speed sensor and speed sensor NT to detect the actual gear position (1st, 2nd, 3rd or O/D gear).

Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect the mechanical problems of the shift solenoid valves, the valve body or automatic transaxle (clutch, brake or gear etc.).

MONITOR DESCRIPTION

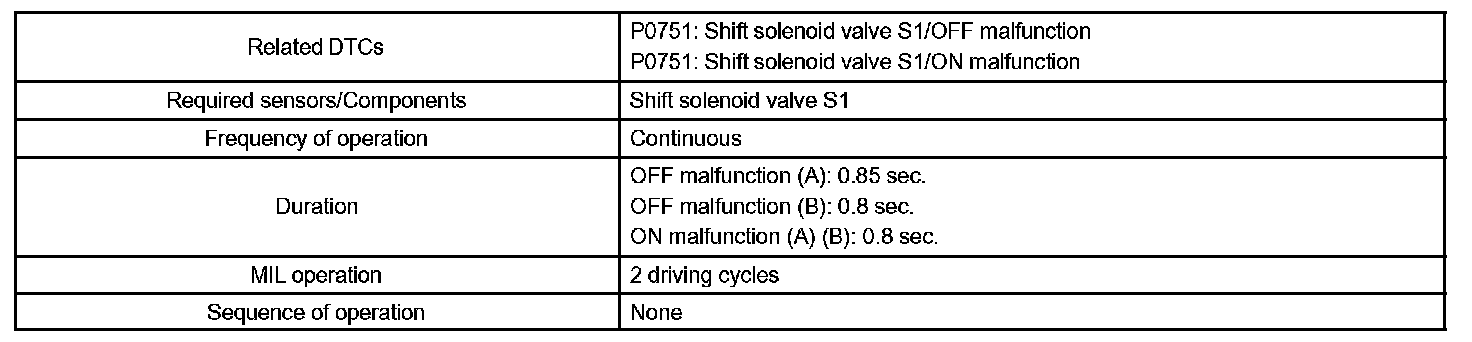

Monitor Strategy:

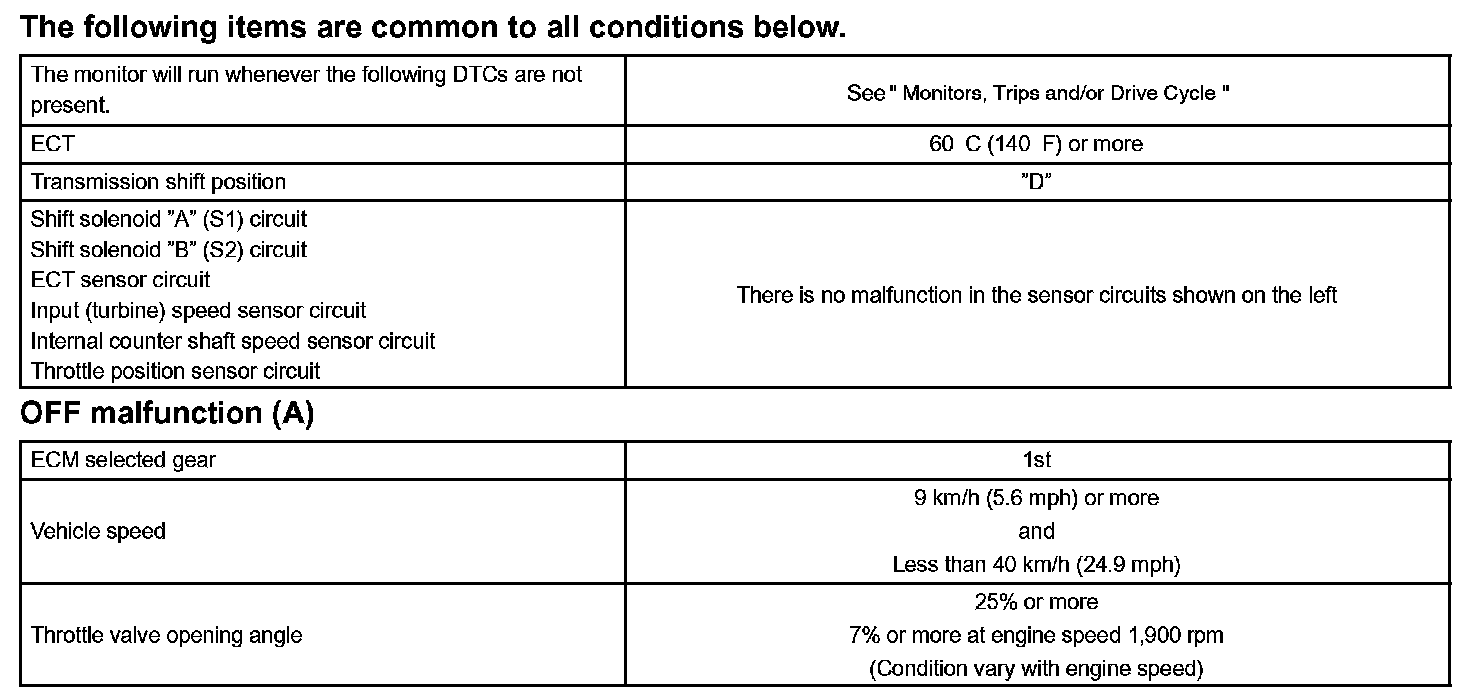

Typical Enabling Conditions Part 1:

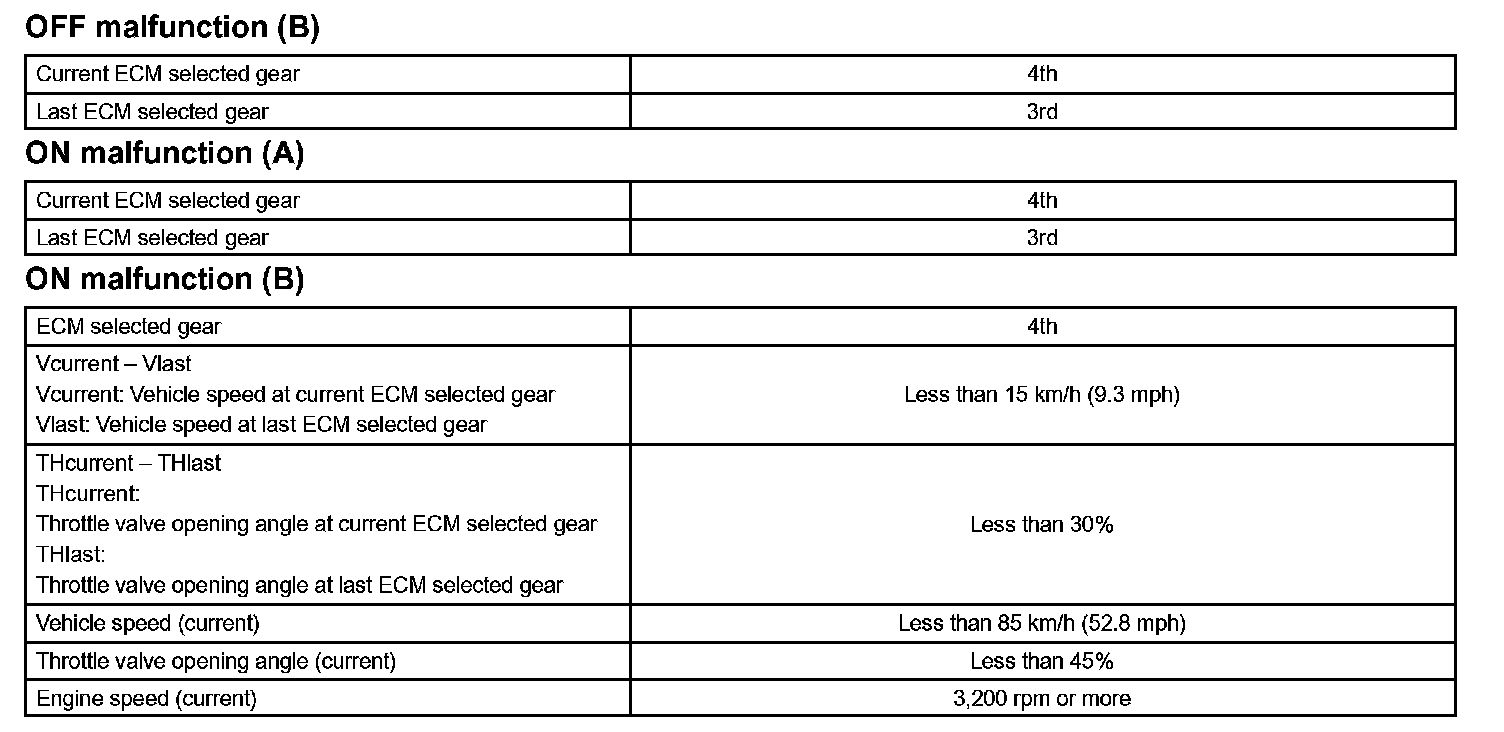

Typical Enabling Conditions Part 2:

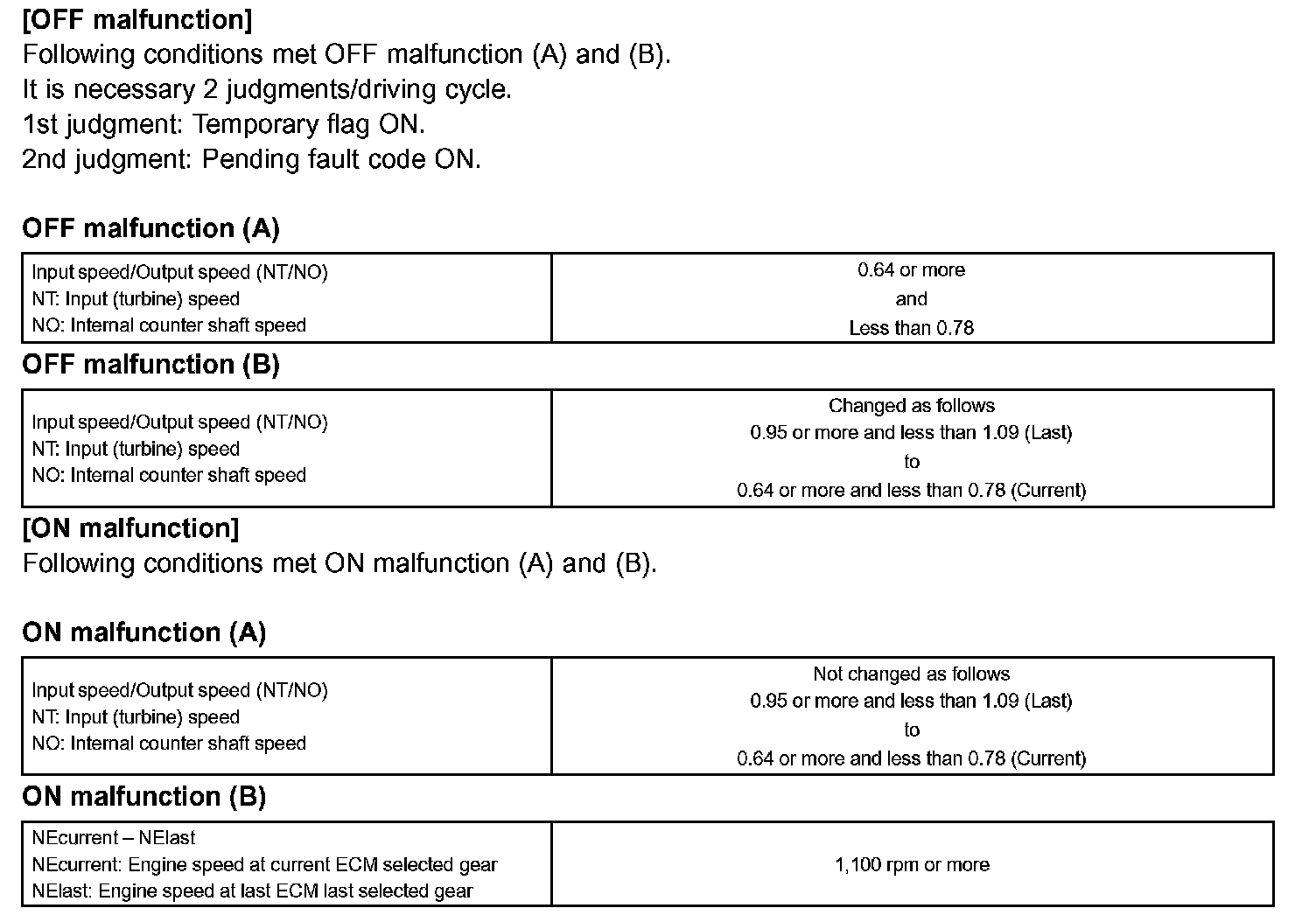

Typical Malfunction Thresholds:

The ECM commands gear shifts by turning the shift solenoid valves "ON/OFF". According to the input shaft revolution, intermediate (counter) shaft revolution and output shaft revolution, the ECM detects the actual gear position (1st, 2nd, 3rd or O/D gear position). When the gear position commanded by the ECM and the actual gear position are not same, the ECM illuminates the MIL.

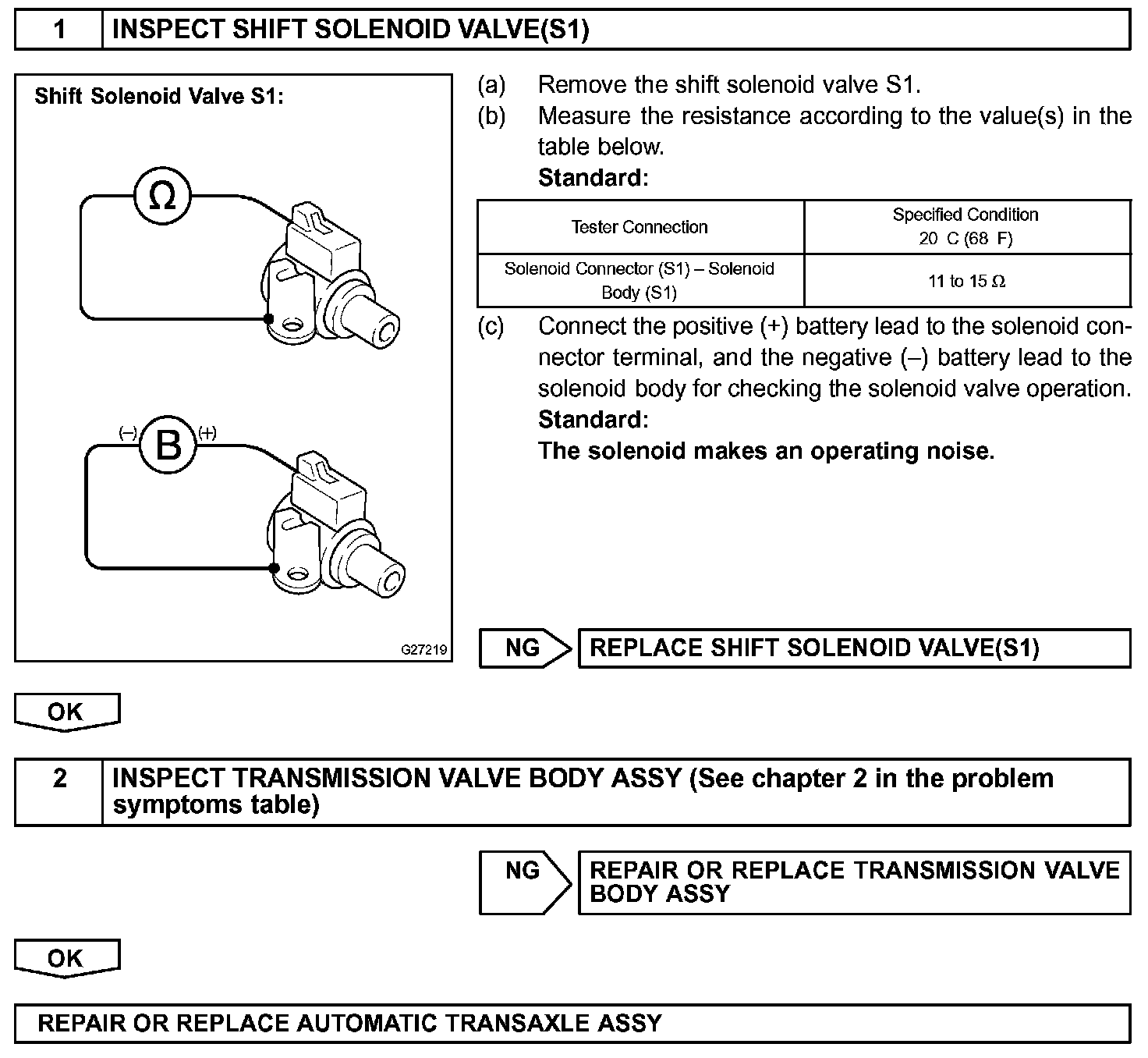

Step 1 - 2:

INSPECTION PROCEDURE
