P0705

DTC P0705 TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

MONITOR DESCRIPTION

Monitor Strategy:

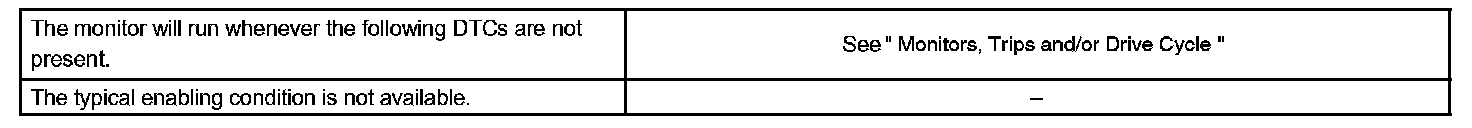

Typical Enabling Conditions:

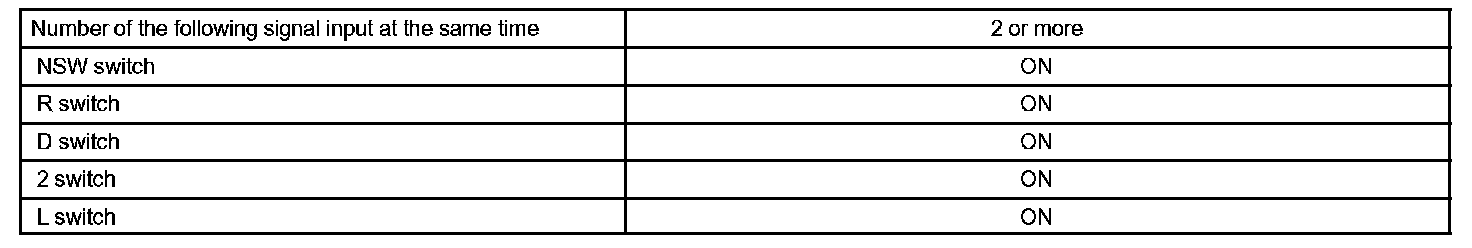

Typical Malfunction Thresholds:

Component Operating Range:

The park/neutral position switch detects the gearshift position and sends a signal to the ECM.

For security, the park/neutral position switch detects the gearshift position so that engine can be started only when the vehicle is in P or N shift position.

When the park/neutral position switch sends more than one signal at a time from switch positions P, R, N, D, 2 or L the ECM interprets this as a fault in the switch. The ECM will turn on the MIL.

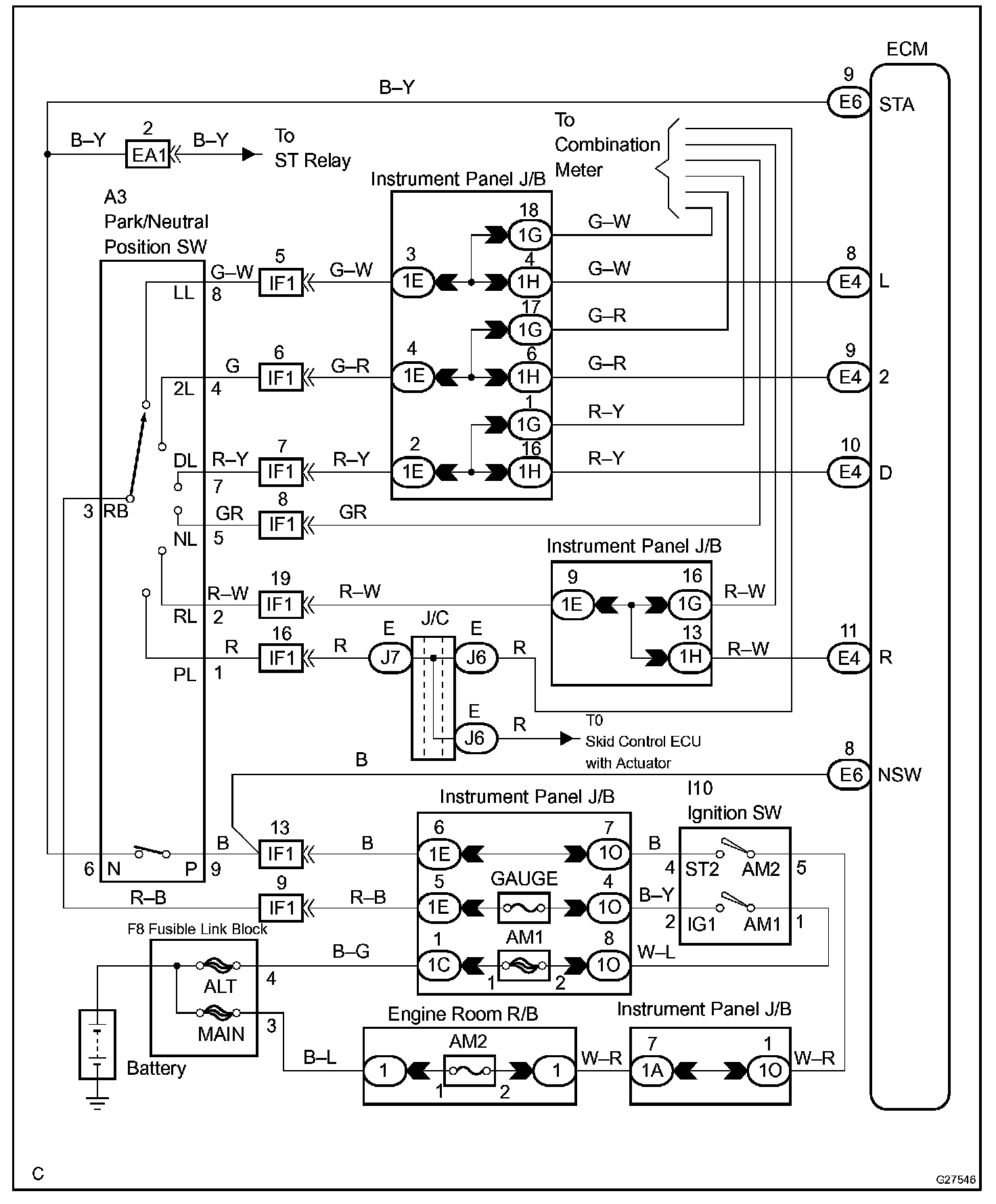

Wiring Diagram:

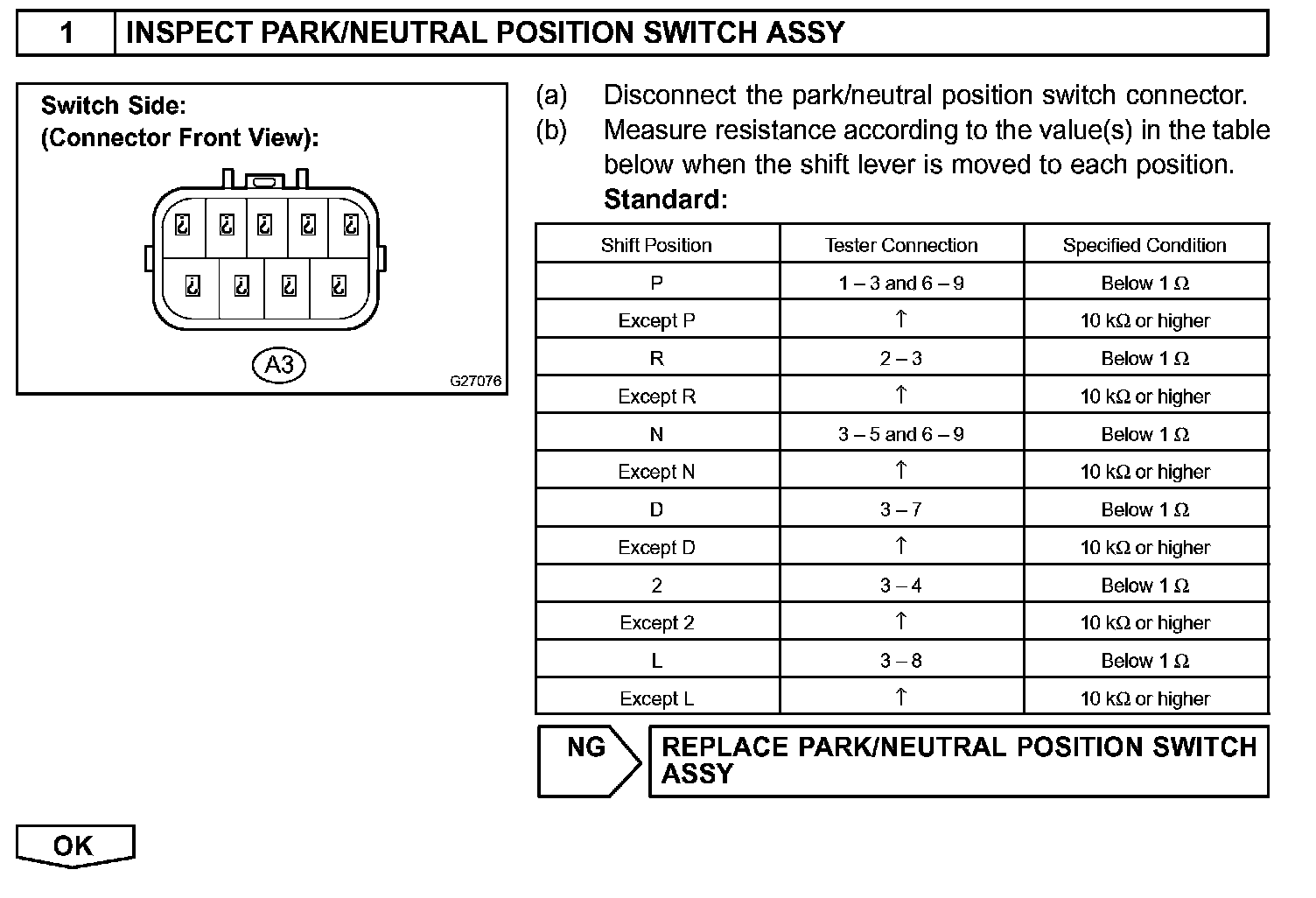

Step 1:

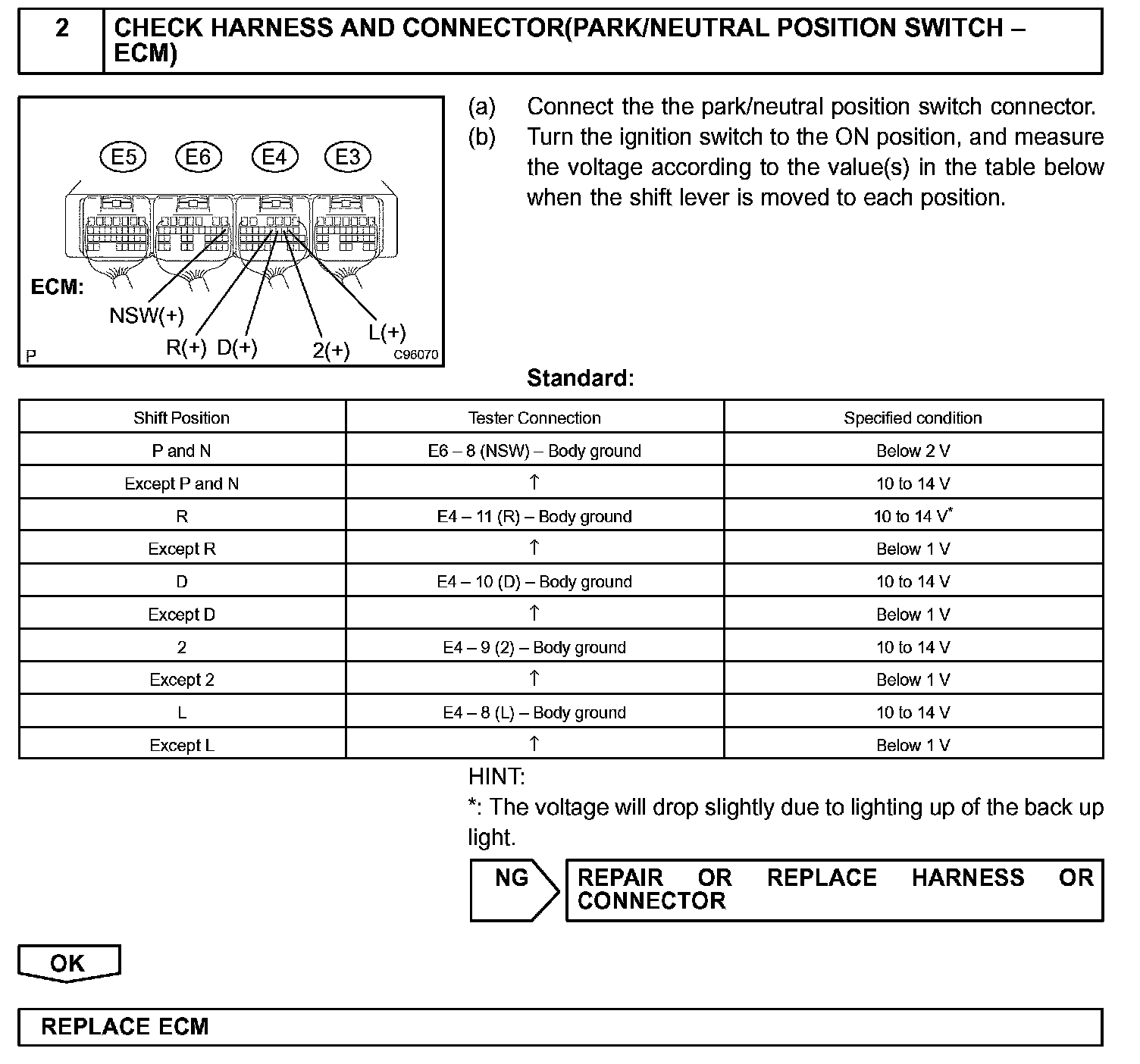

Step 2:

INSPECTION PROCEDURE
