P0453

DTC P0453 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR/SWITCH HIGH INPUT

CIRCUIT DESCRIPTION

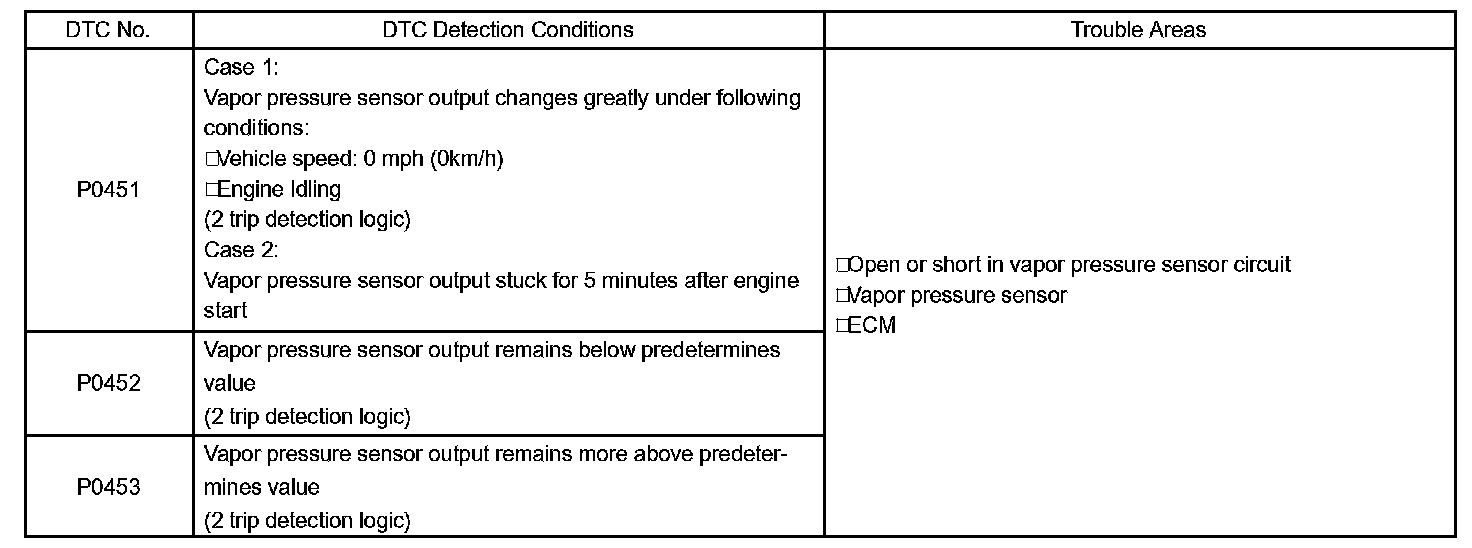

DTC Detection Conditions:

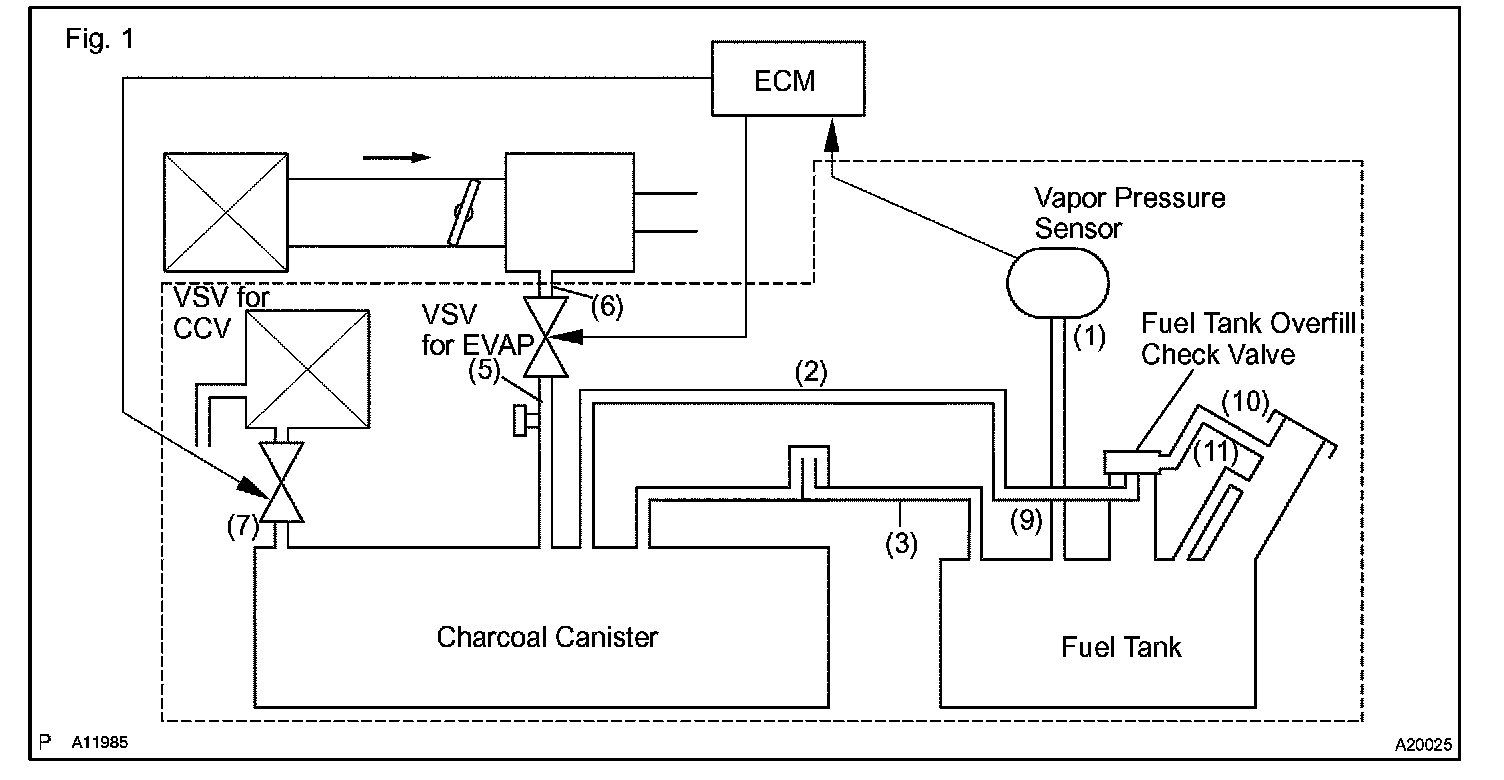

The vapor pressure sensor, VSV for CCV (Vacuum Switching Valve for Canister Closed Valve) and VSV for EVAP (Evaporative Emission) are used to detect abnormalities in the EVAP control system.

The ECM determines whether there is an abnormality in the EVAP control system based on the vapor pressure sensor signal.

MONITOR DESCRIPTION

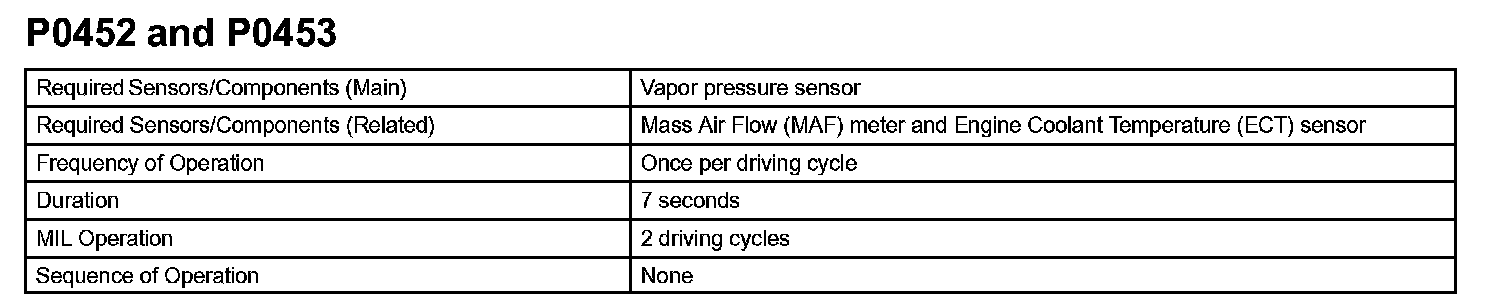

Monitor Strategy:

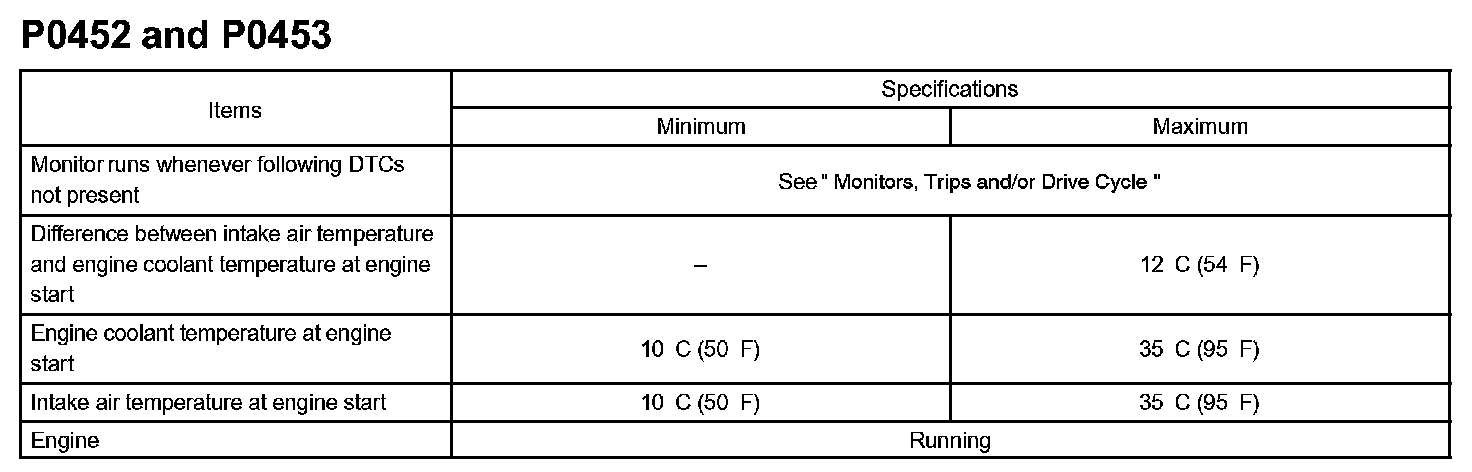

Typical Enabling Conditions:

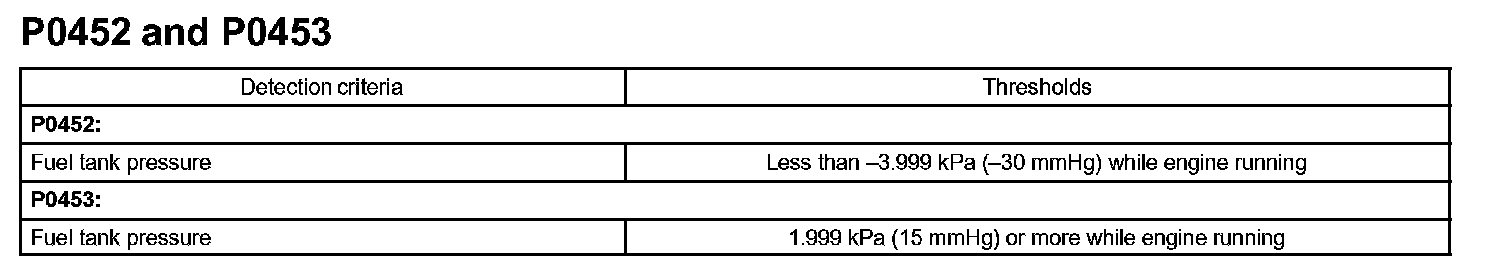

Typical Malfunction Thresholds:

DTC P0451, P0452 or P0453 is set by the ECM when the vapor pressure sensor malfunctions.

P0453
The ECM monitors the fuel tank internal pressure using the vapor pressure sensor. The ECM supplies the sensor with a regulated 5 V reference voltage, and the sensor provides the ECM with a signal voltage of between 0.5 V and 4.5 V as feedback, according to the pressure level in the fuel tank.

When the pressure in the fuel tank is low, the output voltage of the vapor pressure sensor is low. When it is high, the output voltage is high. If the output voltage of the vapor pressure sensor is outside the normal range, the ECM determines that there is a malfunction in the sensor or sensor circuit.

When the internal pressure indicated by the vapor pressure sensor drops below -3.999 kPa (-30 mmHg), or rises above 1.999 kPa (15 mmHg), the ECM interprets this as a malfunction in the sensor, and illuminates the MIL and sets a DTC.

Wiring Diagram:

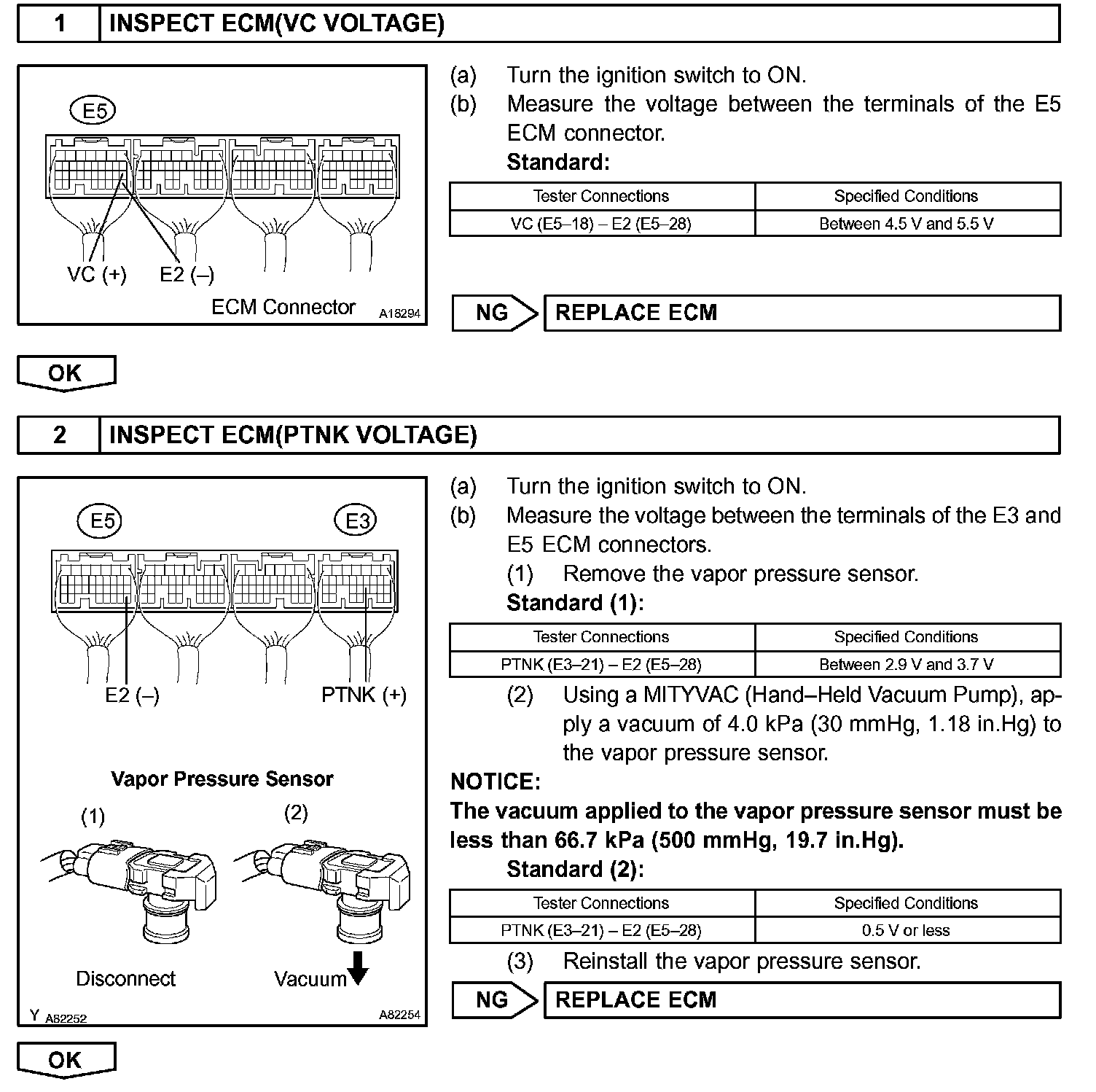

Step 1 - 2:

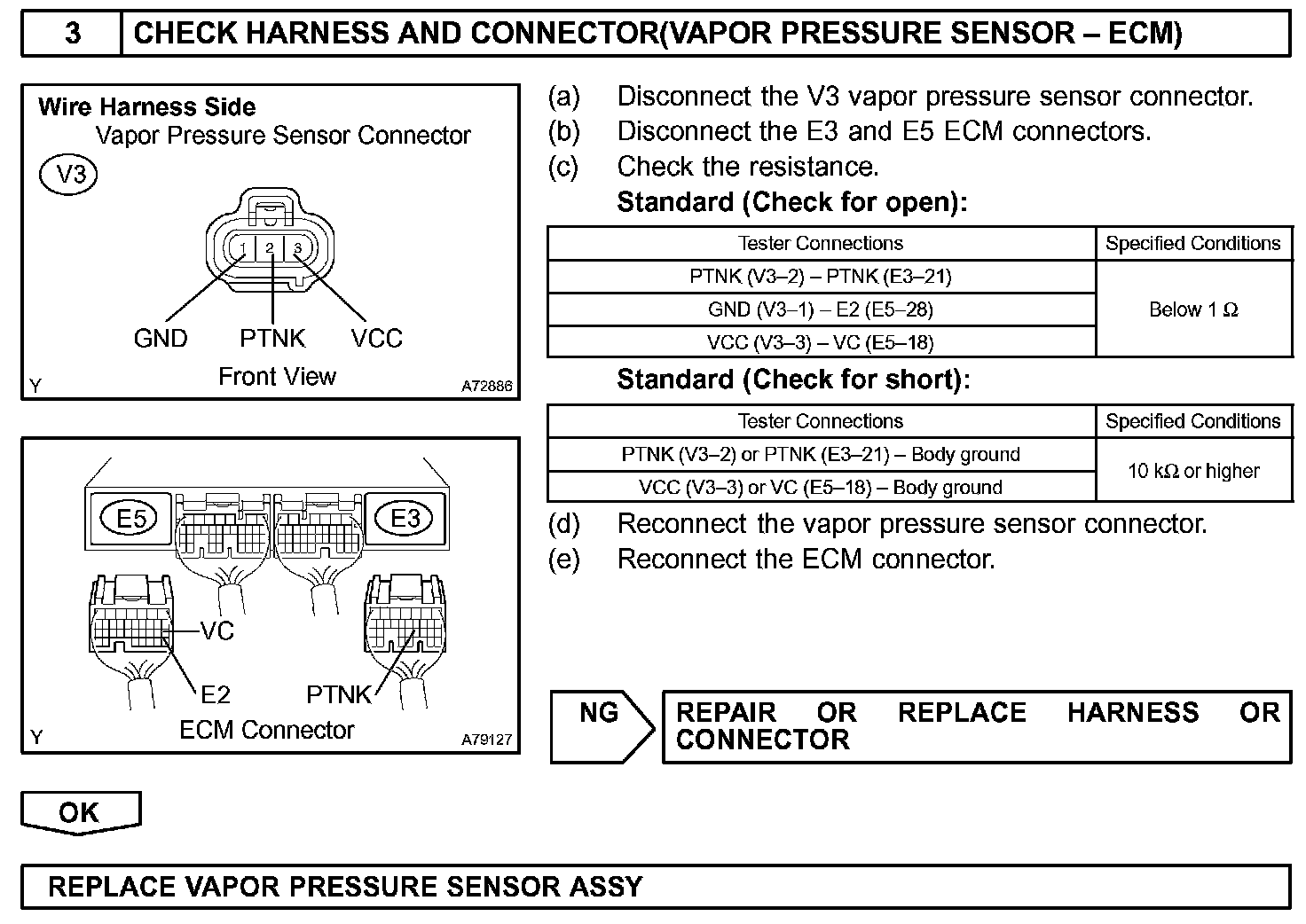

Step 3:

INSPECTION PROCEDURE

HINT:
- If other DTCs relating to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
- If any of DTC P0441, P0446 or P0451 are set simultaneously with DTC P0442 or P0456, first troubleshoot DTC P0441, P0446 or P0451. If no malfunction is detected, troubleshoot DTC P0442 or P0456 next.
- Read freeze frame data using a hand-held tester or OBD II scan tool. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.
- If the ENGINE RUN TIME in the freeze frame data is less than 200 seconds, carefully check the vapor pressure sensor.
