P0133
DTC P0133 OXYGEN SENSOR CIRCUIT SLOW RESPONSE (BANK 1 SENSOR 1)HINT: Sensor 1 refers to the sensor mounted in front of the Three-Way Catalytic Converter (TWC) and located near the engine assembly.
CIRCUIT DESCRIPTION

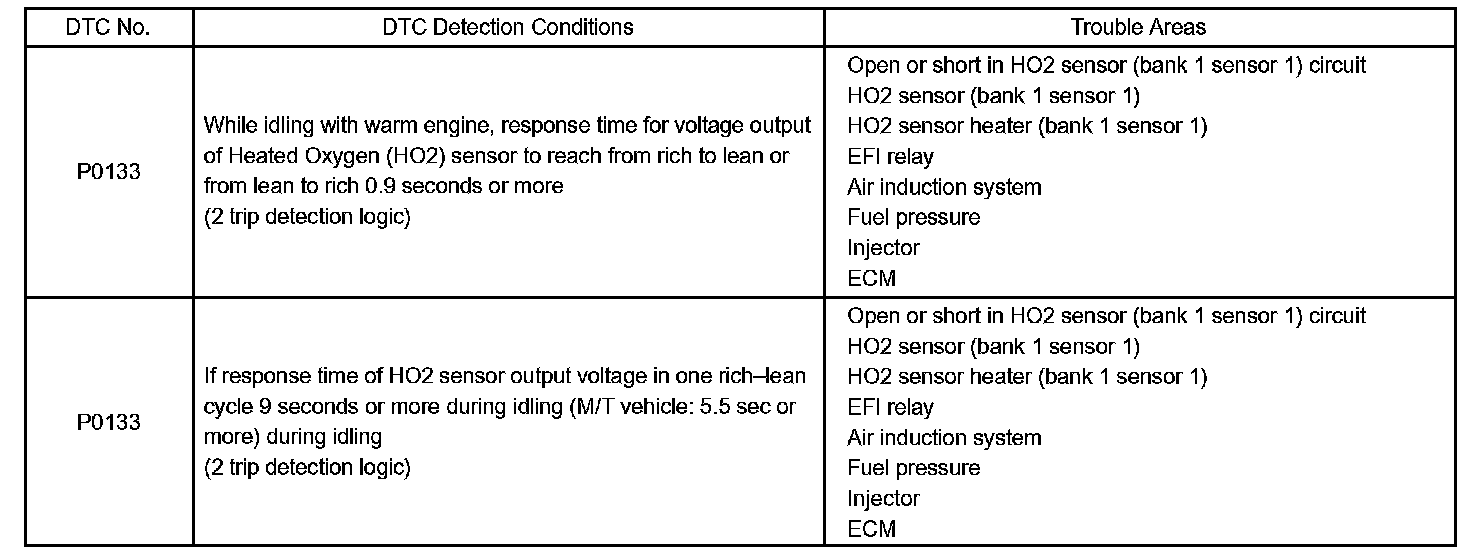

DTC Detection Conditions:
The front Heated Oxygen (HO2) sensor monitors the oxygen concentration in the exhaust gas. For optimum TWC operation, the air-fuel mixture must be maintained as close as possible to the stoichiometric ratio. The HO2 sensor output voltage changes dramatically in the vicinity of the stoichiometric ratio. By making adjustments in accordance to these signal voltages, the ECM adjusts the fuel injection time so that the air-fuel ratio remains close to stoichiometric levels.
If the oxygen concentration in the exhaust gas increases, the air-fuel ratio is lean and the HO2 sensor output voltage to the ECM drops below 0.45 V. If the oxygen concentration in the exhaust gas decreases, the air-fuel ratio is rich and the HO2 sensor output voltage to the ECM increases to above 0.45 V.
MONITOR DESCRIPTION

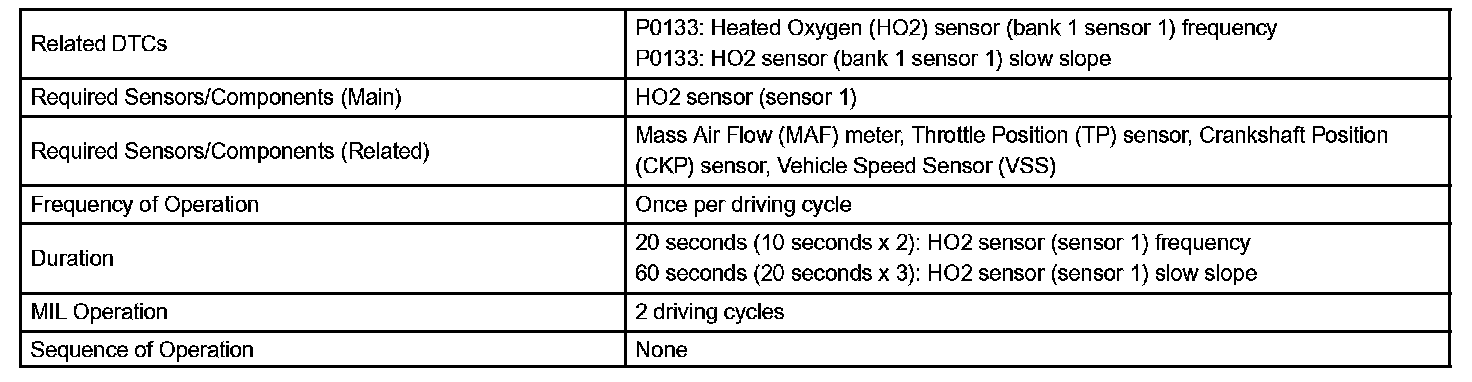

Monitor Strategy:

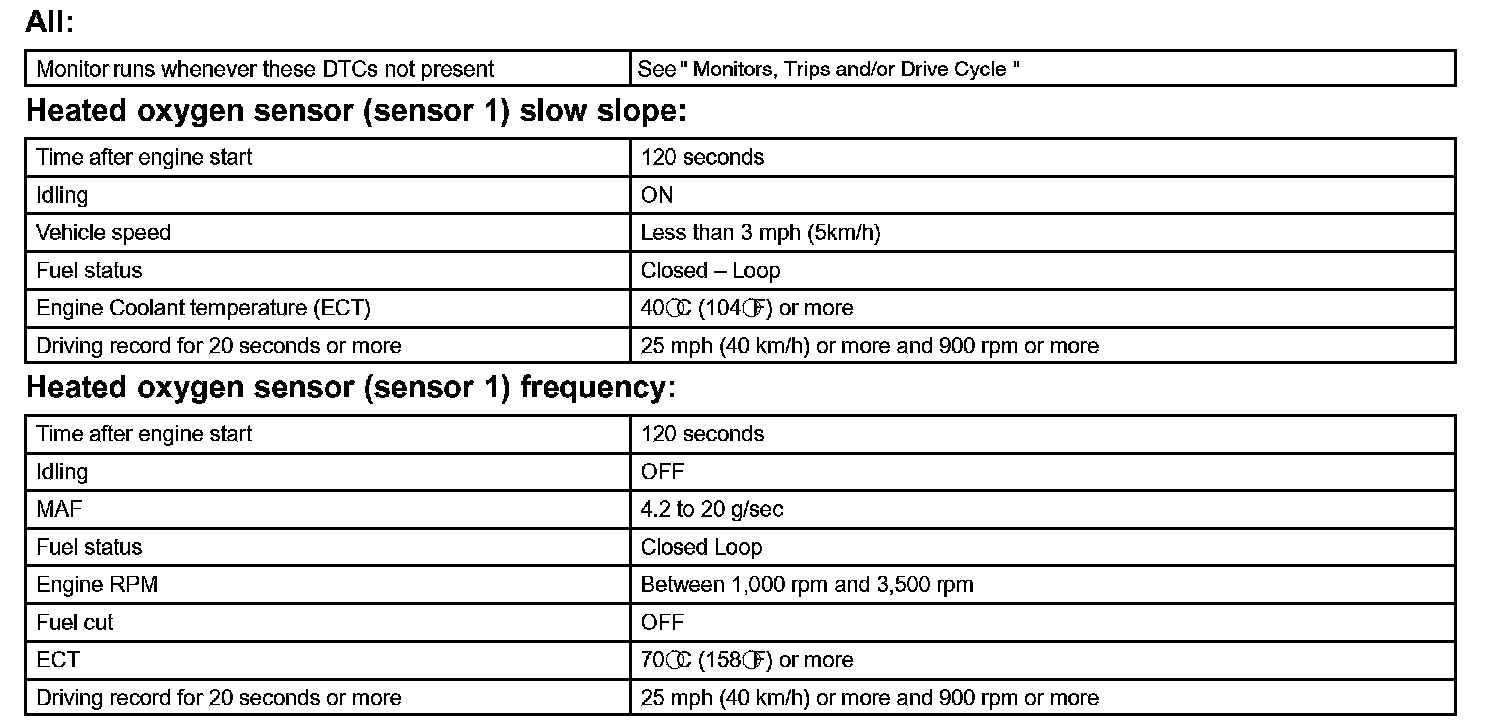

Typical Enabling Condition:

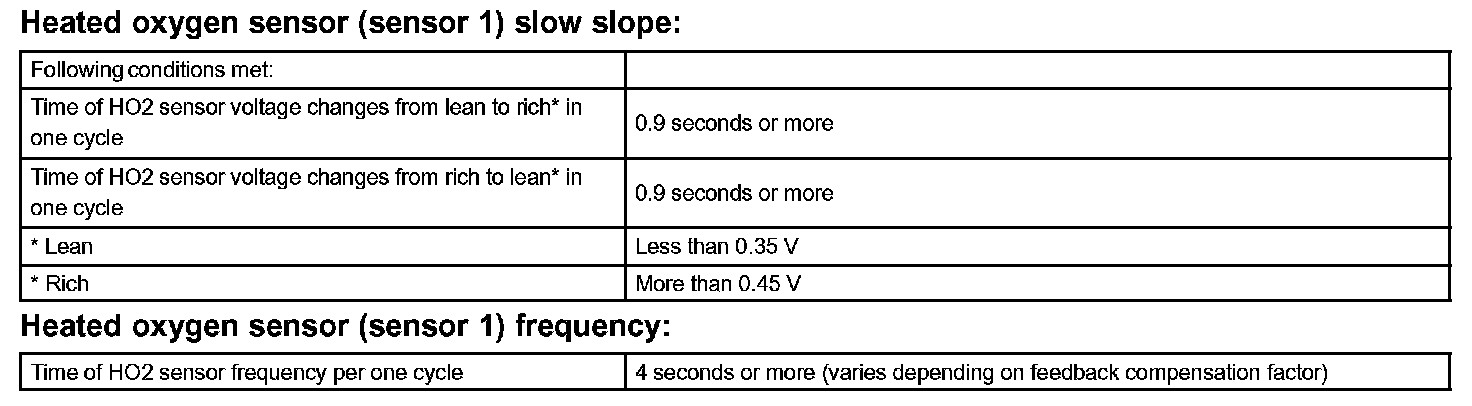

Typical Malfunction Thresholds:
Component Operating Range:

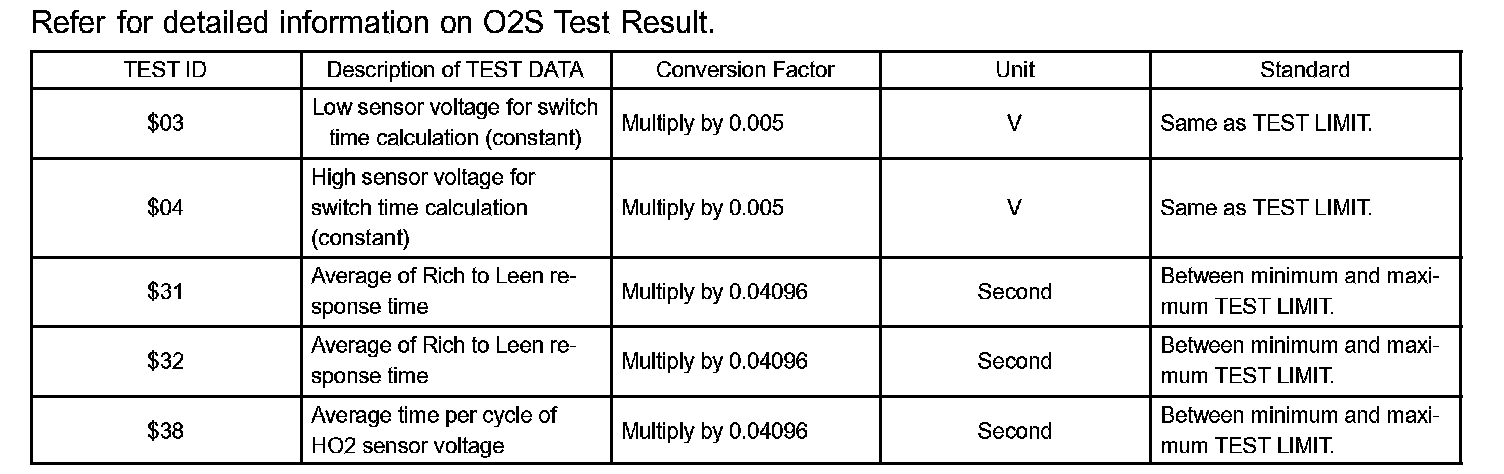

O2S Test Result (Mode 05 Data):
The Heated Oxygen (HO2) sensor detects the oxygen levels in the exhaust gas and transmits this information to the ECM, which uses it to maintain the air-fuel ratio as close as possible to stoichiometric levels. This optimizes the three-way catalytic converter's ability to purify the exhaust gases.
The sensor element is made of platinum electrode and solid electrolyte (zirconia element), and includes an integrated heating element. The inner surface of the sensor element is exposed to the outside air and the outer surface is exposed to the exhaust gases.
The HO2 sensor generates a waveform voltage signal that oscillates between 0.1 V and 0.9 V in accordance with the oxygen concentration in the exhaust gas. The HO2 sensor has a characteristic whereby this output voltage changes dramatically in the vicinity of the stoichiometric air-fuel ratio.
When the output voltage of the HO2 sensor is 0.55 V or more, the ECM determines that the air-fuel ratio is rich. When it is 0.40 V or less, the ECM determines that the air-fuel ratio is lean.

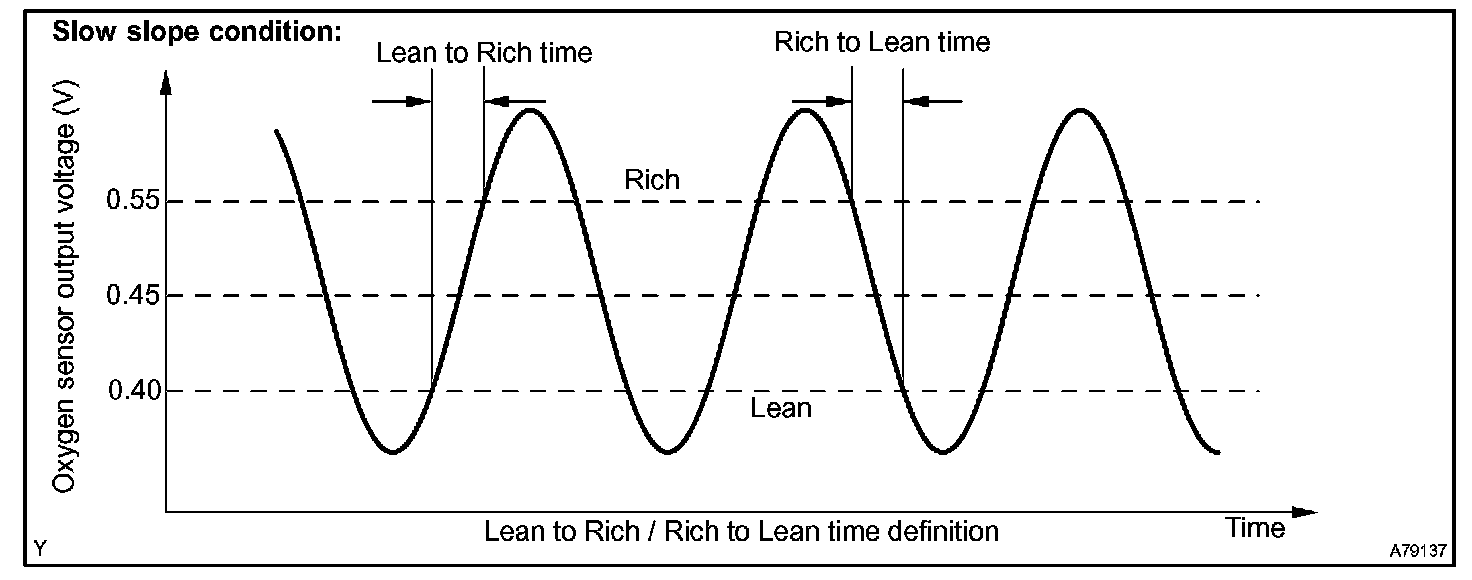

The ECM also monitors the response of the HO2 sensor. If the response time of the output changes from rich to lean or vice versa becomes longer than preset thresholds, the ECM interprets this as a malfunction in the HO2 sensor, illuminates the MIL and sets the DTC (2 trip detection logic).

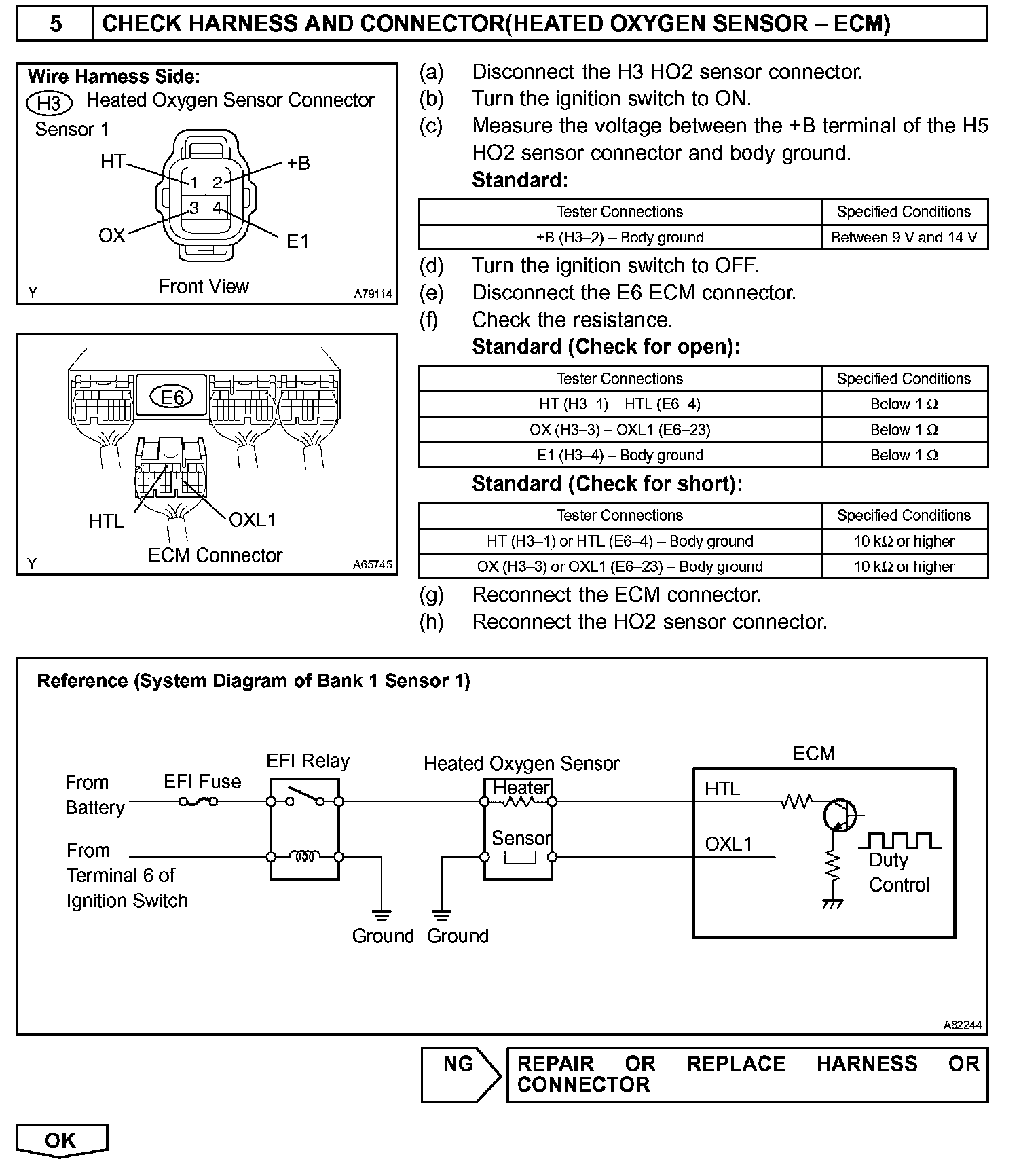

Wiring Diagram:

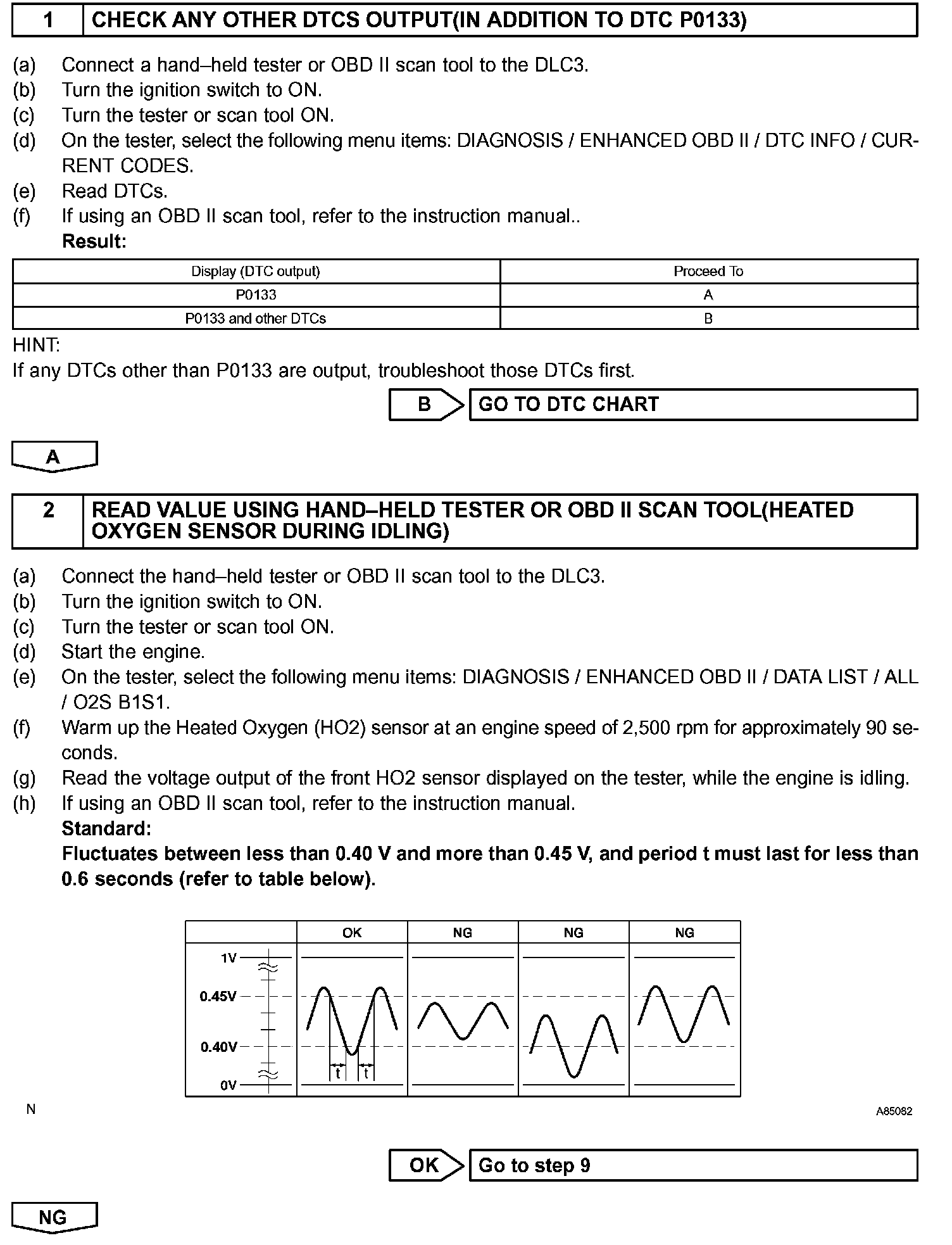

Step 1 - 2:

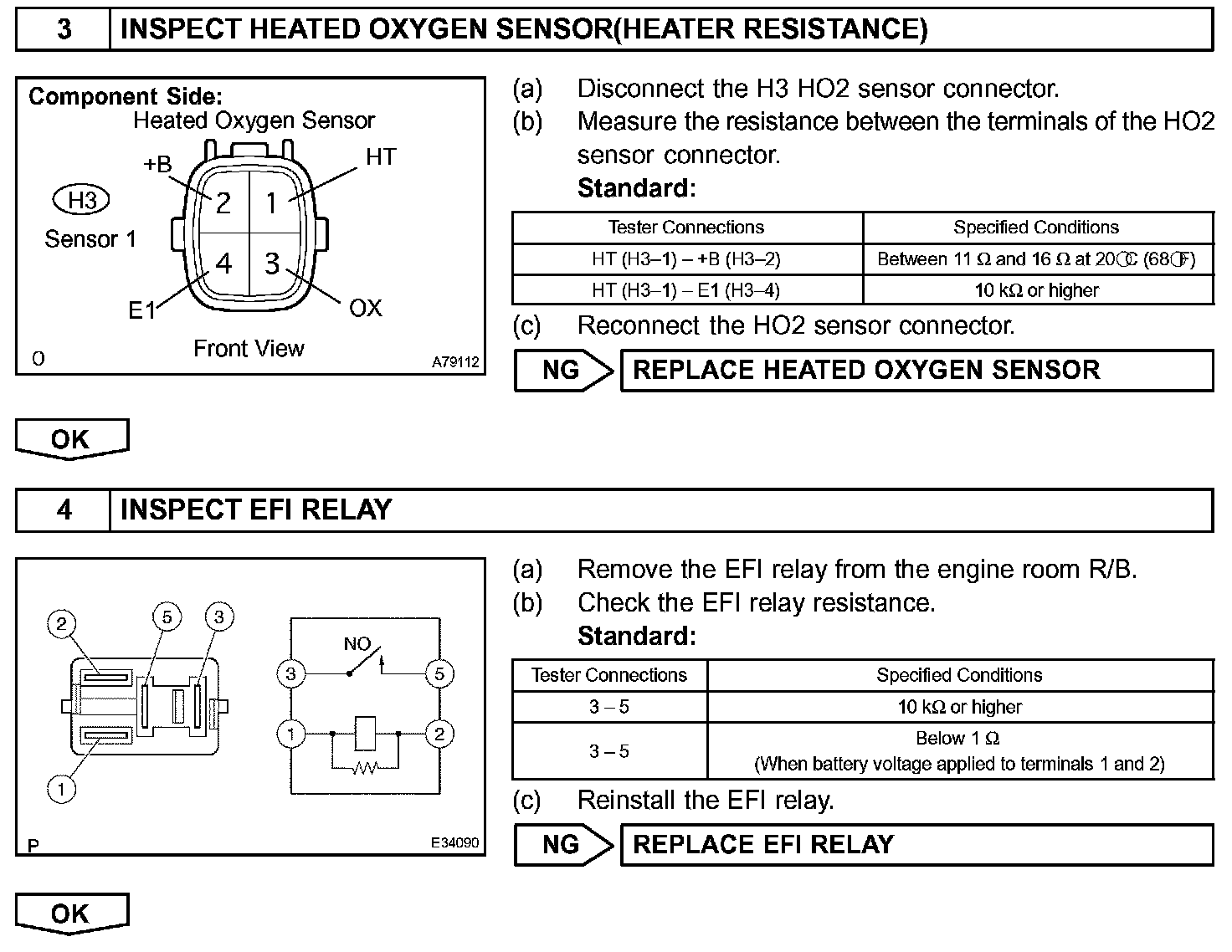

Step 3 - 4:
Step 5:

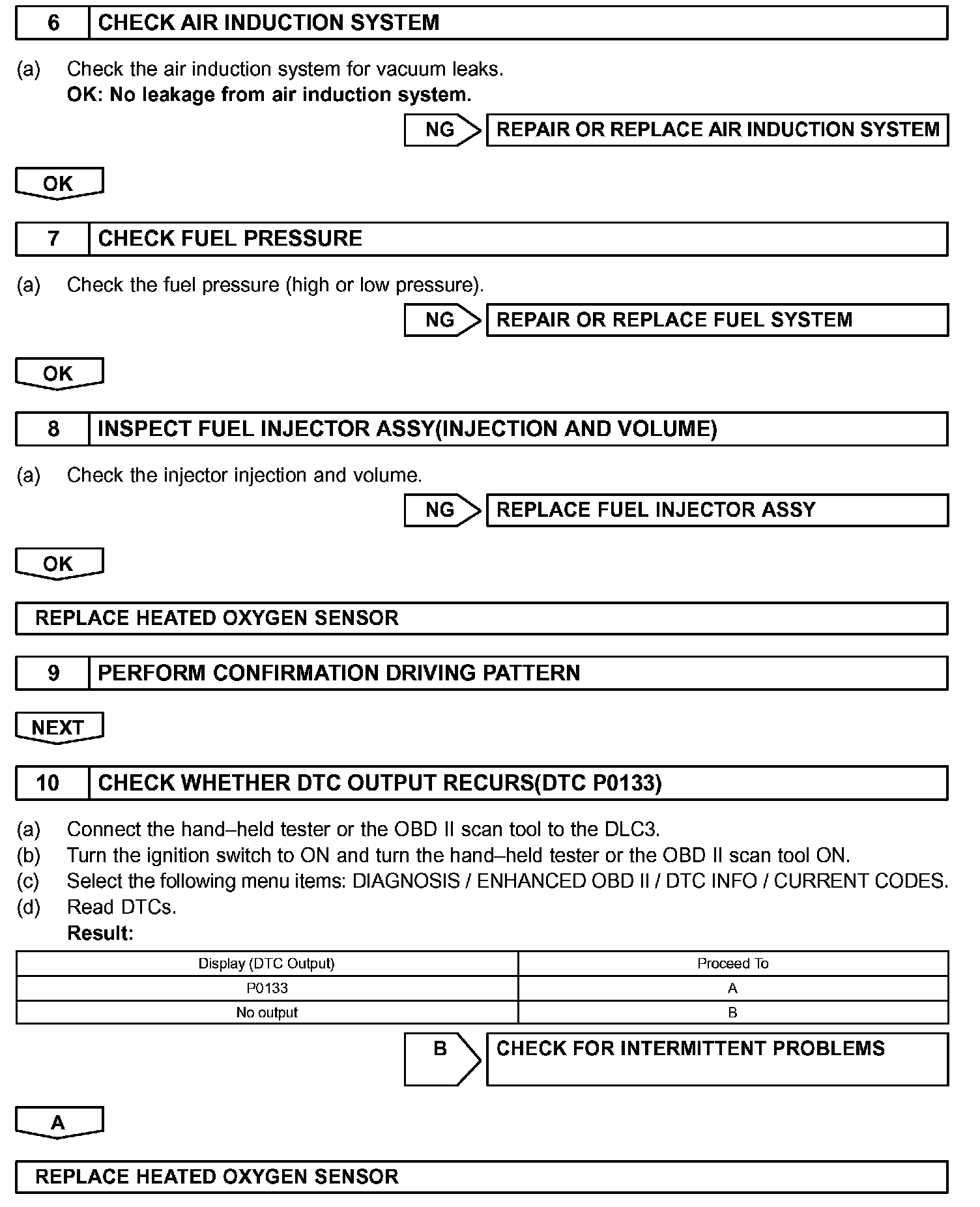

Step 6 - 10:
INSPECTION PROCEDURE
HINT: Hand-held tester only:
Malfunctioning areas can be identified by performing the A/F CONTROL function provided in the ACTIVE TEST. The A/F CONTROL function can help to determine whether the Heated Oxygen (HO2) sensors and other potential trouble areas are malfunctioning.
The following instructions describe how to conduct the A/F CONTROL operation using a hand-held tester.
1. Connect a hand-held tester to the DLC3.
2. Start the engine and turn the tester ON.
3. Warm up the engine at an engine speed of 2,500 rpm for approximately 90 seconds.
4. On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL.
5. Perform the A/F CONTROL operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
6. Monitor the voltage output of the HO2 sensors (O2S B1S1 and OS2 B1S2) displayed on the tester.
HINT:

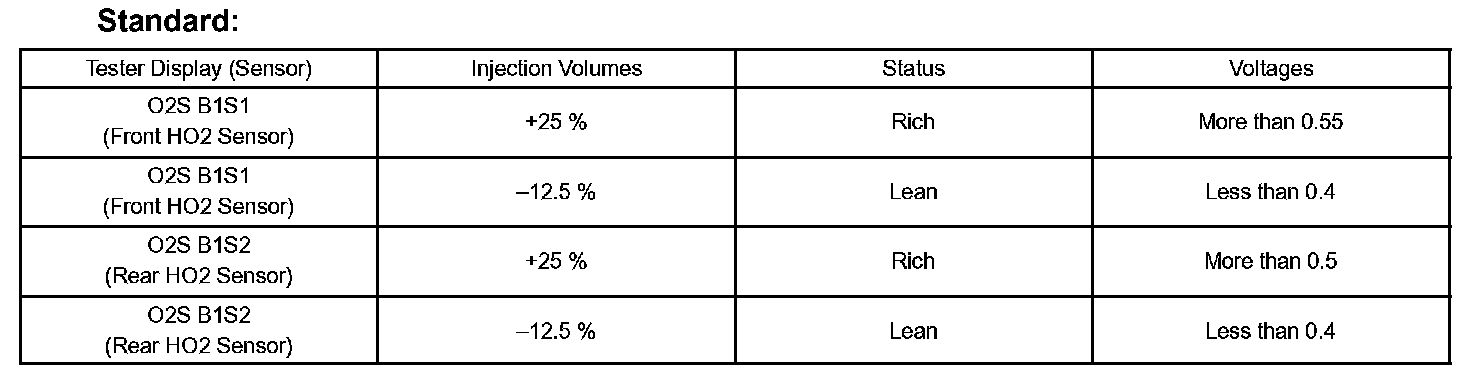

- The A/F CONTROL operation lowers the fuel injection volume by 12.5% or increases the injection volume by 25%.
- Each sensor reacts in accordance with increases and decreases in the fuel injection volume.

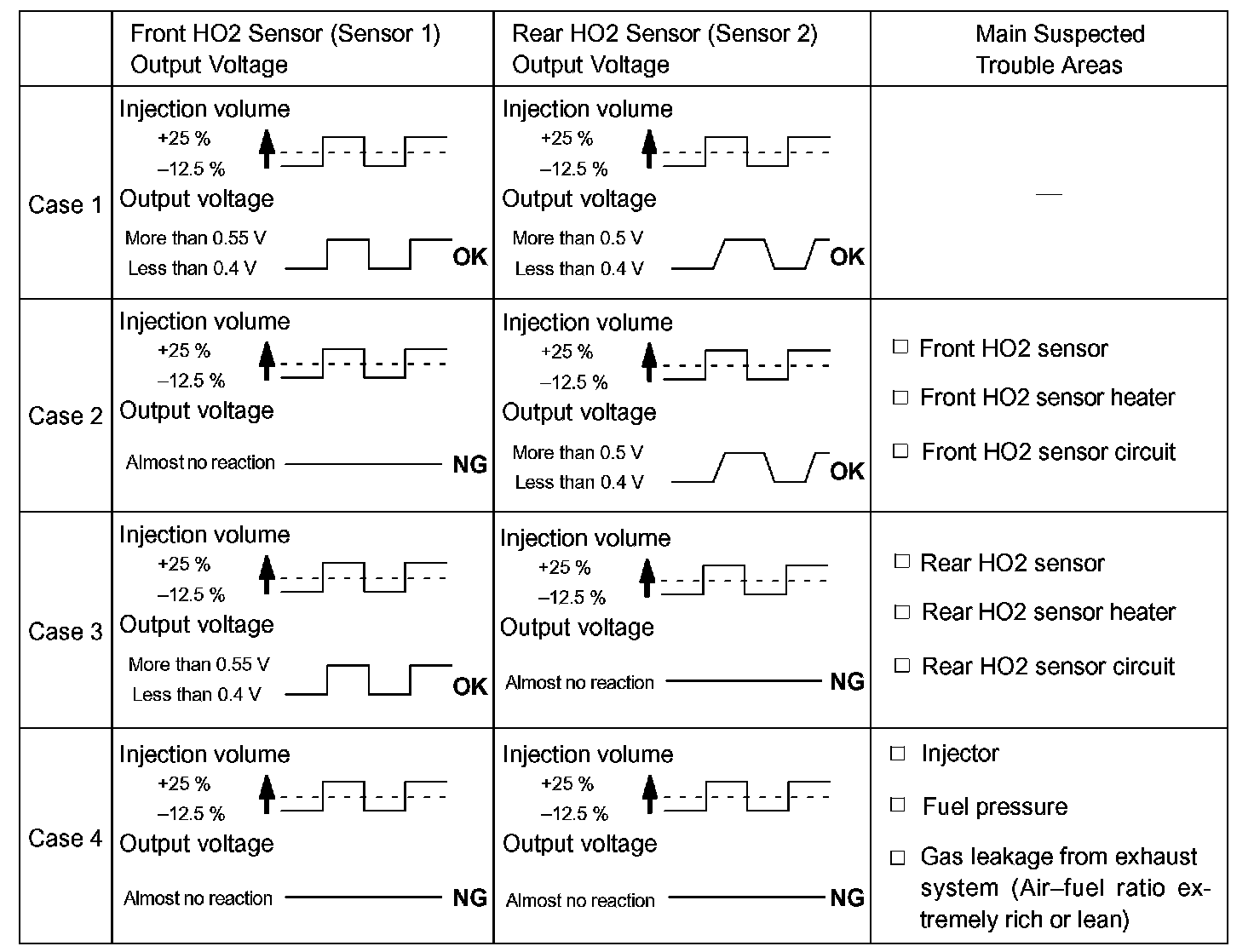

NOTE: The front HO2 sensor has an output delay of a few seconds and the rear HO2 sensor has a maximum output delay of approximately 20 seconds.
- Following A/F CONTROL procedure enables technicians to check and graph the voltage outputs of both the front and rear HO2 sensors.
- To display the graph, select the following menu items on the tester: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST/ A/F CONTROL / USER DATA / AFS B1S2 and OS2 B1B2, and press the YES button and then the ENTER button followed by the F4 button.
NOTE: If the vehicle is short of fuel, the air-fuel ratio becomes lean and HO2 sensor DTCs are recorded, and the ECM illuminates the MIL.
HINT:
- If other DTCs relating to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
- Read freeze frame data using a hand-held tester or OBD II scan tool. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.
- A high HO2 sensor (sensor 1) voltage (0.55 V or more) could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
- A low HO2 sensor (sensor 1) voltage (0.4 V or less) could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.
CHECK FOR INTERMITTENT PROBLEMS
HINT: Hand-held tester only:
Inspect the vehicle's ECM using check mode. Intermittent problems are easier to detect with a hand-held tester when the ECM is in check mode. In check mode, the ECM uses 1 trip detection logic, which is more sensitive to malfunctions than normal mode (default), which uses 2 trip detection logic.
a. Clear DTC.
b. Switch the ECM from normal mode to check mode using a hand-held tester.
c. Perform a simulation test.
d. Check and wiggle the harness(es), connector(s) and terminal(s).
