DTC 53

DTC 53 SHORT IN P SQUIB CIRCUIT

CIRCUIT DESCRIPTION

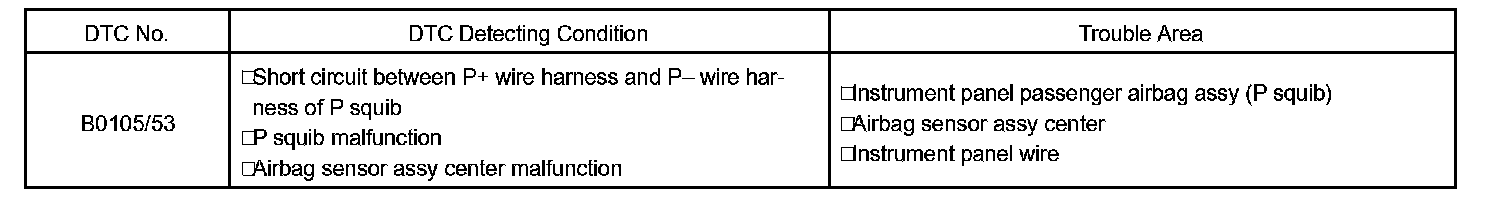

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assembly center and the instrument panel passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0105/53 is recorded when a short circuit is detected in the P squib circuit.

Wiring Diagram:

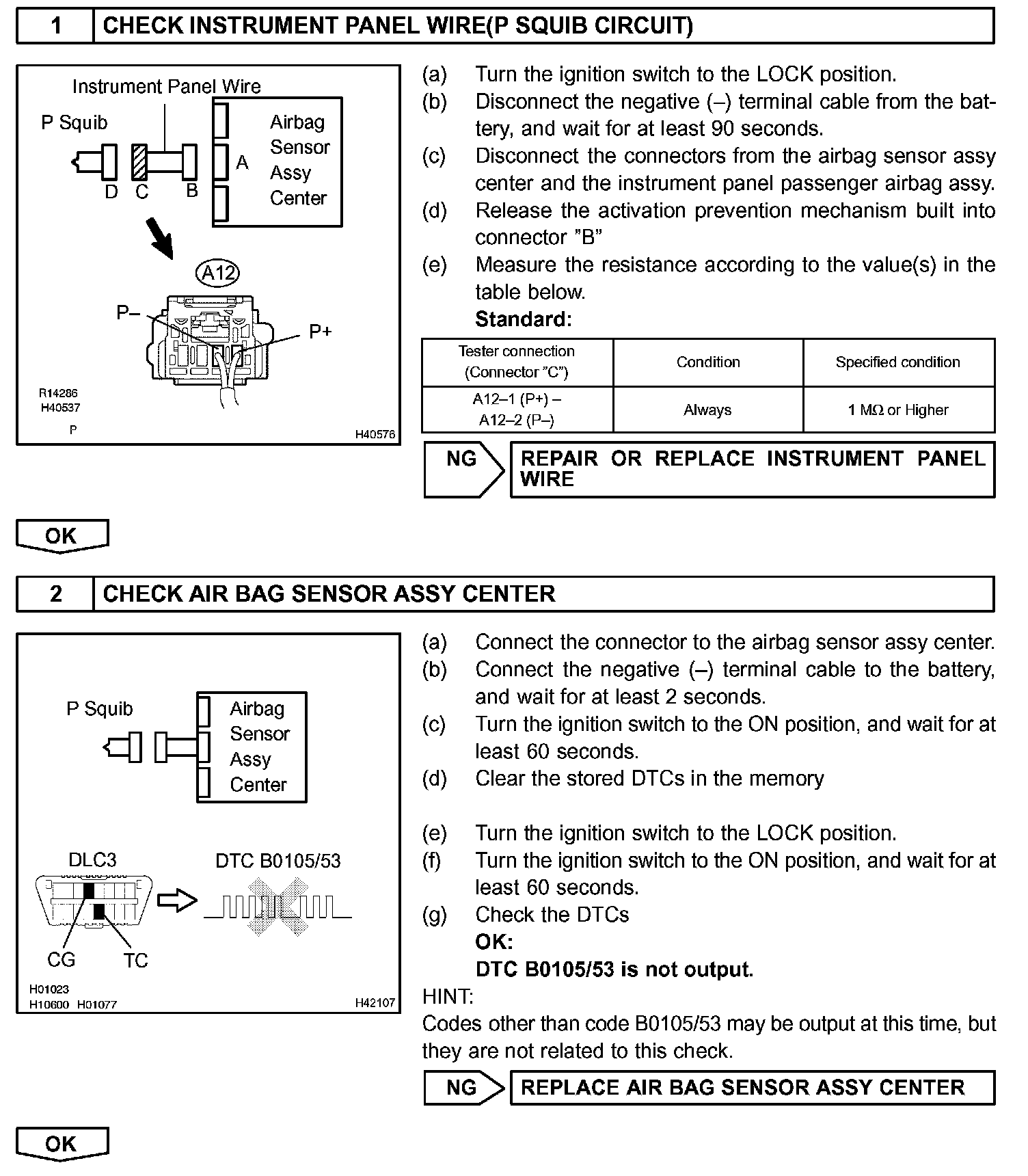

Step 1 - 2:

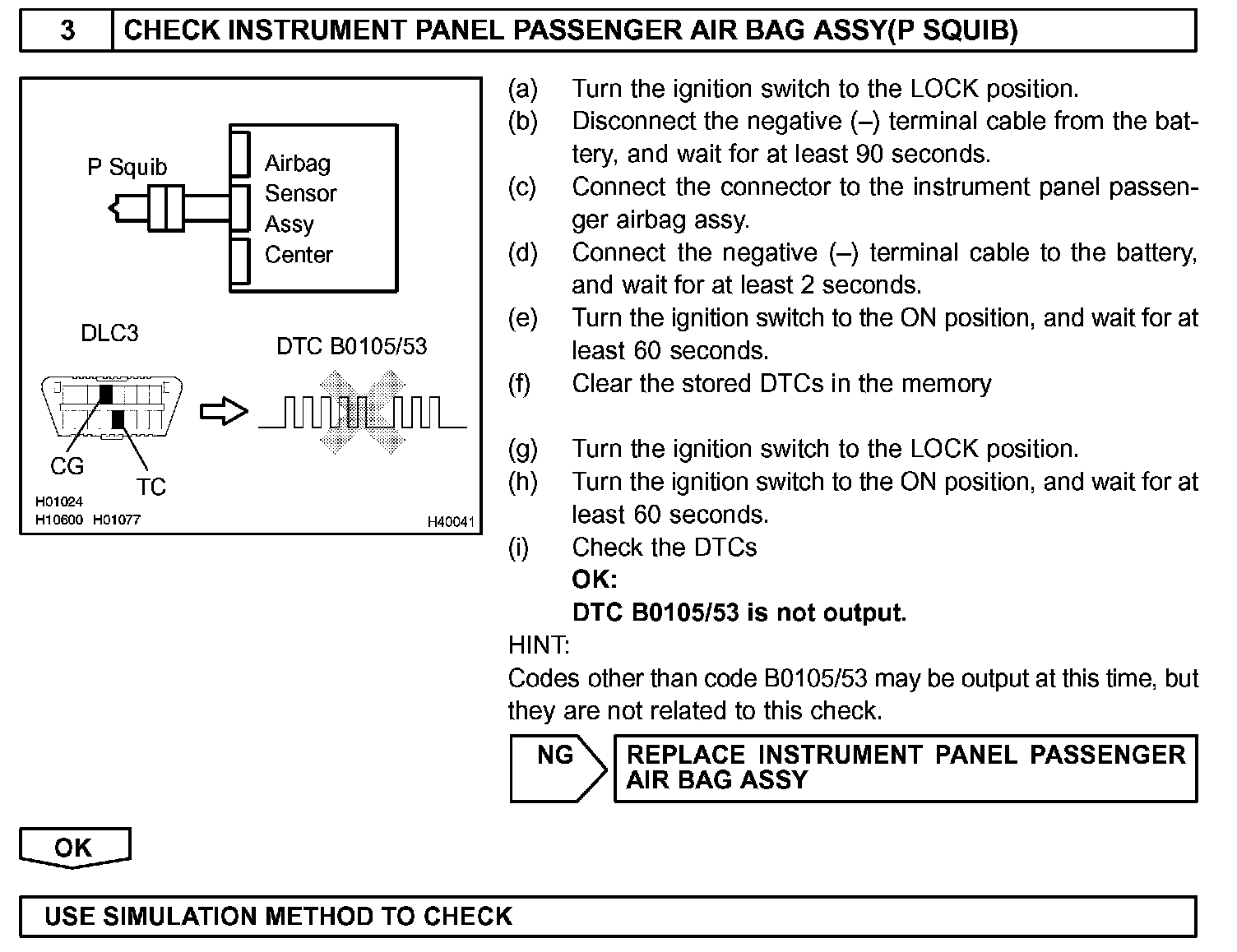

Step 3:

INSPECTION PROCEDURE
