DTC 27

DTC 27 SEAT BELT BUCKLE SWITCH (LH) MALFUNCTION

CIRCUIT DESCRIPTION

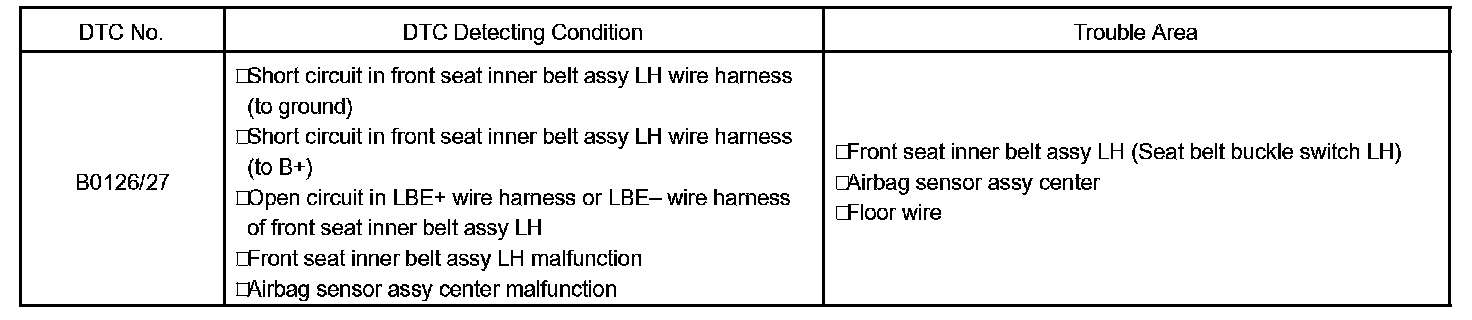

DTC Detecting Condition:

The seat belt buckle switch LH circuit consists of the airbag sensor assembly center and the front seat inner belt assembly LH (seat belt buckle switch LH).

DTC B0126/27 is recorded when a malfunction is detected in the seat belt buckle switch LH circuit.

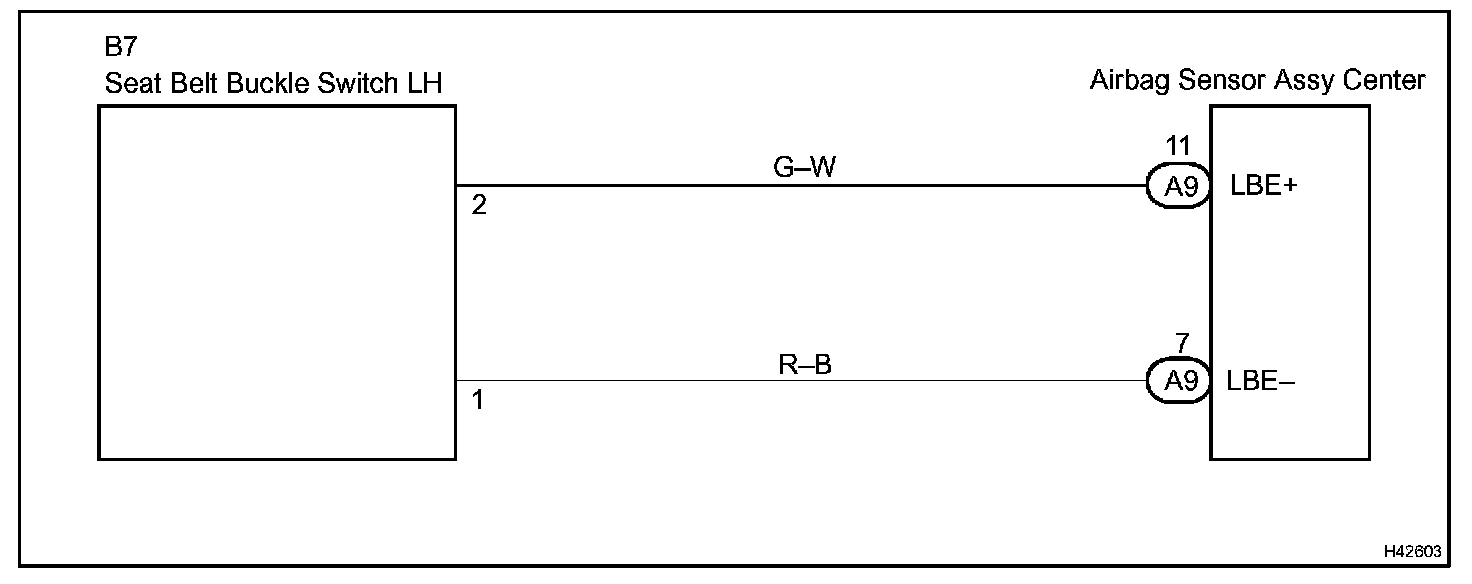

Wiring Diagram:

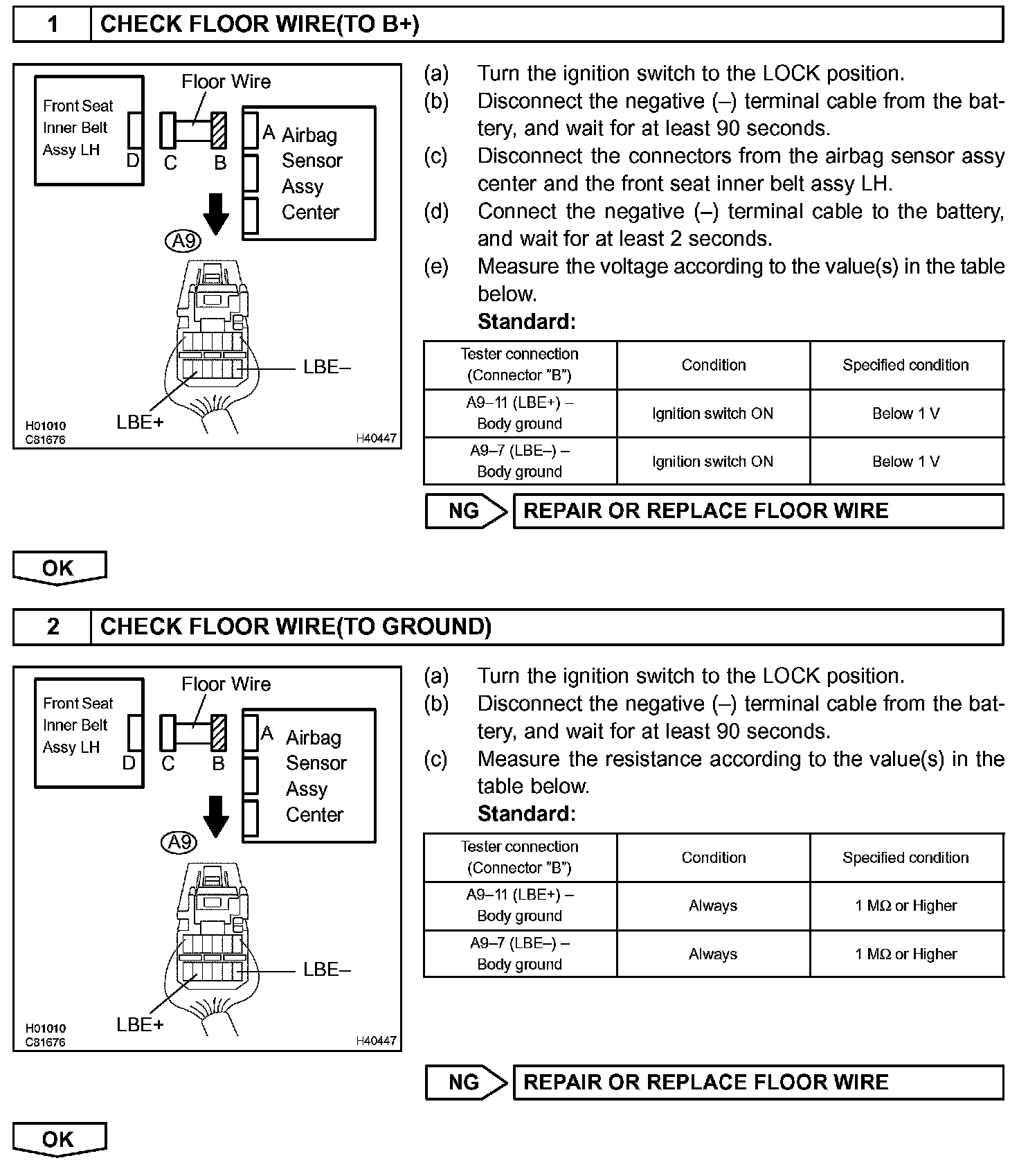

Step 1 - 2:

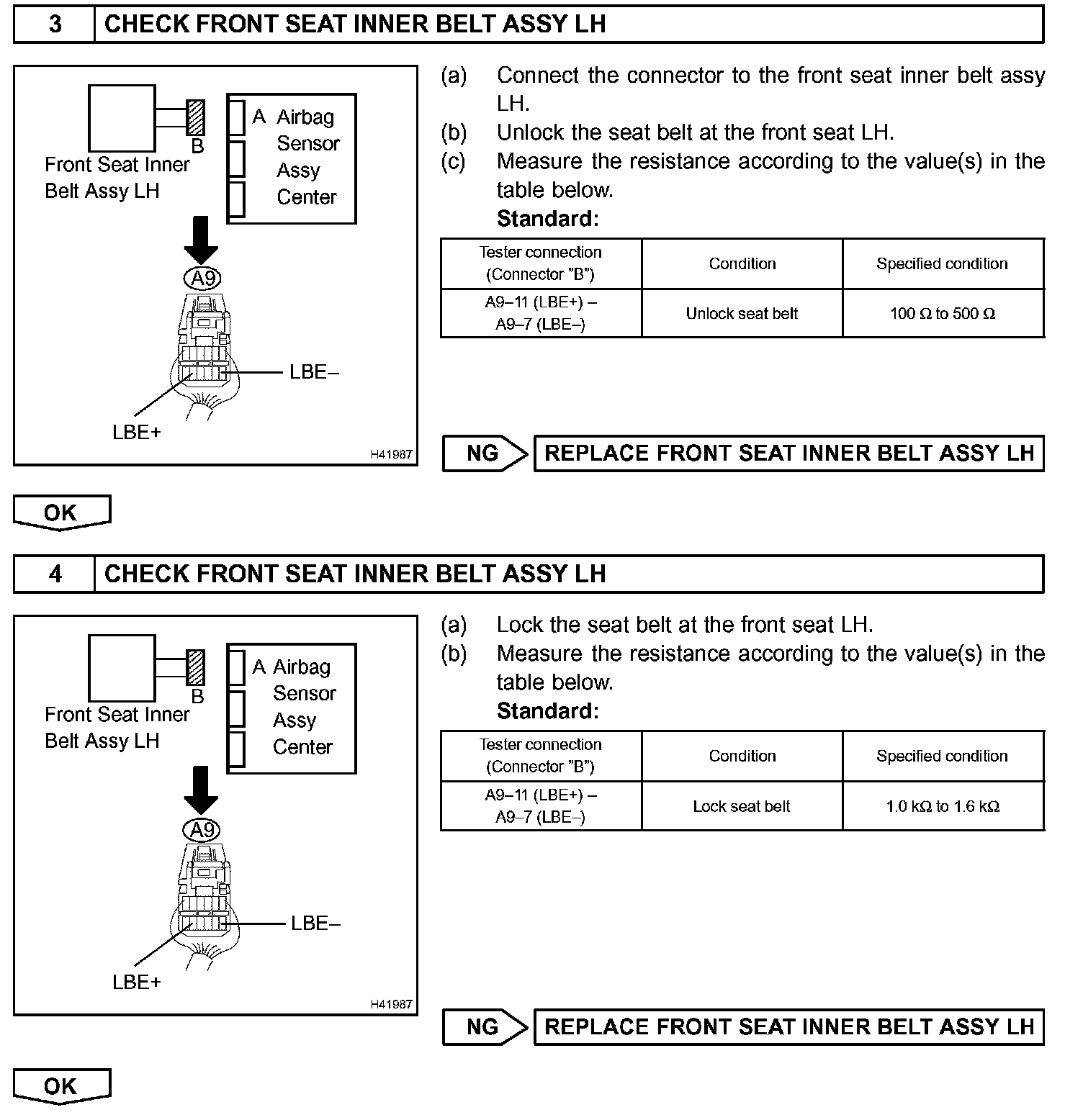

Step 3 - 4:

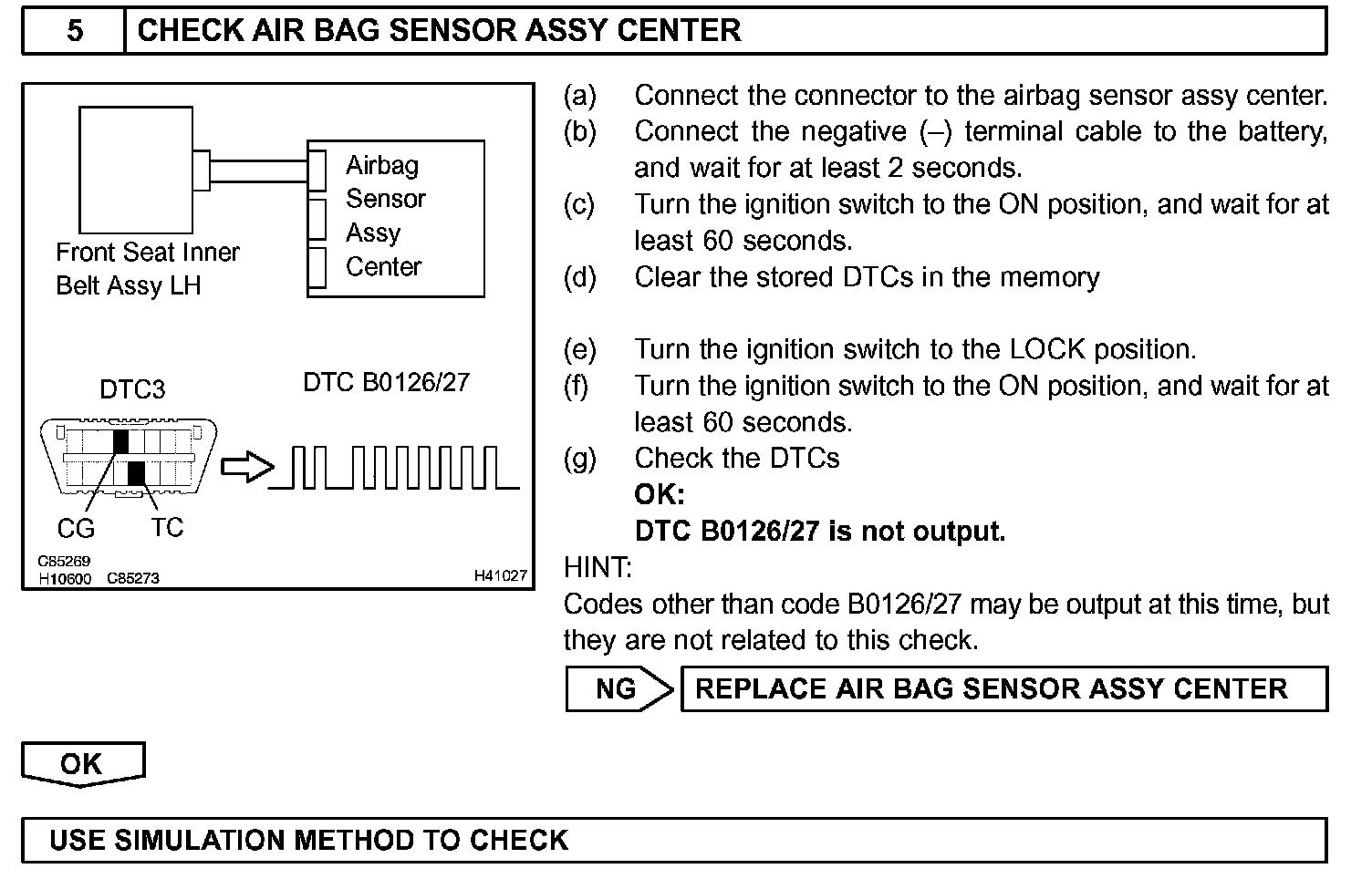

Step 5:

INSPECTION PROCEDURE
