DTC 16

DTC 16 FRONT AIRBAG SENSOR (LH) MALFUNCTION

CIRCUIT DESCRIPTION

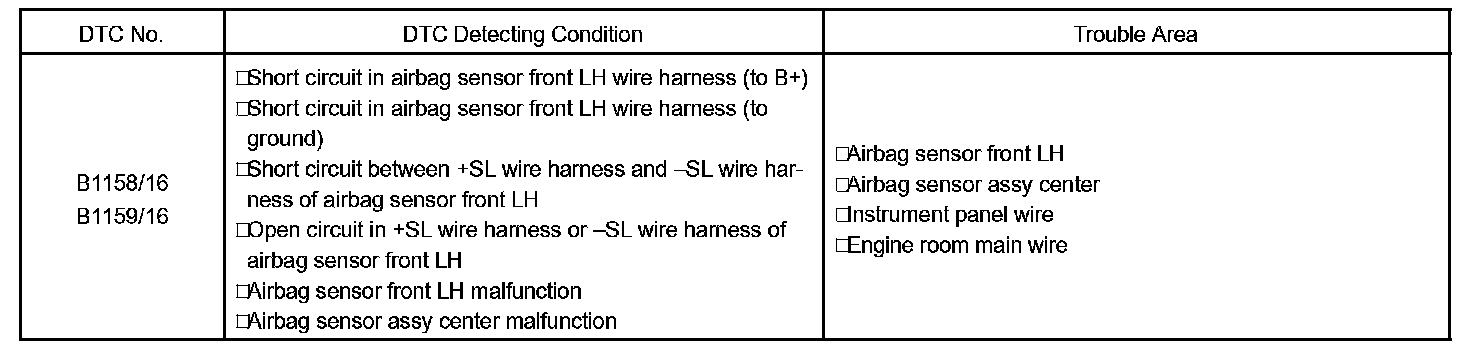

DTC Detecting Condition:

The airbag sensor front LH circuit consists of the airbag sensor assembly center and airbag sensor front LH.

DTC B1158/16 or B1159/16 is recorded when malfunction is detected in the airbag sensor front LH circuit.

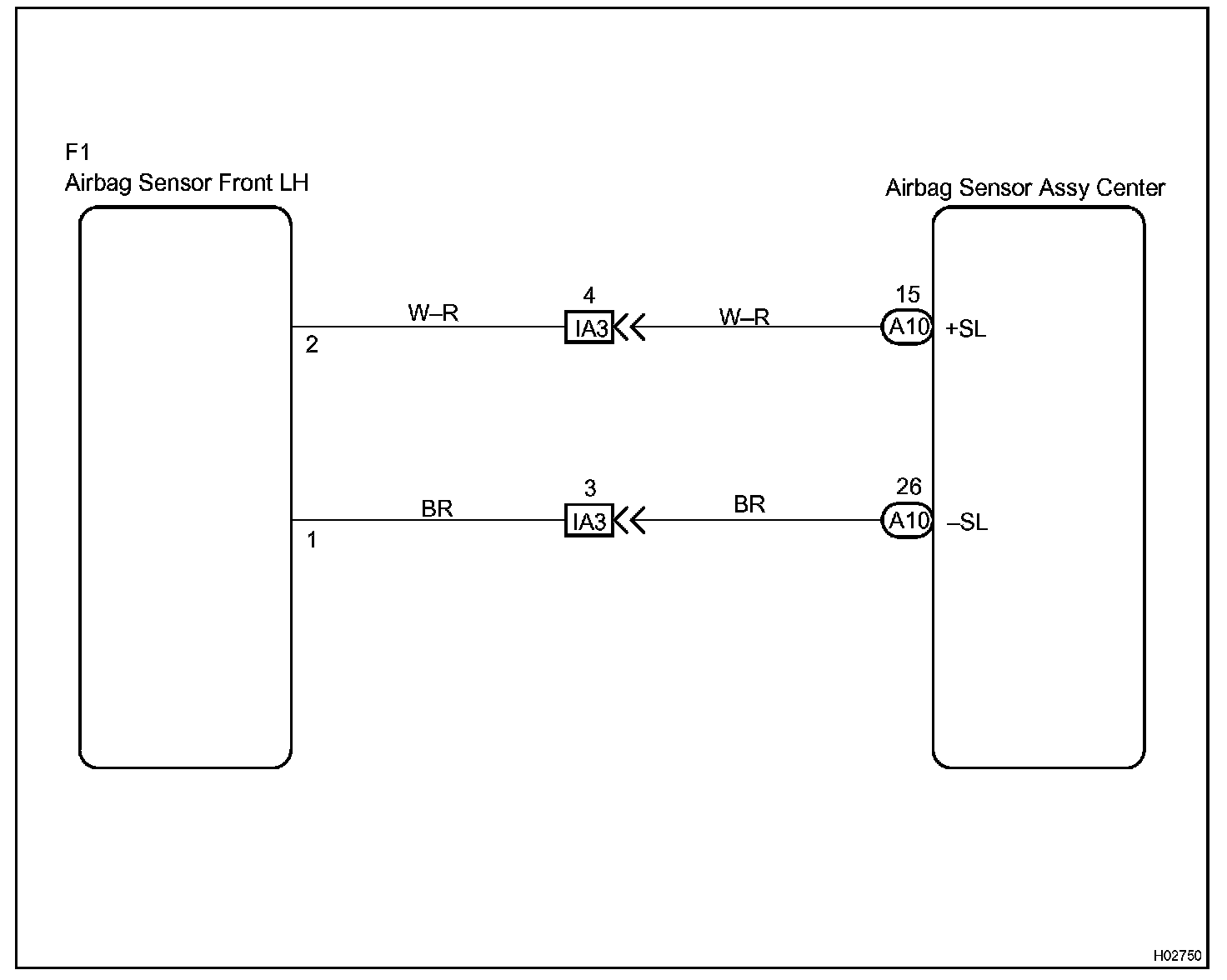

Wiring Diagram:

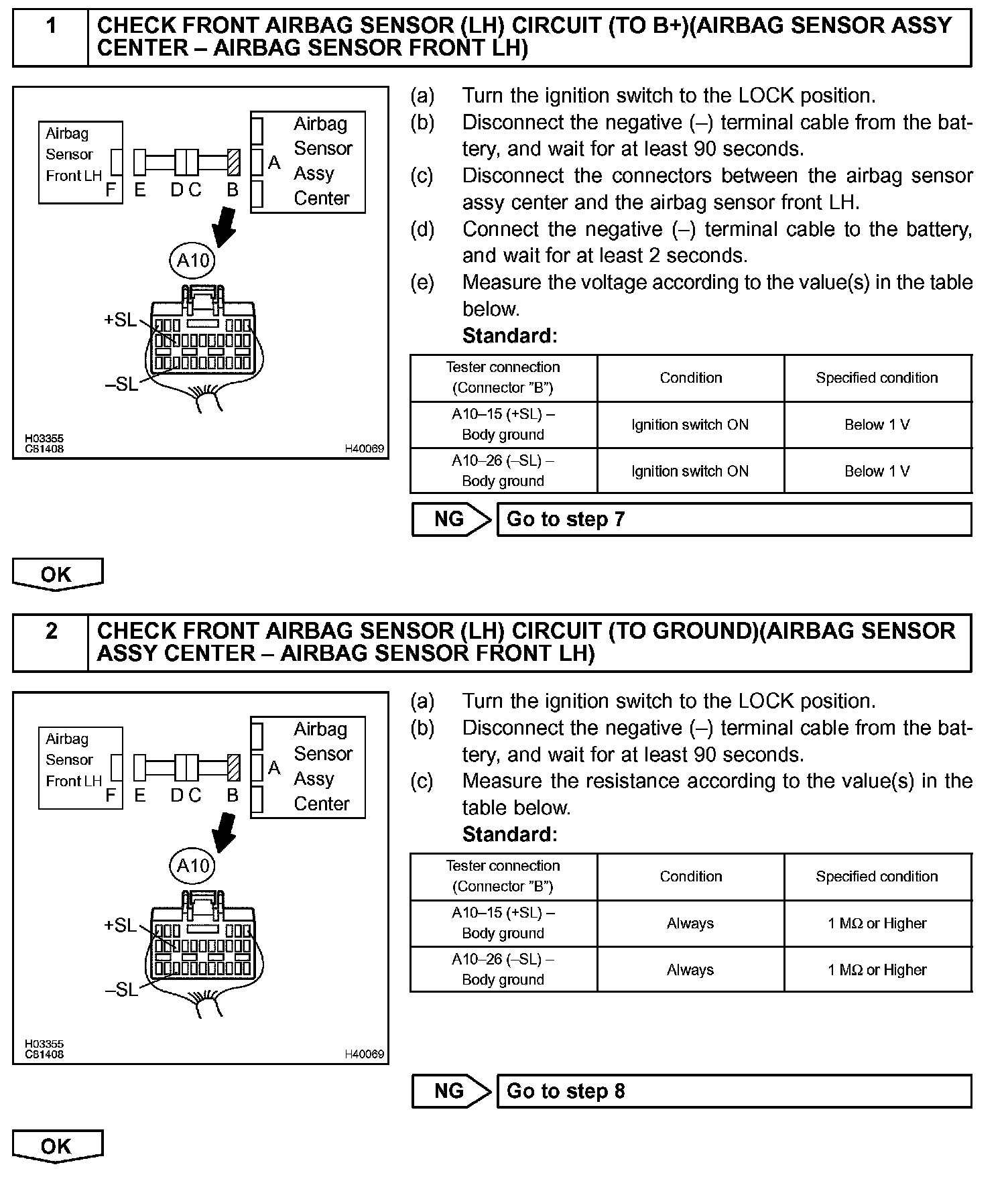

Step 1 - 2:

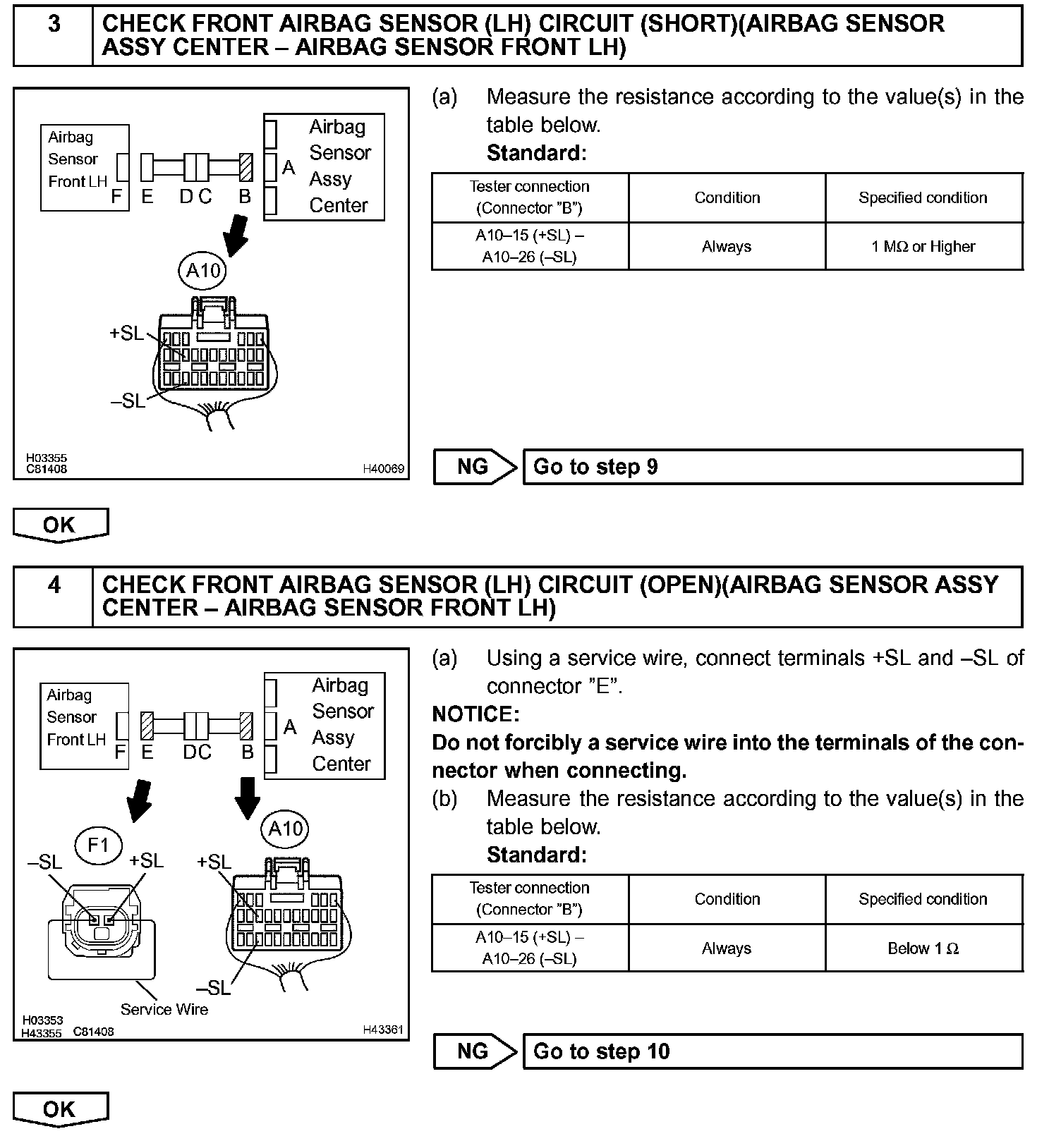

Step 3 - 4:

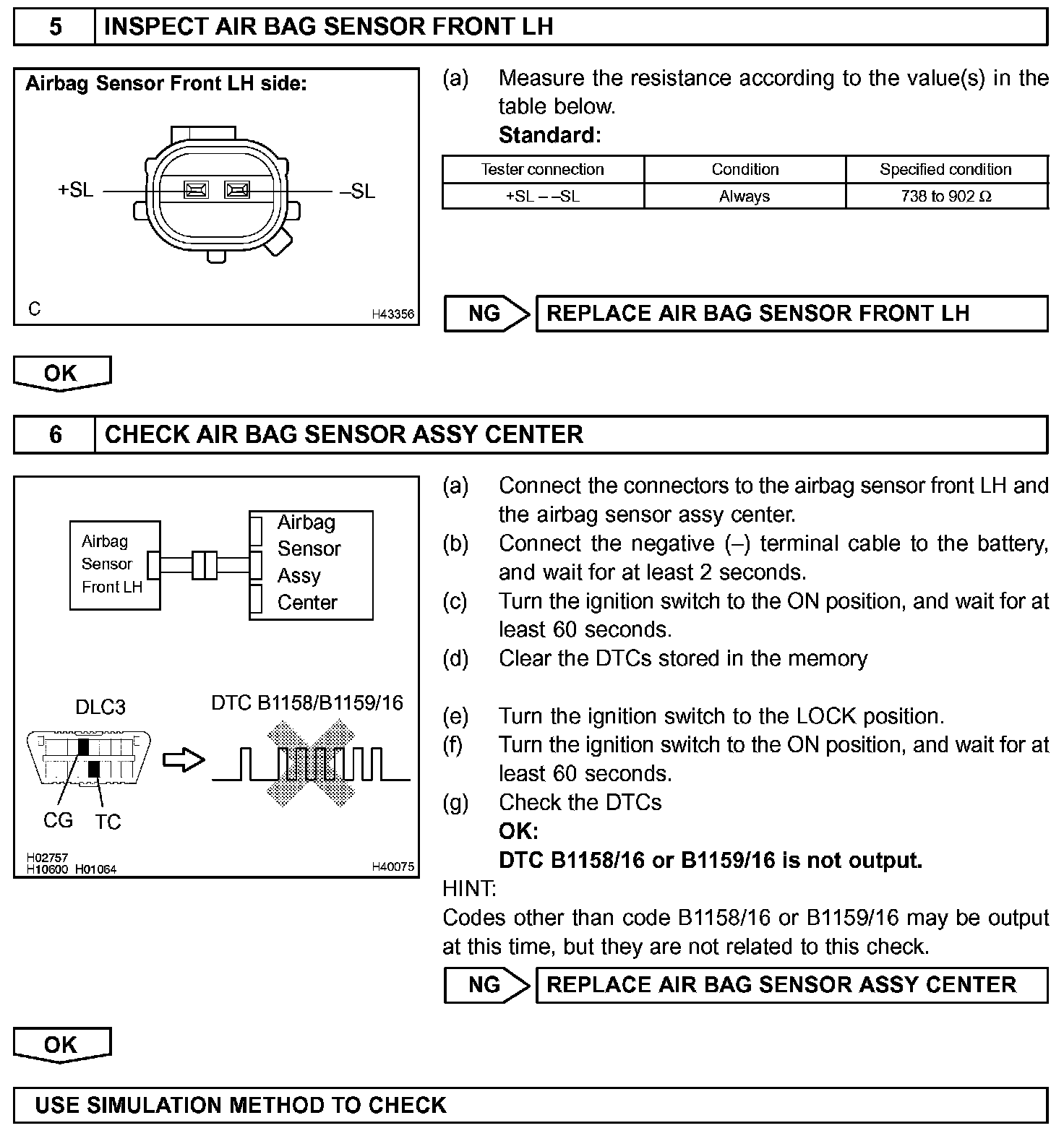

Step 5 - 6:

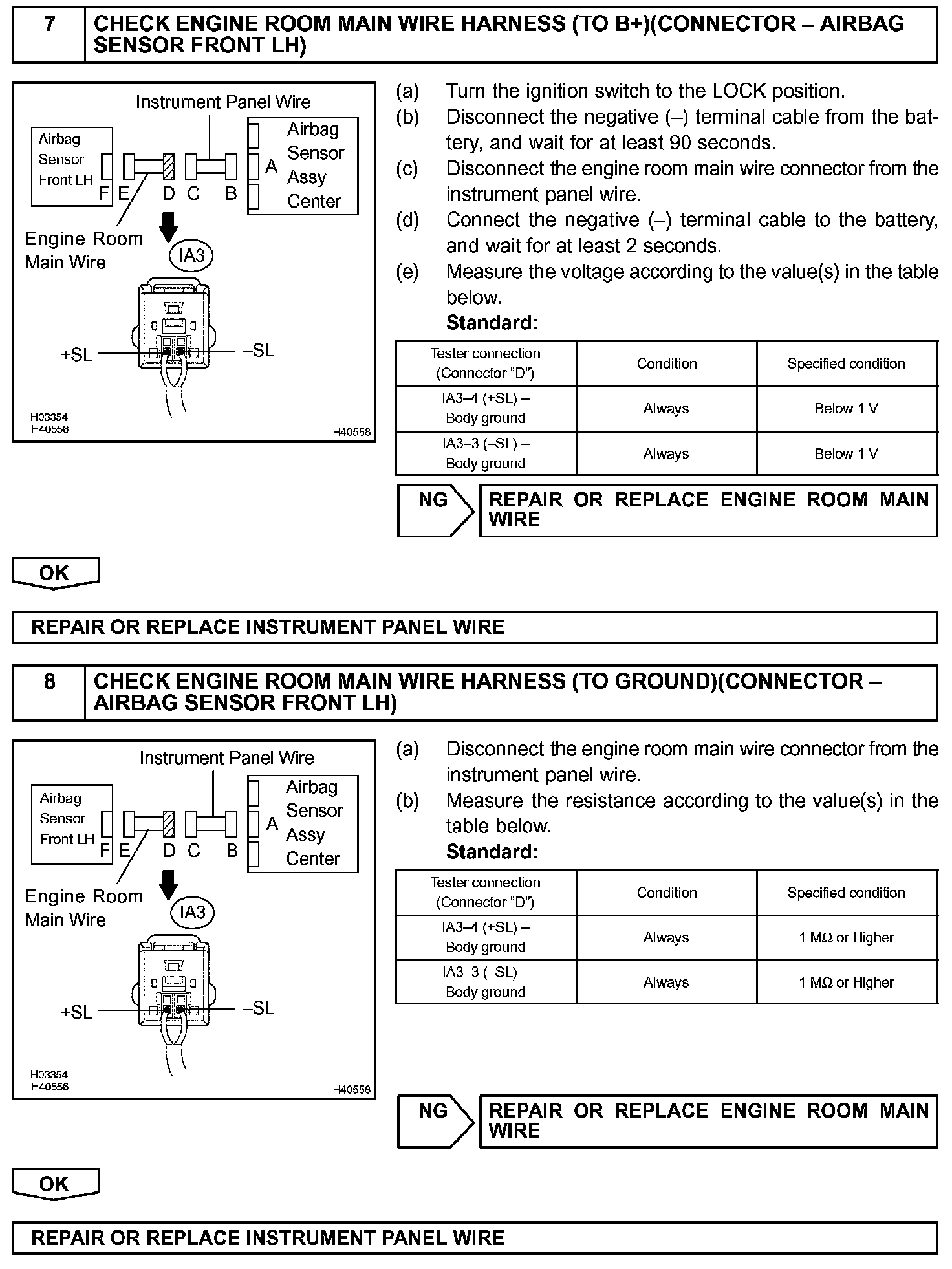

Step 7 - 8:

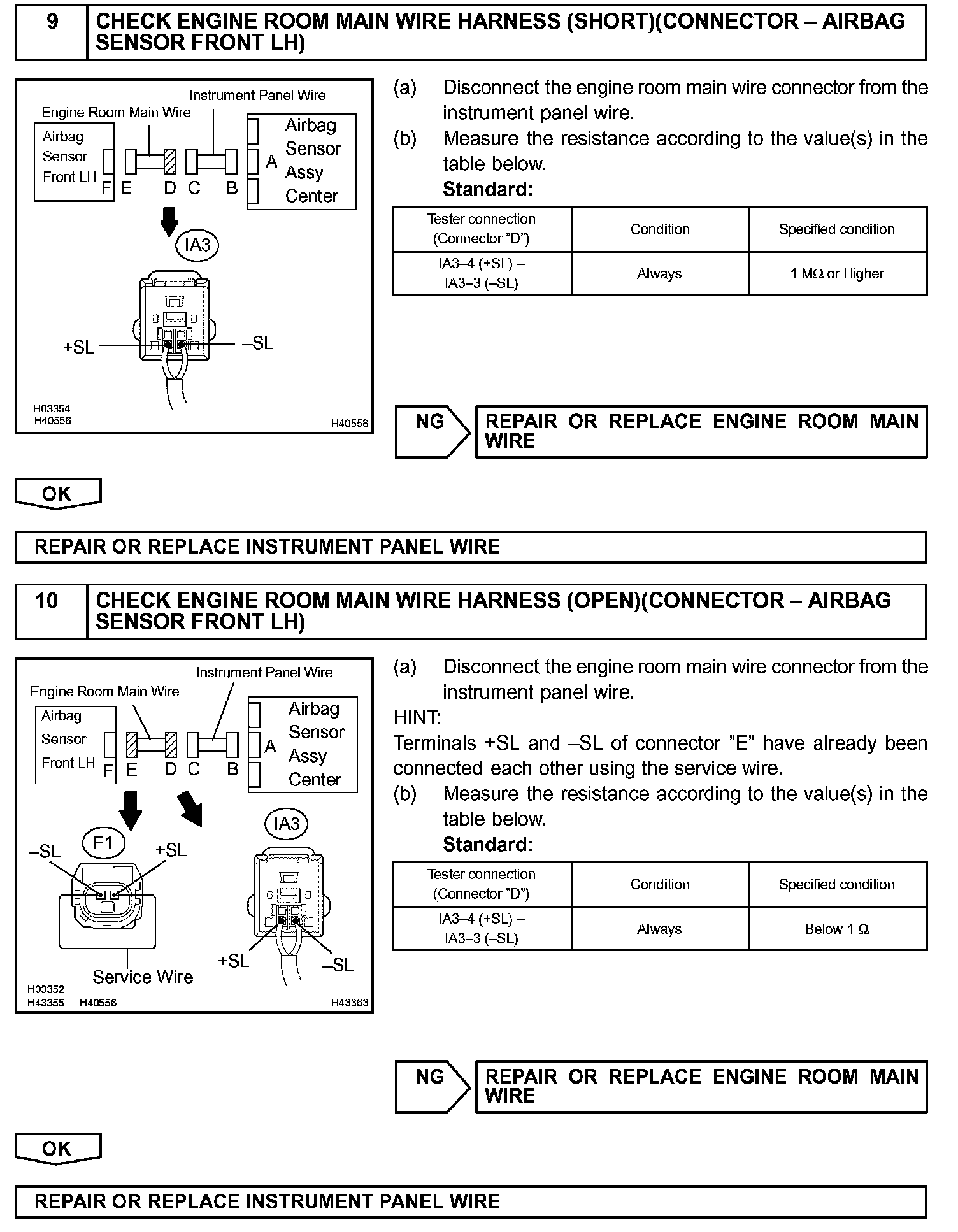

Step 9 - 10:

INSPECTION PROCEDURE
