Zero Point Calibration of Deceleration Sensor Undone

DTC 39 ZERO POINT CALIBRATION OF DECELERATION SENSOR UNDONE

CIRCUIT DESCRIPTION

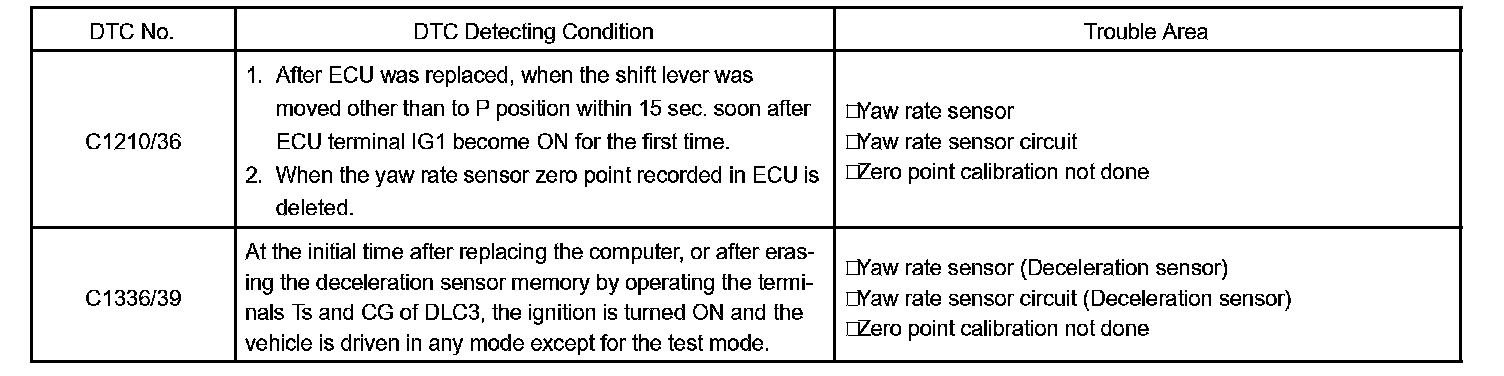

DTC Detecting Condition:

Deceleration sensor is included in yaw rate sensor.

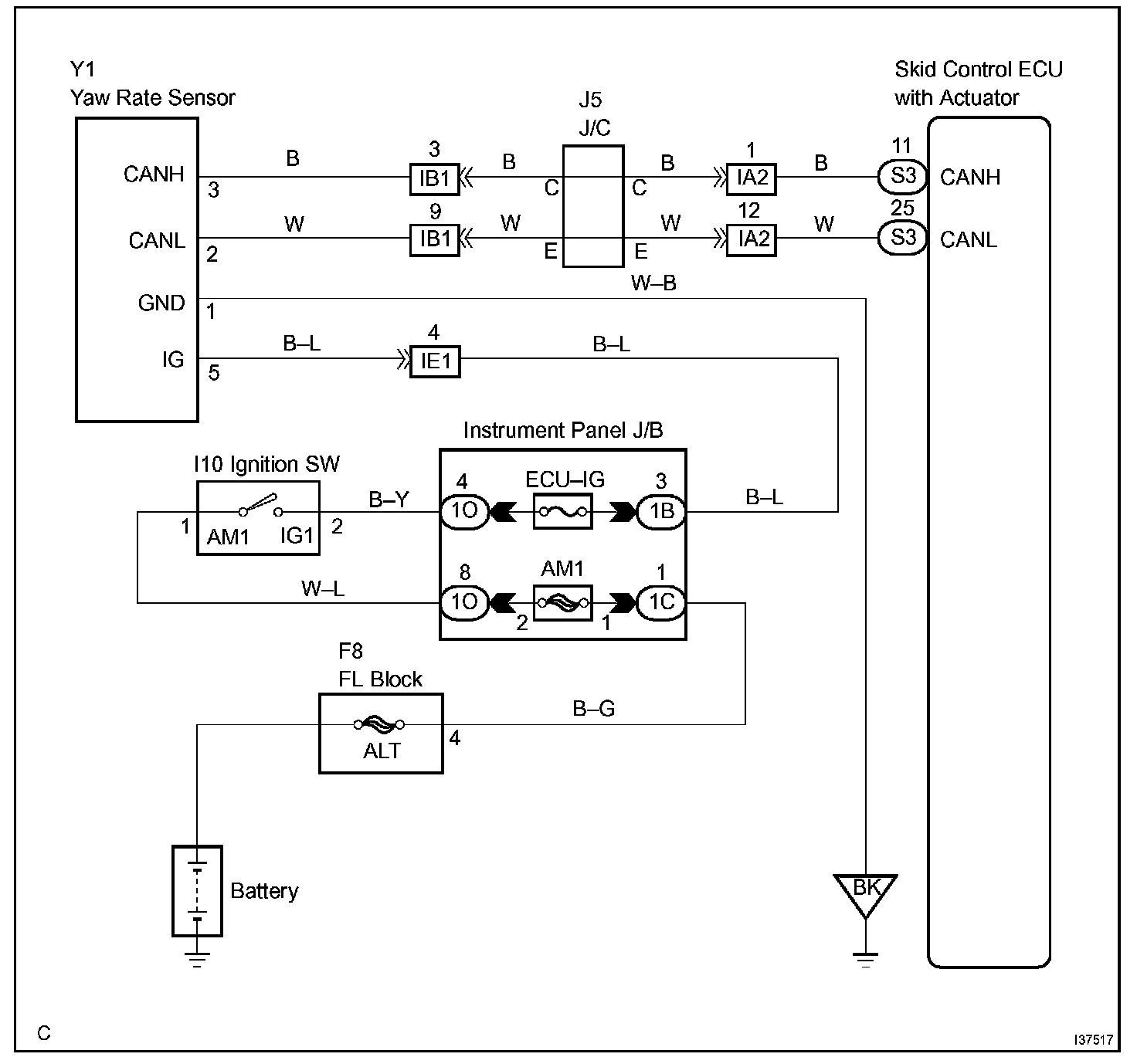

Wiring Diagram:

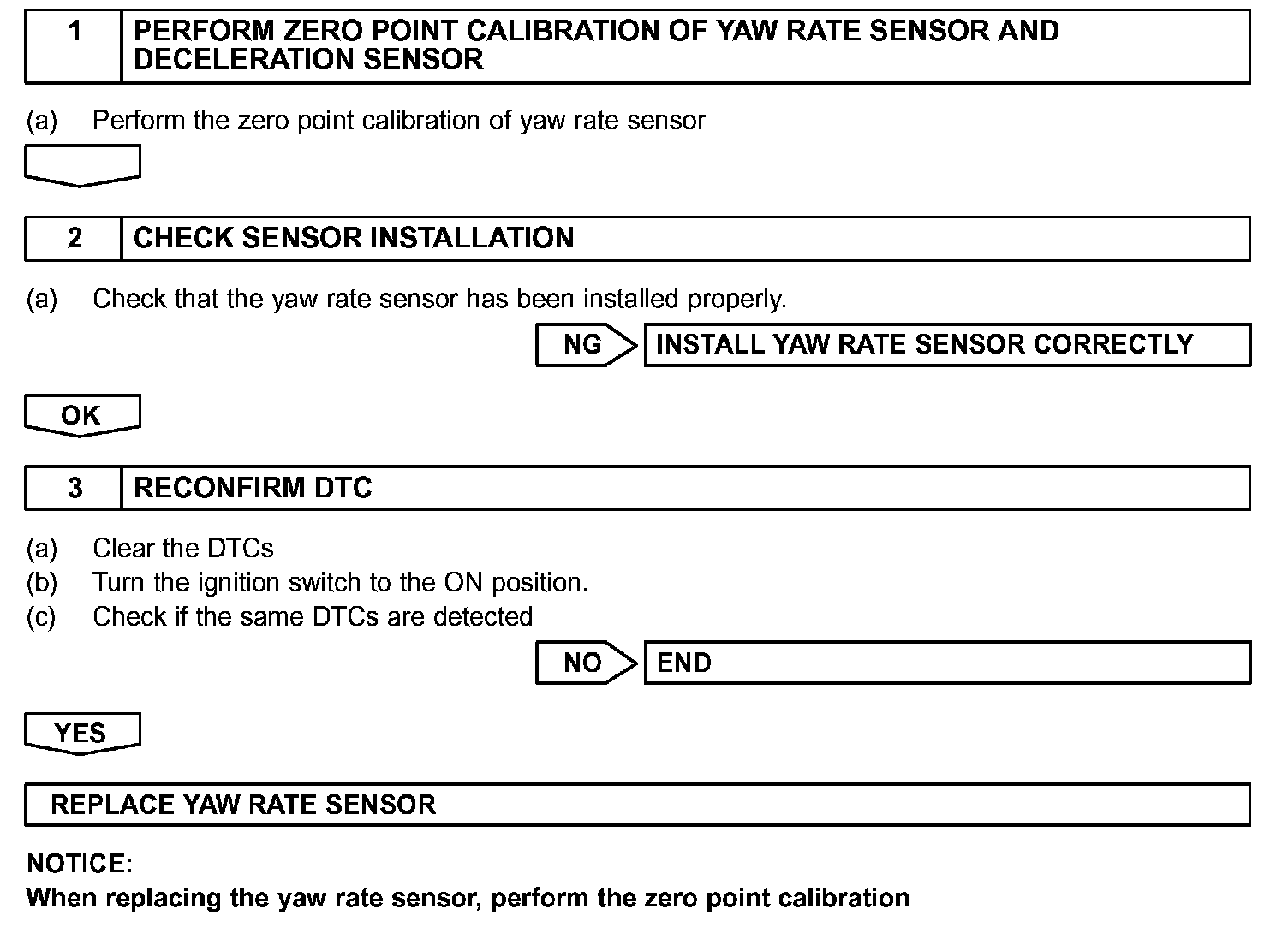

Step 1 - 3:

INSPECTION PROCEDURE

HINT: When U0121/94, U0123/62, U0124/95 or U0126/63 are output accompanied with C1210/36 or C1336/39, inspect and repair the trouble areas indicated by U0121/94, U0123/62, U0124/95 or U0126/63 first.
