A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transaxle System
Automatic Transaxle System
DIAGNOSTIC TROUBLE CODE CHART

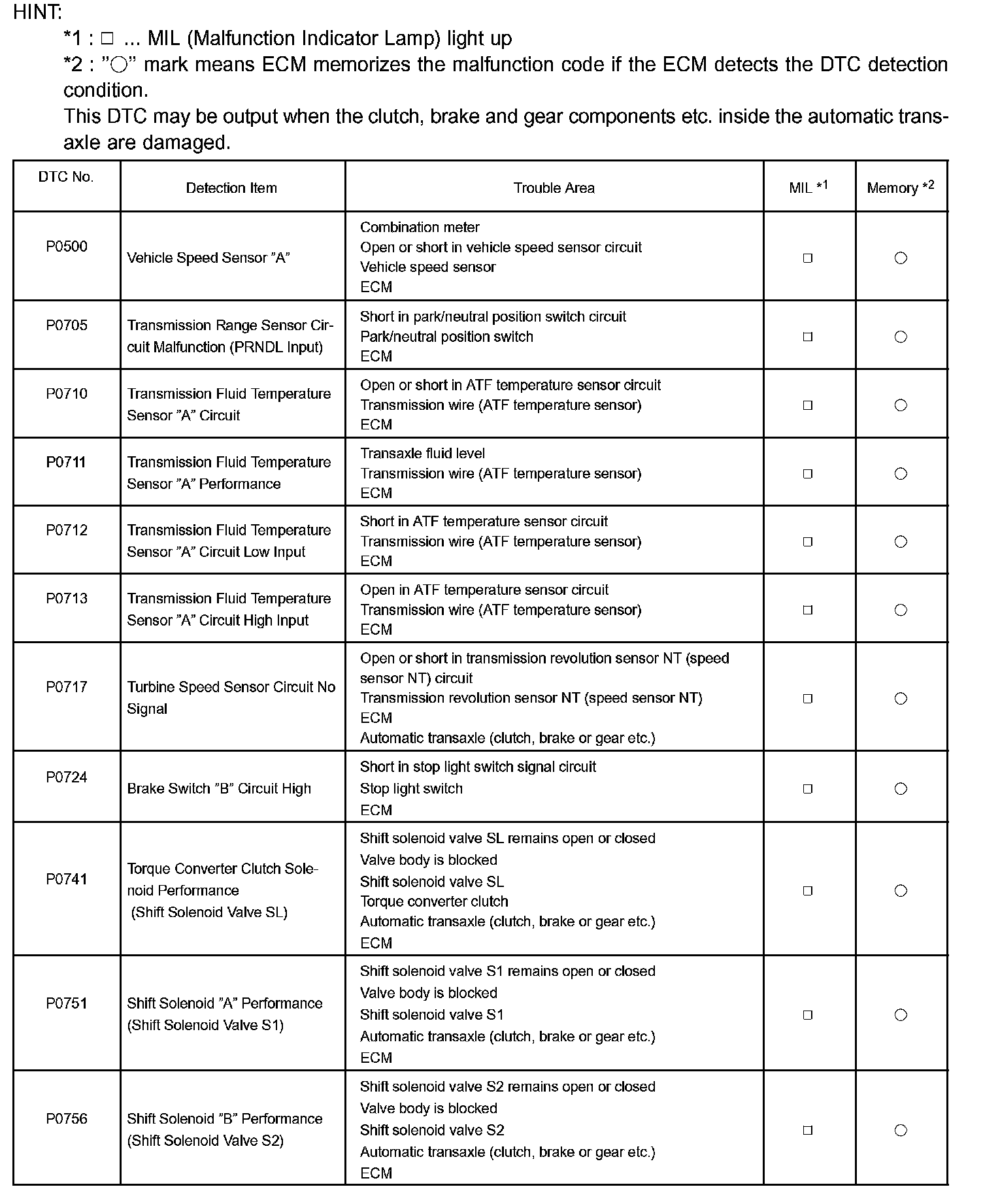

P0500 - P0756:
P0787 - P2770:
If a DTC is displayed during the DTC check, check the circuit listed in the table.
