Airbag System

DIAGNOSTIC TROUBLE CODE CHART

B0100/13 - B0136/74:

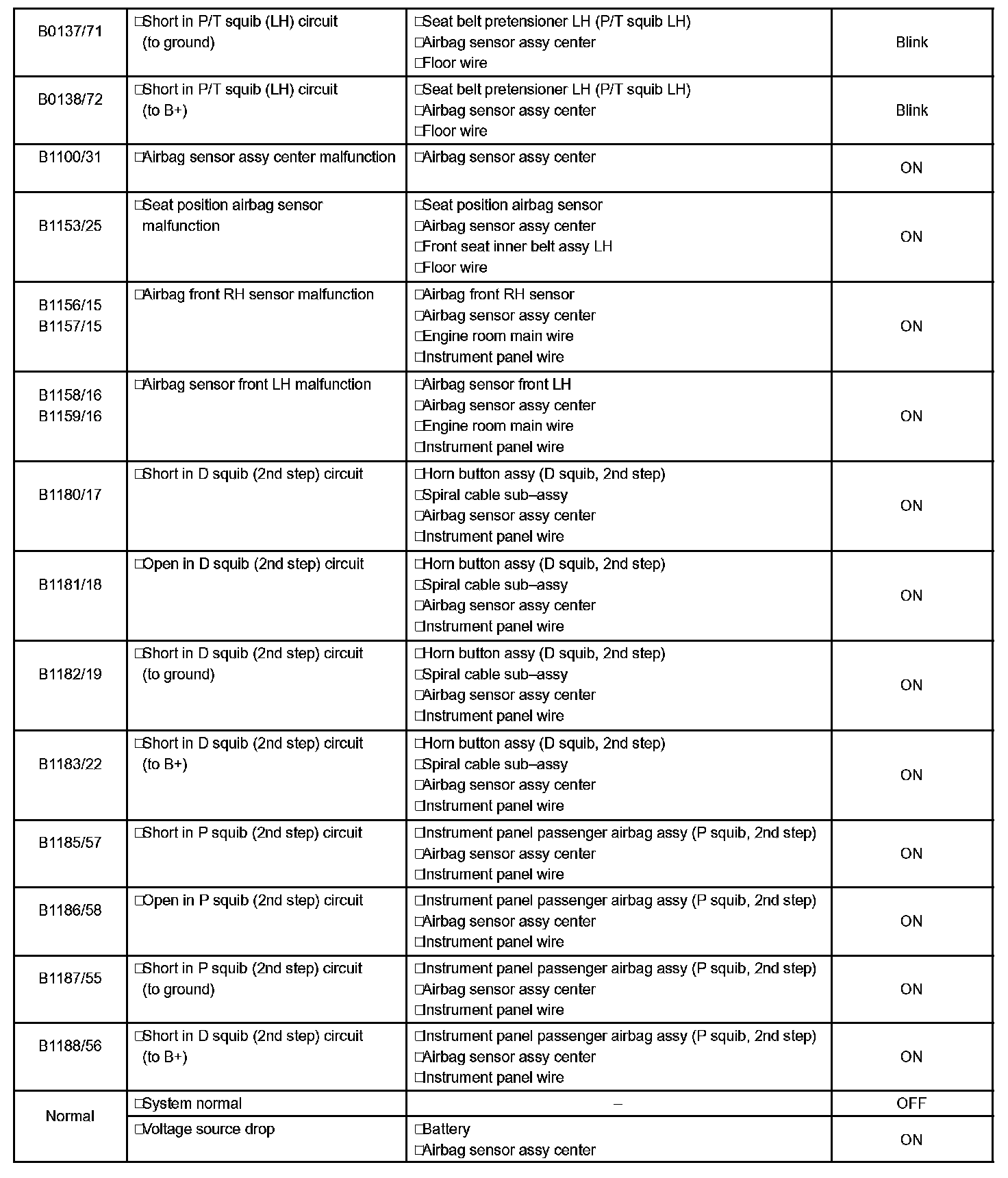

B0137/71 - Normal:

If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table.

HINT:
- When the SRS warning light remains on and the DTCs output is the normal system code, a voltage source drop is likely to occur. This malfunction is not stored in the memory of the airbag sensor assembly center. If the power source voltage returns to normal, the SRS warning light will automatically go out.
- When 2 or more codes are indicated, the code with the lower number appears first.
- If a code is not listed on the display chart, the airbag sensor assembly center may have failed.
- In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to a squib, another malfunction code may not be detected. In this case, repair the malfunction currently indicated, and then perform the malfunction diagnosis again.
