C1251

DTC C1251 PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND

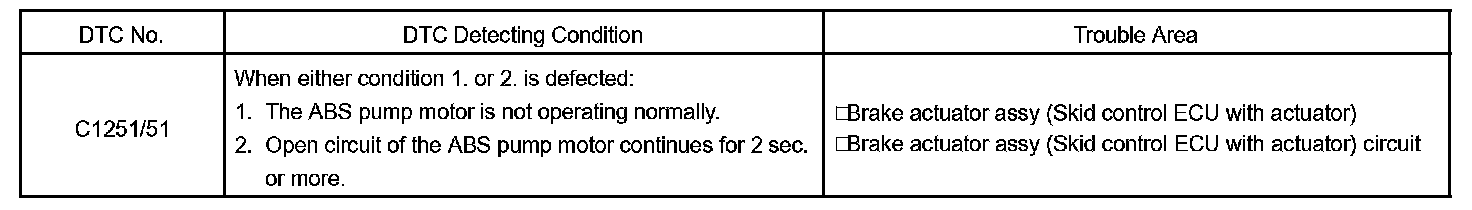

DTC Detecting Condition:

CIRCUIT DESCRIPTION

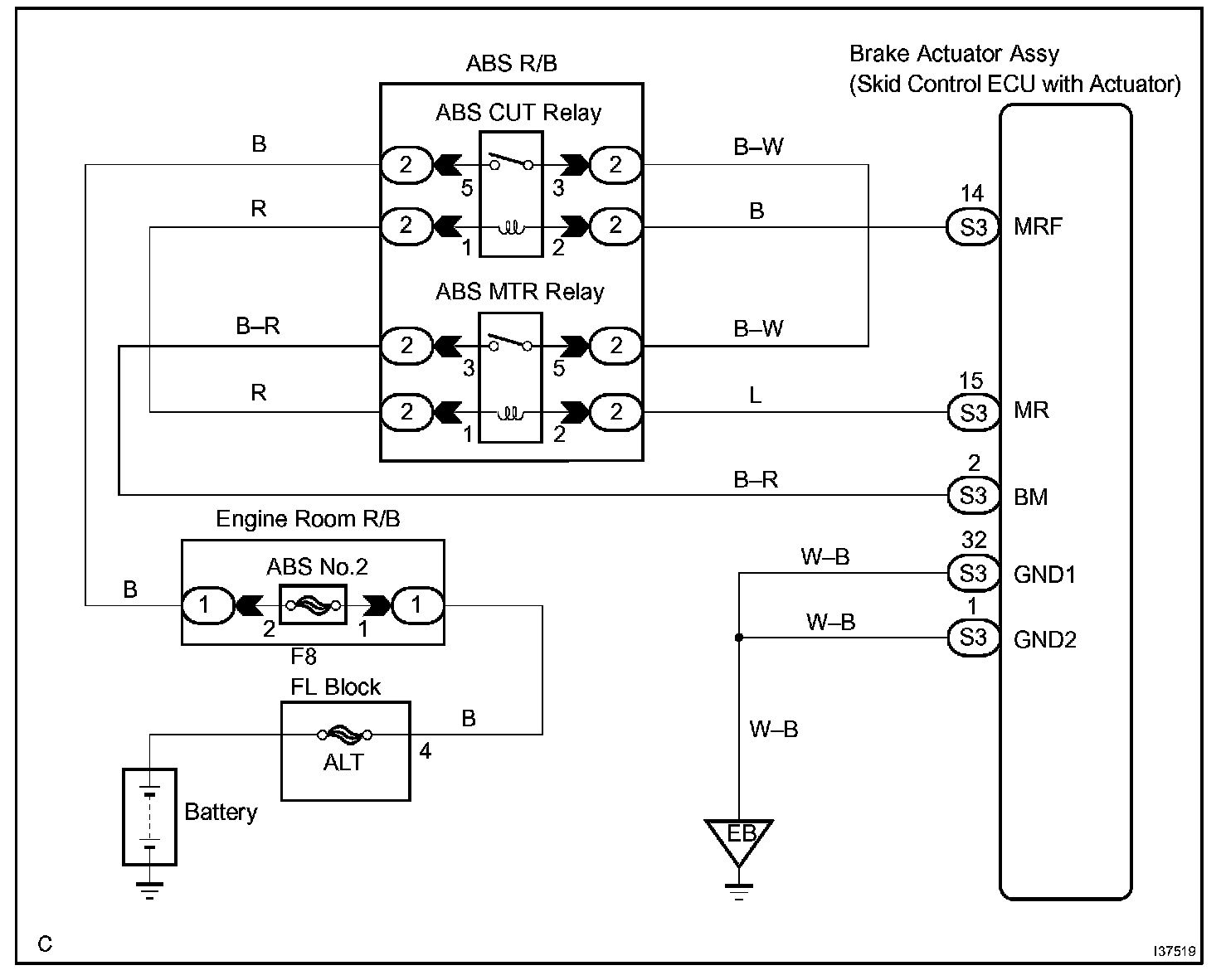

Wiring Diagram:

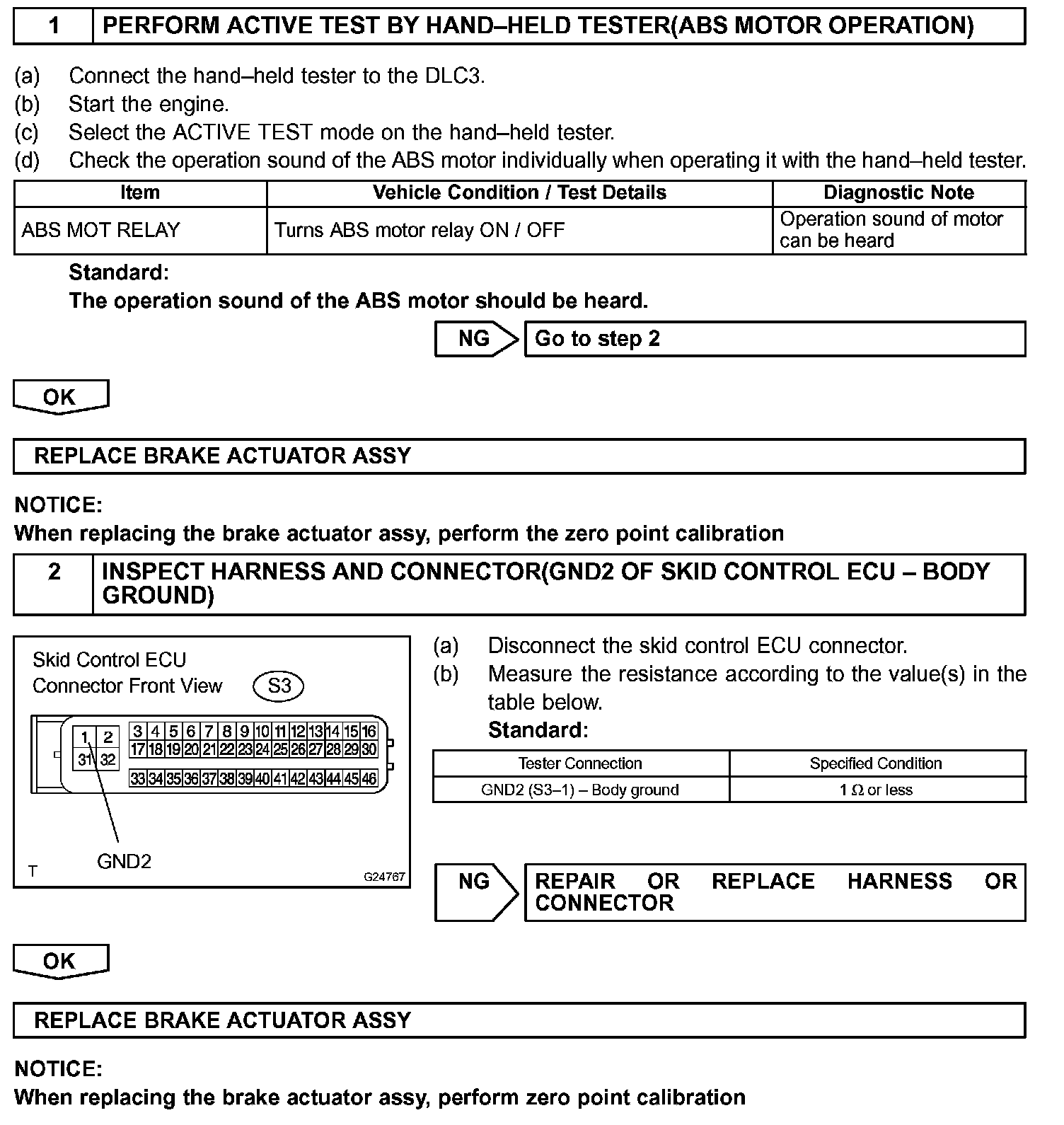

Step 1 - 2:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
