DTC C1249 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT

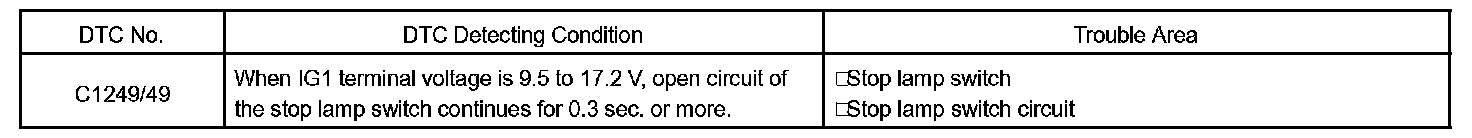

DTC Detecting Condition:
CIRCUIT DESCRIPTION

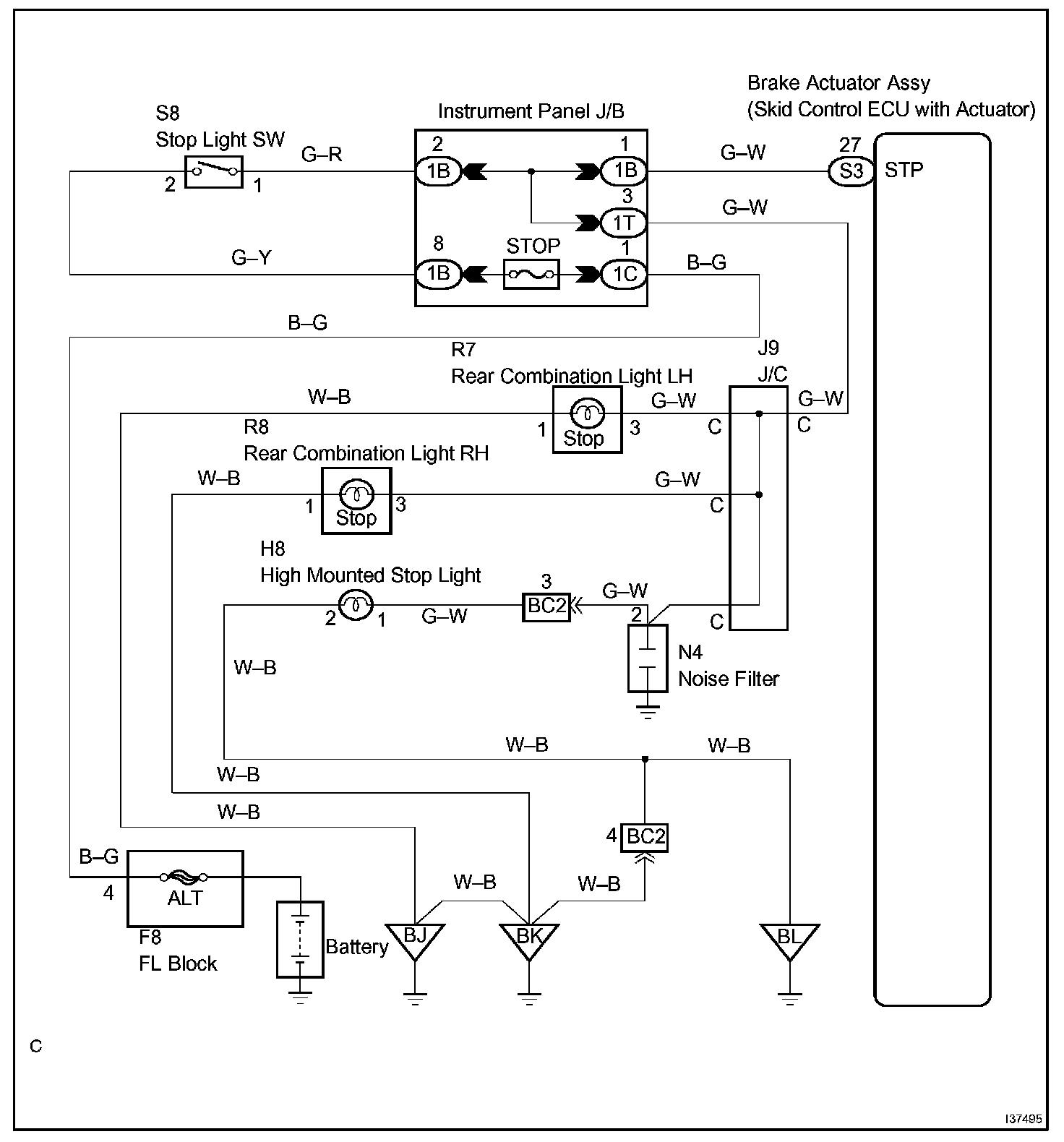

Wiring Diagram:

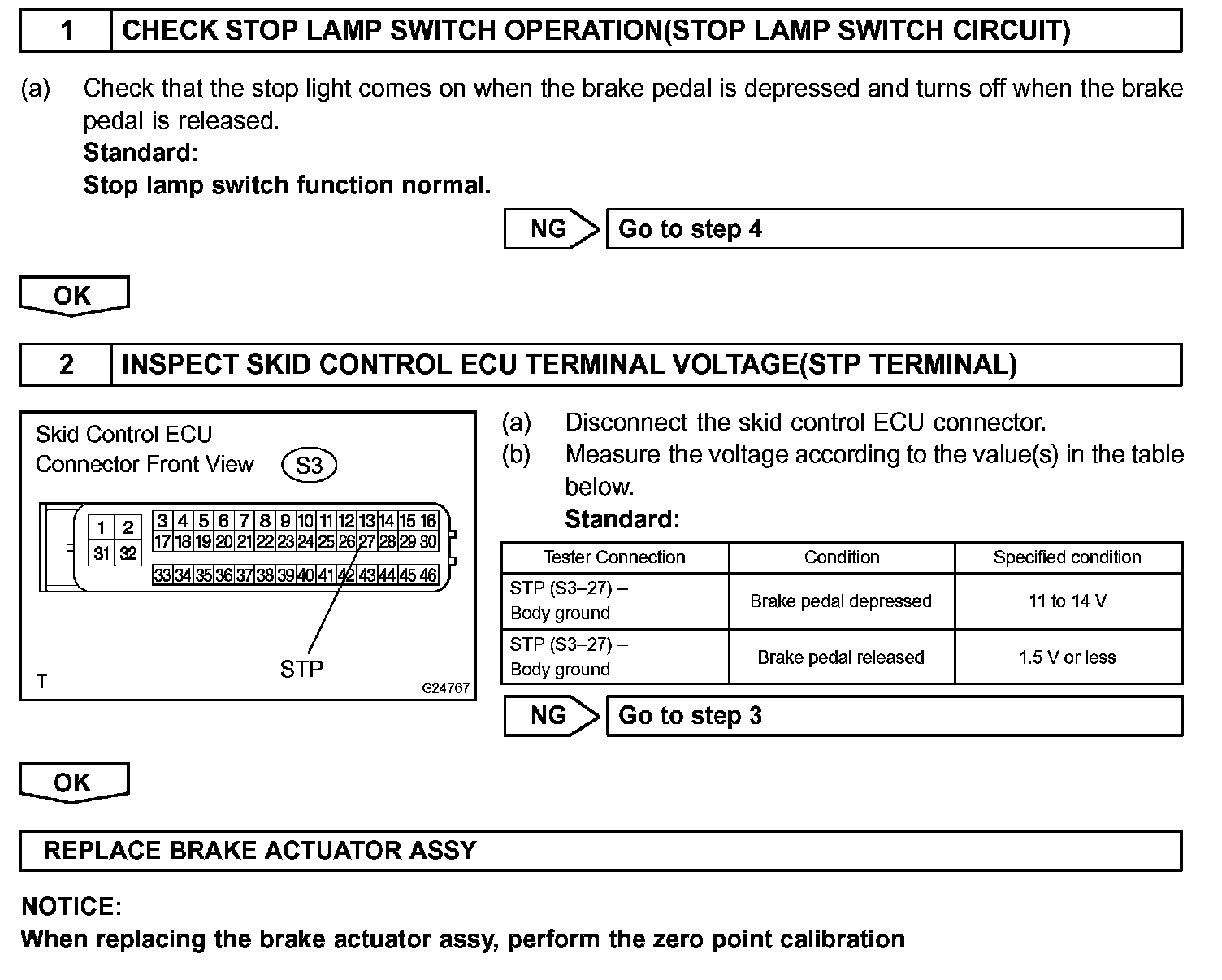

Step 1 - 2:

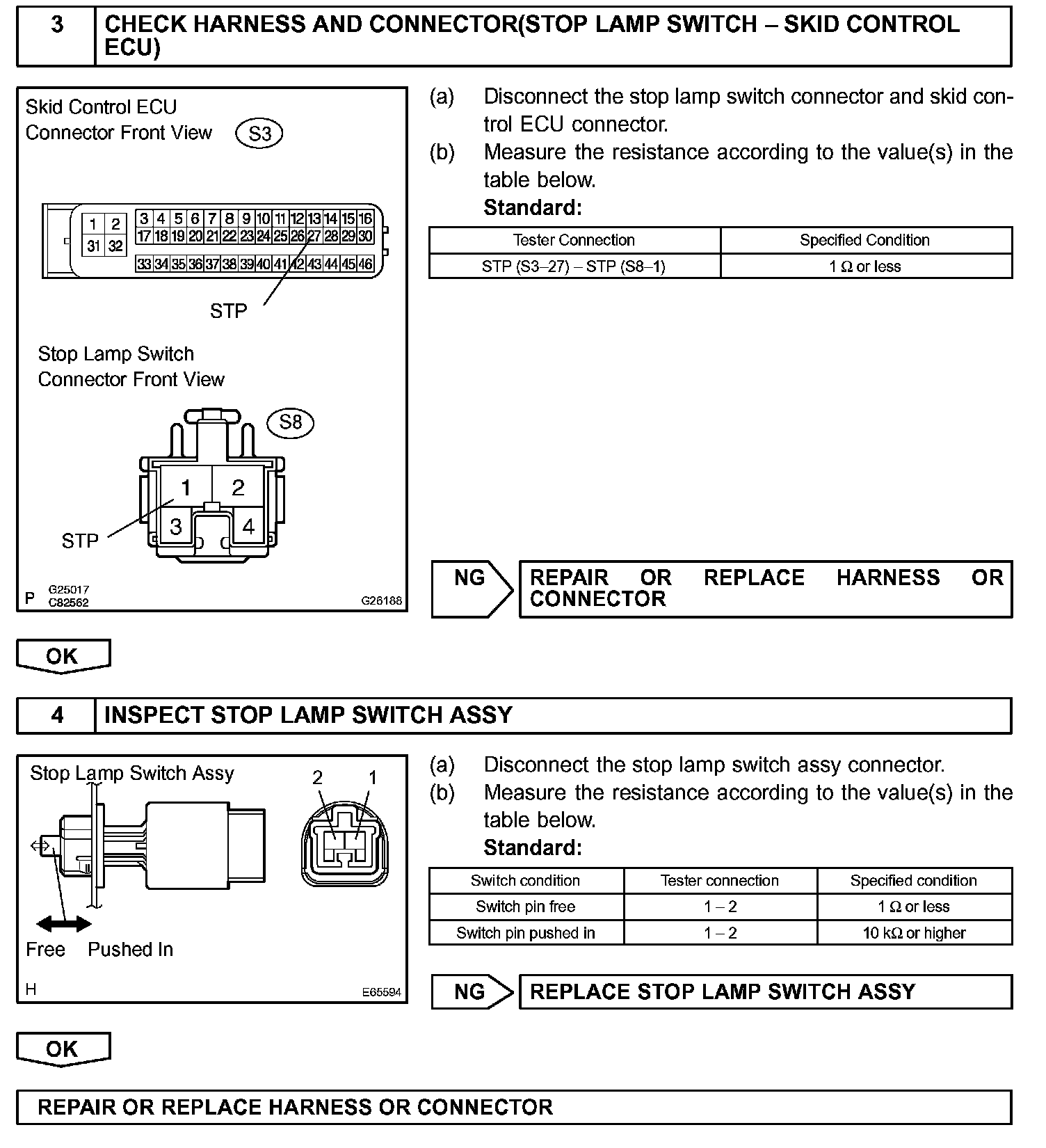

Step 3 - 4:
INSPECTION PROCEDURE
