C0279

DTC C0279 SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT

CIRCUIT DESCRIPTION

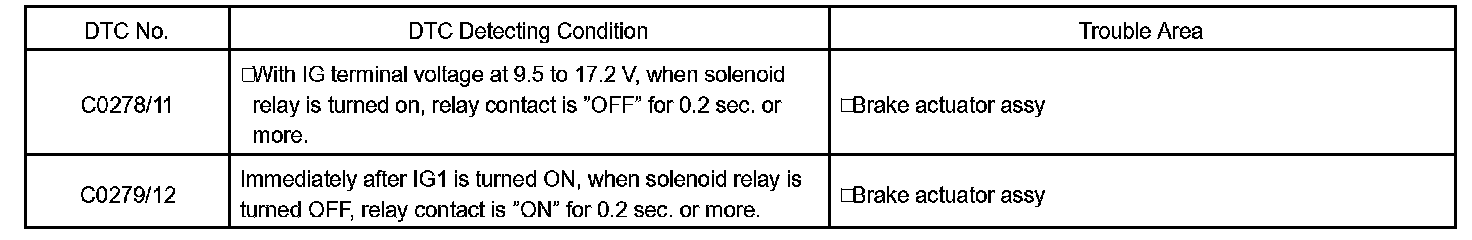

DTC Detecting Condition:

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

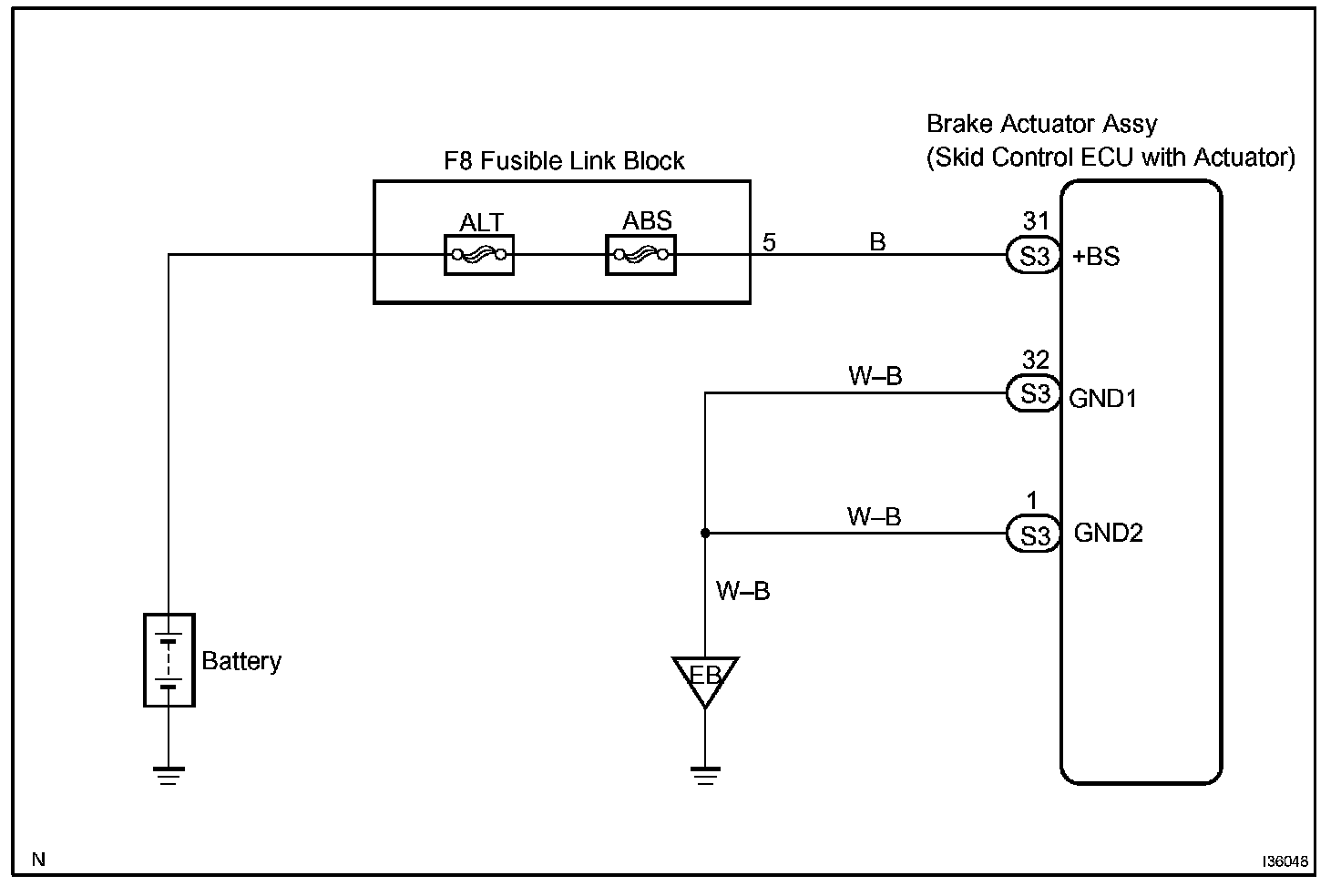

Wiring Diagram:

Step 1 - 2:

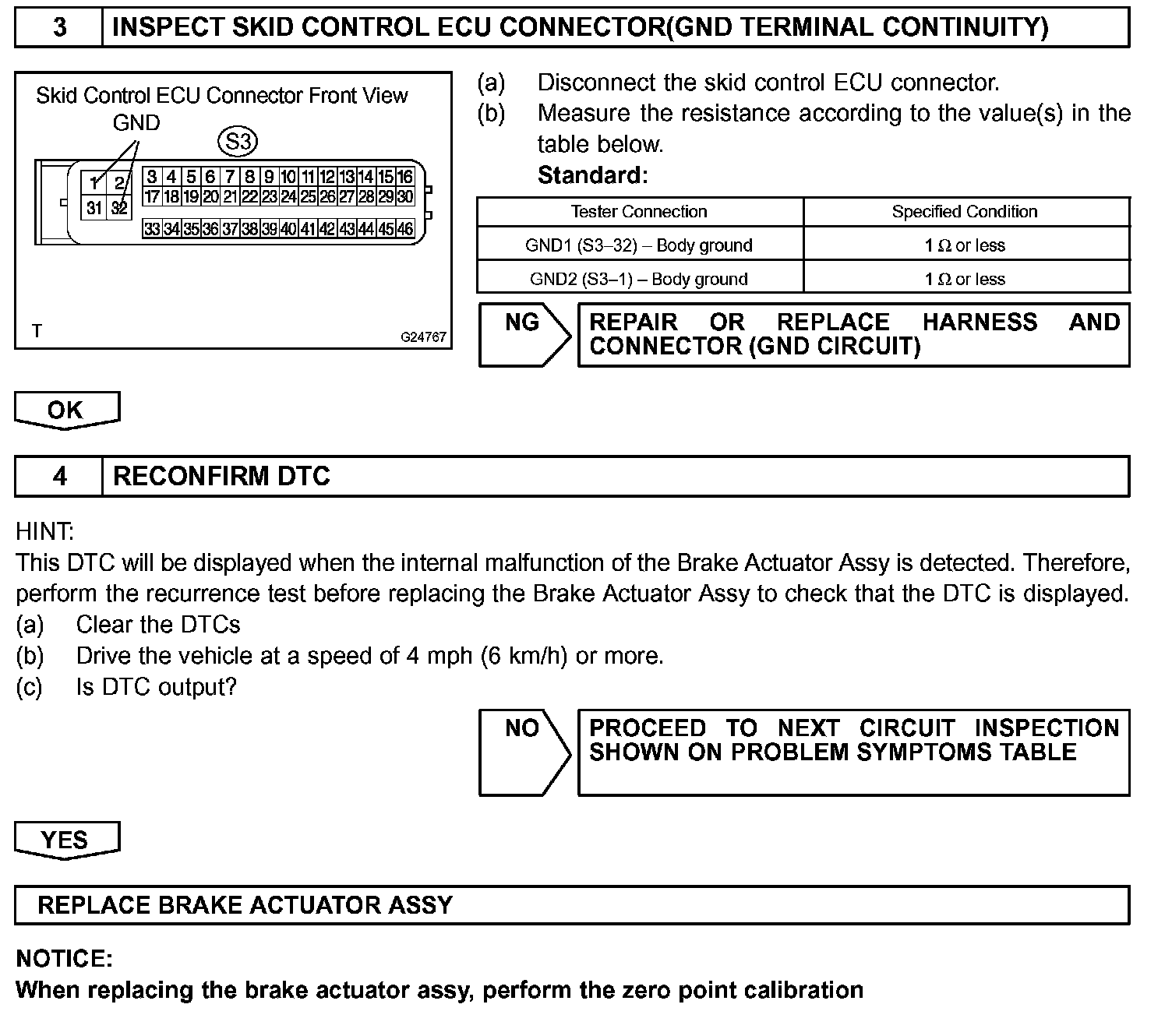

Step 3 - 4:

INSPECTION PROCEDURE
