B1186

DTC B1186 OPEN IN P SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

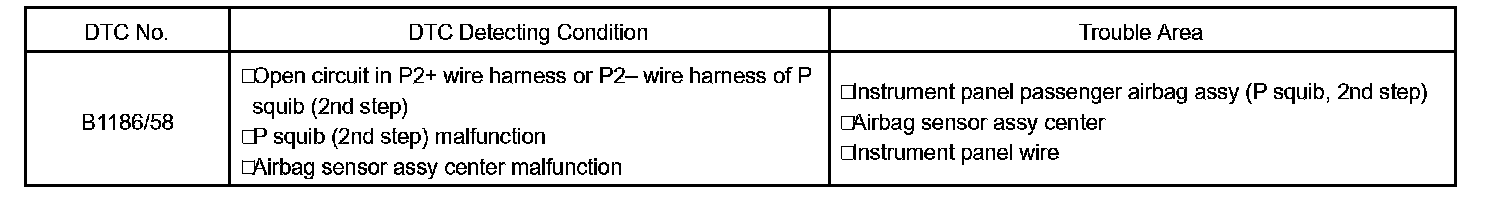

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assembly center and the instrument panel passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1186/58 is recorded when an open circuit is detected in the P squib (2nd step) circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3:

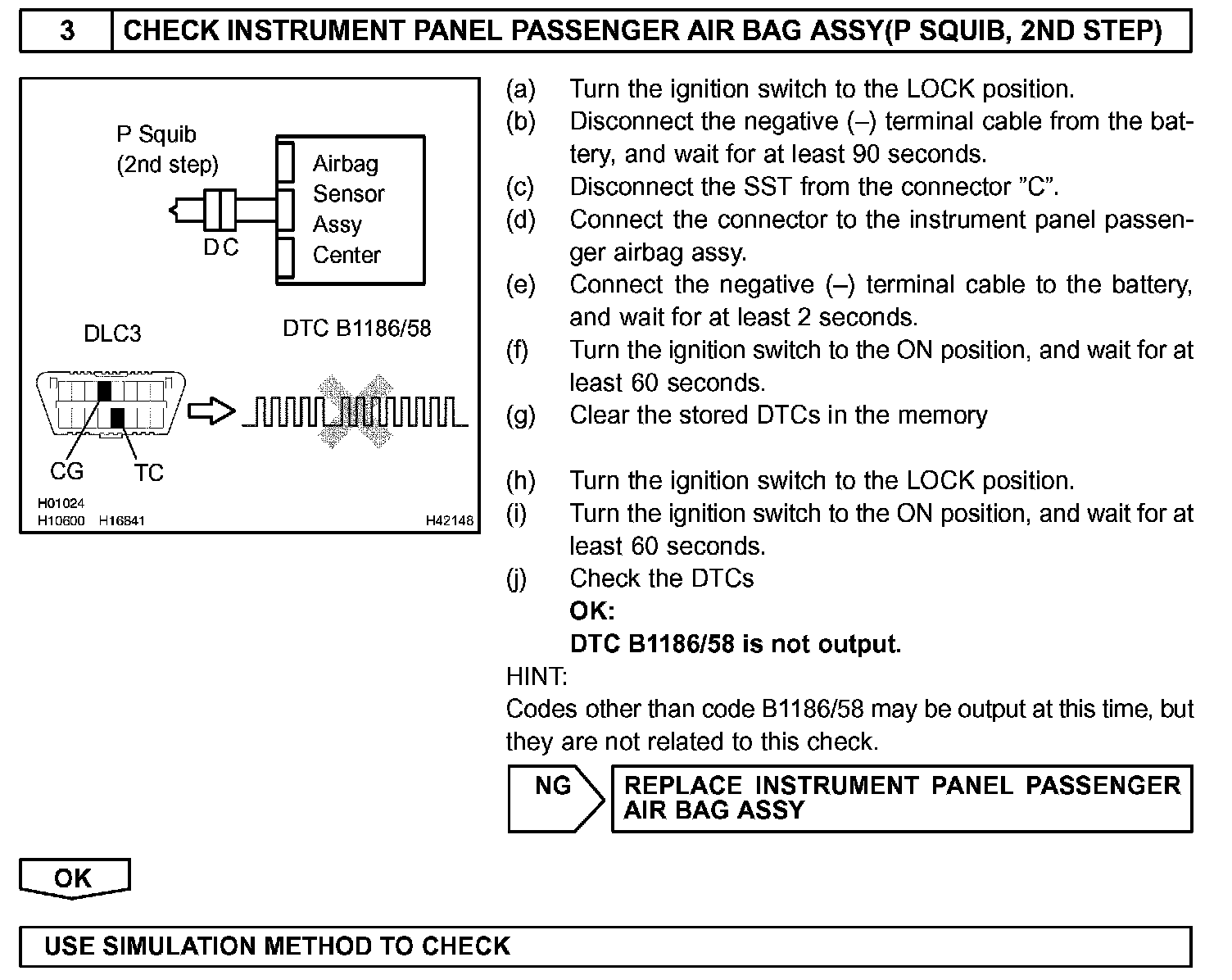

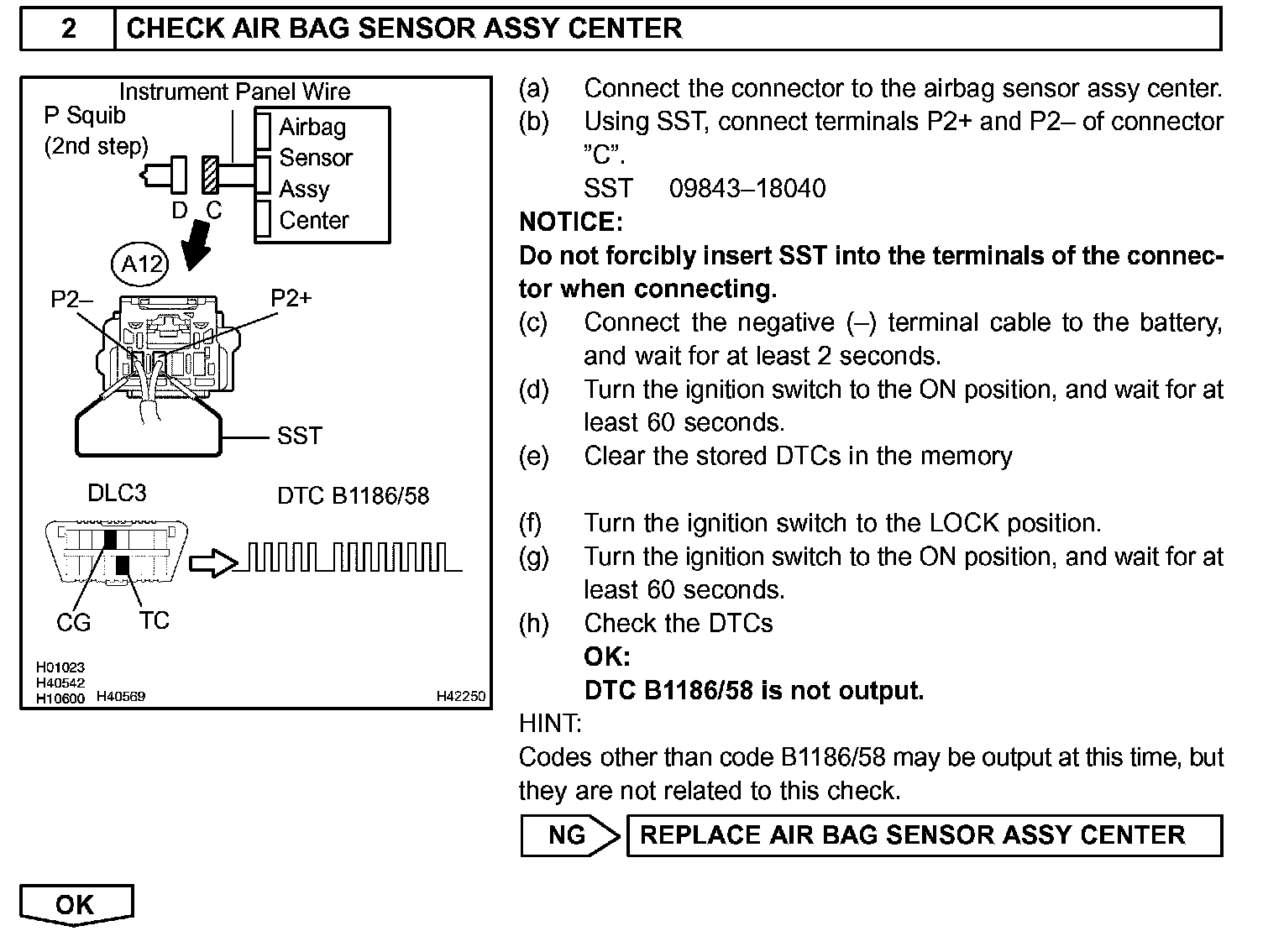

INSPECTION PROCEDURE
