B1185

DTC B1185 SHORT IN P SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

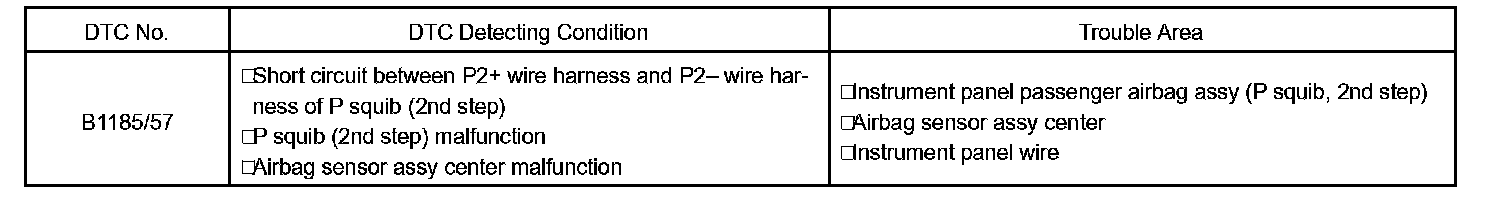

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assembly center and the instrument panel passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1185/57 is recorded when a short circuit is detected in the P squib (2nd step) circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

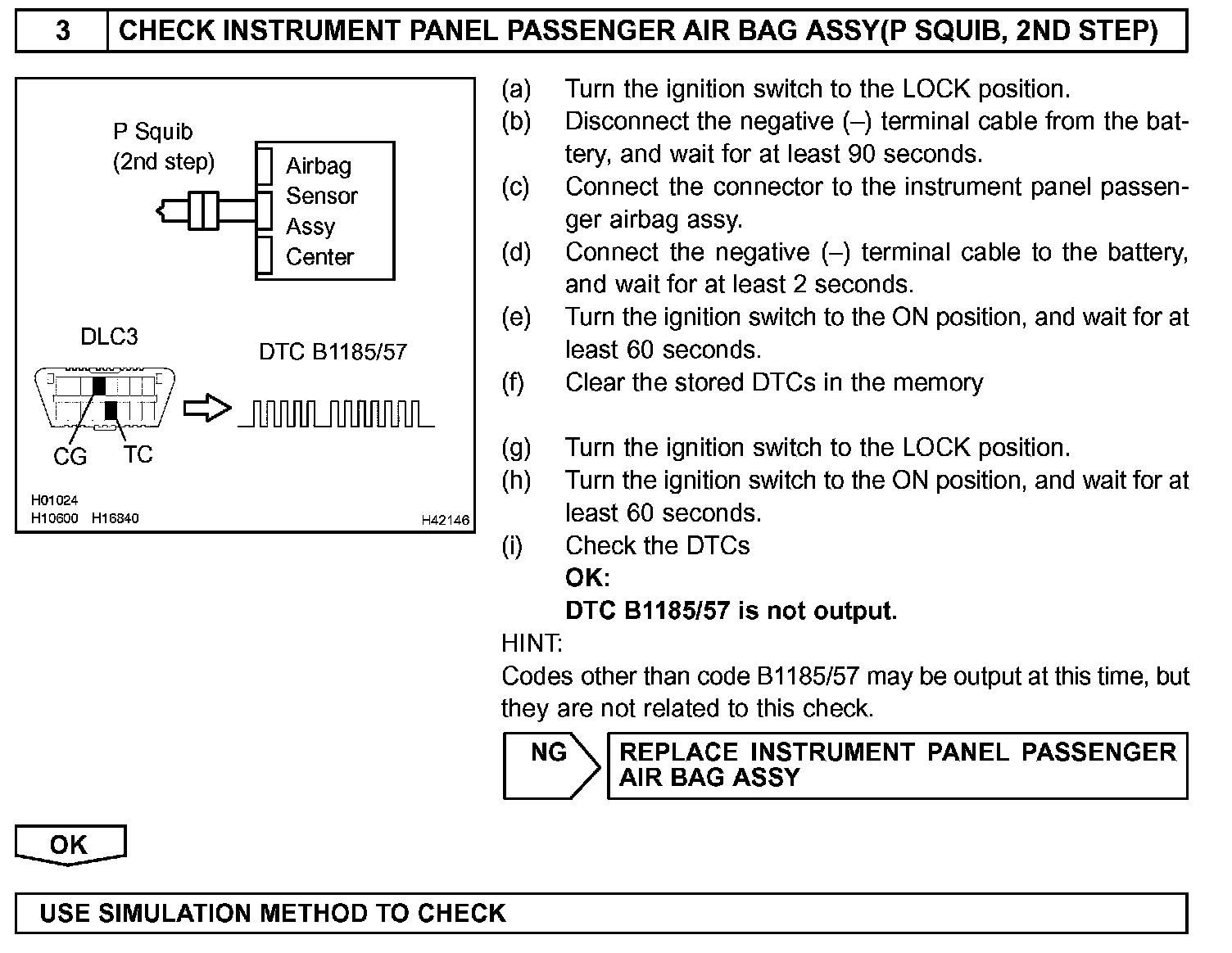

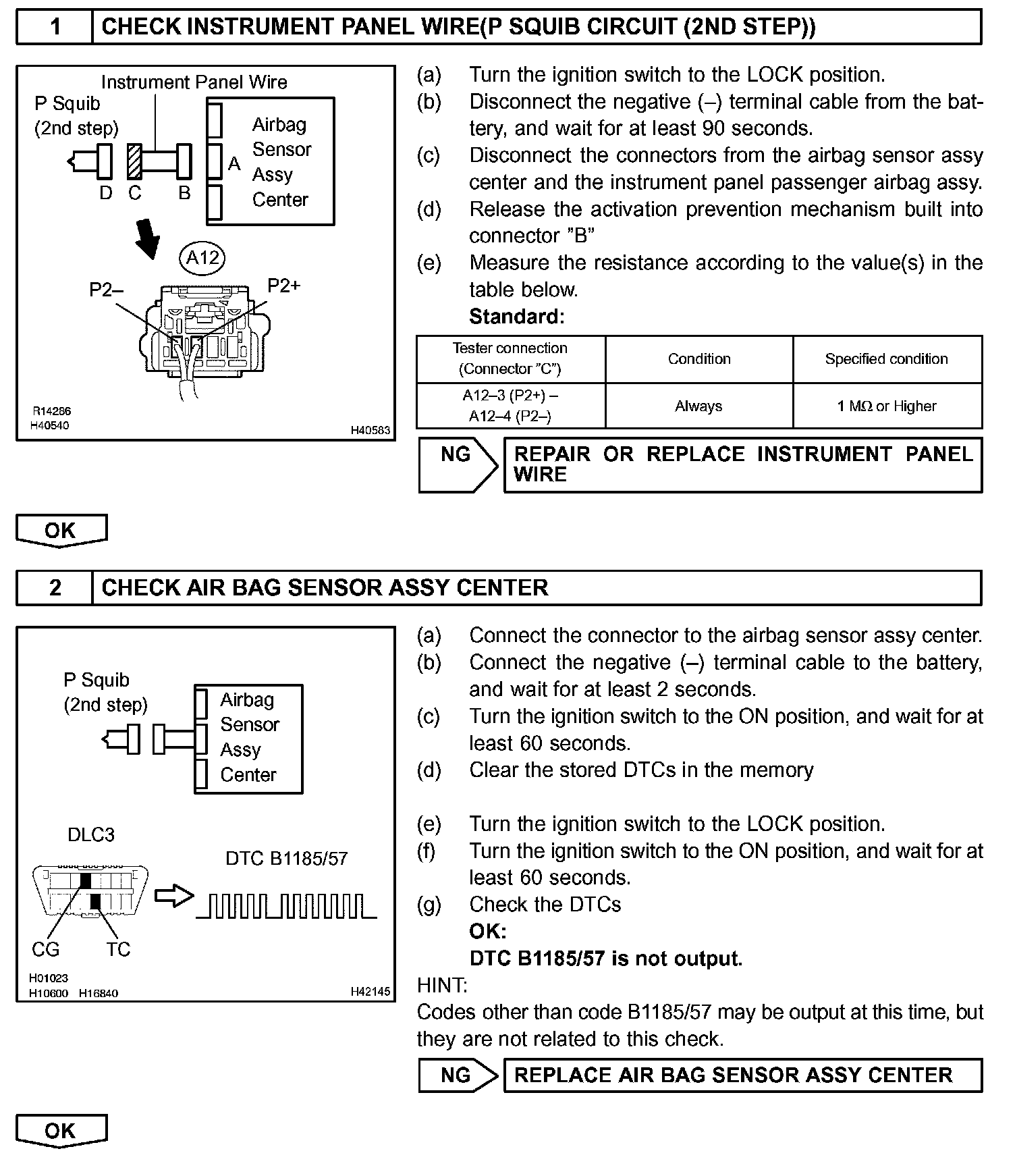

INSPECTION PROCEDURE
