B1180

DTC B1180 SHORT IN D SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

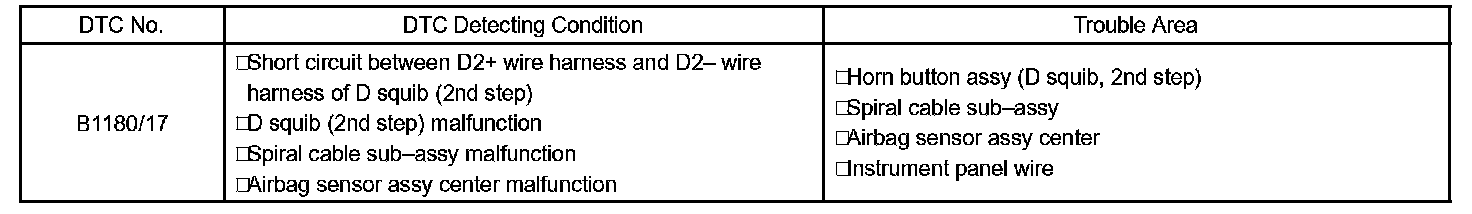

DTC Detecting Condition:

The D squib (2nd step) circuit consists of the airbag sensor assembly center, the spiral cable sub-assembly and the horn button assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B1180/17 is recorded when a short circuit is detected in the D squib (2nd step) circuit.

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

Step 5 - 6:

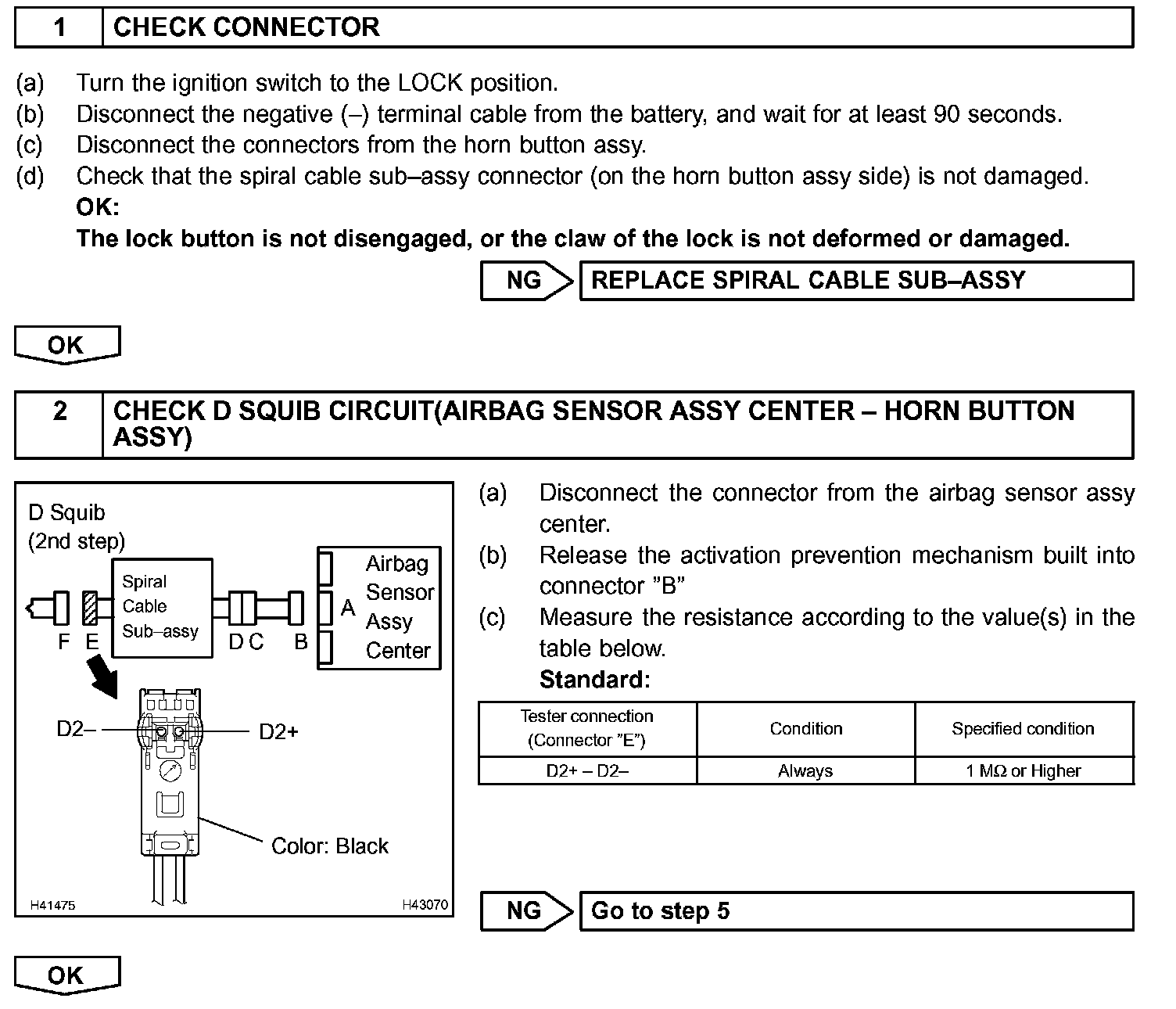

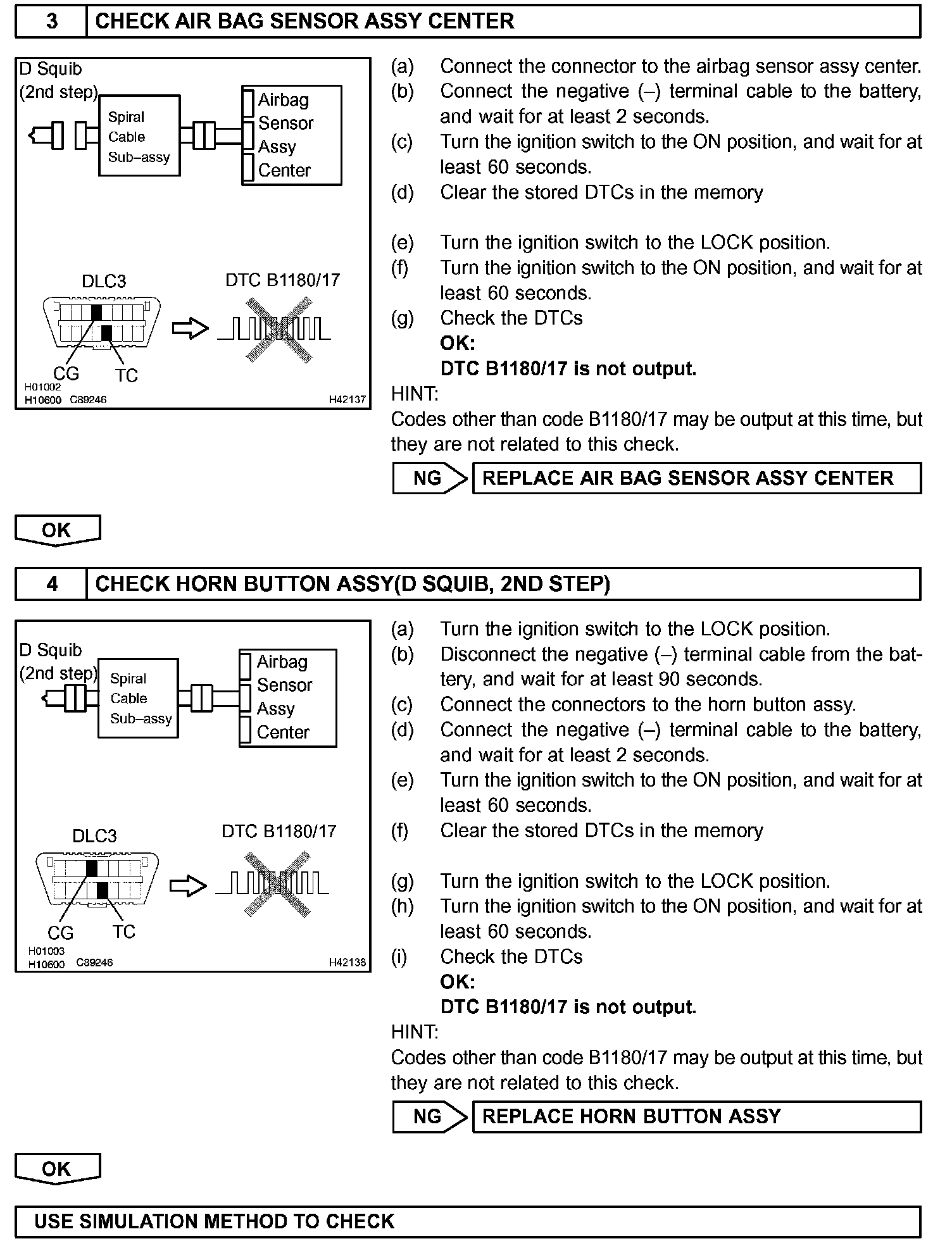

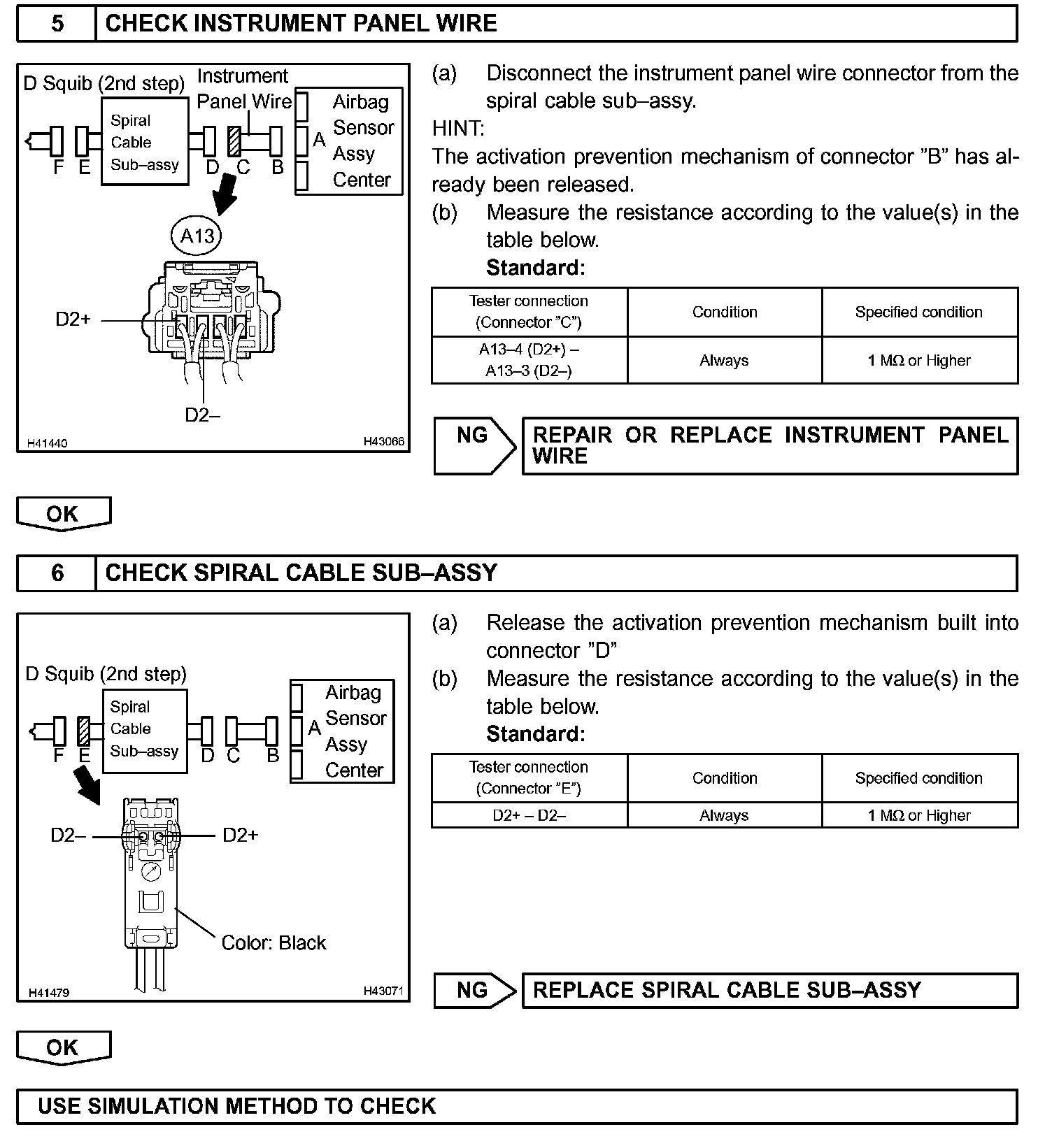

INSPECTION PROCEDURE
