B1157

DTC B1157 FRONT AIRBAG SENSOR (RH) MALFUNCTION

CIRCUIT DESCRIPTION

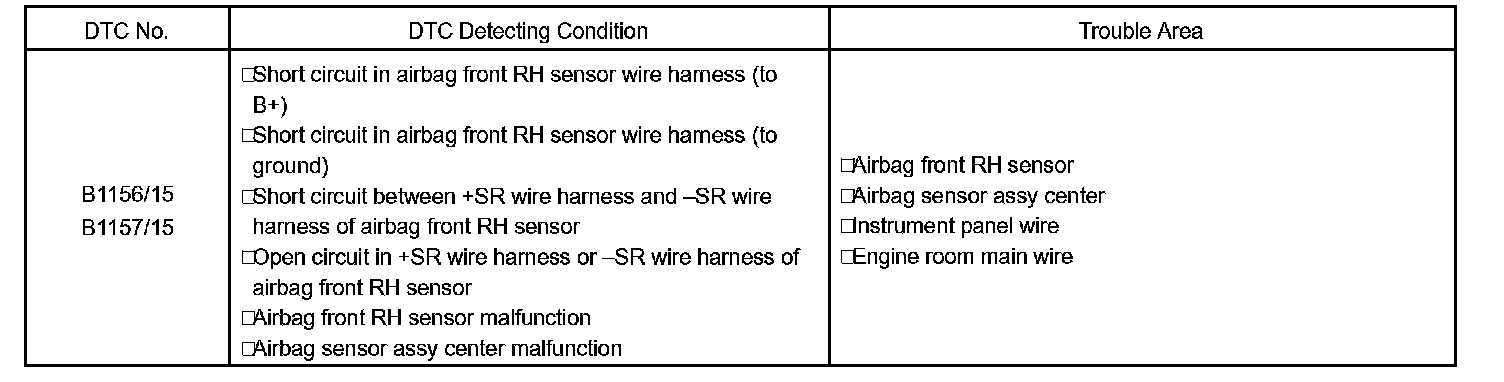

DTC Detecting Condition:

The airbag front RH sensor circuit consists of the airbag sensor assembly center and airbag front RH sensor.

DTC B1156/15 or B1157/15 is recorded when a malfunction is detected in the airbag front RH sensor circuit.

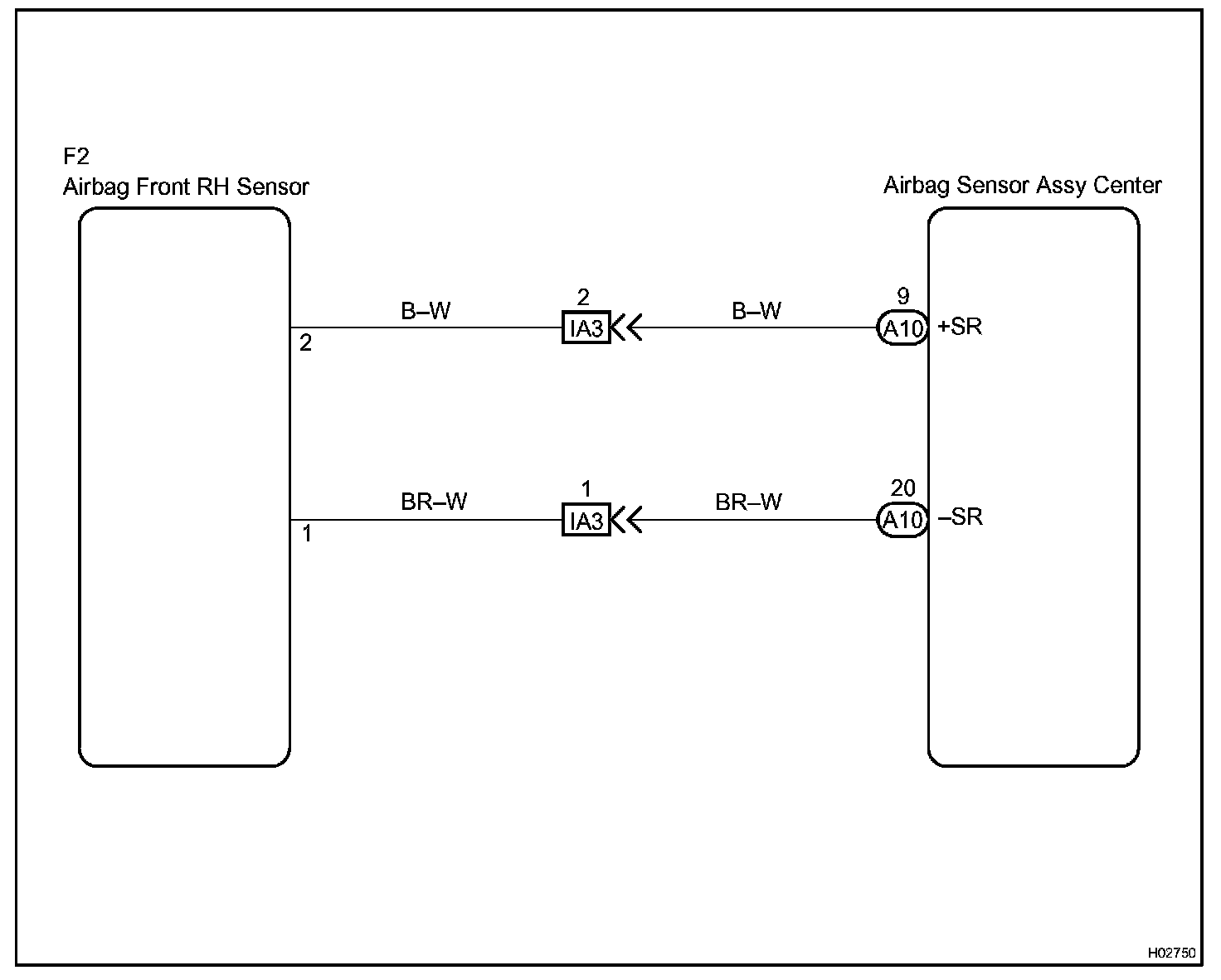

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

Step 5 - 6:

Step 7 - 8:

Step 9 - 10:

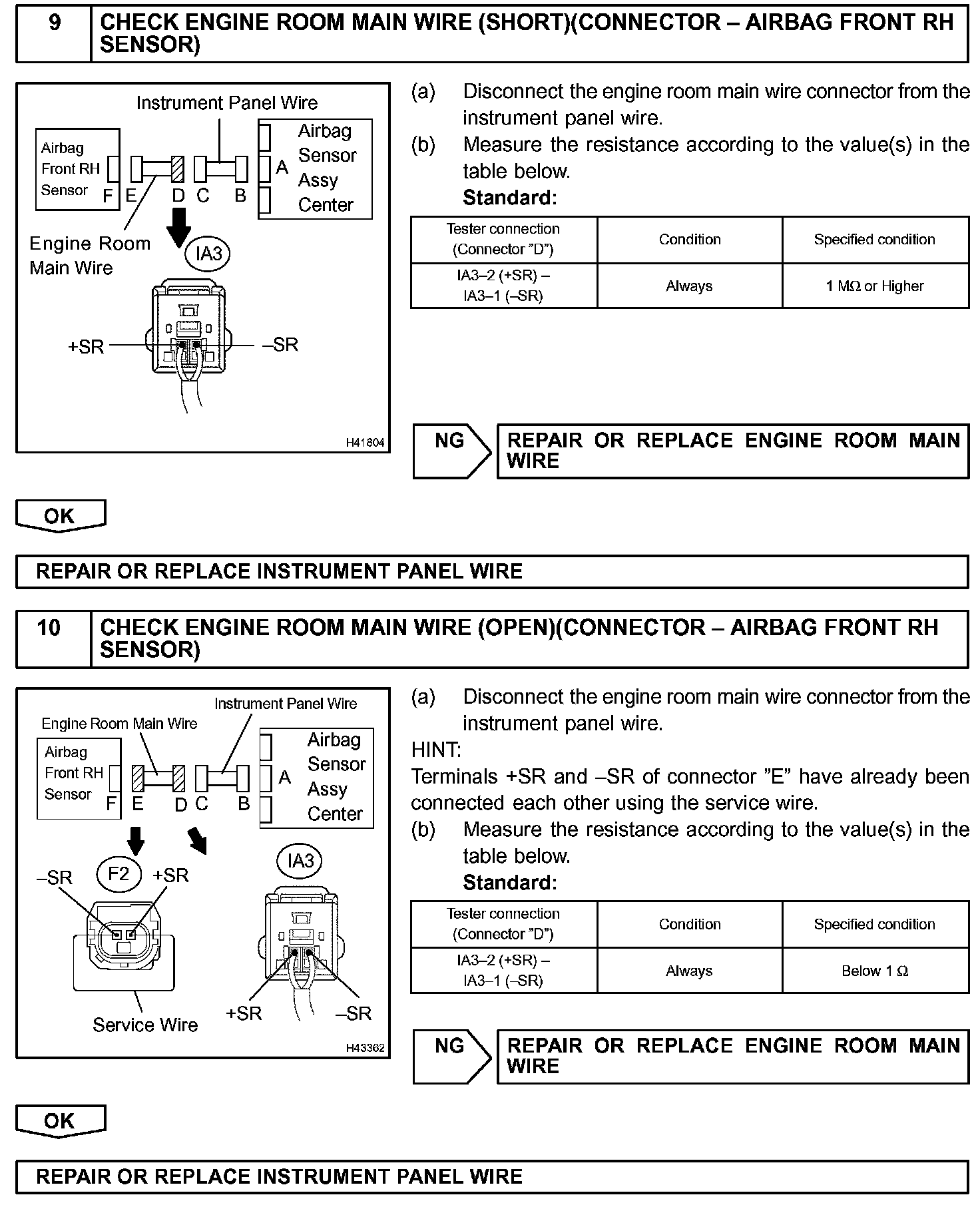

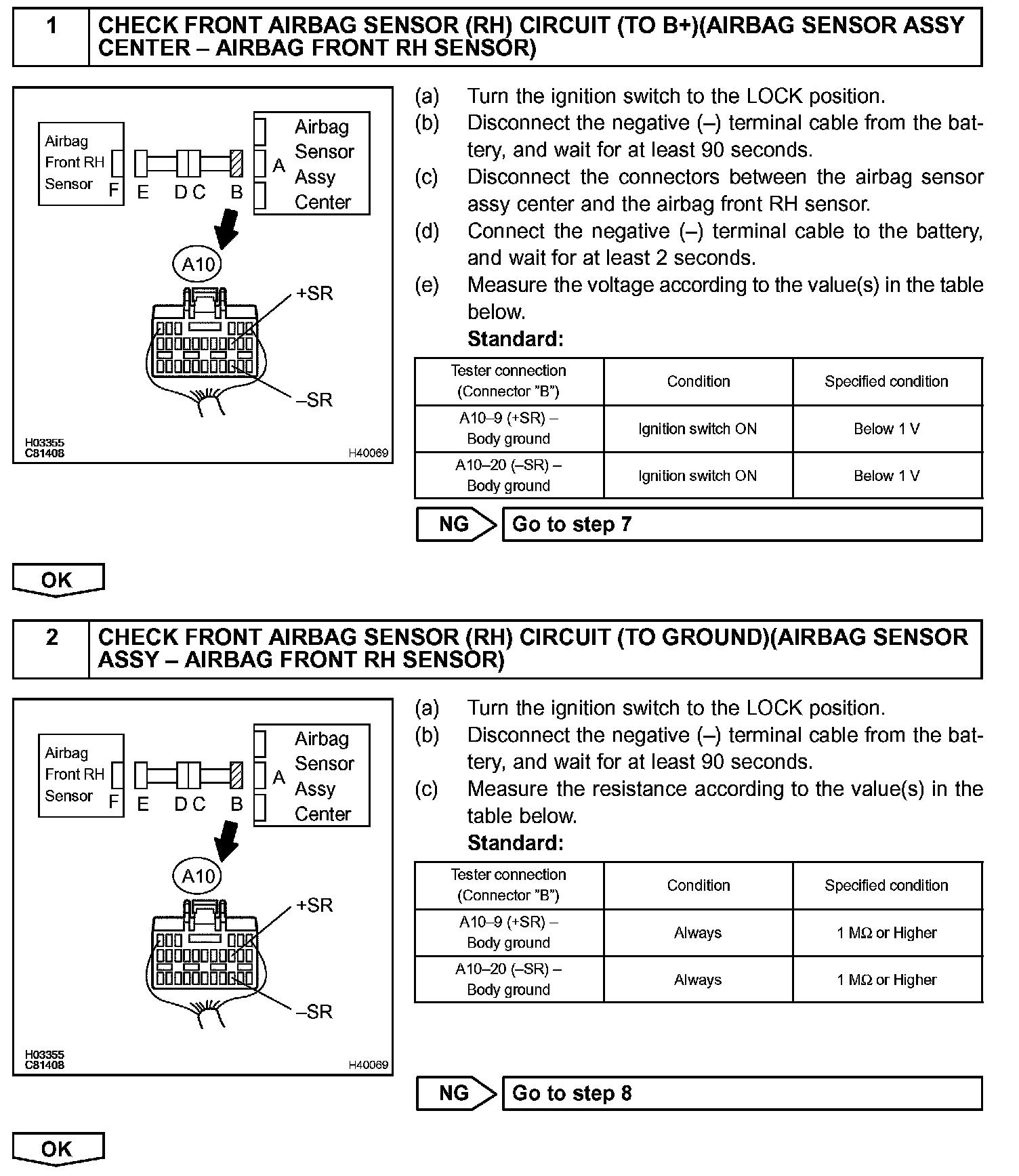

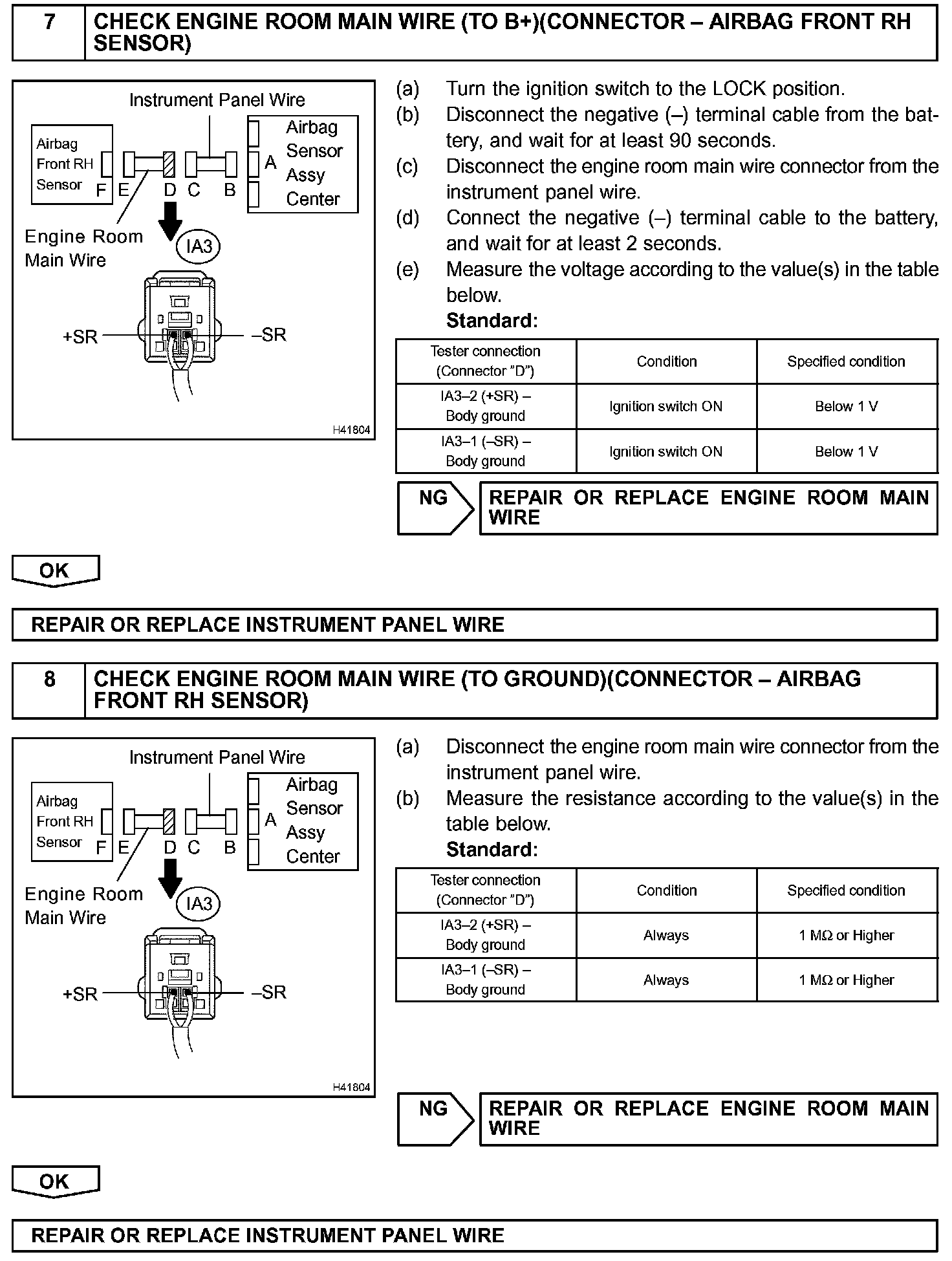

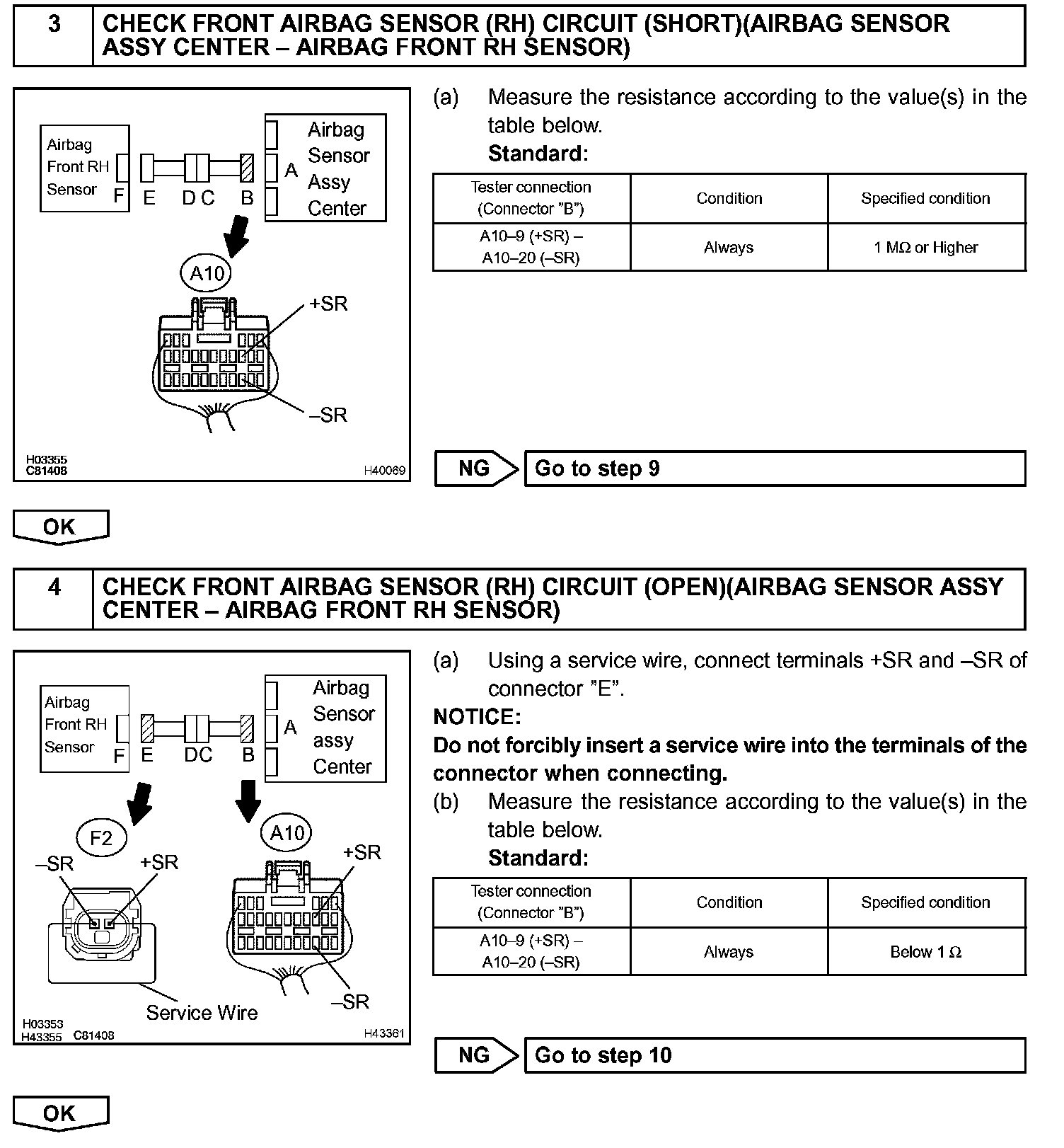

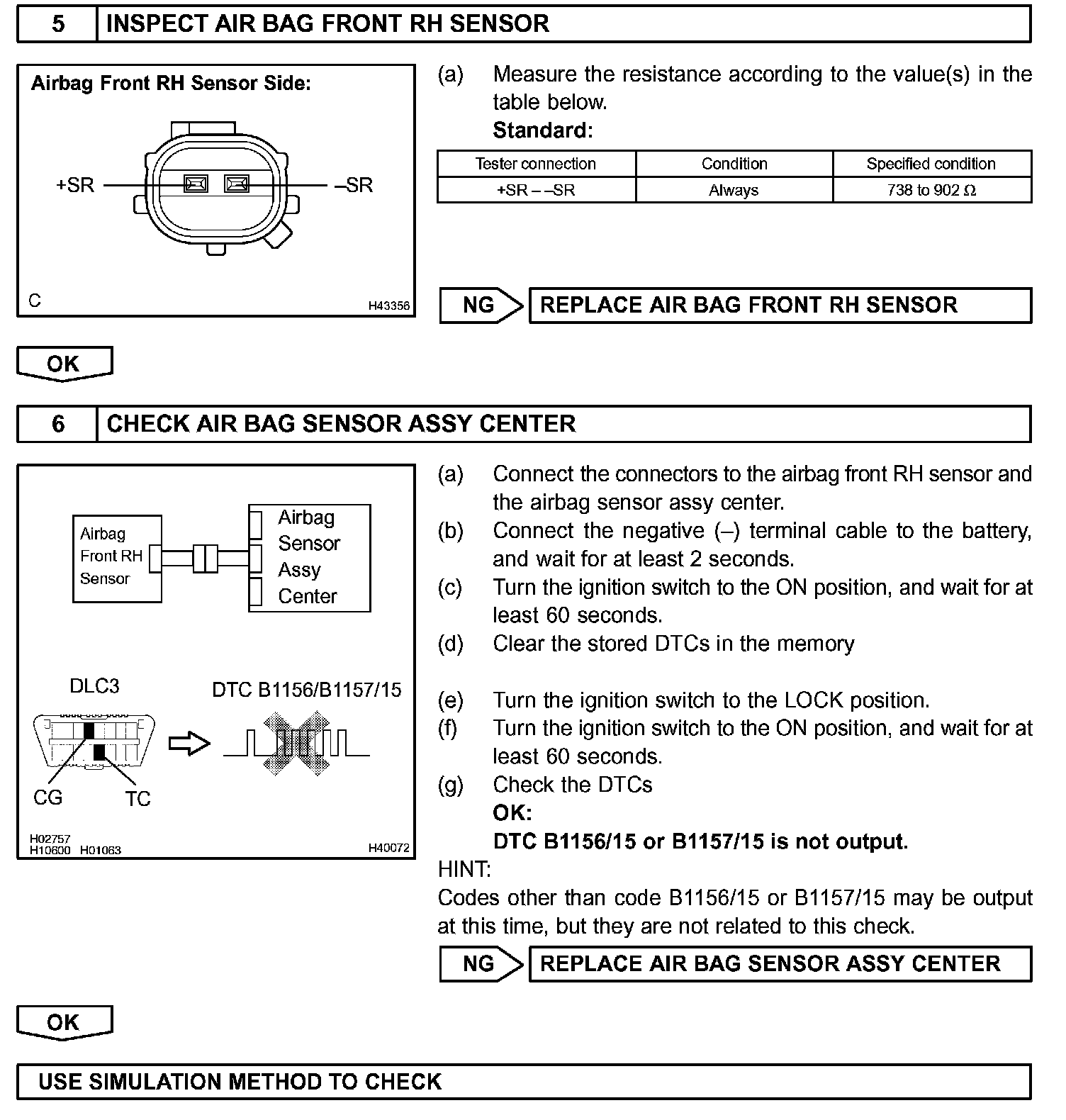

INSPECTION PROCEDURE
