B1100

DTC B1100 AIRBAG SENSOR ASSEMBLY CENTER MALFUNCTION

CIRCUIT DESCRIPTION

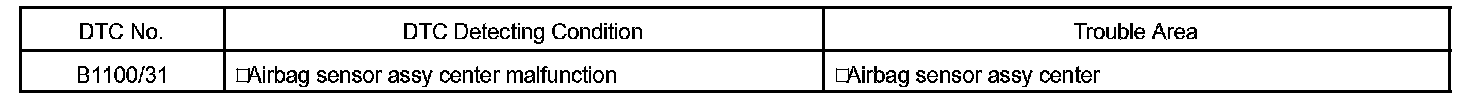

DTC Detecting Condition:

The airbag sensor assembly center consists of the airbag sensor, the safing sensor, the drive circuit, the diagnosis circuit and the ignition control, etc.

If the airbag sensor assembly center receives signals from the other airbag sensors, it judges whether or not the SRS should be activated.

DTC B1100/31 is recorded when a malfunction in the airbag sensor assembly center is detected.

HINT: When a malfunction code other than code B1100/31 is displayed at the same time, first repair the malfunction indicated by the malfunction code other than code B1100/31.

Step 1:

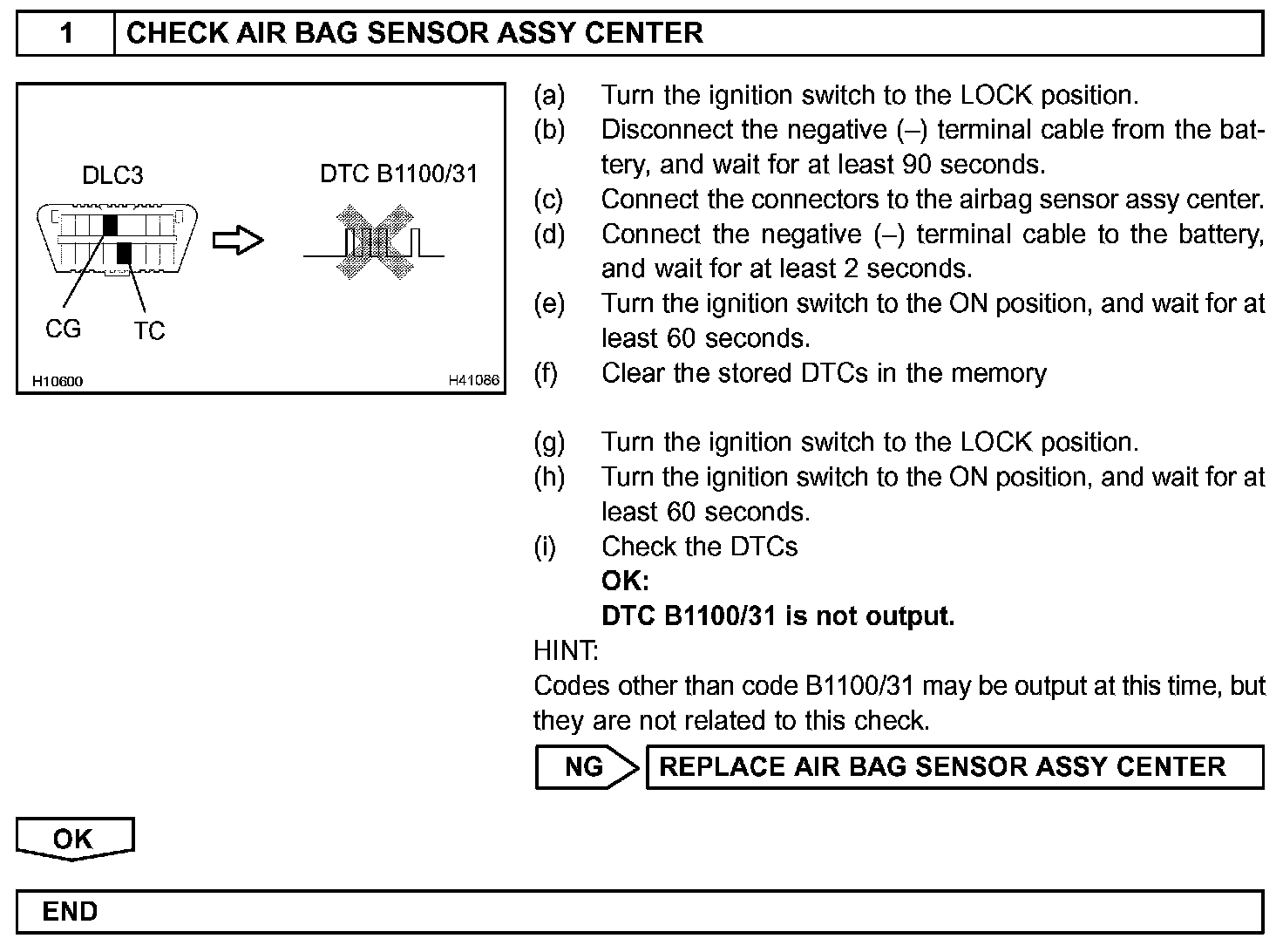

INSPECTION PROCEDURE
