B0135

DTC B0135 SHORT IN P/T SQUIB (LH) CIRCUIT

CIRCUIT DESCRIPTION

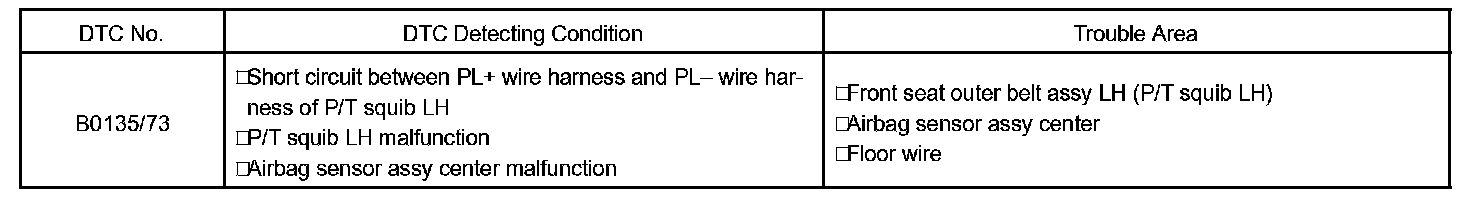

DTC Detecting Condition:

The P/T squib LH circuit consists of the airbag sensor assembly center and the front seat outer belt assembly LH (seat belt pretensioner LH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0135/73 is recorded when a short circuit is detected in the P/T squib LH circuit.

Wiring Diagram:

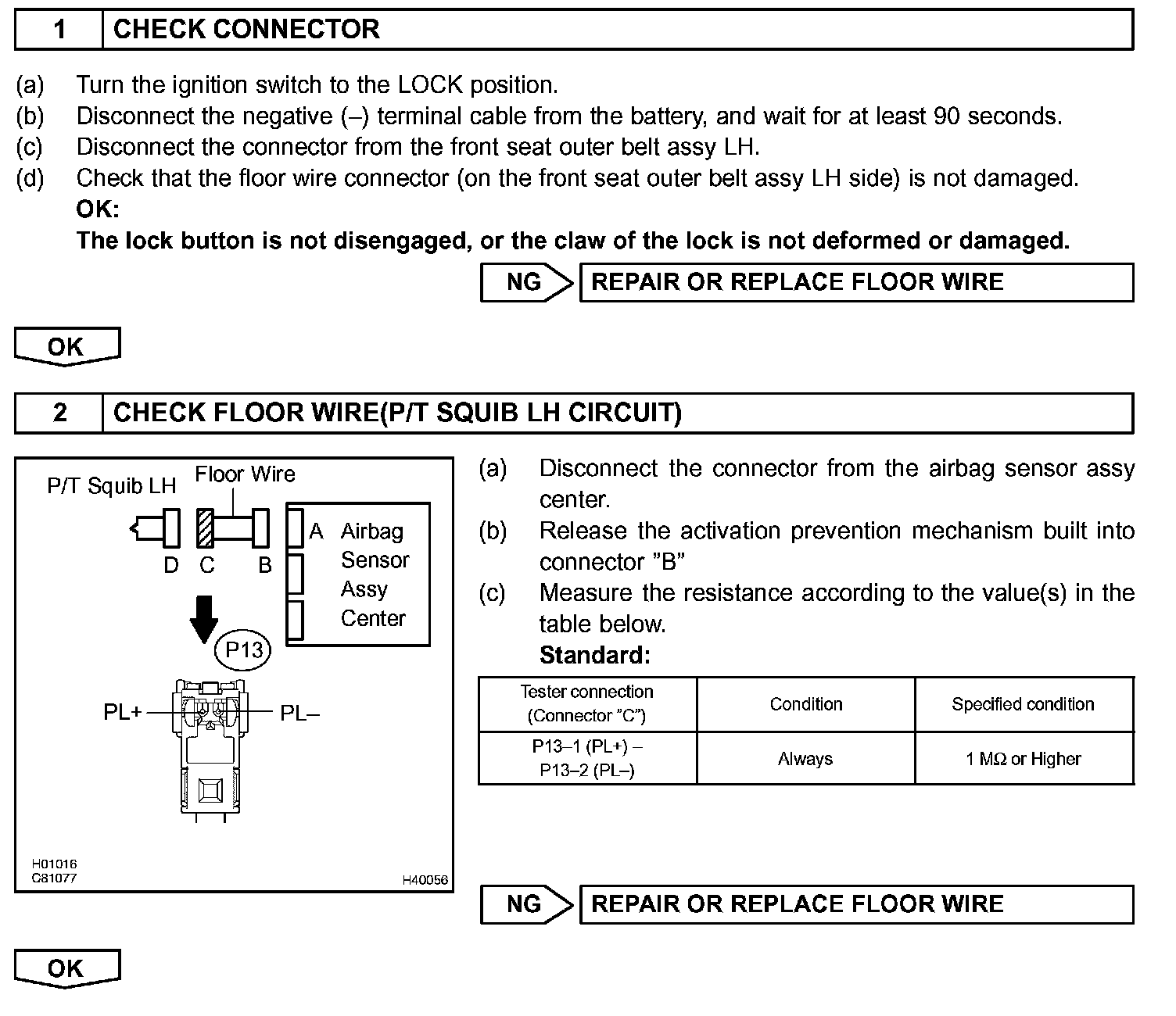

Step 1 - 2:

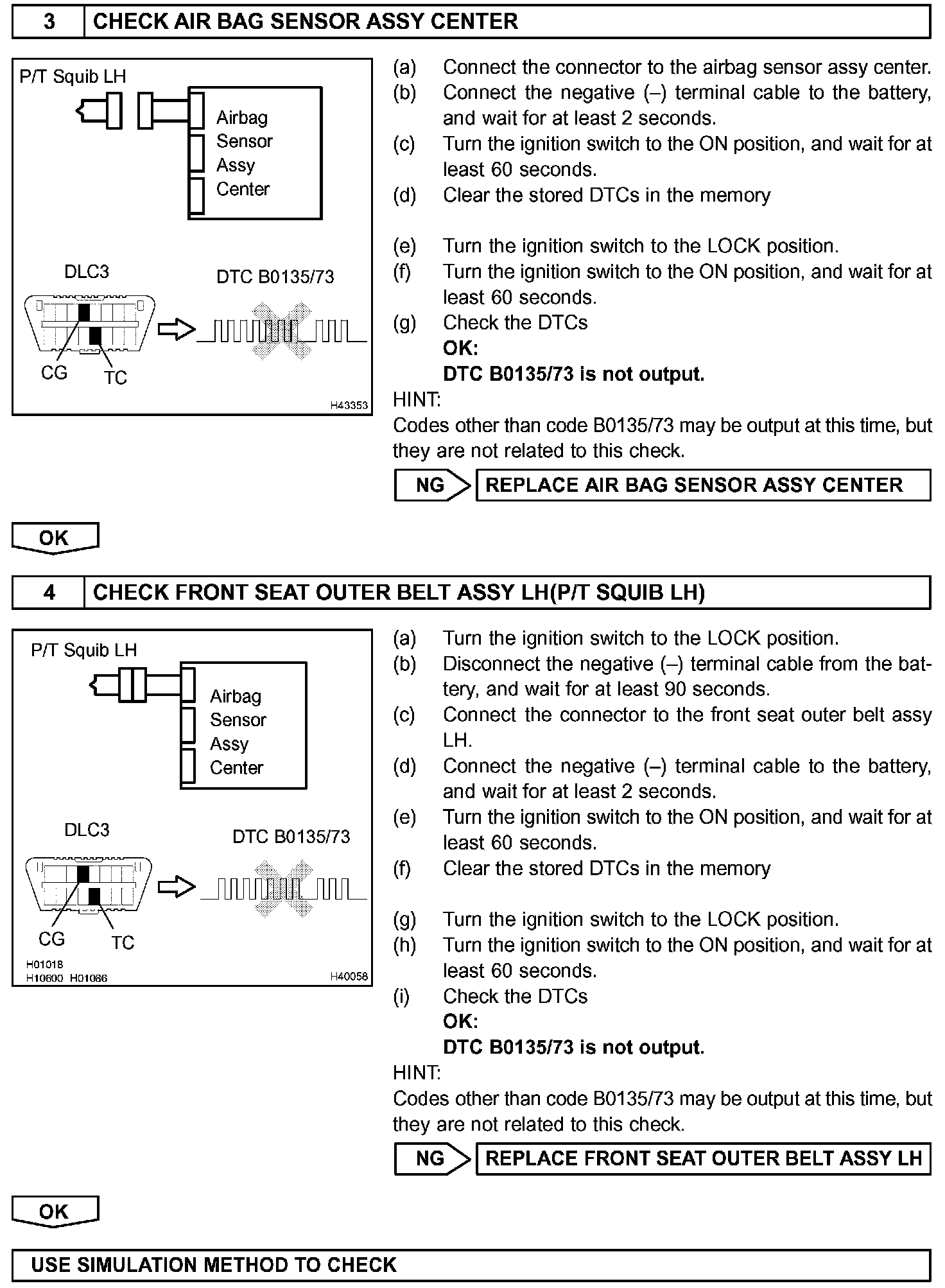

Step 3 - 4:

INSPECTION PROCEDURE
