B0133

DTC B0133 SHORT IN P/T SQUIB (RH) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

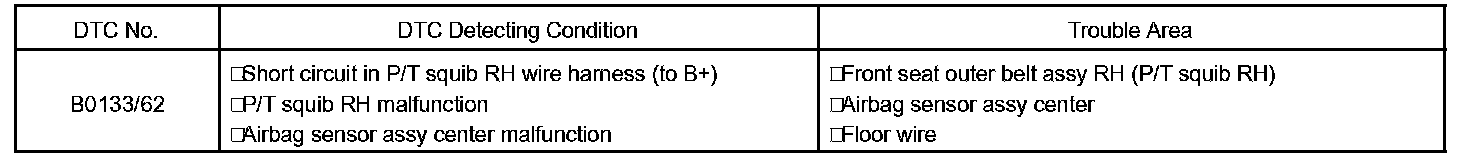

DTC Detecting Condition:

The P/T squib RH circuit consists of the airbag sensor assembly center and the front seat outer belt assembly RH (seat belt pretensioner RH).

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0133/62 is recorded when a short to B+ is detected in the P/T squib RH circuit.

Wiring Diagram:

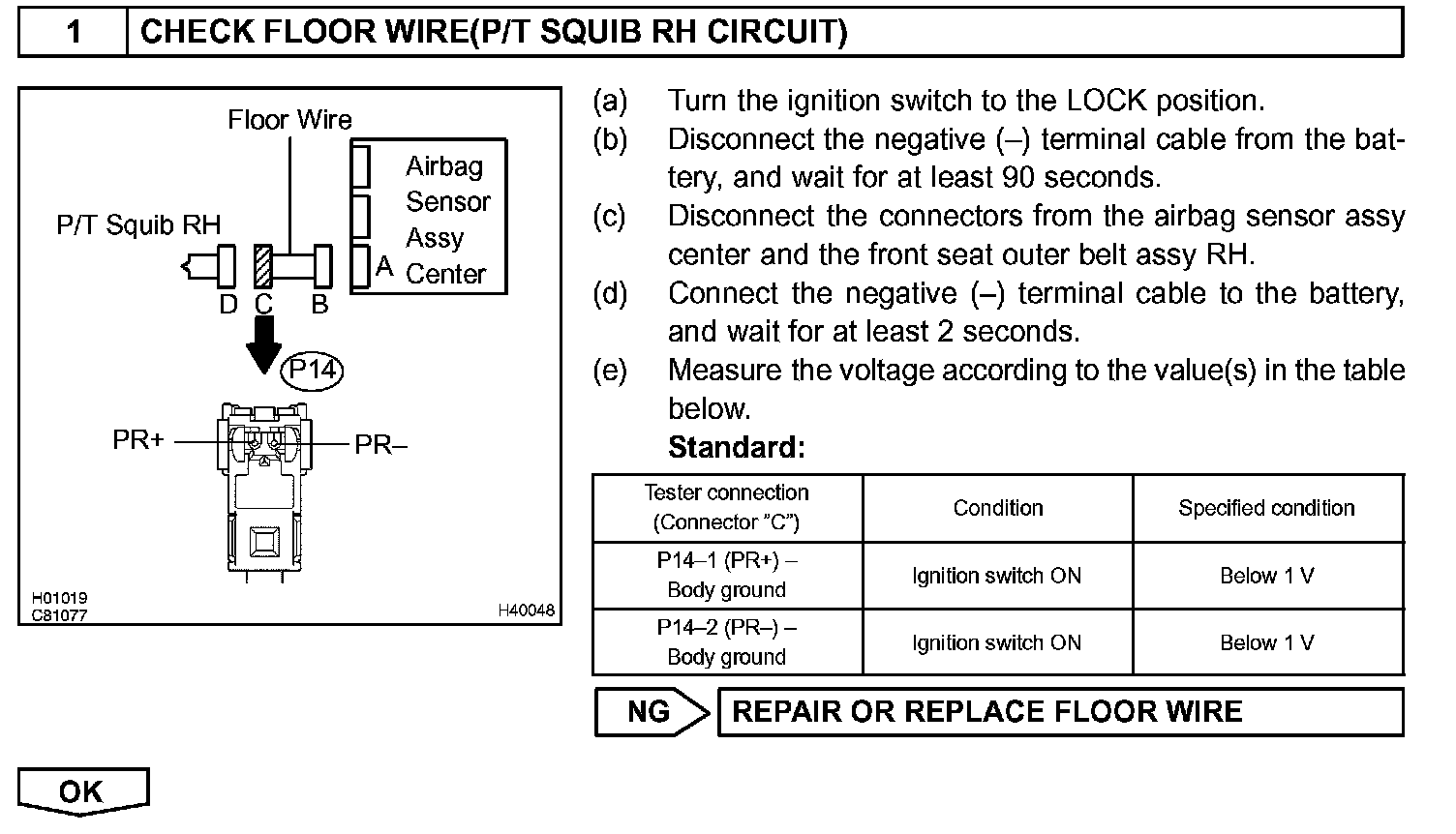

Step 1:

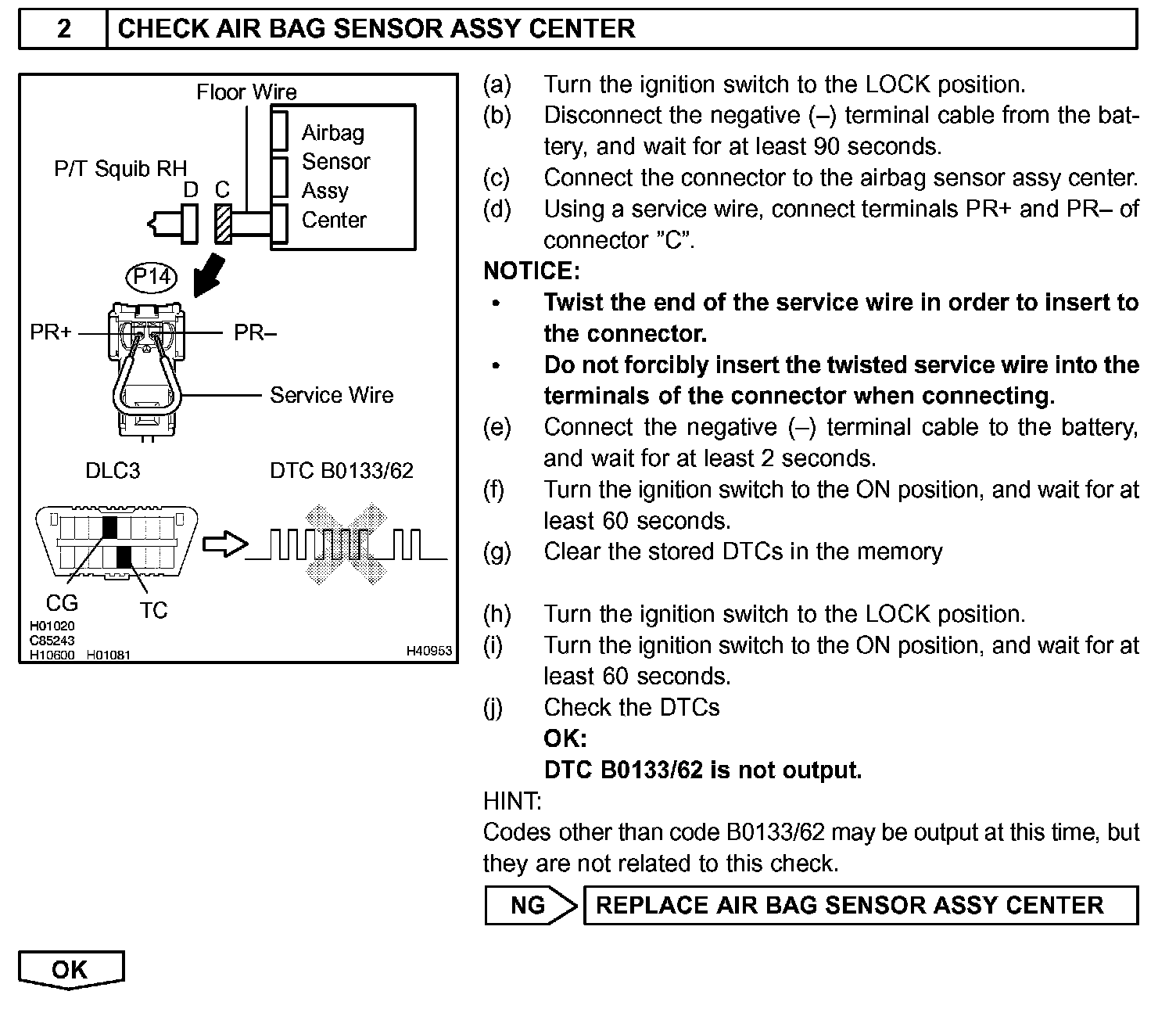

Step 2:

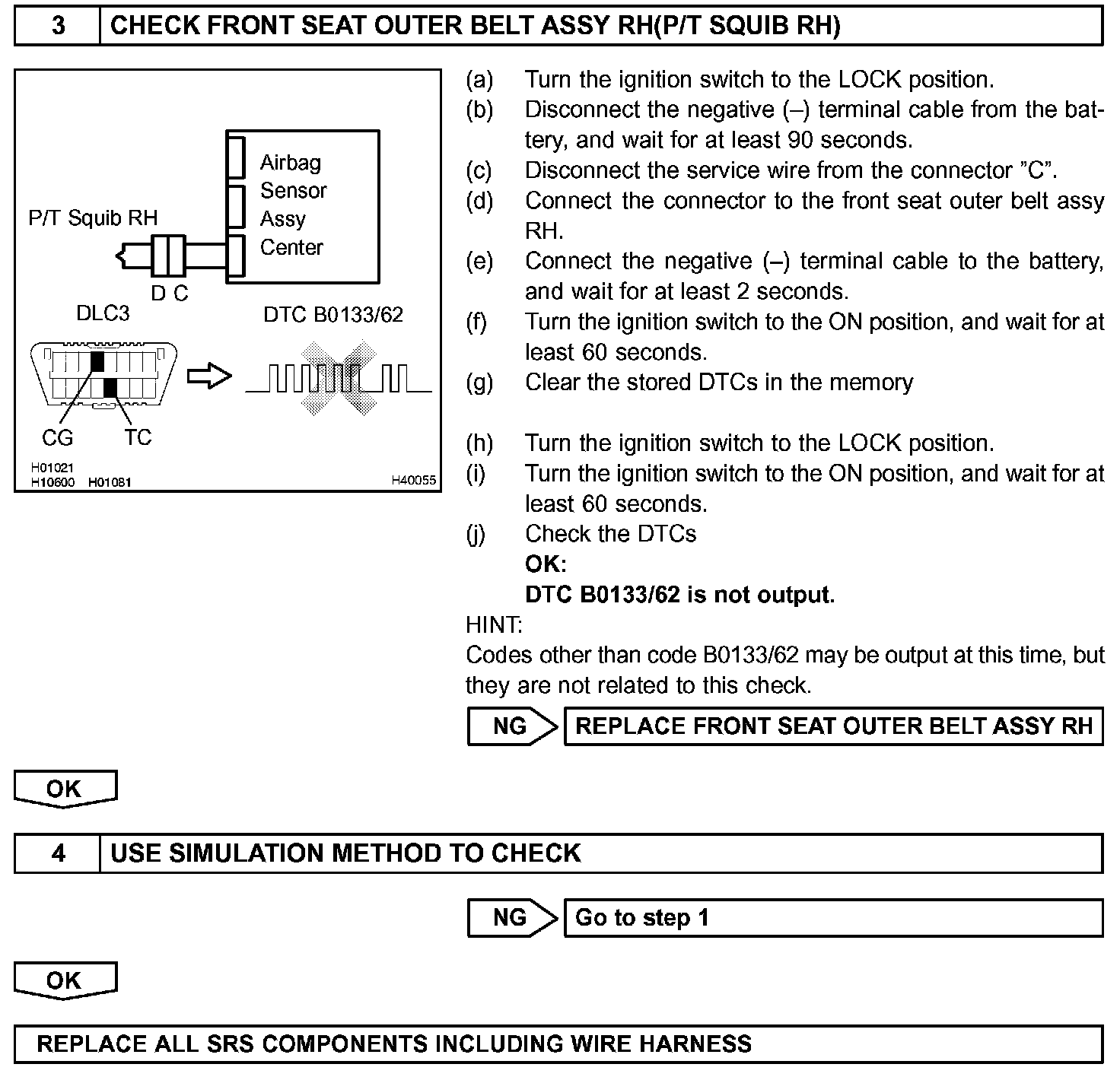

Step 3 - 4:

INSPECTION PROCEDURE
