B0131

DTC B0131 OPEN IN P/T SQUIB (RH) CIRCUIT

CIRCUIT DESCRIPTION

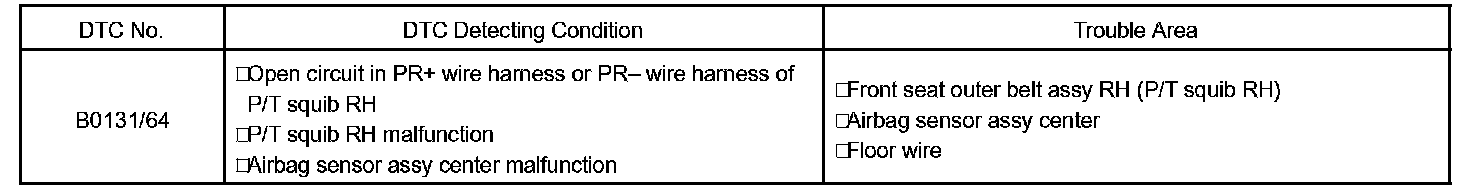

DTC Detecting Condition:

The P/T squib RH circuit consists of the airbag sensor assembly center and the front seat outer belt assembly RH (seat belt pretensioner RH).

This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0131/64 is recorded when an open circuit is detected in the P/T squib RH circuit.

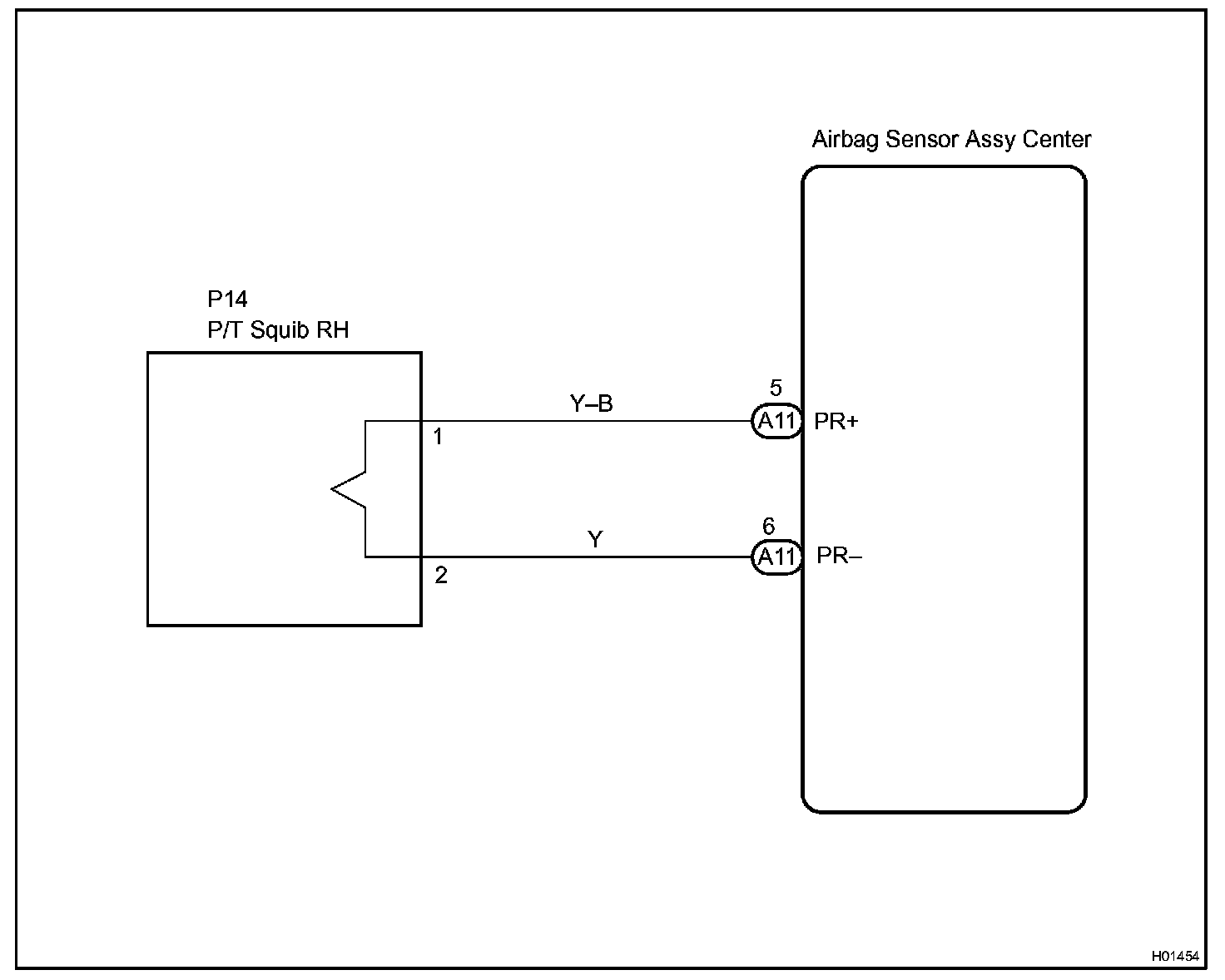

Wiring Diagram:

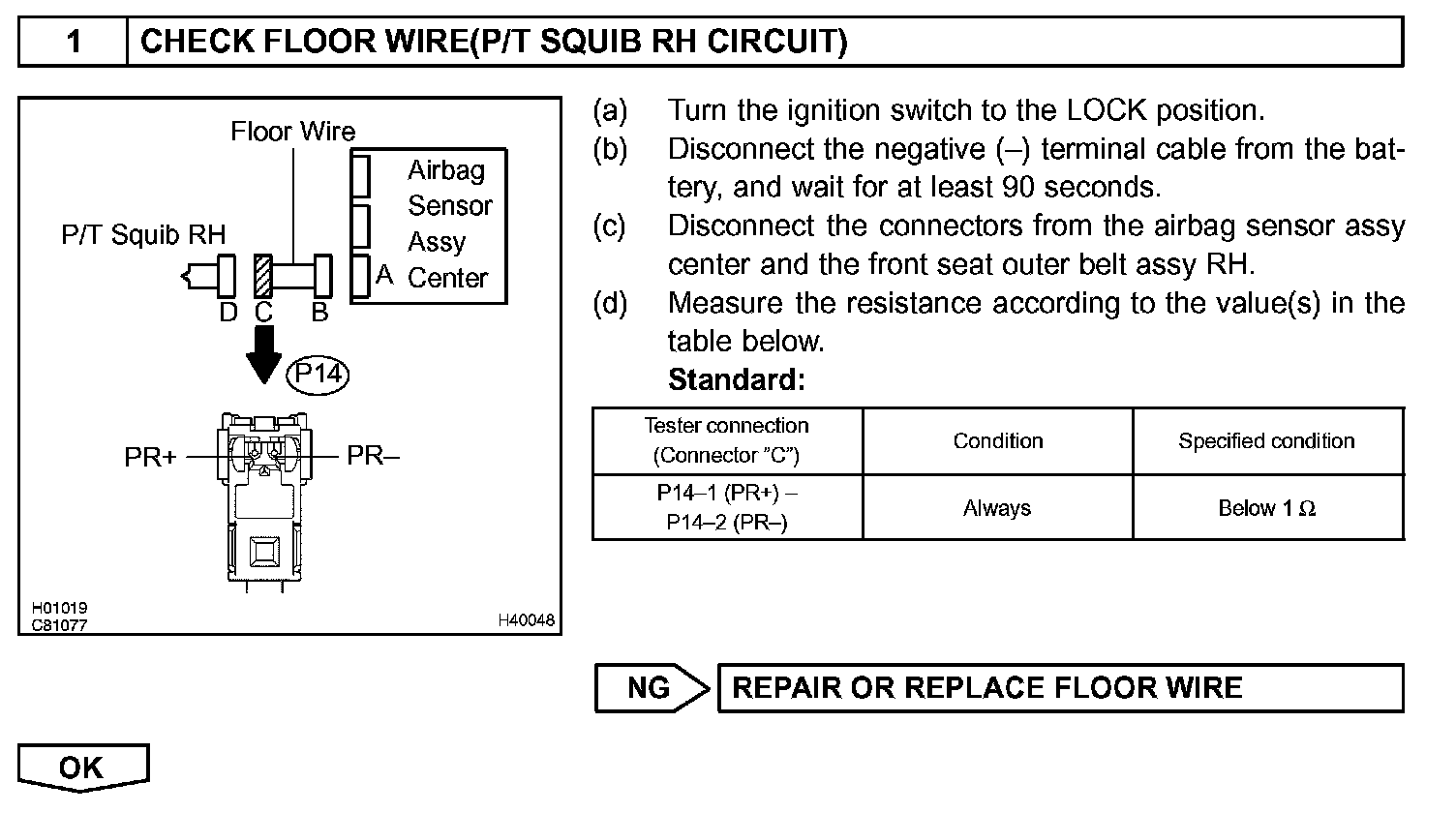

Step 1:

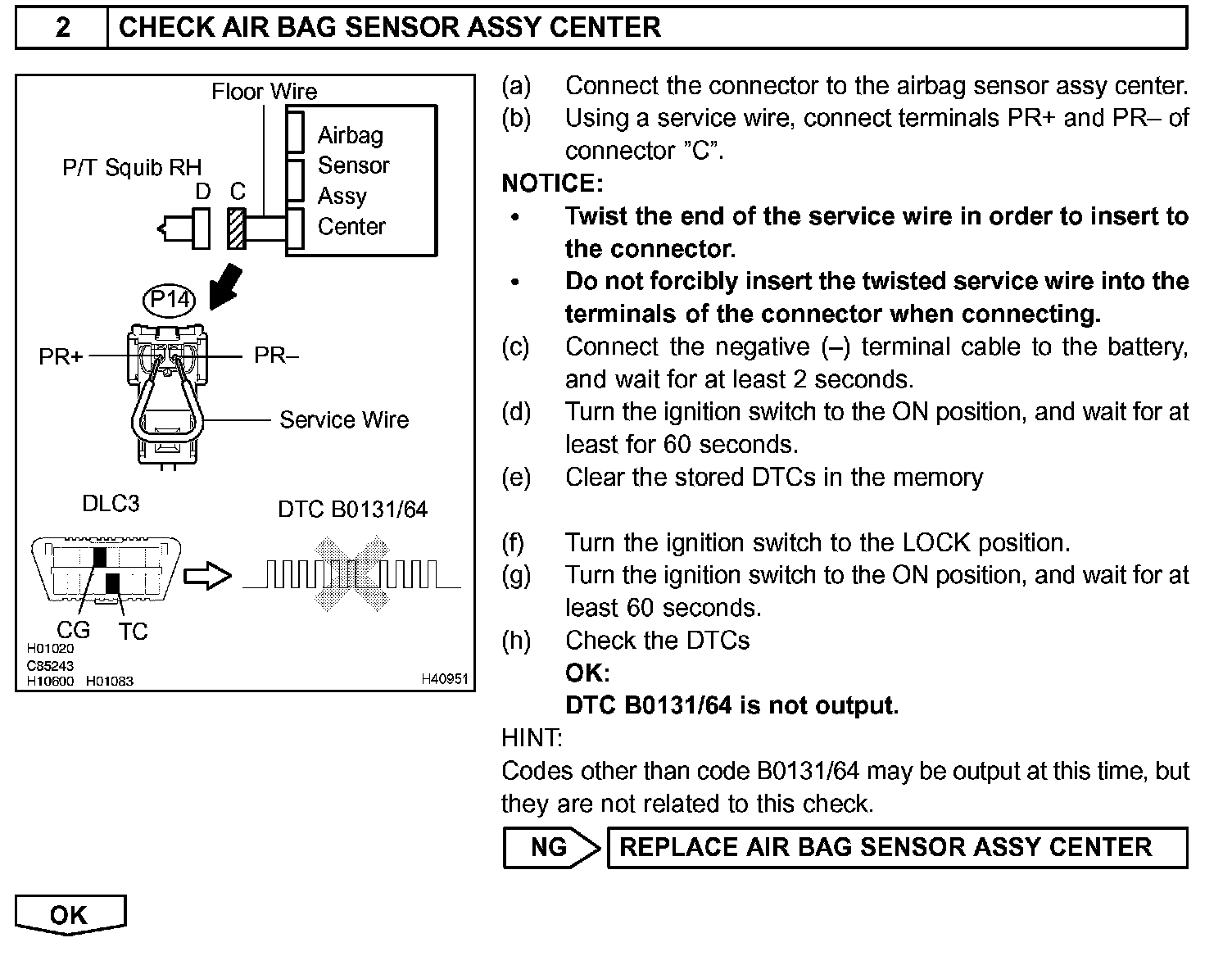

Step 2:

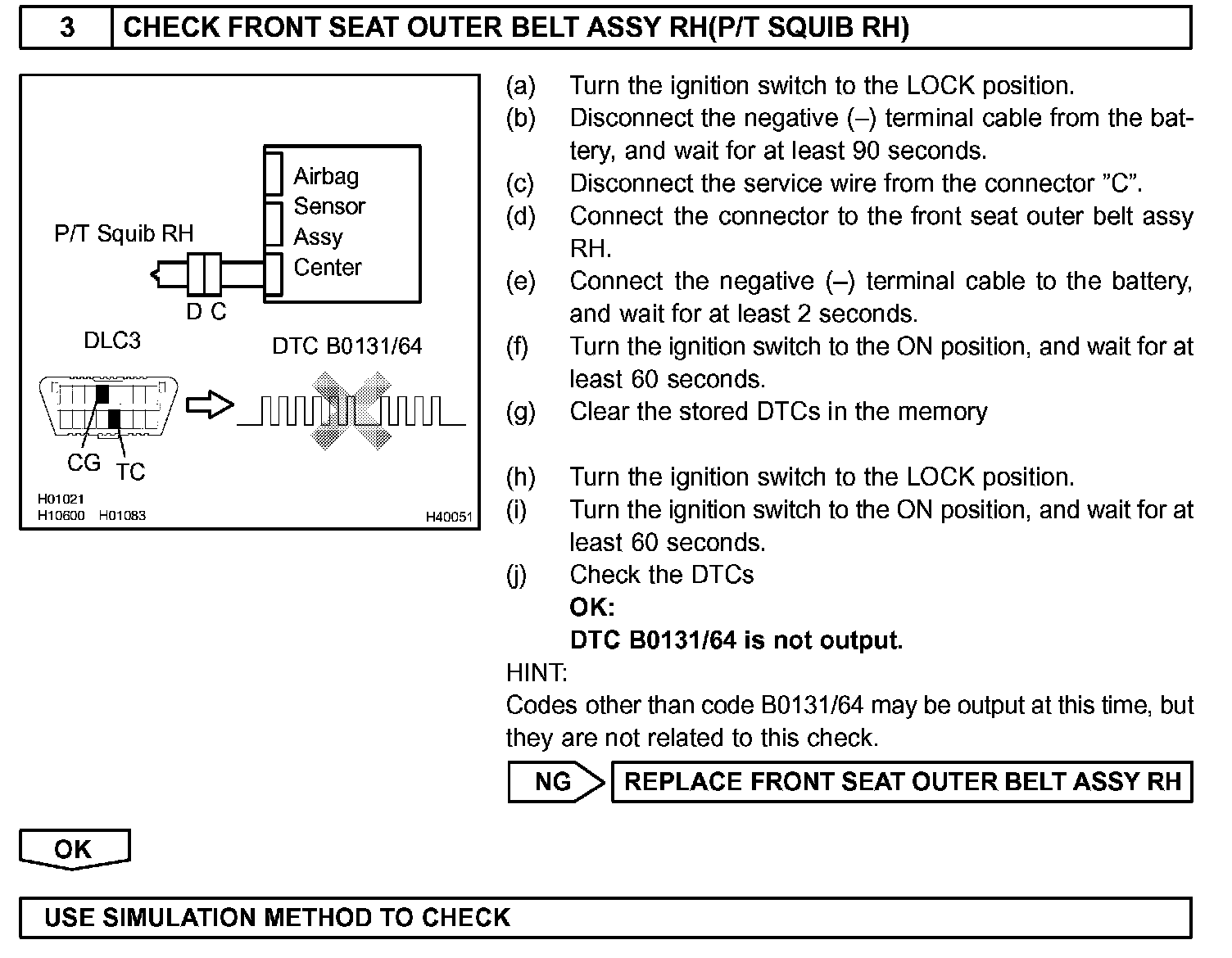

Step 3:

INSPECTION PROCEDURE
