B0121

DTC B0121 SEAT BELT BUCKLE SWITCH (RH) MALFUNCTION

CIRCUIT DESCRIPTION

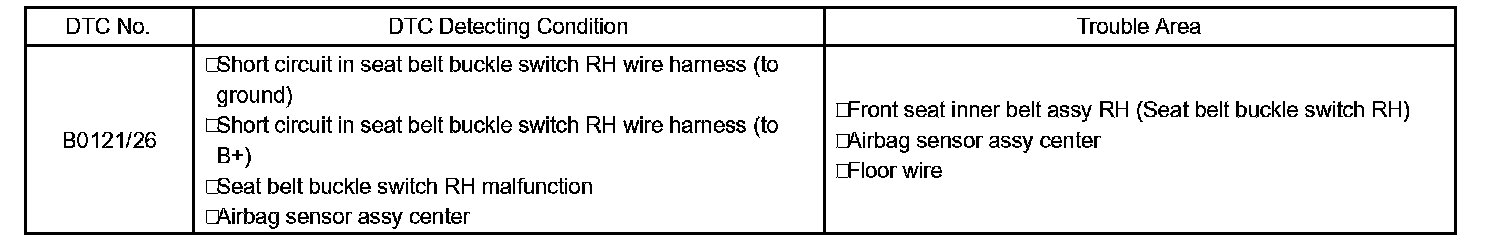

DTC Detecting Condition:

The seat belt buckle switch RH circuit consists of the airbag sensor assembly center and the front seat inner belt assembly RH (seat belt buckle switch RH).

DTC B0121/26 is recorded when a malfunction is detected in the seat belt buckle switch RH circuit.

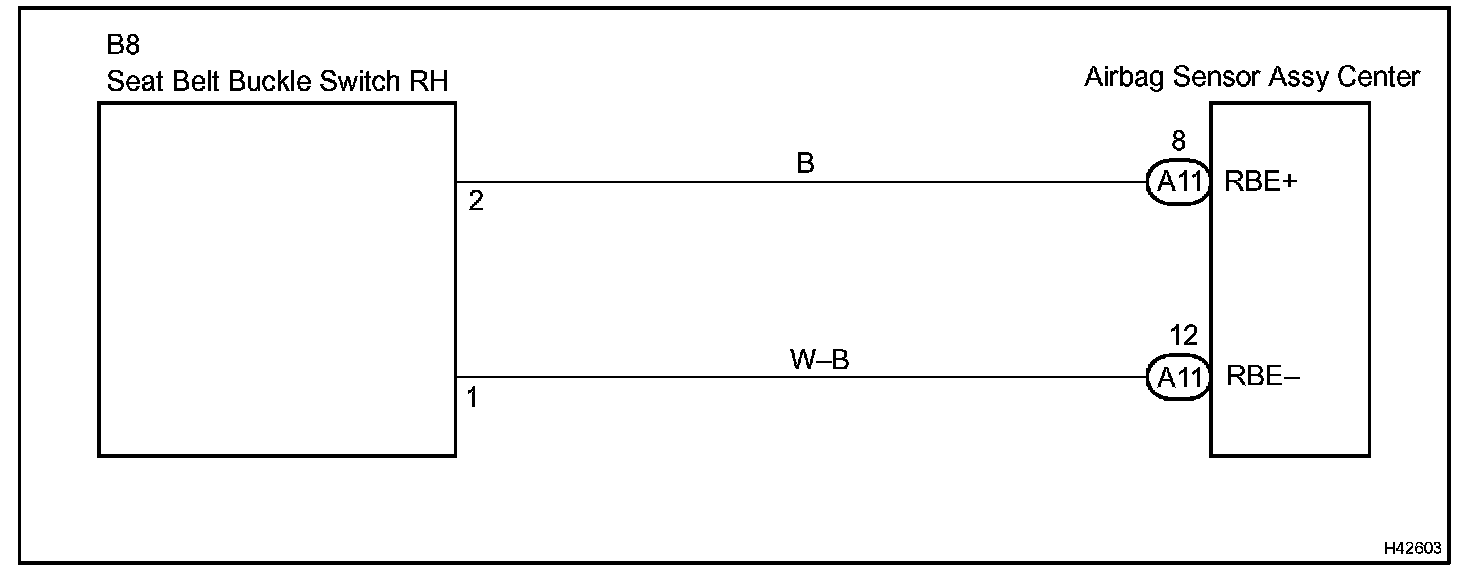

Wiring Diagram:

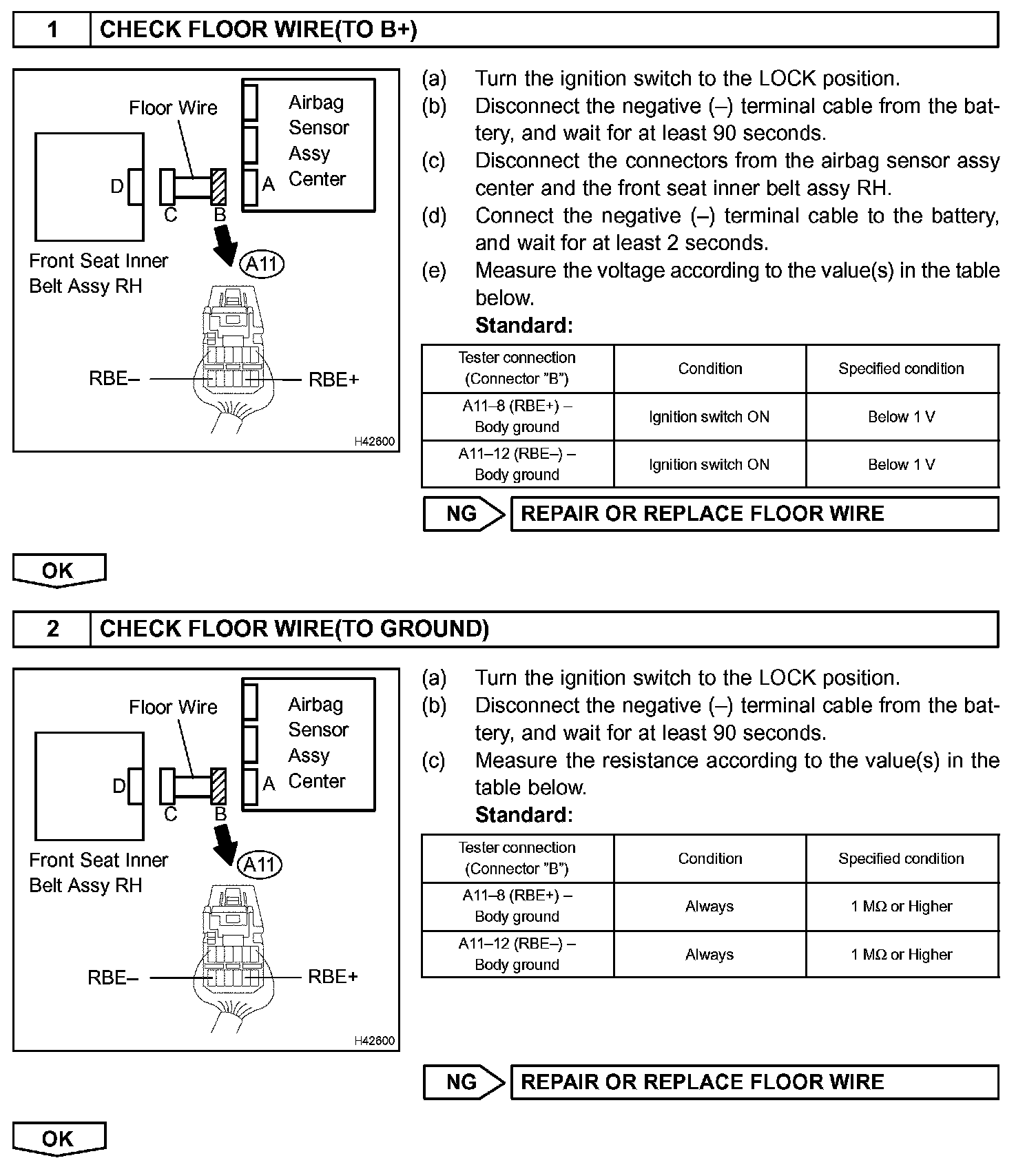

Step 1 - 2:

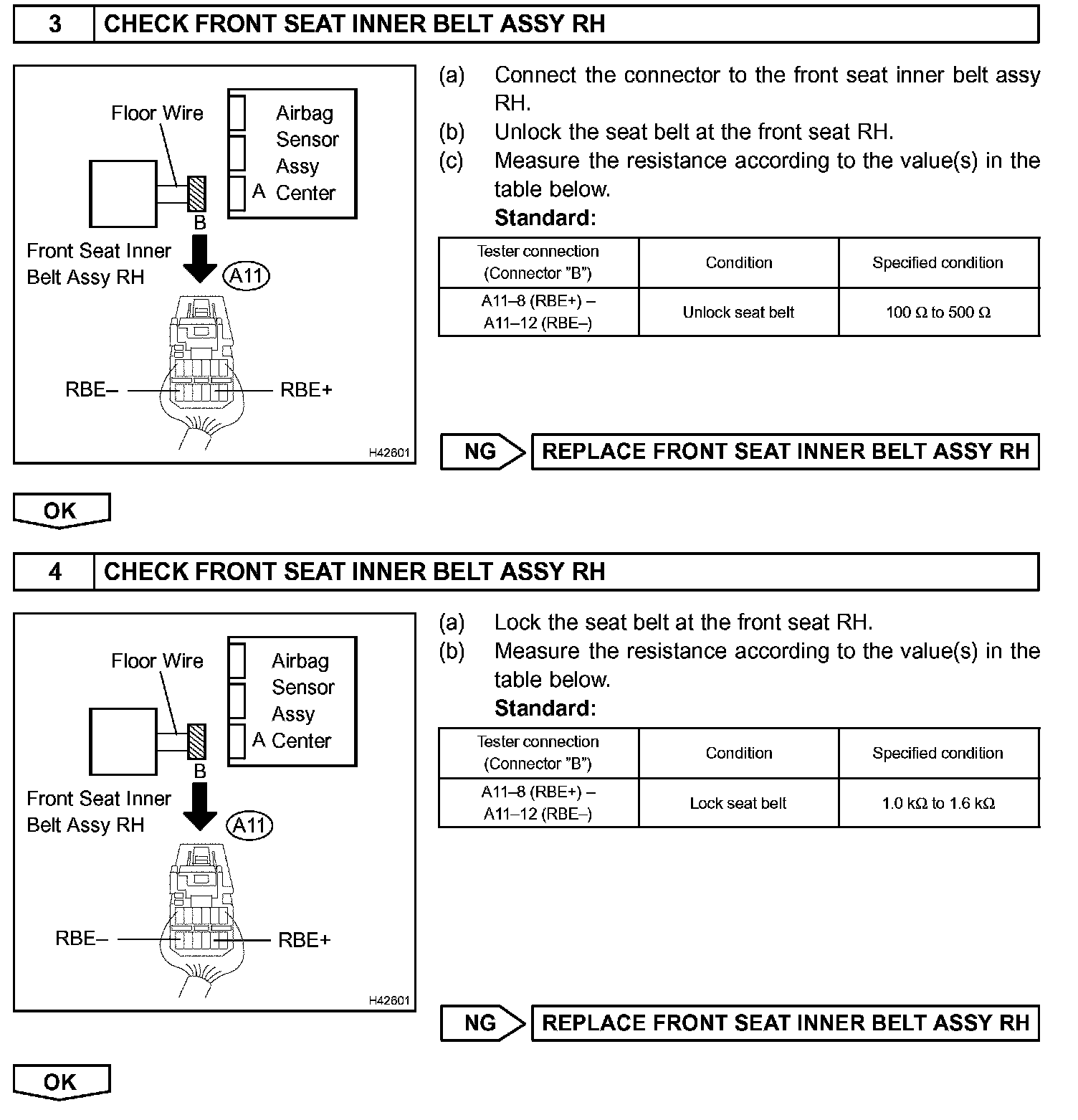

Step 3 - 4:

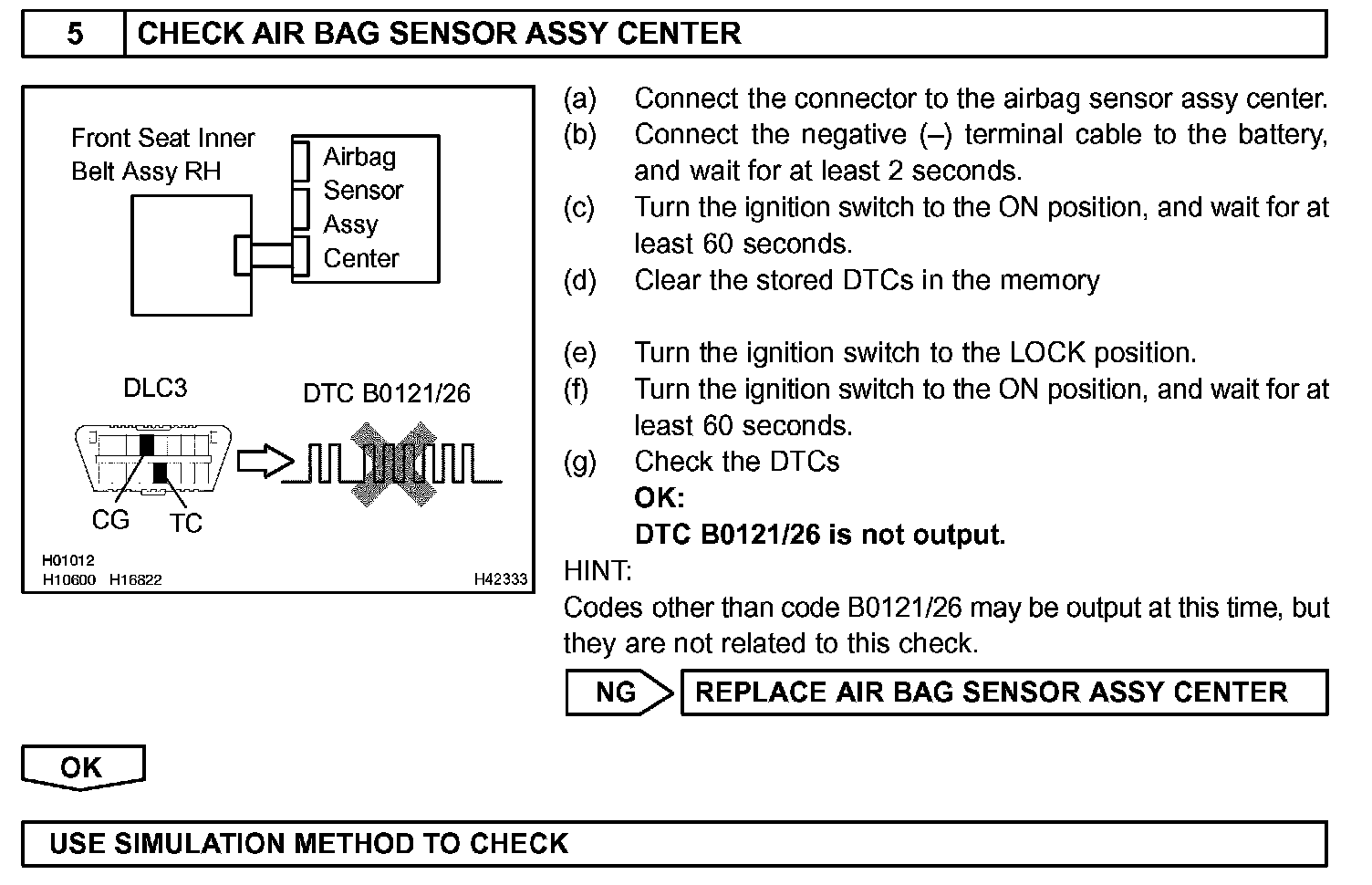

Step 5:

INSPECTION PROCEDURE
