B0108

DTC B0108 SHORT IN P SQUIB CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assembly center and the instrument panel passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.

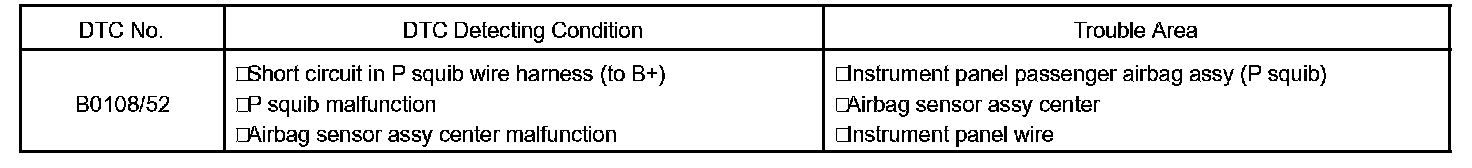

DTC B0108/52 is recorded when a short to B+ is detected in the P squib circuit.

Wiring Diagram:

Step 1:

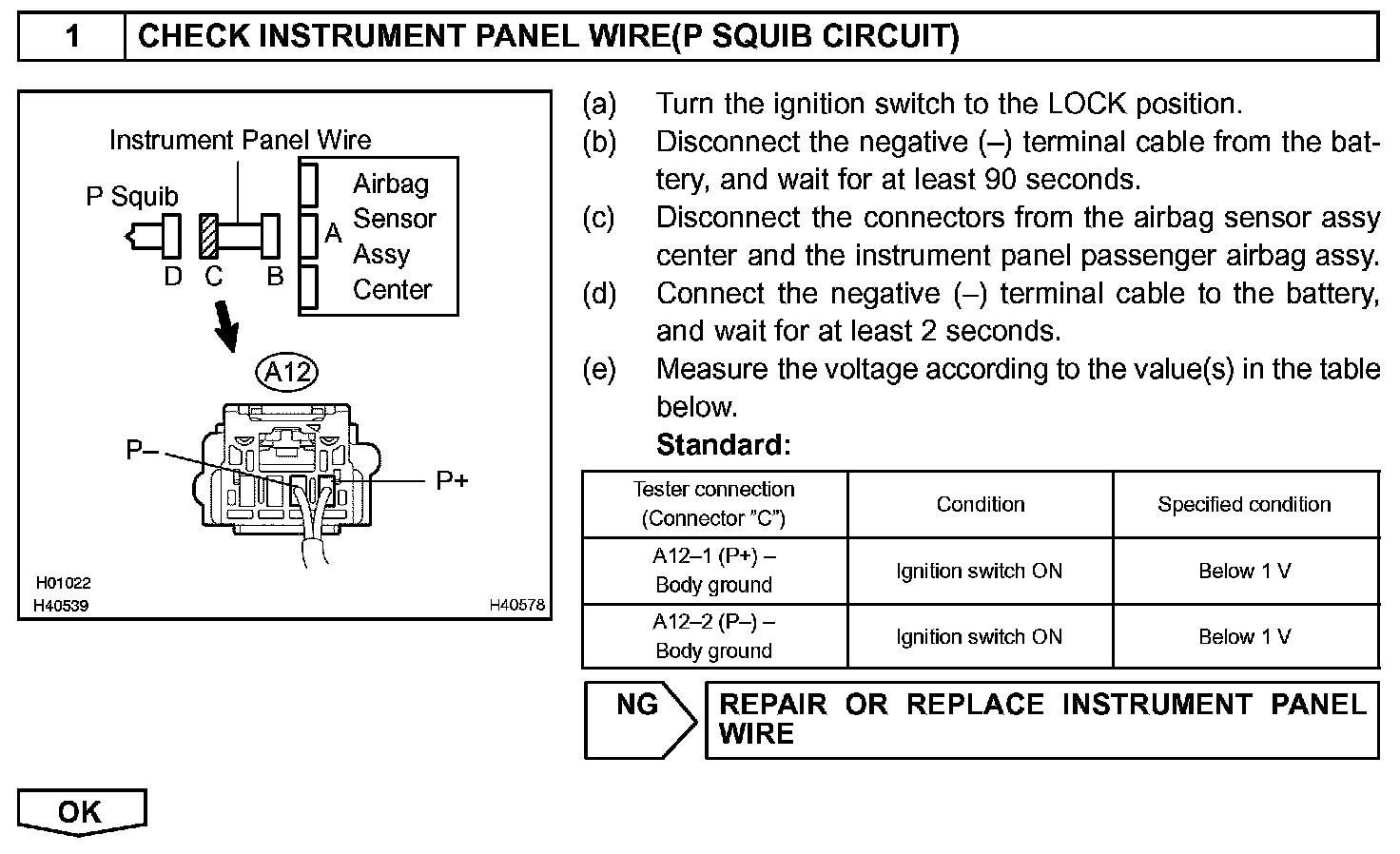

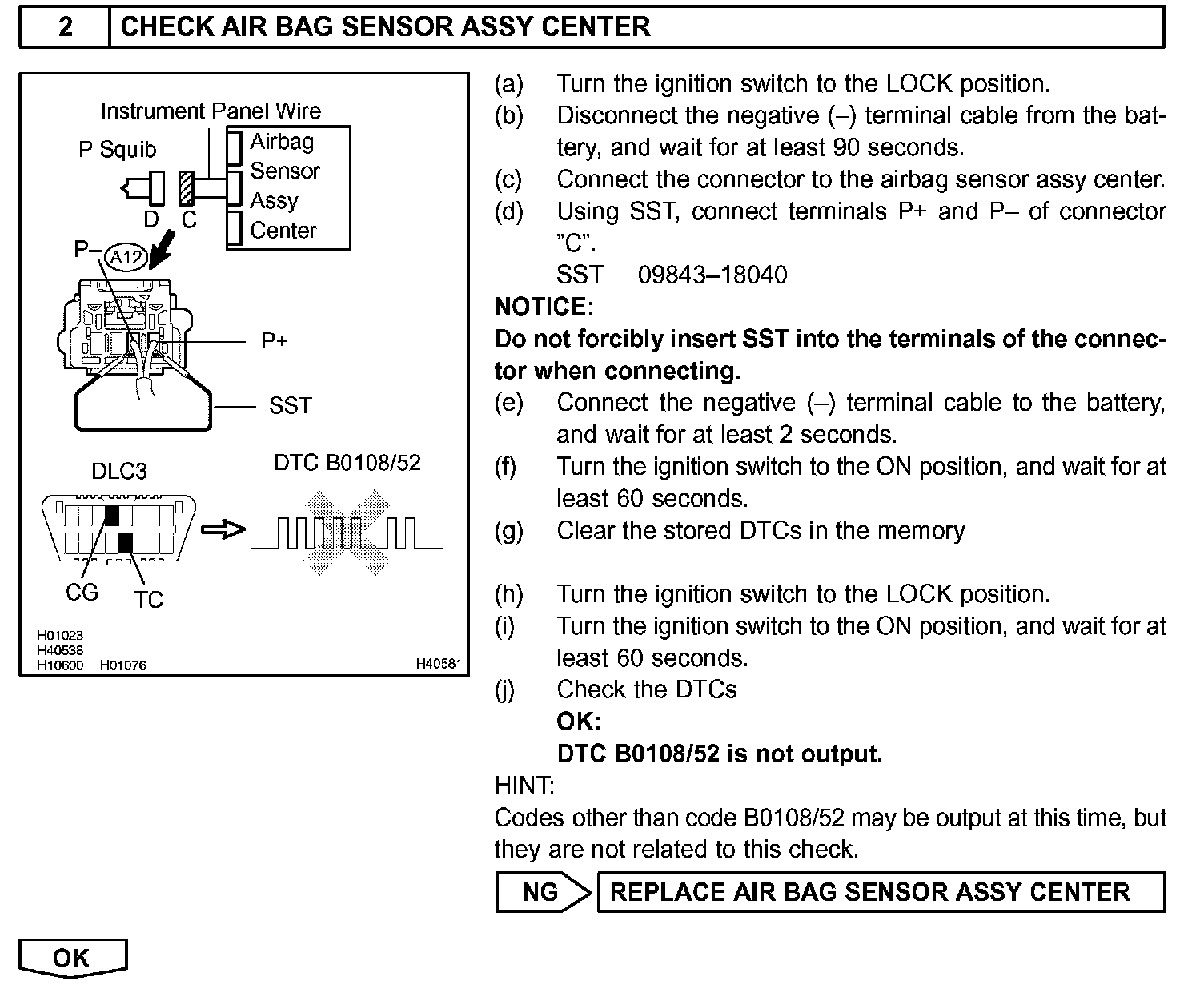

Step 2:

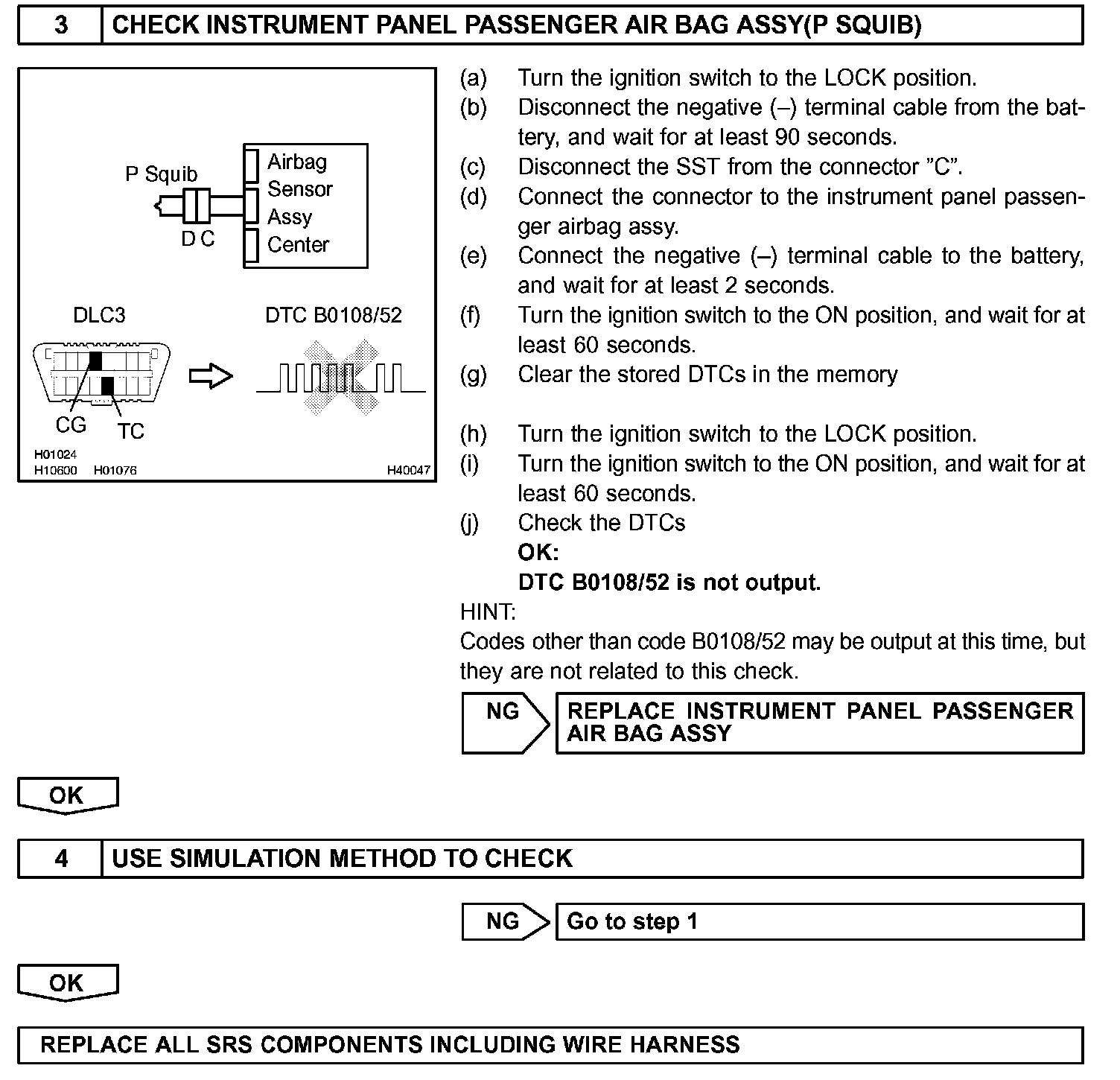

Step 3 - 4:

INSPECTION PROCEDURE
