B0107

DTC B0107 SHORT IN P SQUIB CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

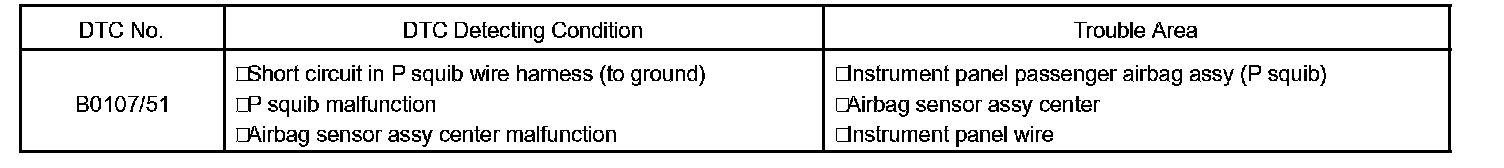

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assembly center and the instrument panel passenger airbag assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0107/51 is recorded when a short to ground is detected in the P squib circuit.

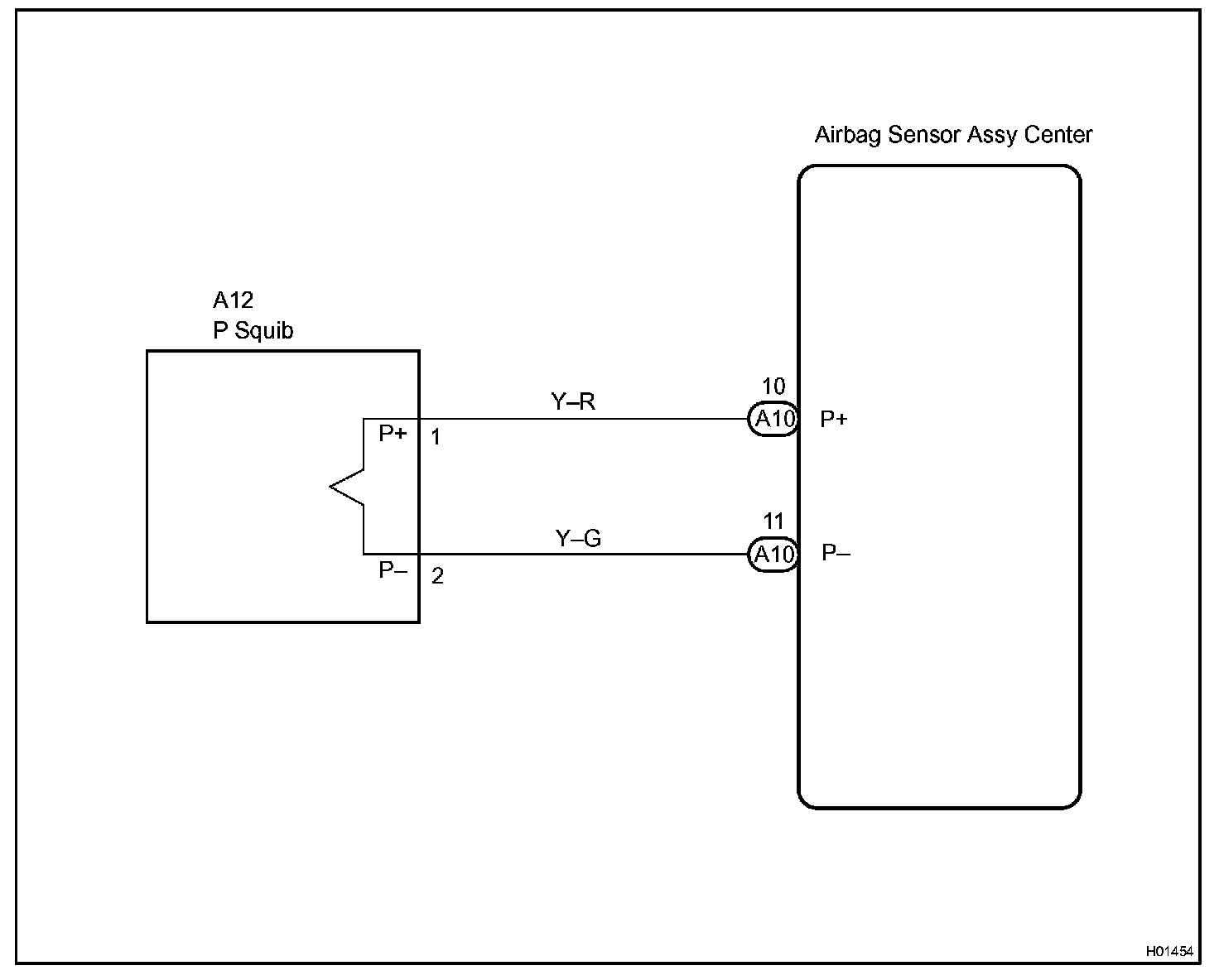

Wiring Diagram:

Step 1:

Step 2:

Step 3 - 4:

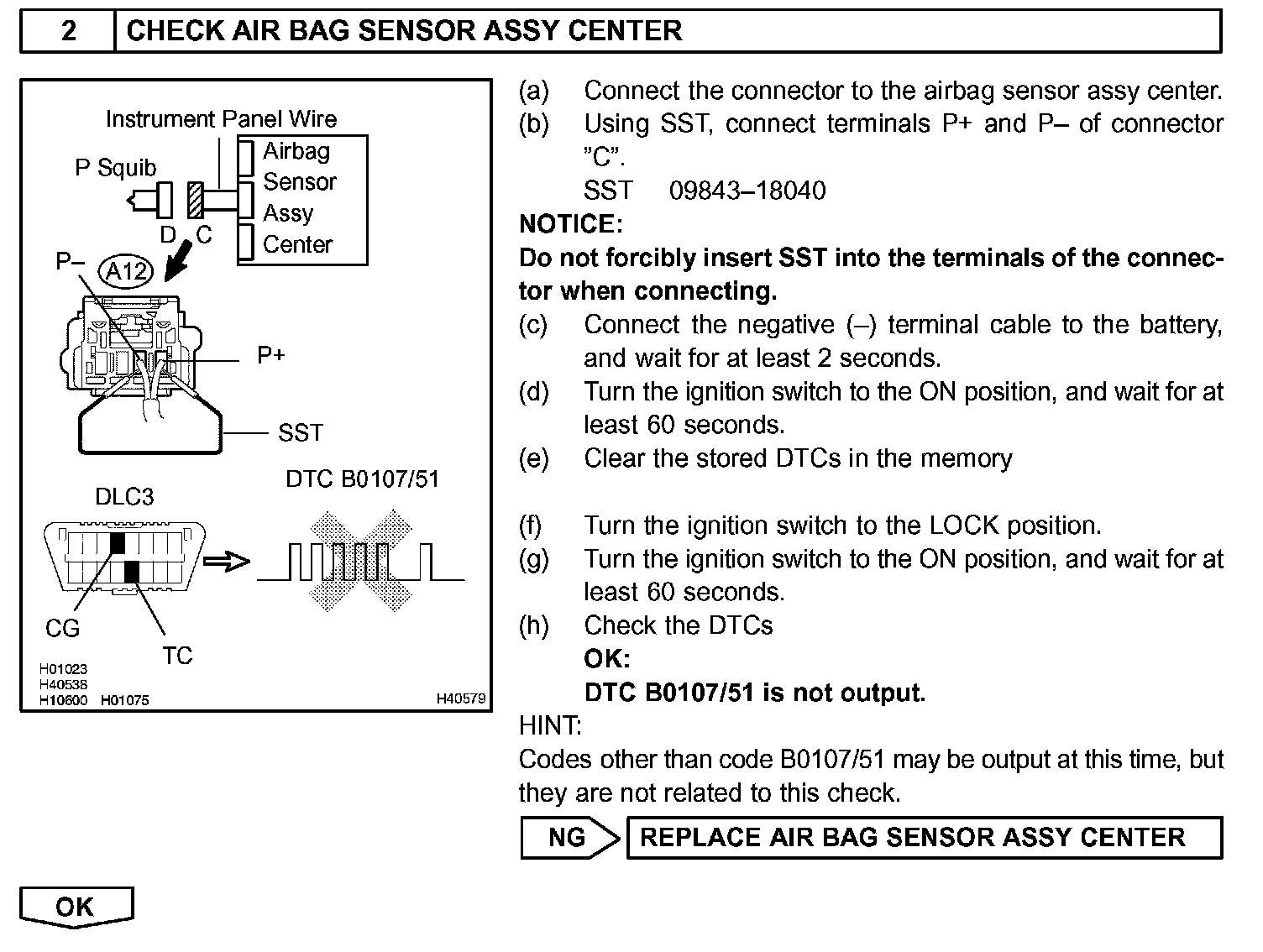

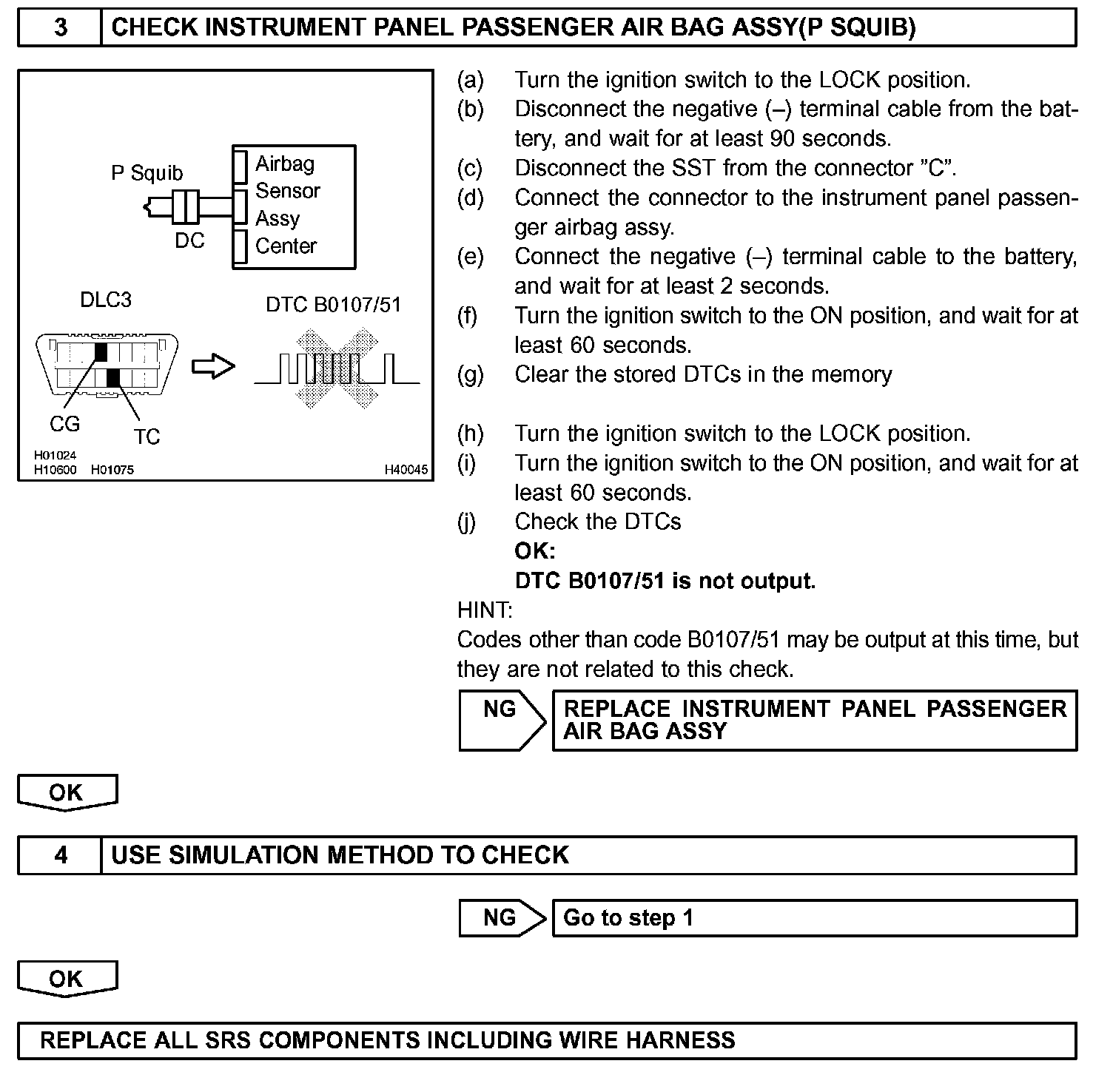

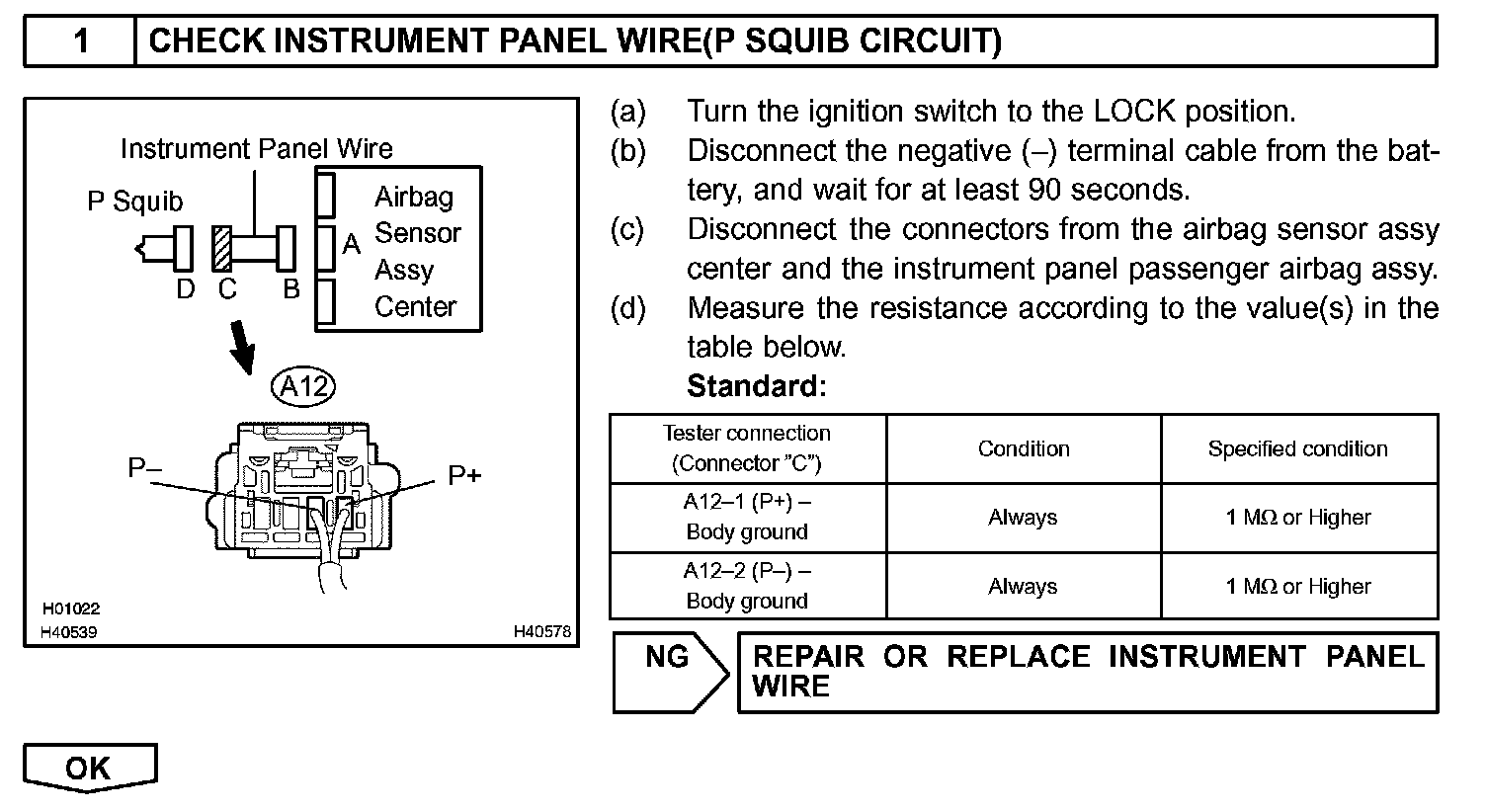

INSPECTION PROCEDURE
