B0103

DTC B0103 SHORT IN D SQUIB CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

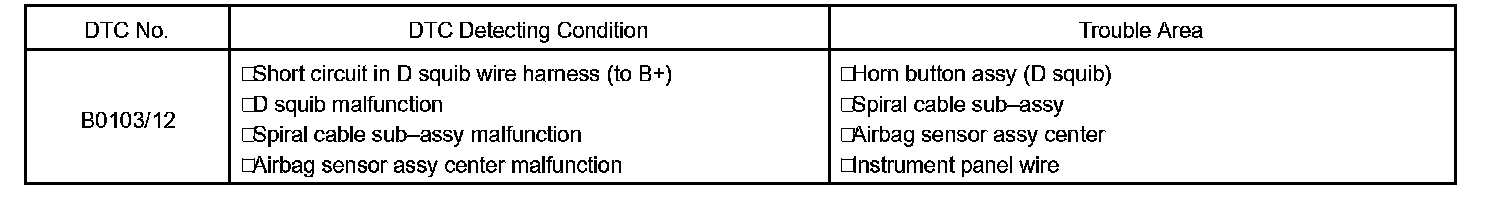

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly center, the spiral cable sub-assembly and the horn button assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0103/12 is recorded when a short to B+ is detected in the D squib circuit.

Wiring Diagram:

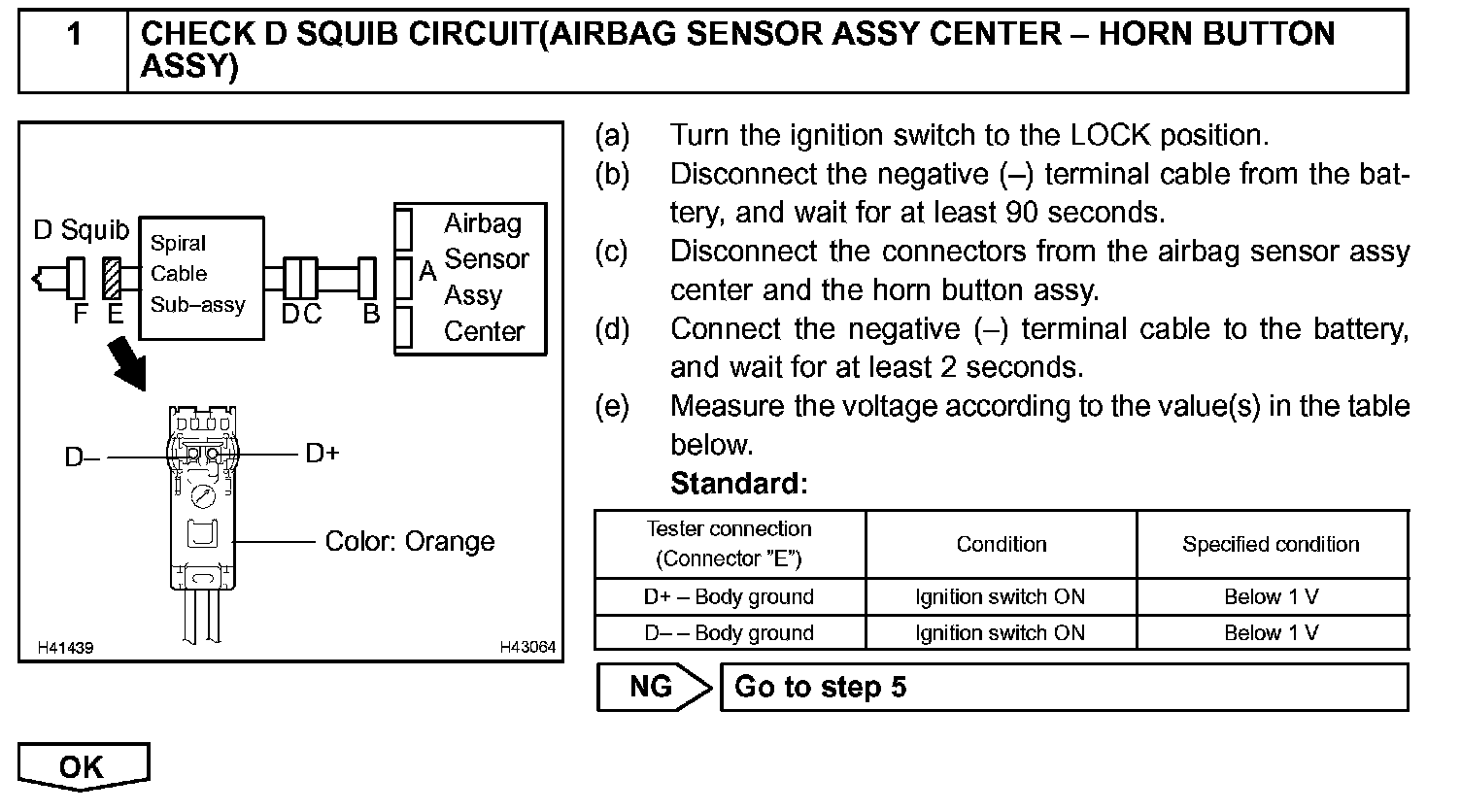

Step 1:

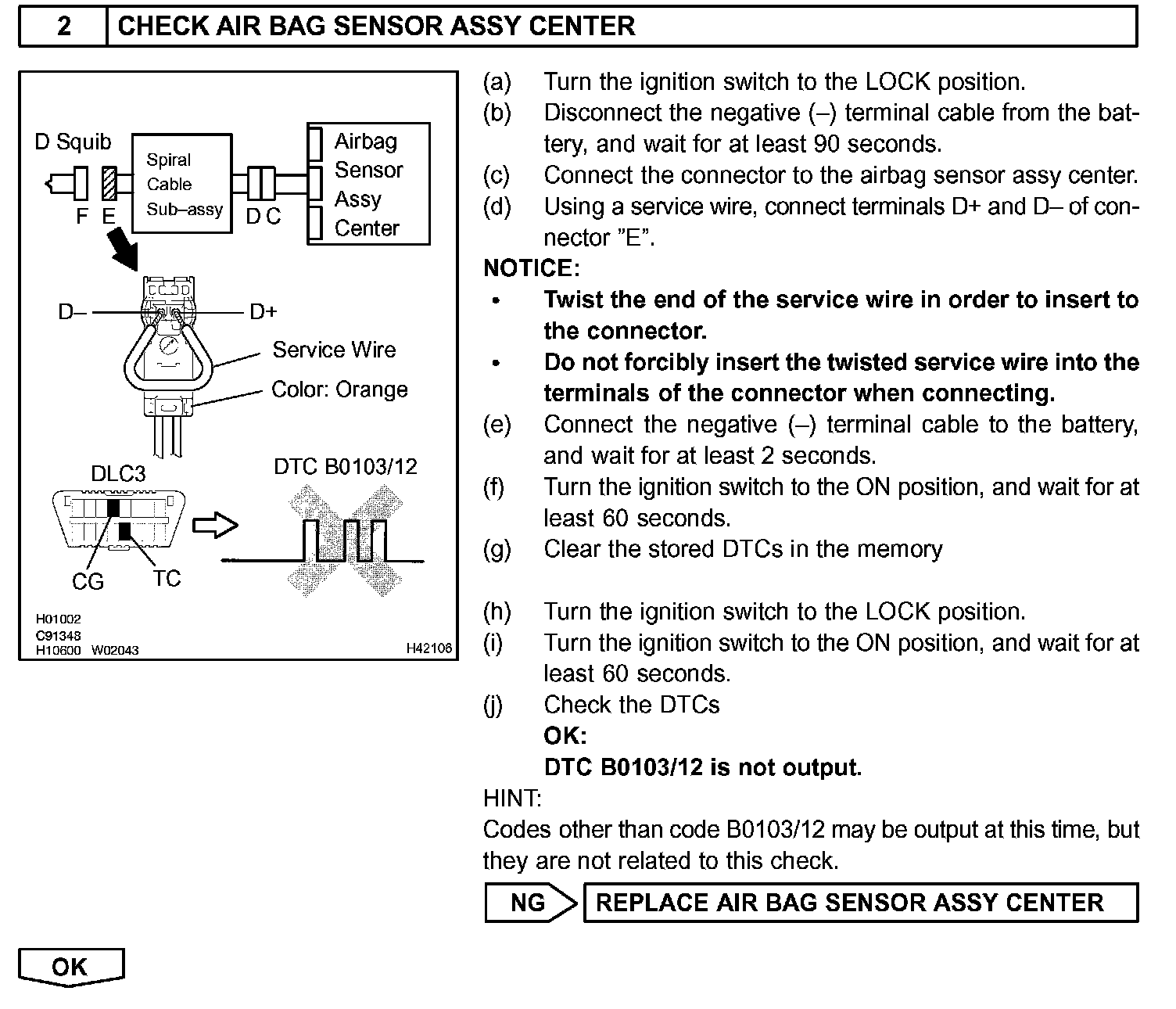

Step 2:

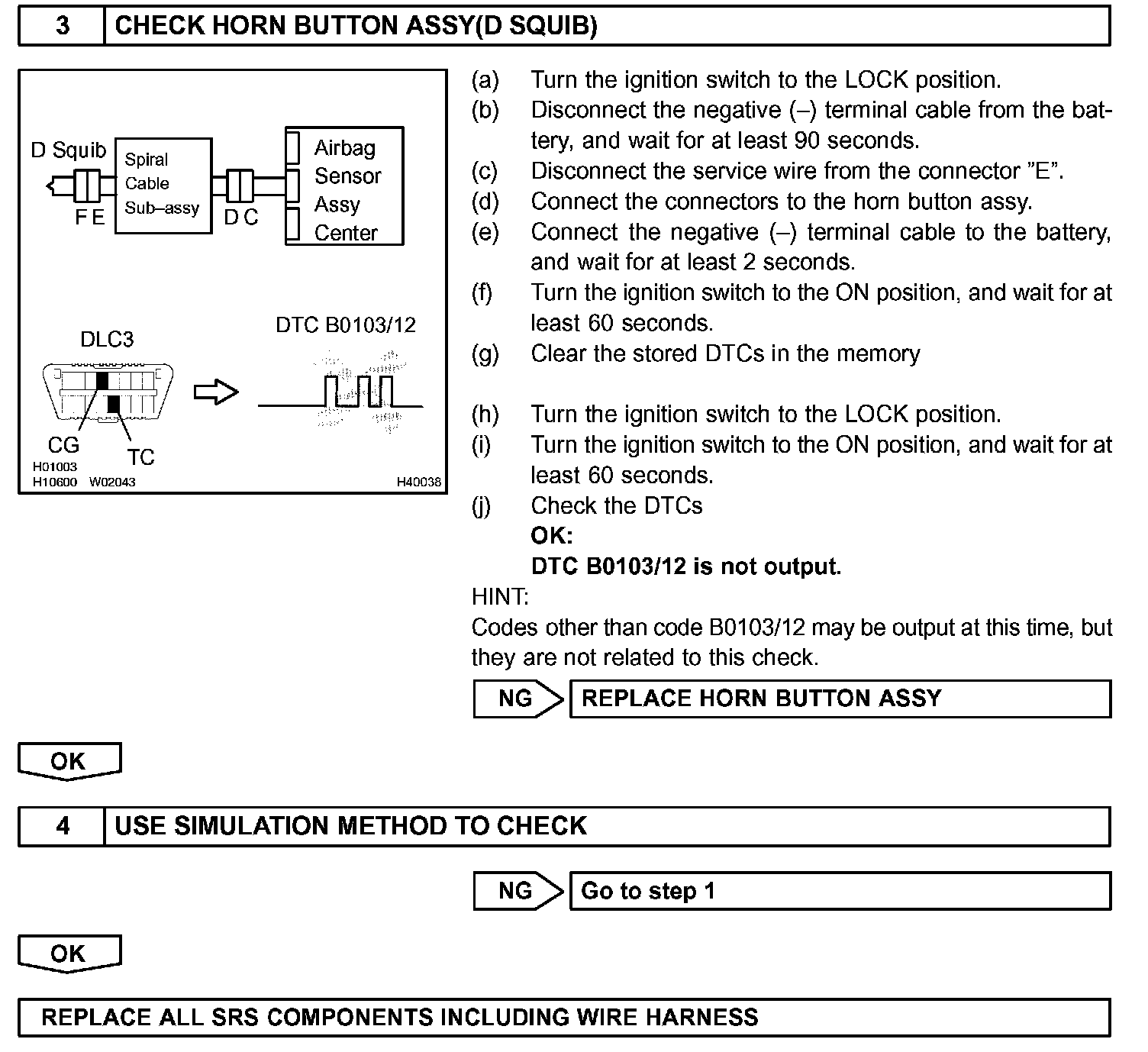

Step 3 - 4:

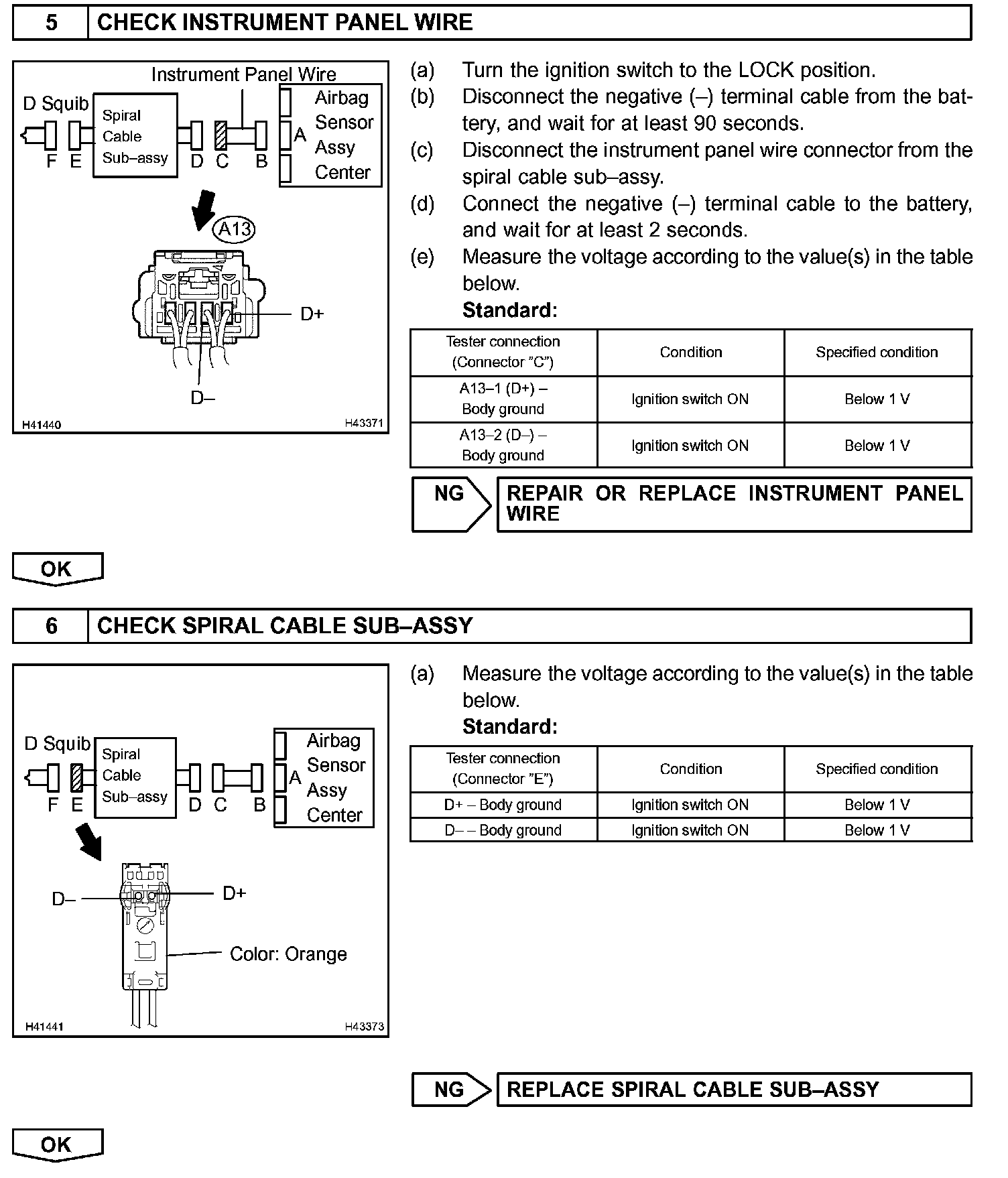

Step 5 - 6:

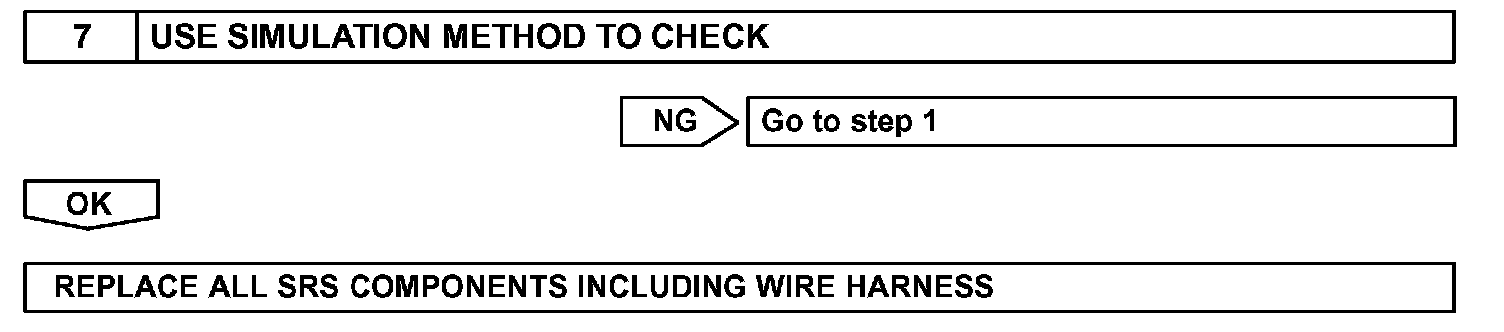

Step 7:

INSPECTION PROCEDURE
