B0102

DTC B0102 SHORT IN D SQUIB CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

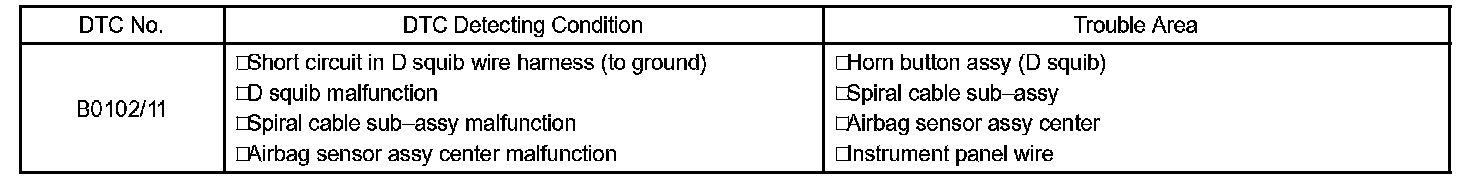

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly center, the spiral cable sub-assembly and the horn button assembly.

This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0102/11 is recorded when a short to ground is detected in the D squib circuit.

Wiring Diagram:

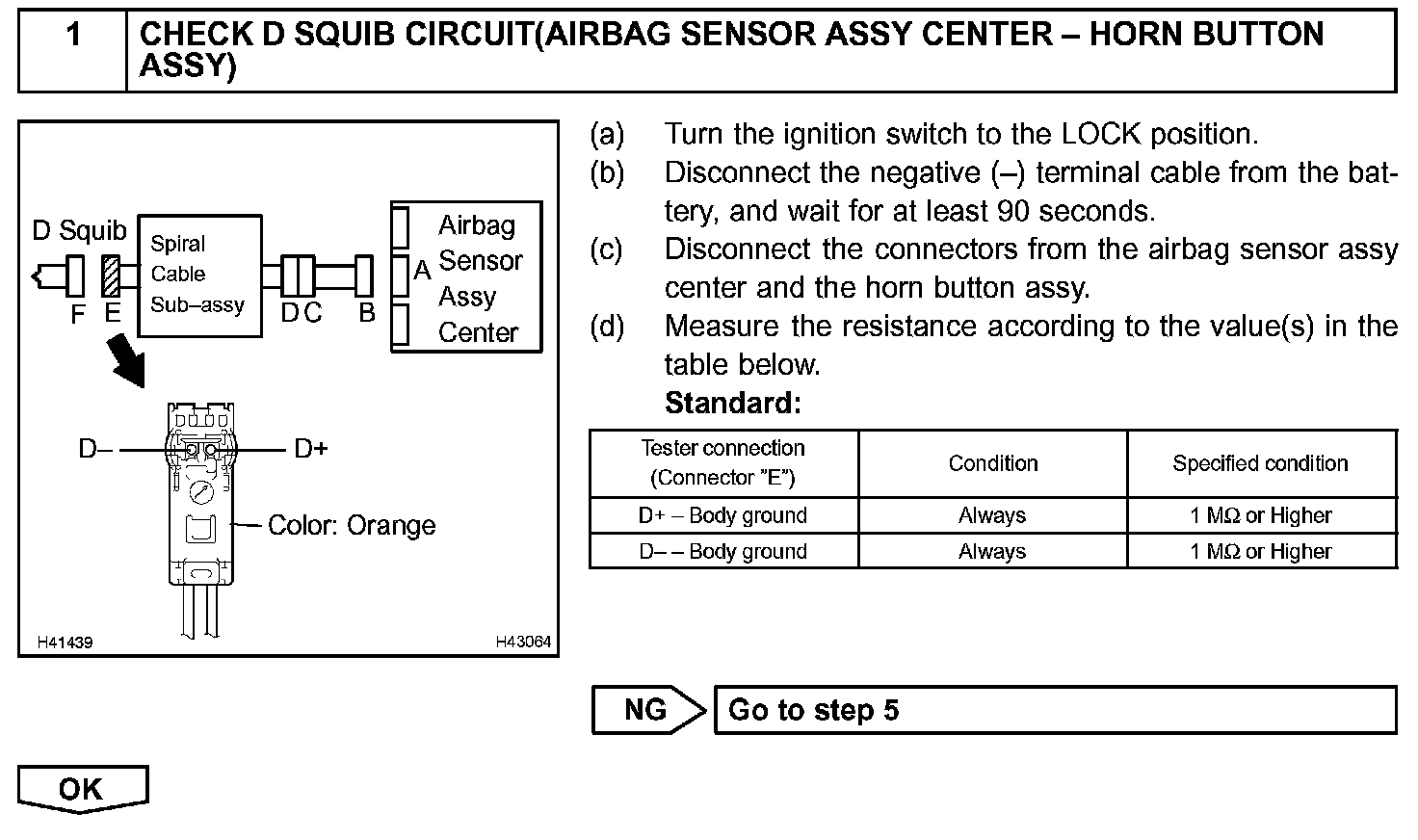

Step 1:

Step 2:

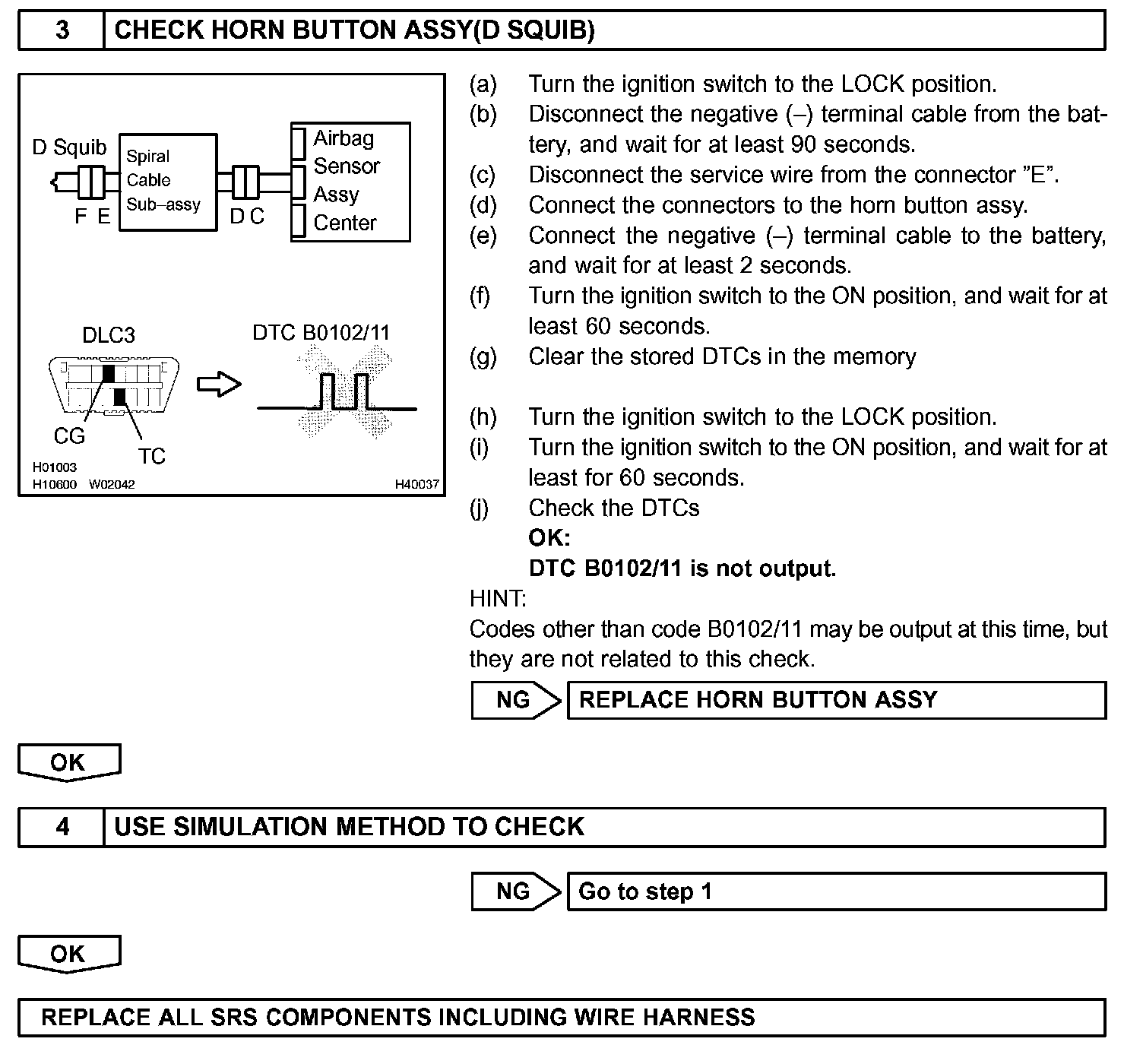

Step 3 - 4:

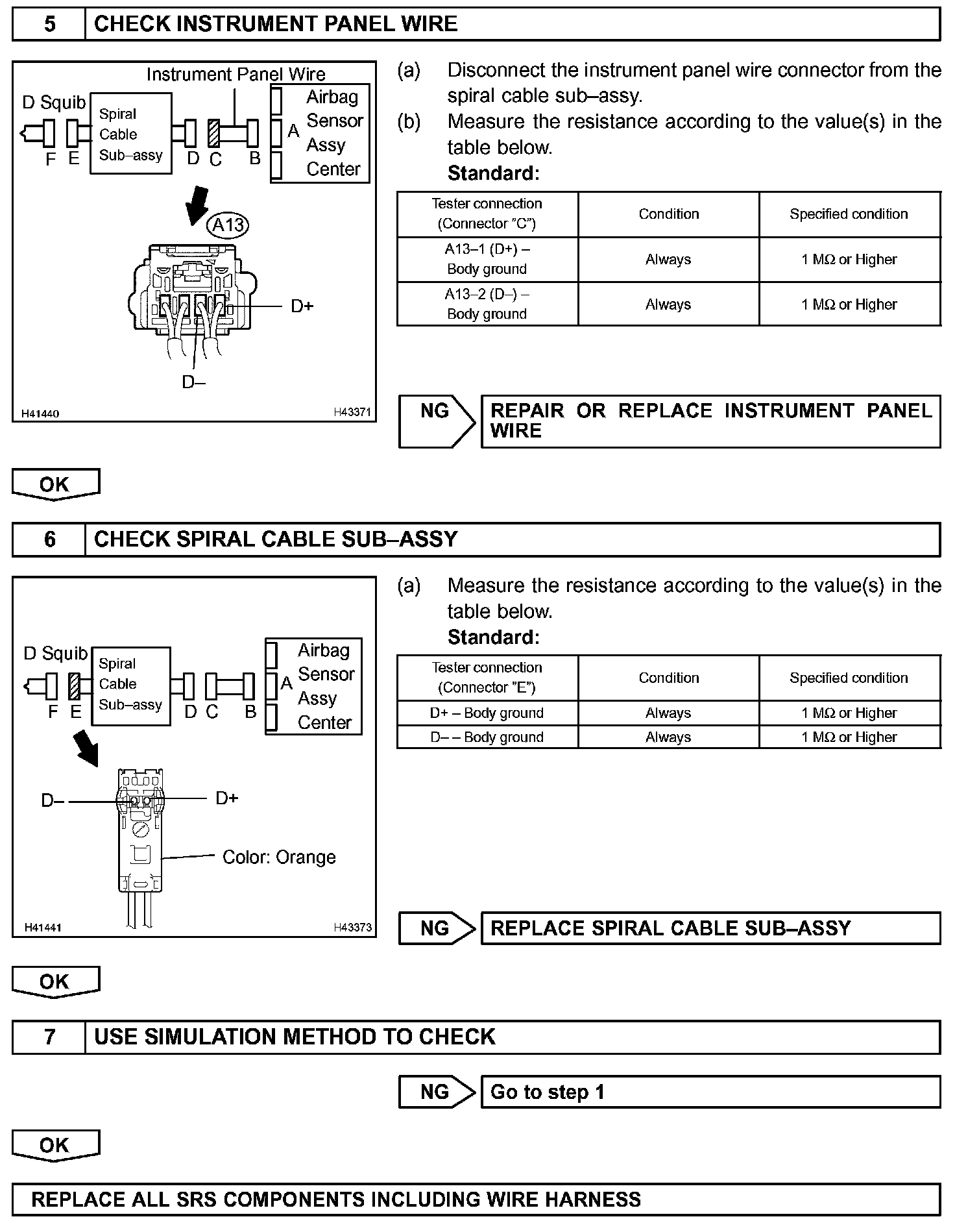

Step 5 - 7:

INSPECTION PROCEDURE
