B0101

DTC B0101 OPEN IN D SQUIB CIRCUIT

CIRCUIT DESCRIPTION

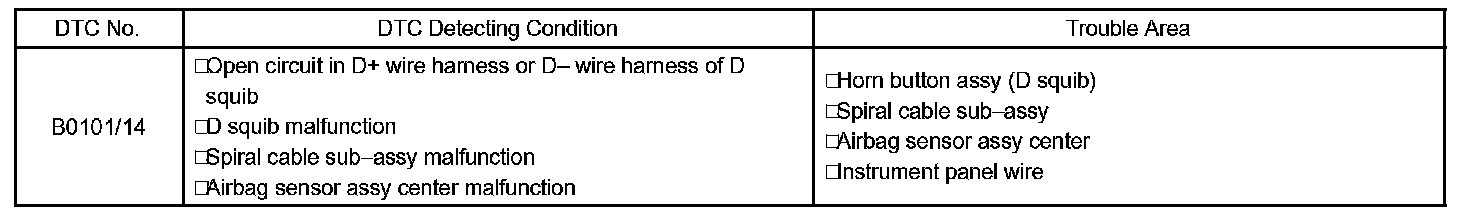

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly center, the spiral cable sub-assembly and the horn button assembly.

This circuit instructs the SRS to deploy when deployment conditions are met. DTC B0101/14 is recorded when an open circuit is detected in the D squib circuit.

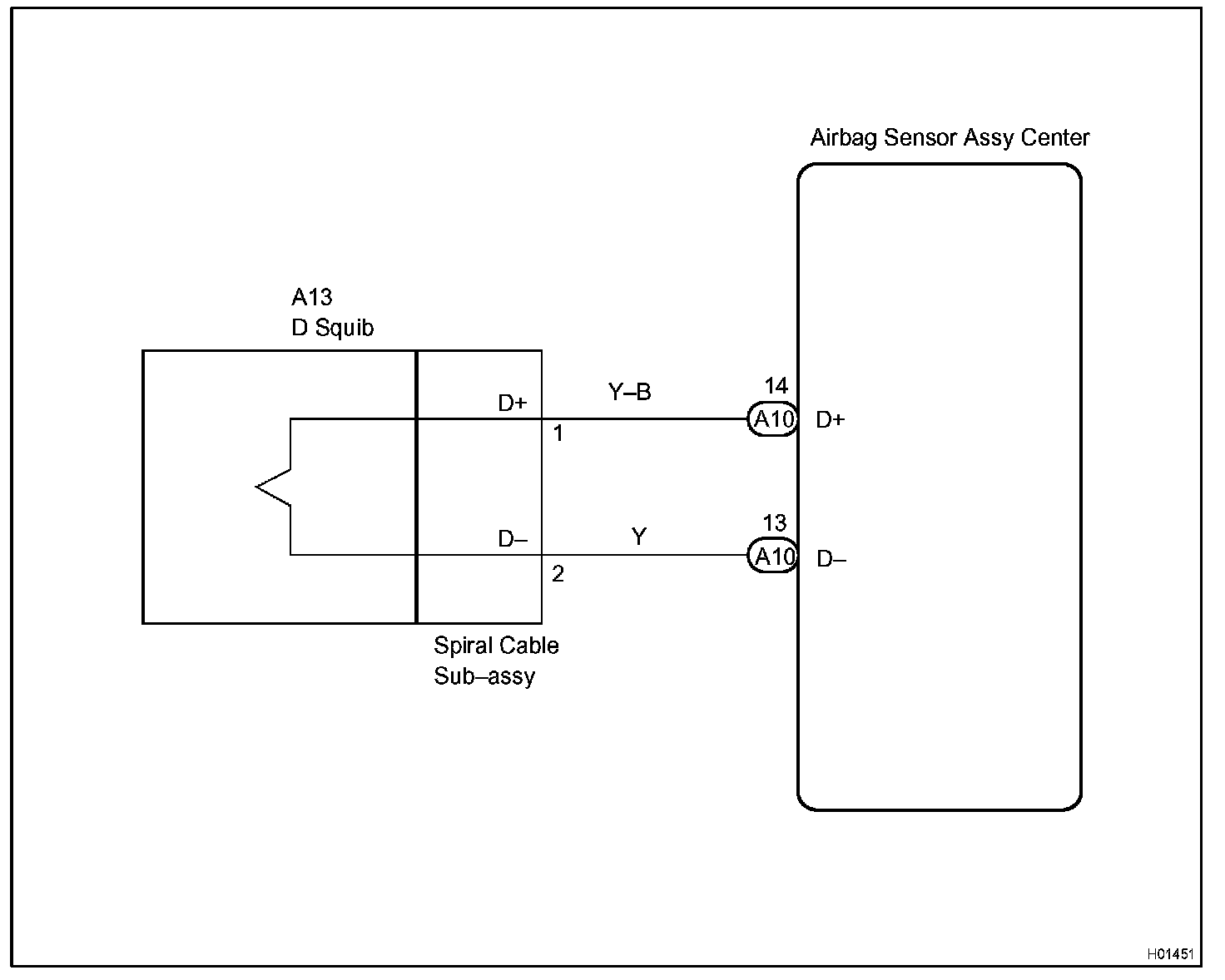

Wiring Diagram:

Step 1:

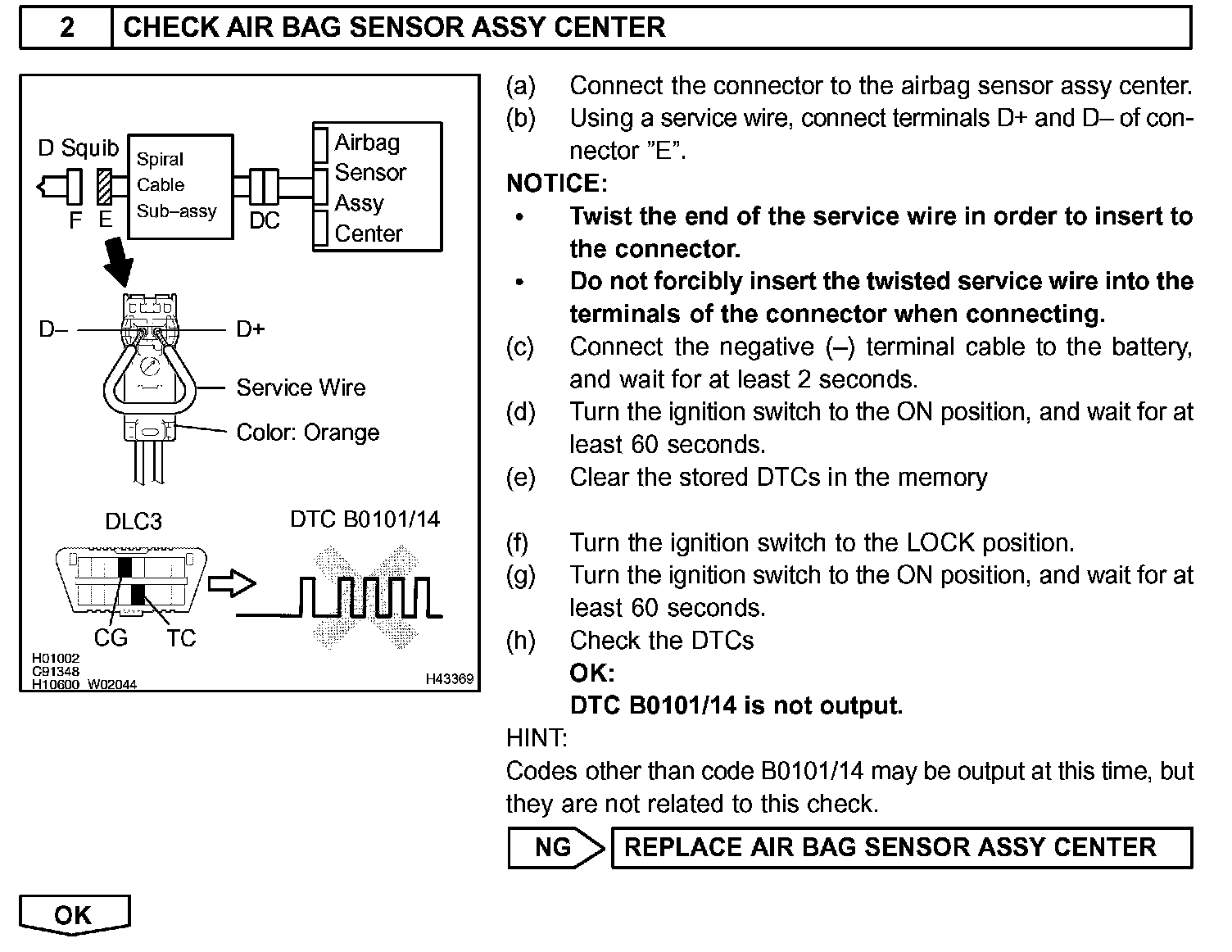

Step 2:

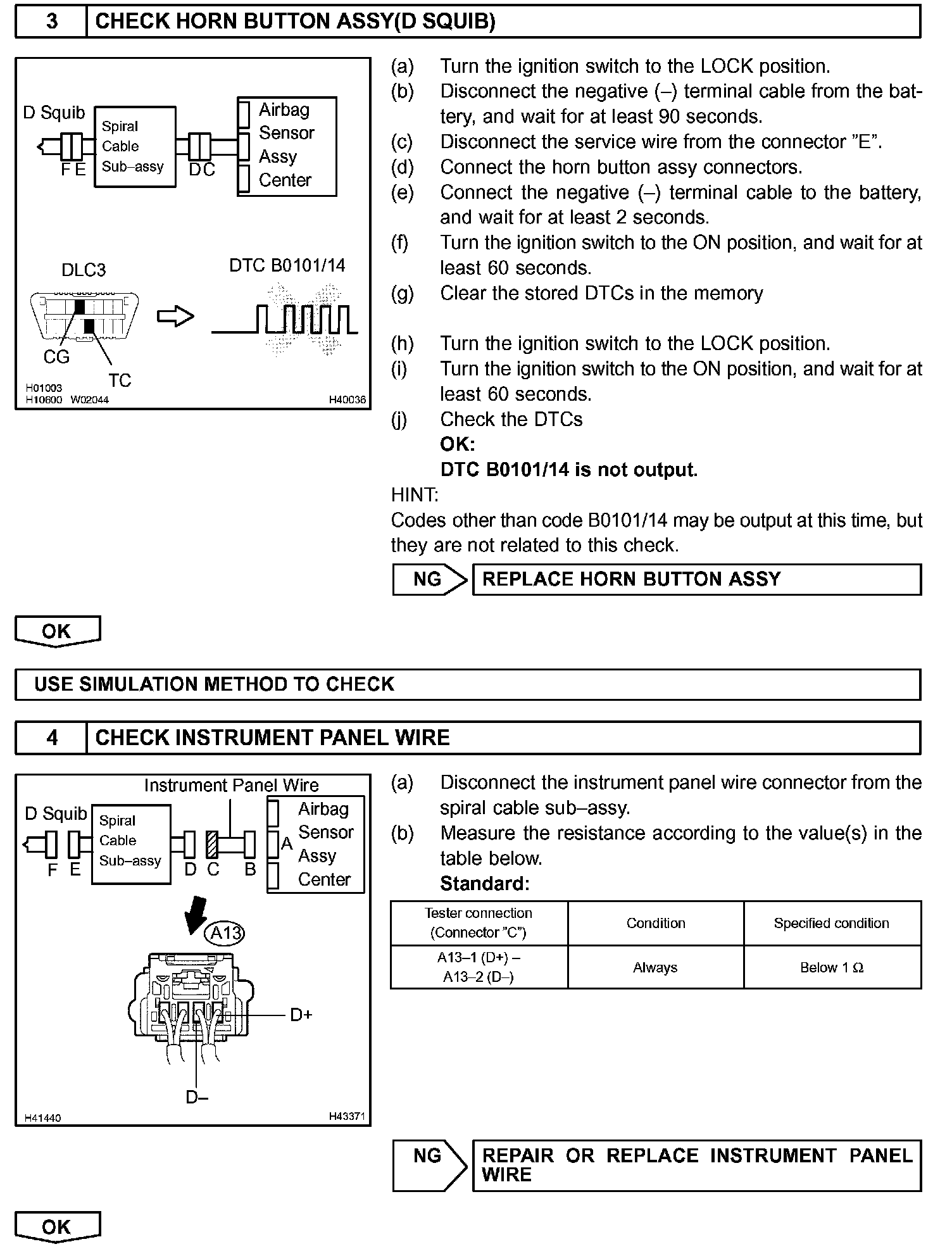

Step 3 - 4:

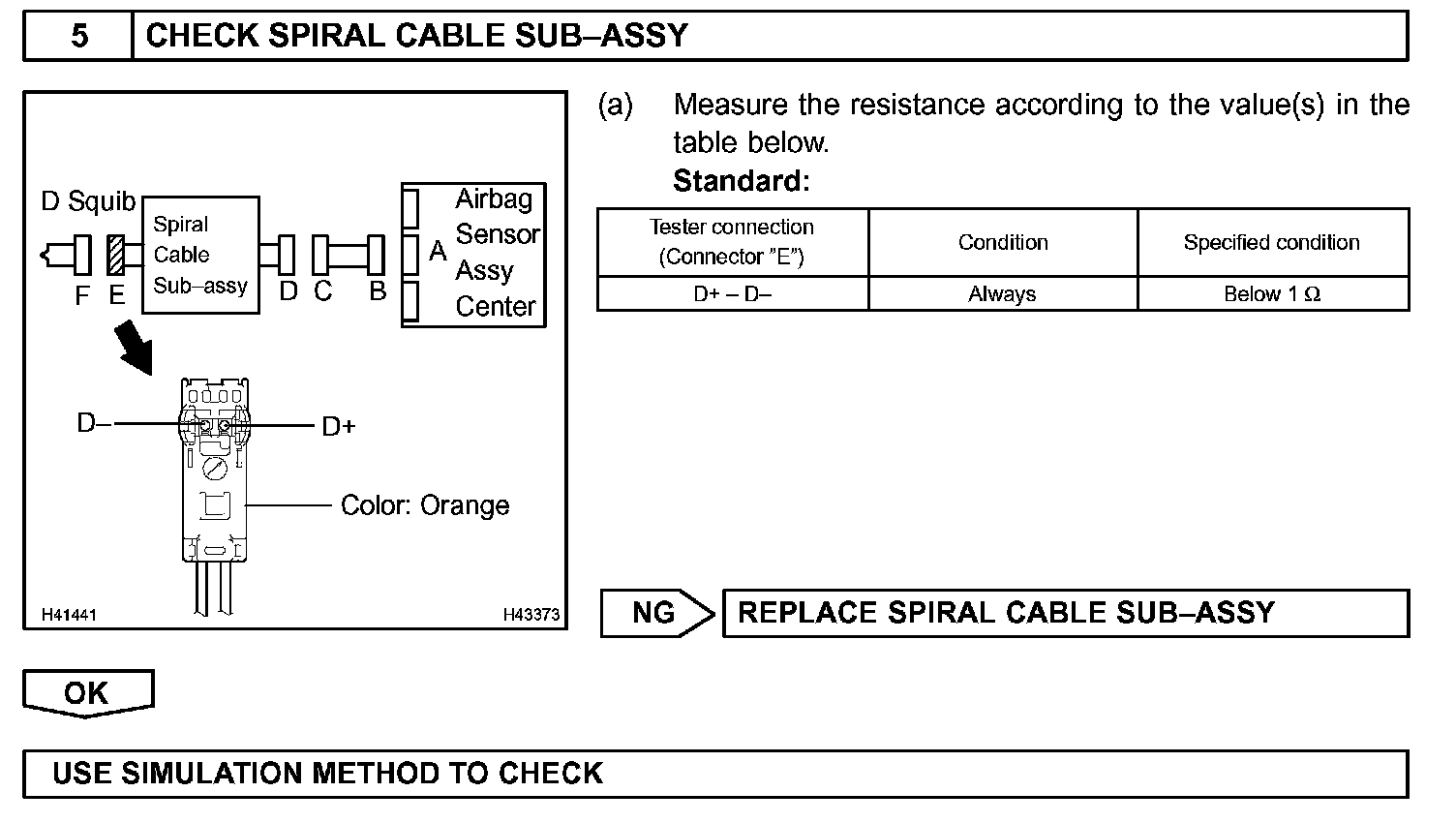

Step 5:

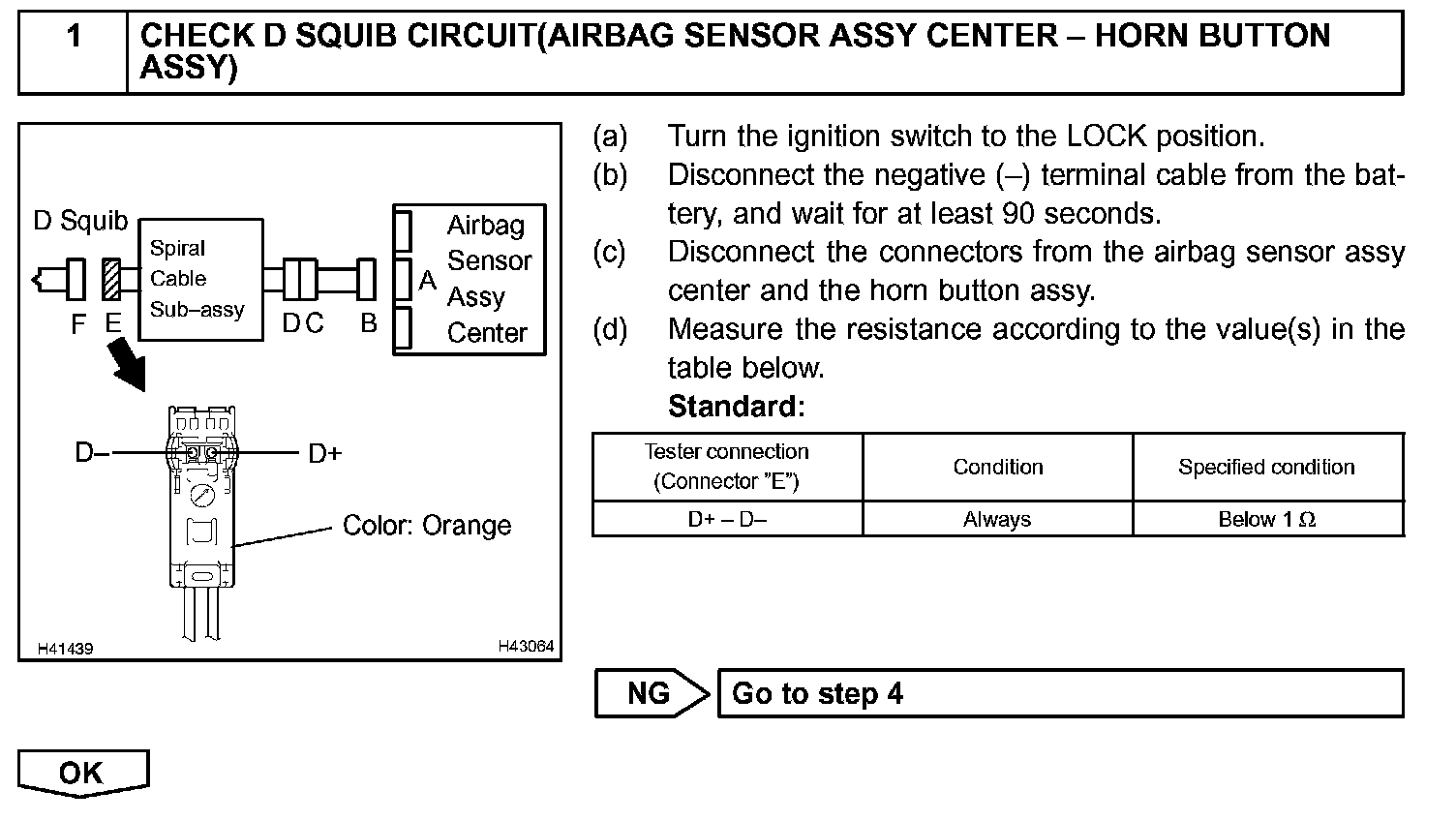

INSPECTION PROCEDURE
