B0100

DTC B0100 SHORT IN D SQUIB CIRCUIT

CIRCUIT DESCRIPTION

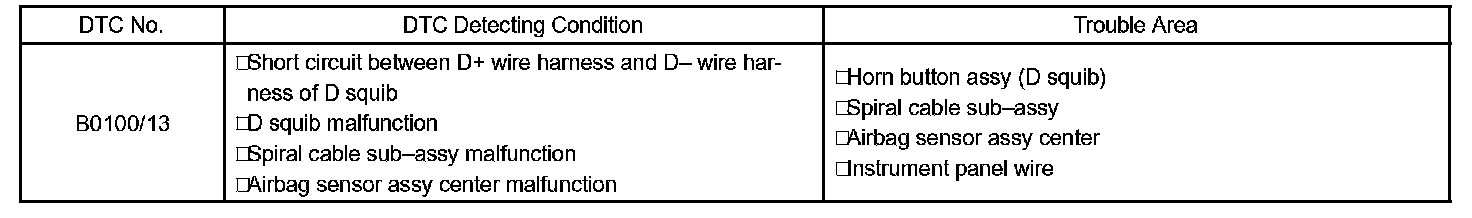

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly center, the spiral cable sub-assembly and the horn button assembly.

This circuit actuates the SRS to deploy when deployment conditions are met. DTC B0100/13 is recorded when a short circuit is detected in the D squib circuit.

Wiring Diagram:

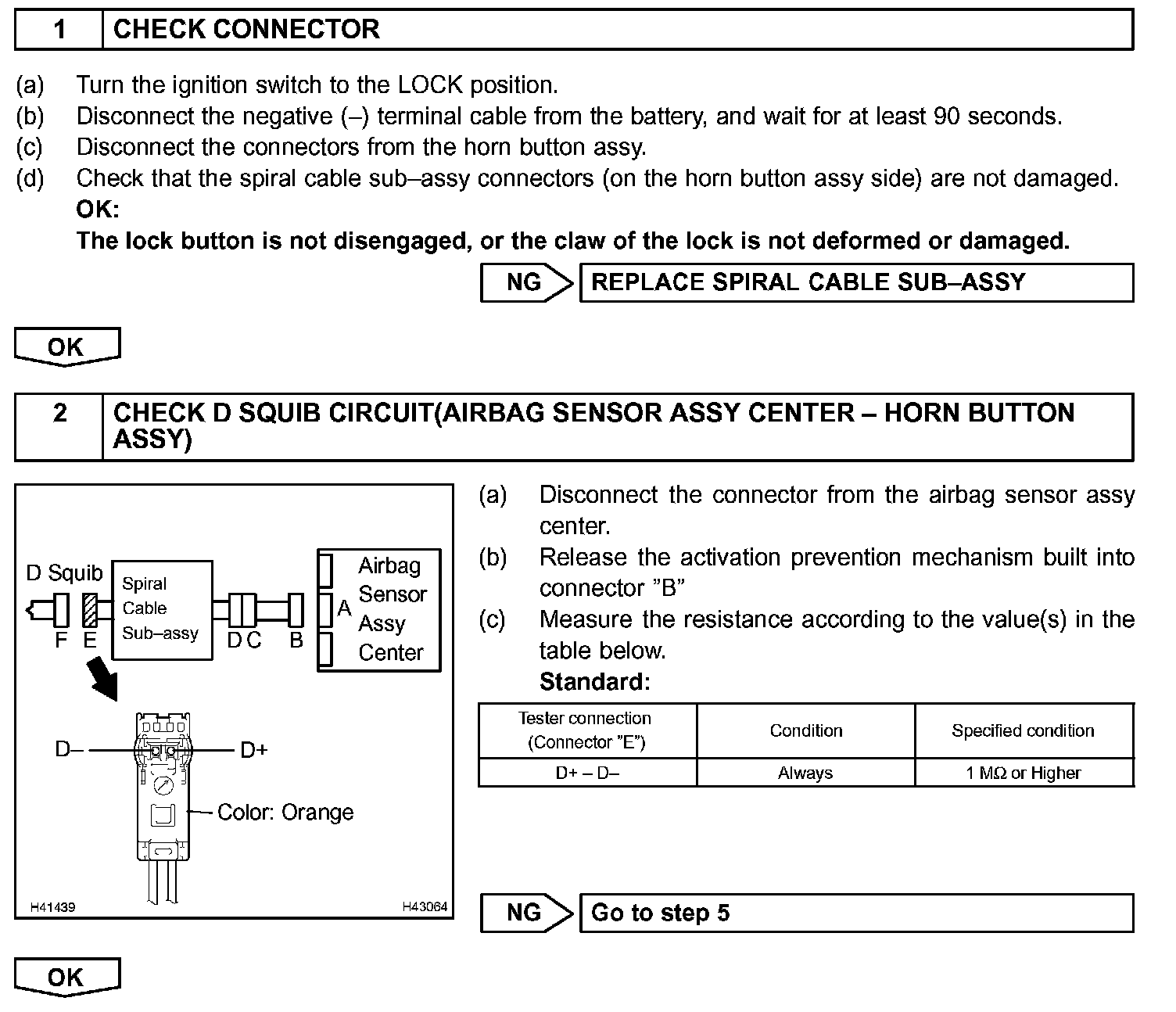

Step 1 - 2:

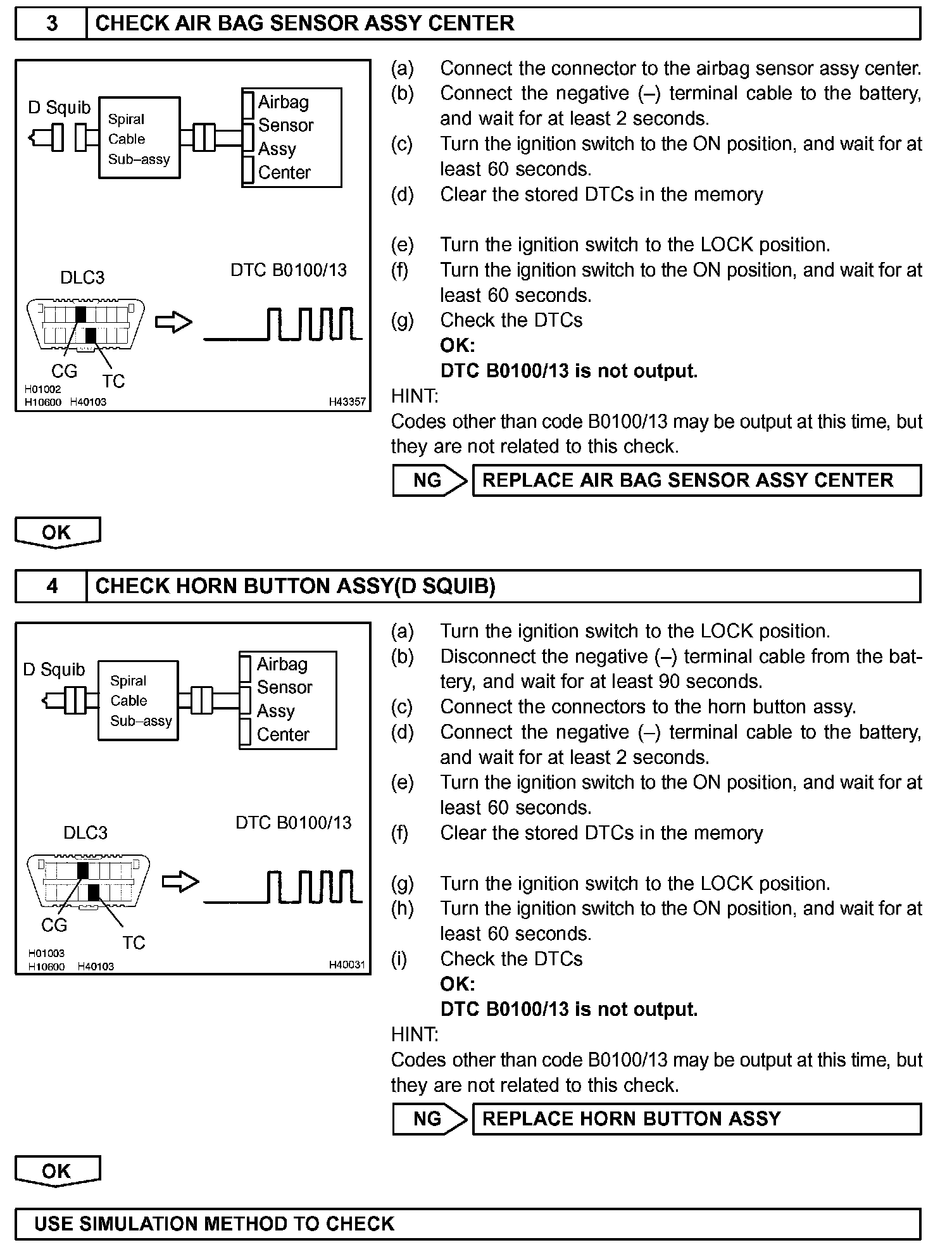

Step 3 - 4:

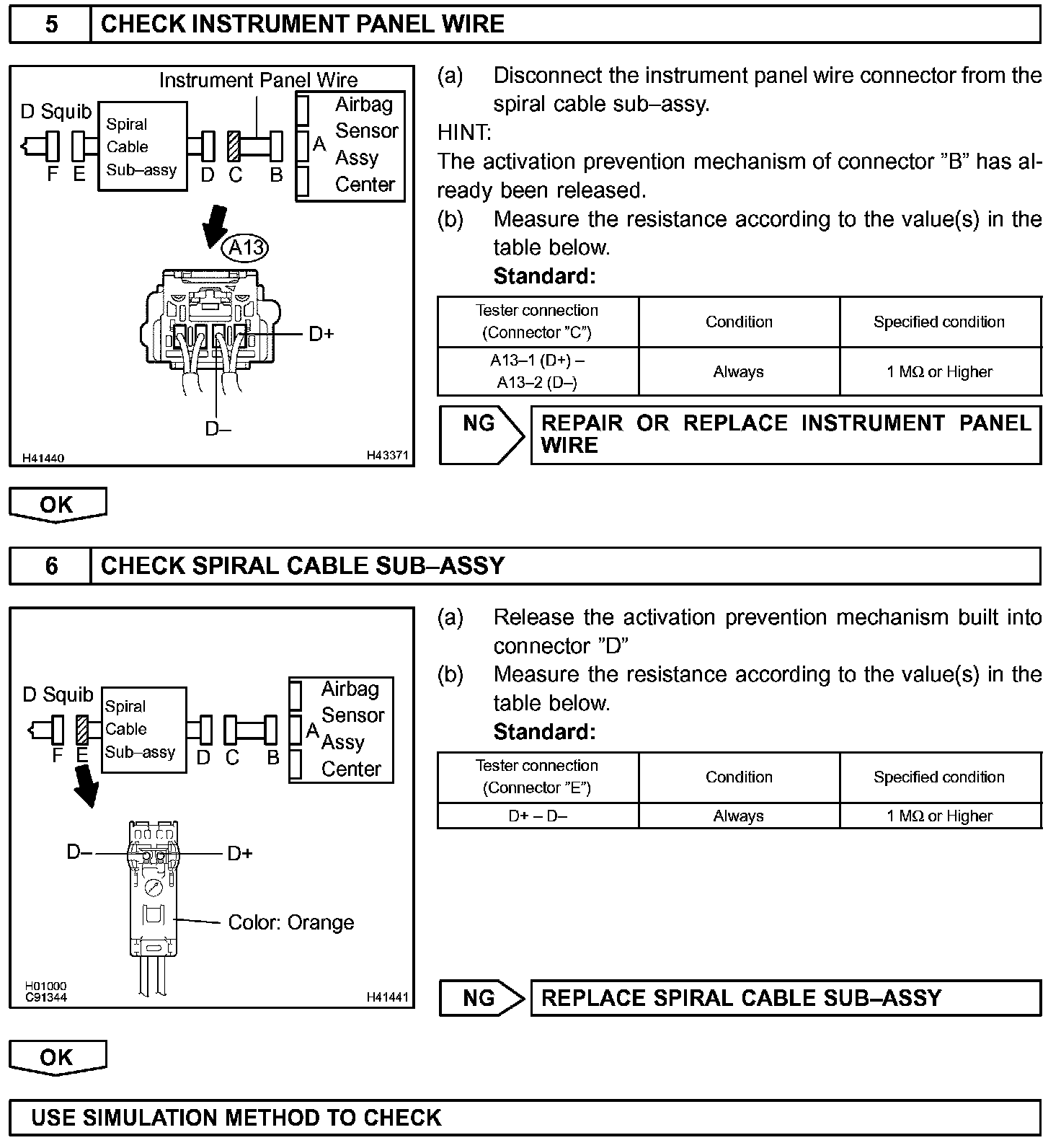

Step 5 - 6:

INSPECTION PROCEDURE
