Rear Wiper Motor
REAR WIPER MOTOR ASSEMBLYREPLACEMENT
1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY
2. REMOVE REAR WIPER ARM

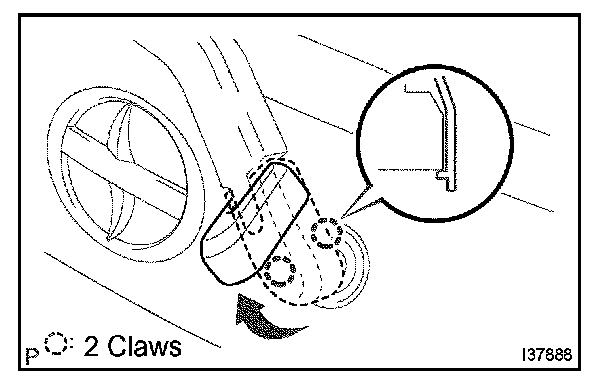

a. Remove the 2 claws.
b. Remove the nut and rear wiper arm.
3. REMOVE REAR WIPER MOTOR ASSEMBLY
a. Disconnect the connector.

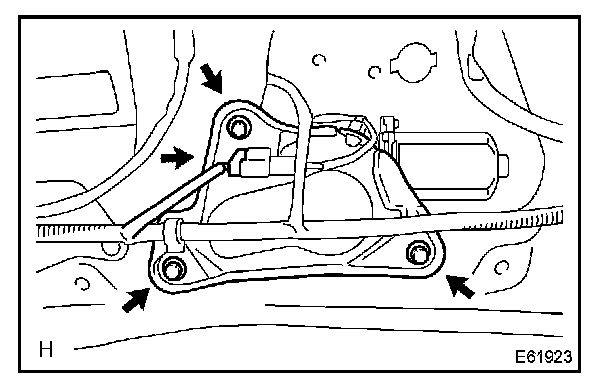

b. Remove the 3 bolts and rear wiper motor assembly.
4. INSTALL REAR WIPER MOTOR ASSEMBLY

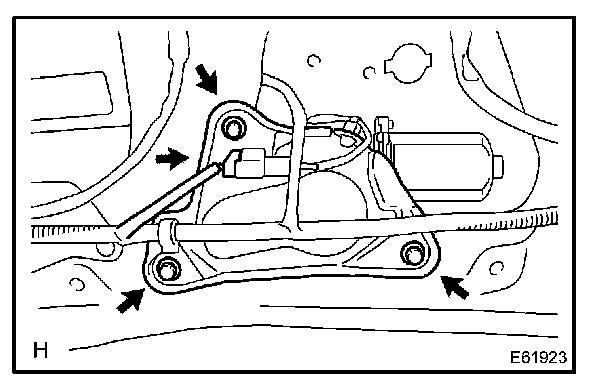

a. Install the rear wiper motor assembly with the 3 bolts.
Torque: 5.5 Nm (56 kgf.cm, 49 in.lbf)
b. Connect the connector.
5. INSTALL REAR WIPER ARM
a. Operate the wiper, and stop the windshield wiper motor assembly at the automatic stop position.

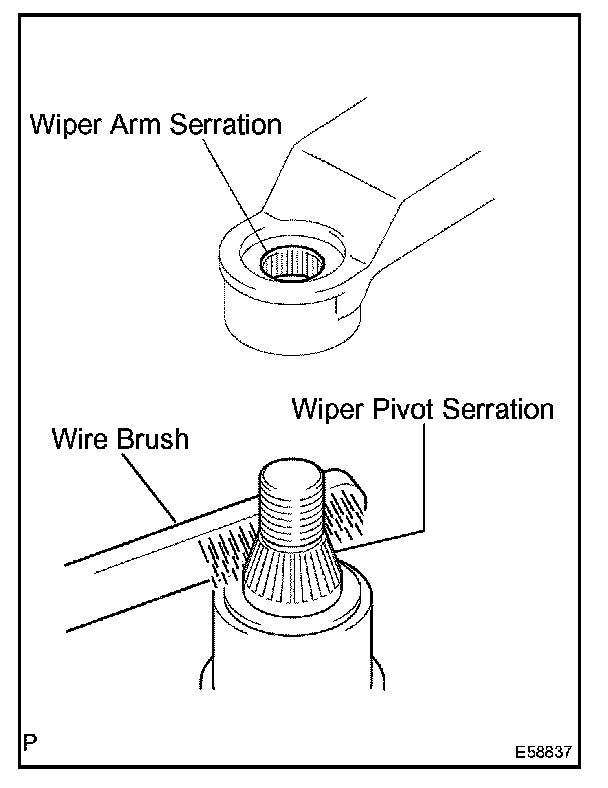

b. Scrape off the serrated part of the wiper arm with a round file or equivalent.
c. Clean the wiper pivot serration with a wire brush.

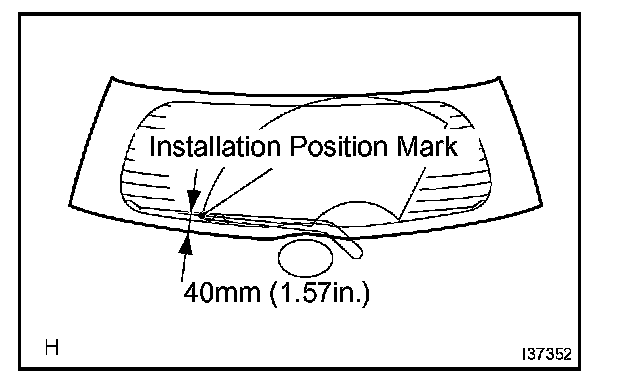

d. Install the rear wiper arm with the nut in the position shown in the illustration.
Torque: 5.5 Nm (56 kgf.cm, 49 in.lbf)
HINT: Hold down the arm hinge by hand in order to fasten the nut.
6. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
