Rear

REAR WIPER RUBBER

REPLACEMENT




1. REMOVE RR WIPER BLADE

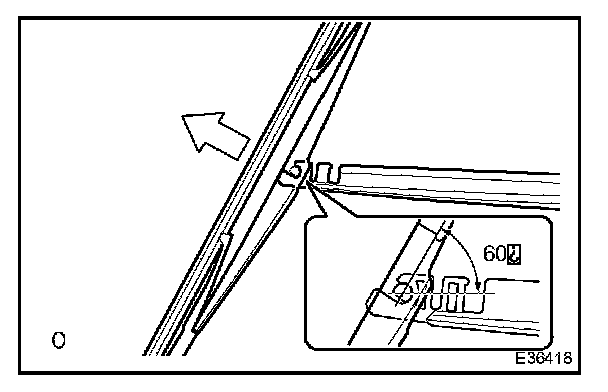

a. Raise the rear wiper blade to the position as shown in the illustration where the claw disengages with a clicking sound.

NOTE: Be careful not to break the claw.

b. Pull the rear wiper blade straight from the wiper arm toward the left side of the vehicle.

NOTE: Do not fold the rear wiper arm with the rear wiper blade having been removed from it.




2. REMOVE REAR WIPER RUBBER

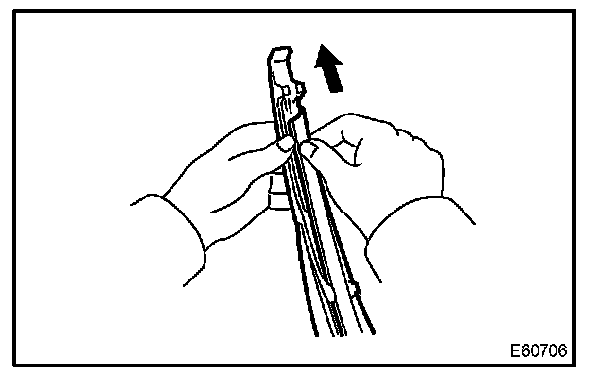

a. Pull on the end of the wiper rubber protruding from the blade stopper as shown in the illustration.

NOTE: Do not forcibly pull out the wiper rubber. Otherwise, the backing plates will be deformed or blade claw damaged.

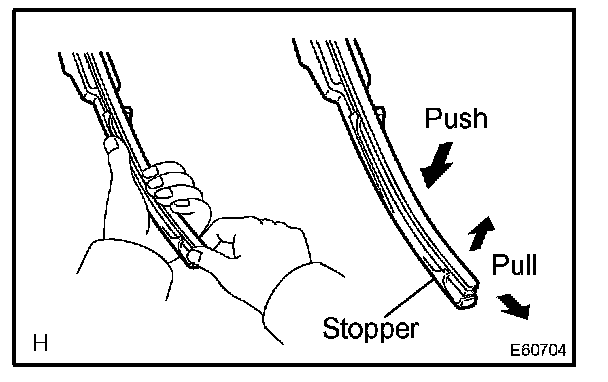

HINT: Pushing the rubber from the ends towards the middle will allow it to be removed more easily.

3. INSTALL REAR WIPER RUBBER

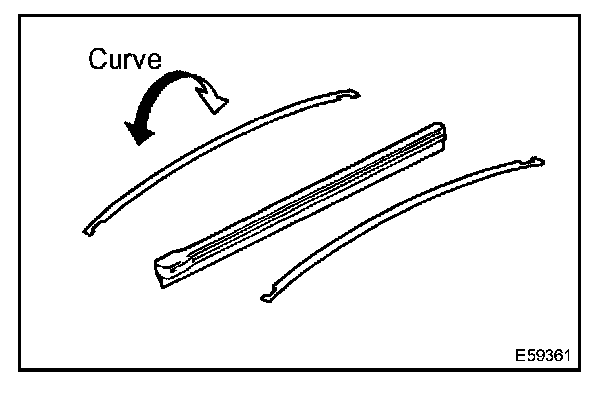

a. Install the 2 wiper rubber backing plates to the rear wiper rubber.

NOTE: Be sure to install the wiper rubber backing plates in the right direction.

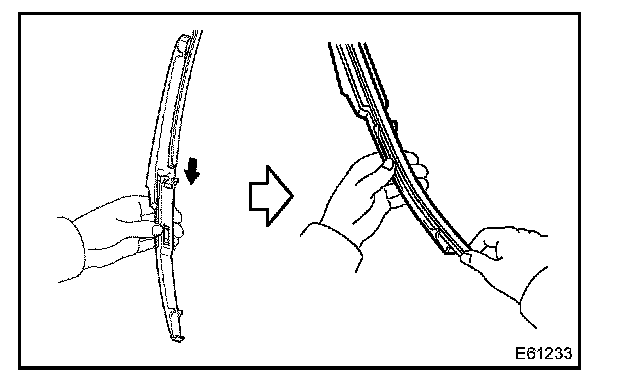

b. Insert the rear wiper rubber from the claw position of the middle of the rear wiper blade into the end position.




c. After passing the rear wiper rubber through the rear end side claw, allow it to stick out from the rear end stopper and slide it through the front tip side claw.
