On-Vehicle Inspection

INSPECTION

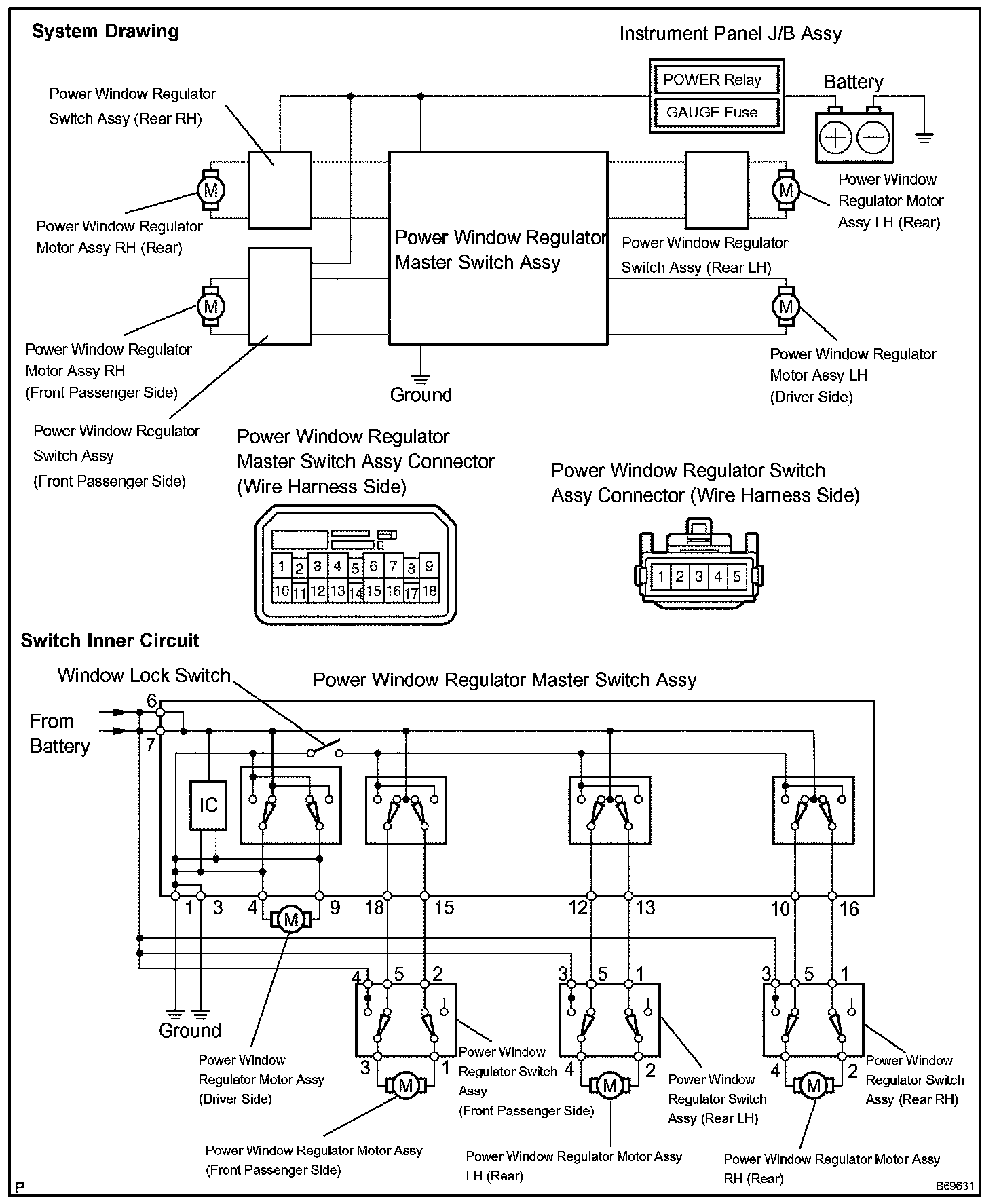

1. POWER WINDOW SYSTEM CIRCUIT




2. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

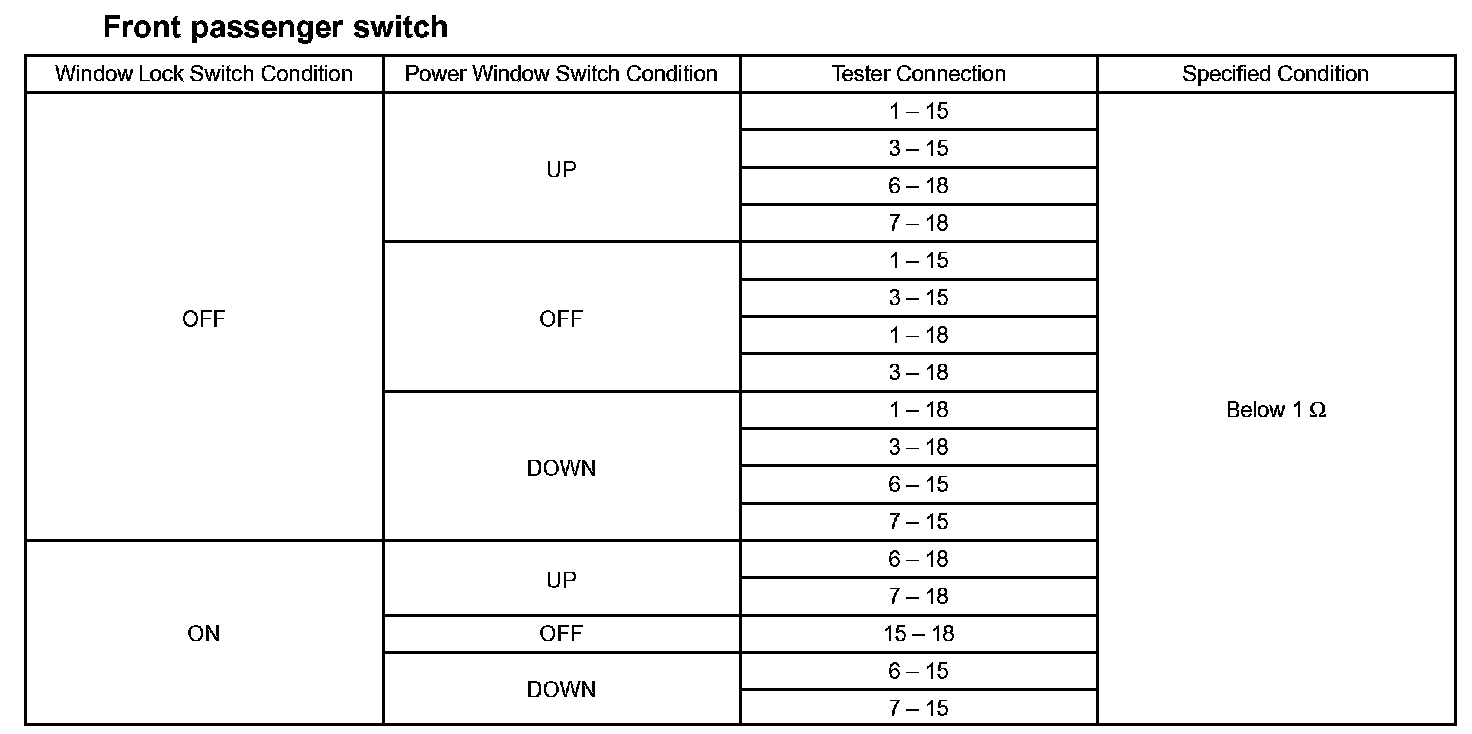

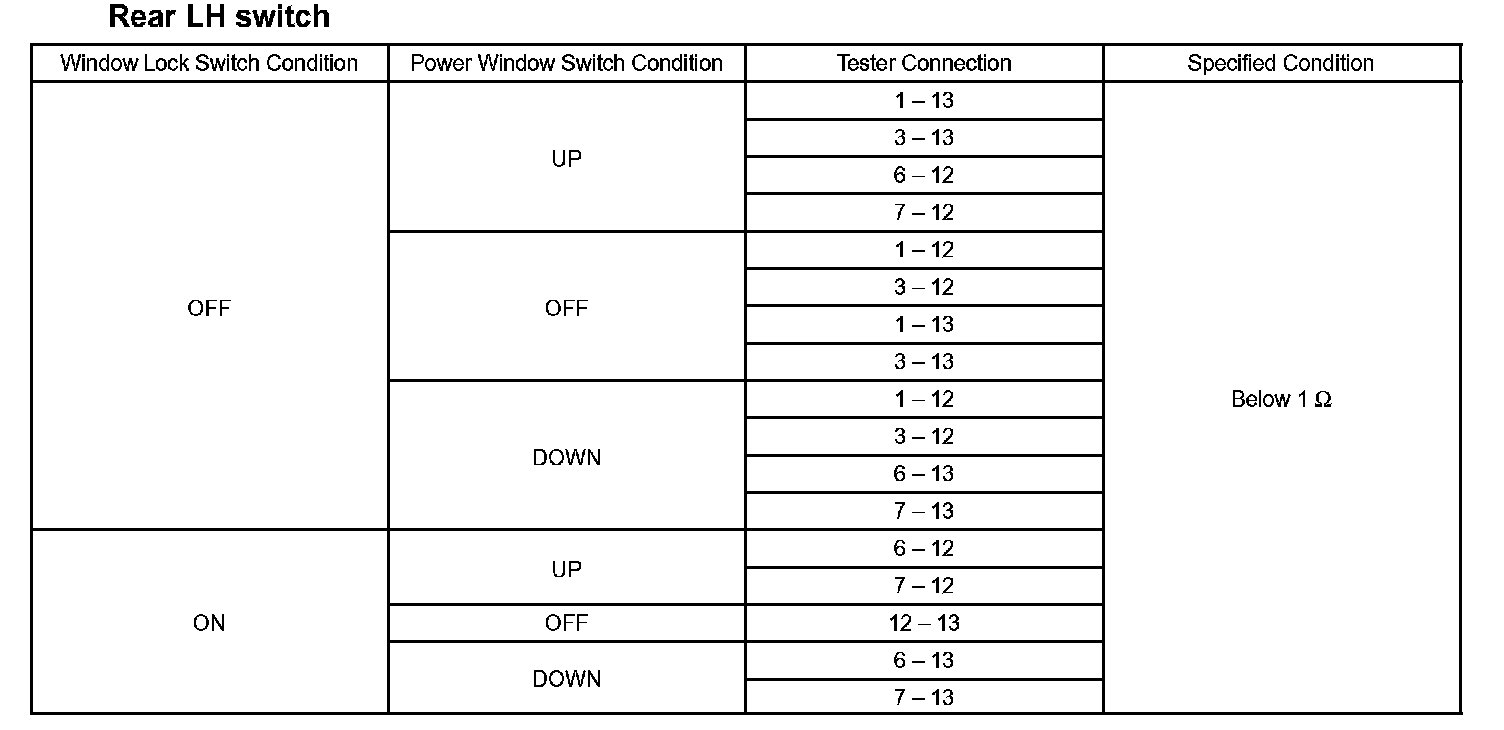

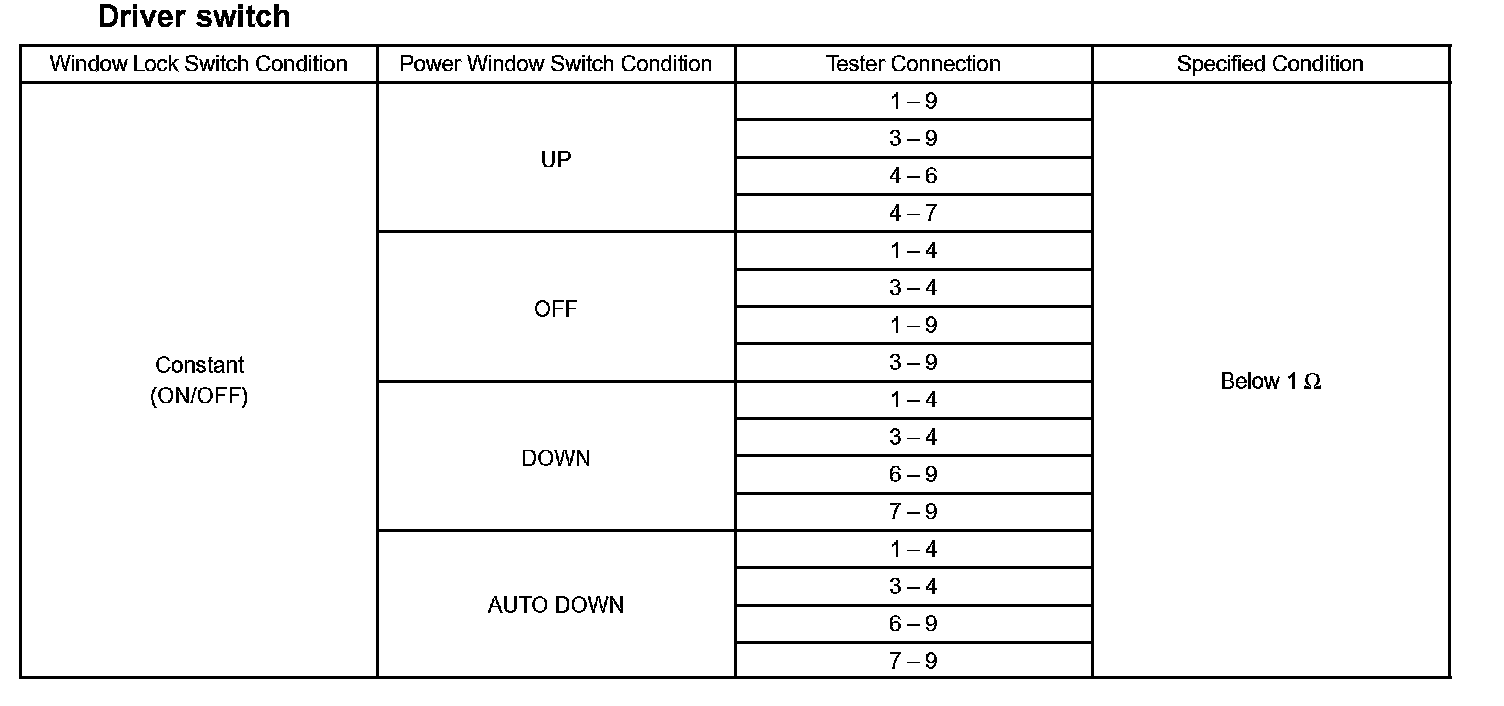

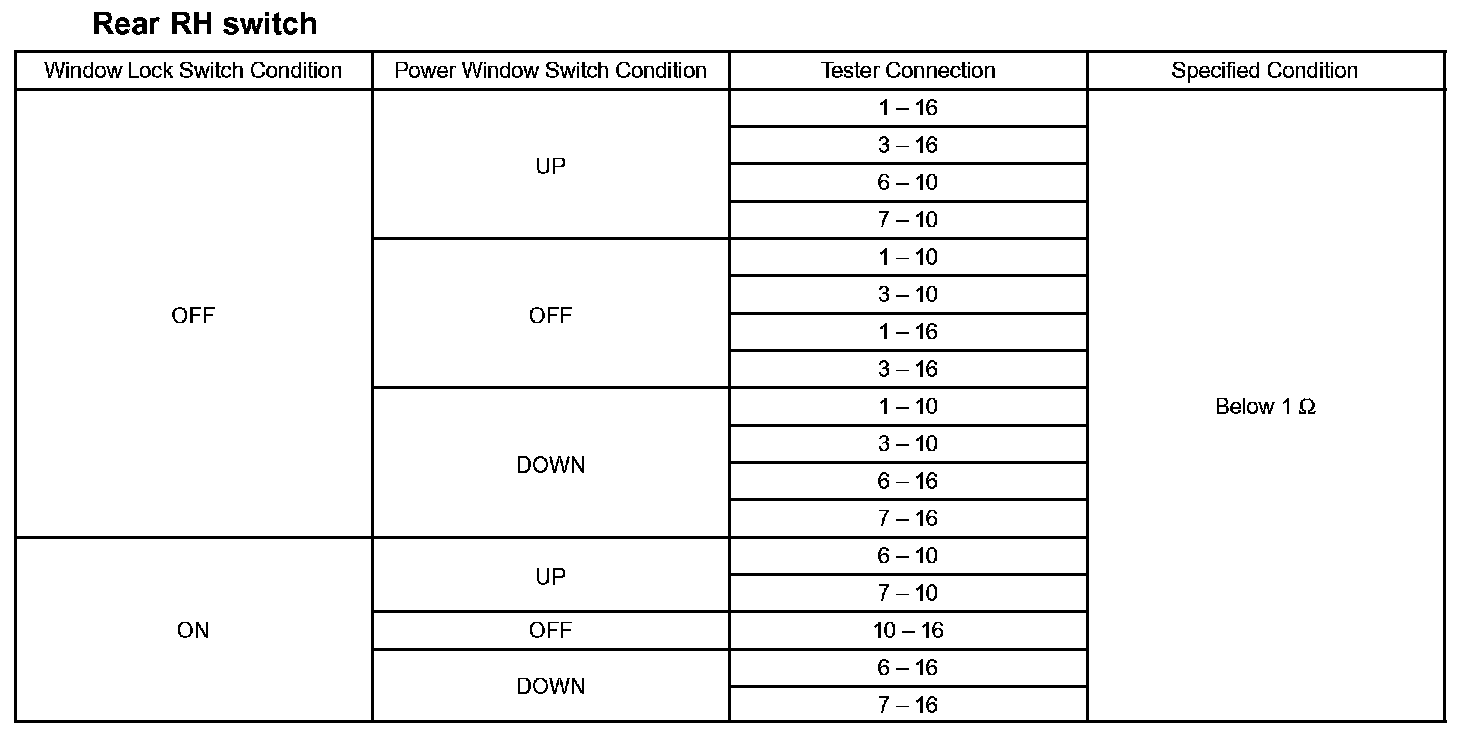

a. Check the resistance between each terminal of the connector when the switch is operated.













Standard:

If the result is not as specified, replace the master switch assembly.

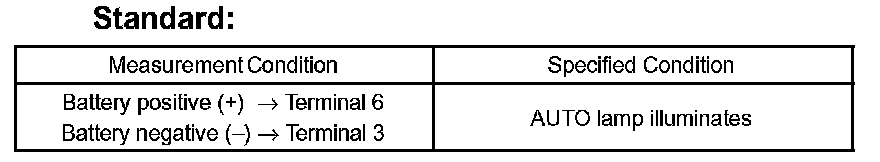

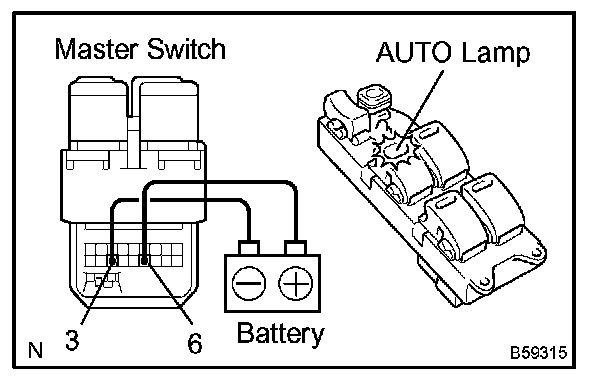

b. Apply battery voltage to the master switch terminals and check the AUTO lamp.
If the result is not as specified, replace the master switch assembly.







3. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

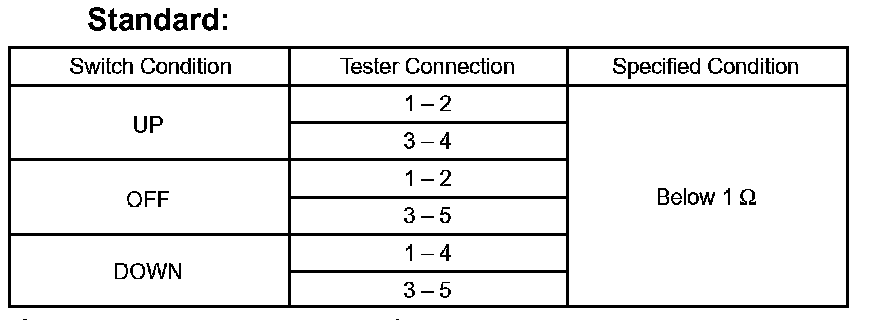

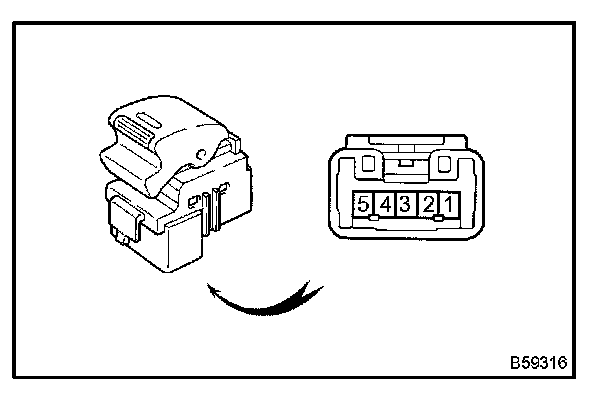

a. Check the resistance between each terminal of the connector when the switch is operated.
If the result is not as specified, replace the regulator switch assembly.

4. INSPECT POWER WINDOW REGULATOR MOTOR




a. Check operation of the regulator motor.

HINT:
- The driver side and rear RH regulator motors should be inspected using the same procedure.
- The passenger side and rear LH regulator motors should be inspected using the same procedure.

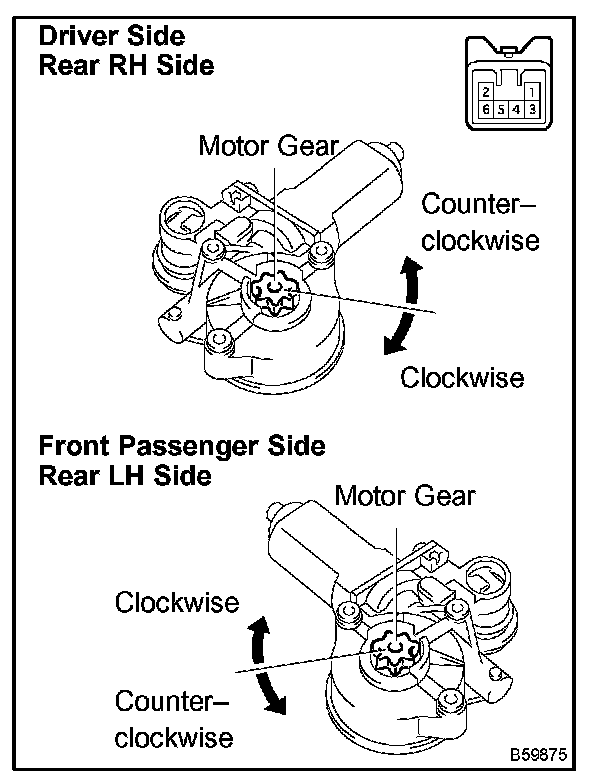

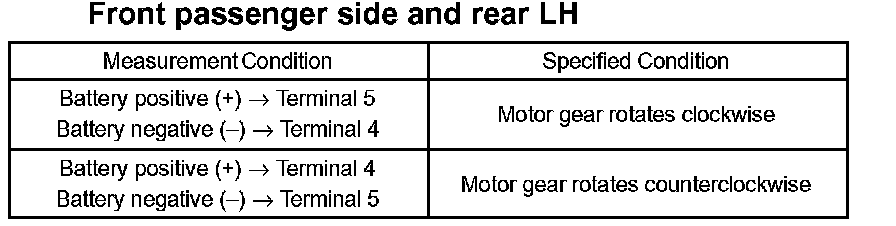

1. Apply battery voltage to the motor terminals.
2. Check that the motor operates smoothly.

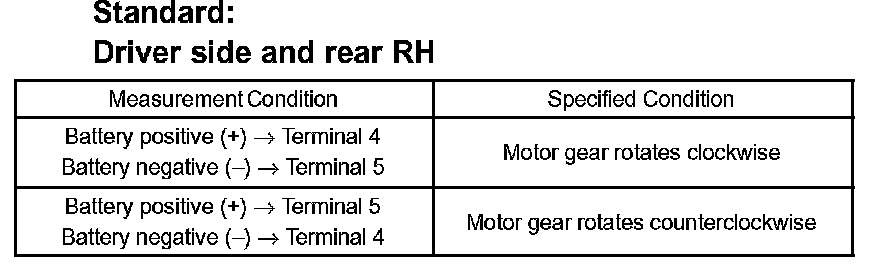

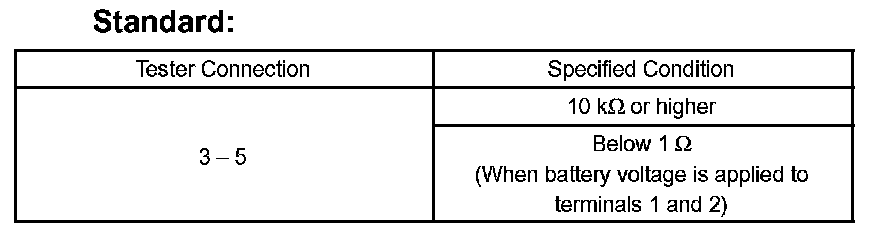

Standard:

If the result is not as specified, replace the motor assembly.




b. Check operation of the PTC inside the regulator motor.

NOTE: The work must be performed with the power window regulator and door glass installed to the vehicle.

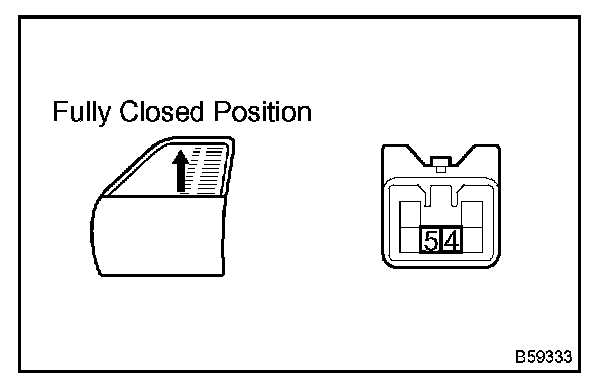

1. Set an electrical tester DC 400 A probe to the wire harness of terminal 4 or 5.

NOTE: Match the arrow mark of the probe with the current direction.

2. Fully close the door glass by operating the power window switch and keep the door glass there for approx. 60 seconds.
3. Try to operate the power window past the fully closed position using the power window switch and measure the time until the electrical current changes into 1 A from 16 to 34 A (Inspection of current shut-off).

Standard: 4 to 90 seconds

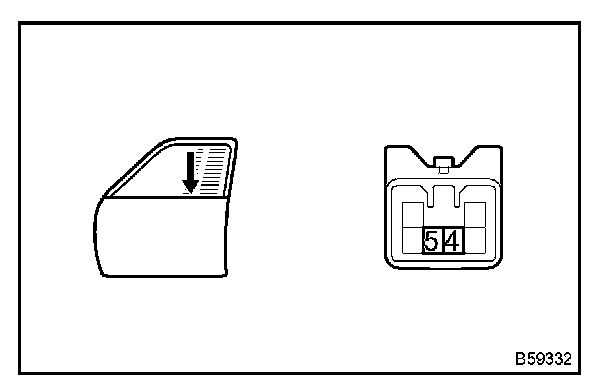

4. Check that the door glass goes down when the power window regulator switch is pushed DOWN.
If the result is not as specified, replace the motor assembly.




5. INSPECT RELAY (POWER)
a. Remove the POWER relay from the instrument panel J/B.

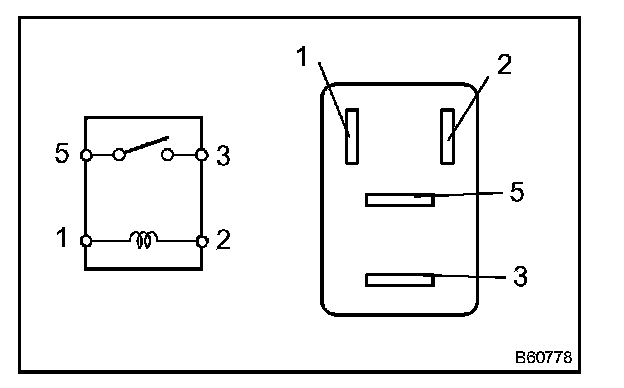

b. Check the resistance between each terminal of the relay.
If the result is not as specified, replace the relay.
