Wiring Harness: Service and Repair

TRANSMISSION WIRE (ATM)
REPLACEMENT
1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY





2. REMOVE TRANSMISSION WIRE

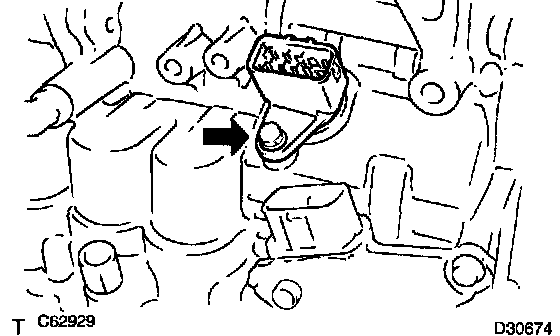

a. Remove the bolt and transmission wire.





3. INSTALL TRANSMISSION WIRE
a. Coat an O-ring with ATF.

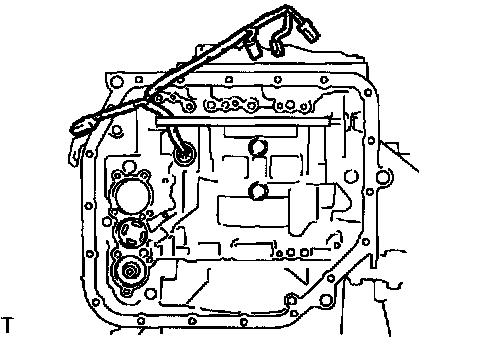

b. Install the transmission wire.





c. install the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
4. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
