Multiple Junction Connector: Locations

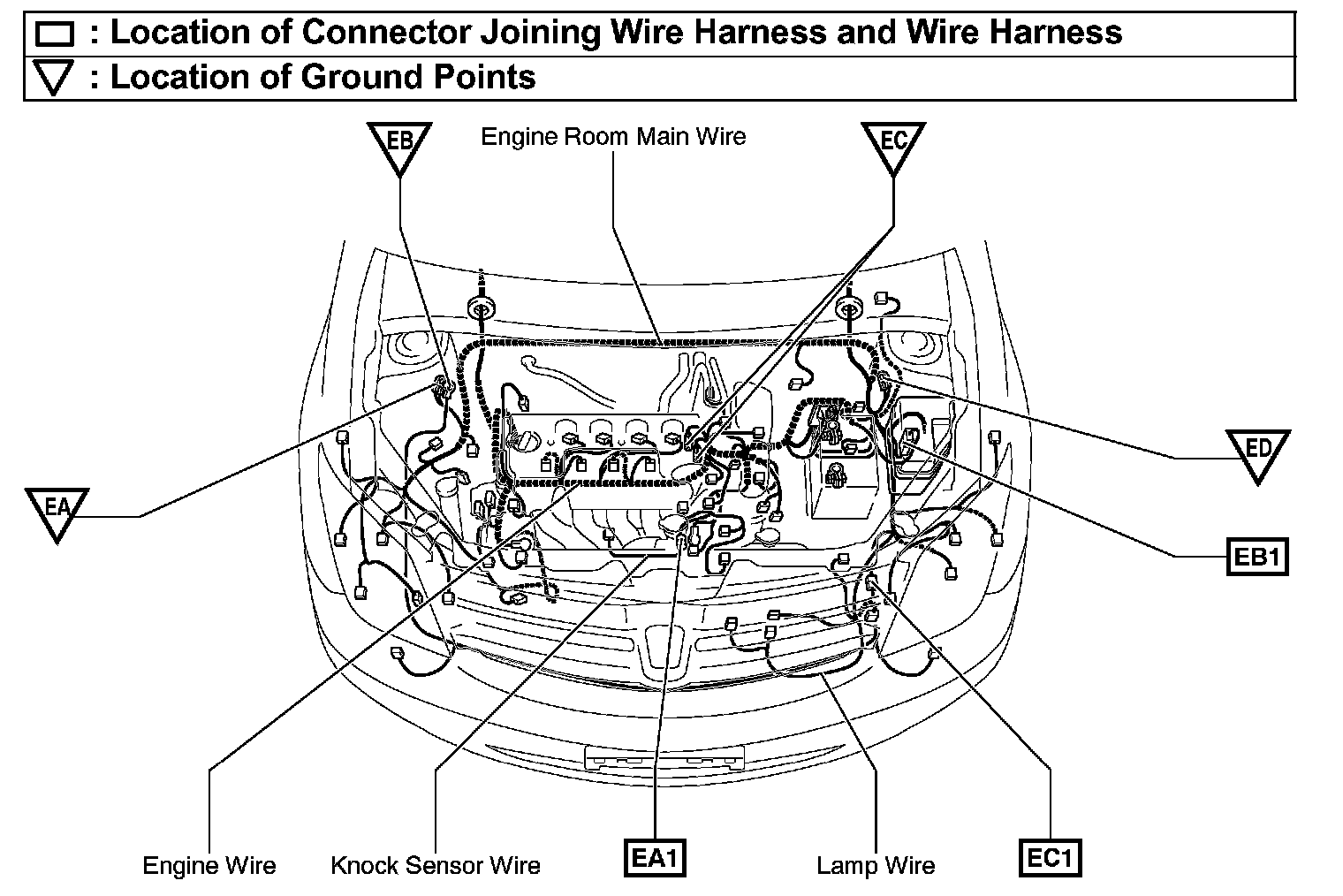

EA1 - EC1, EA - ED:

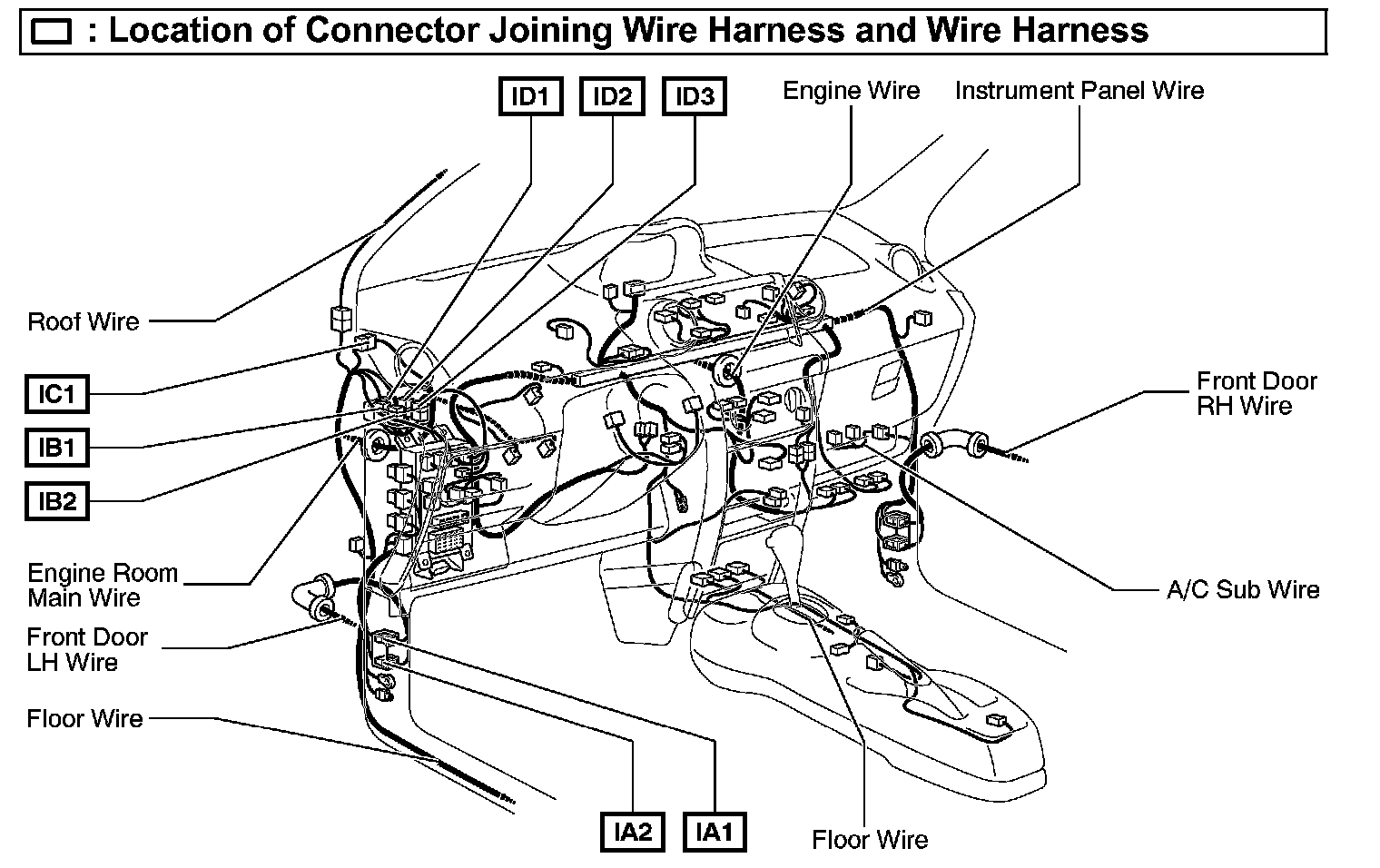

IA1 - ID3:

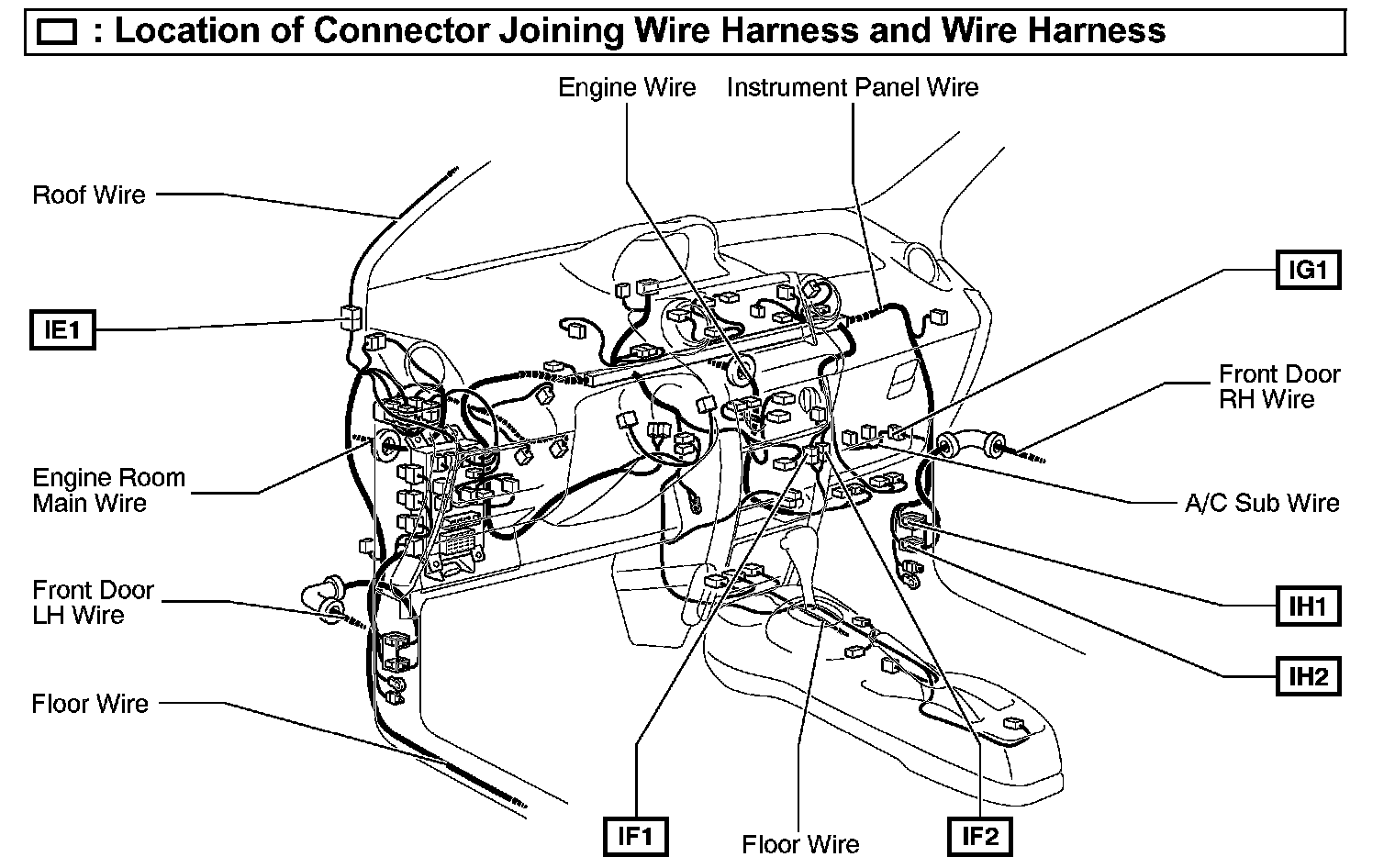

IE1 - IH2:

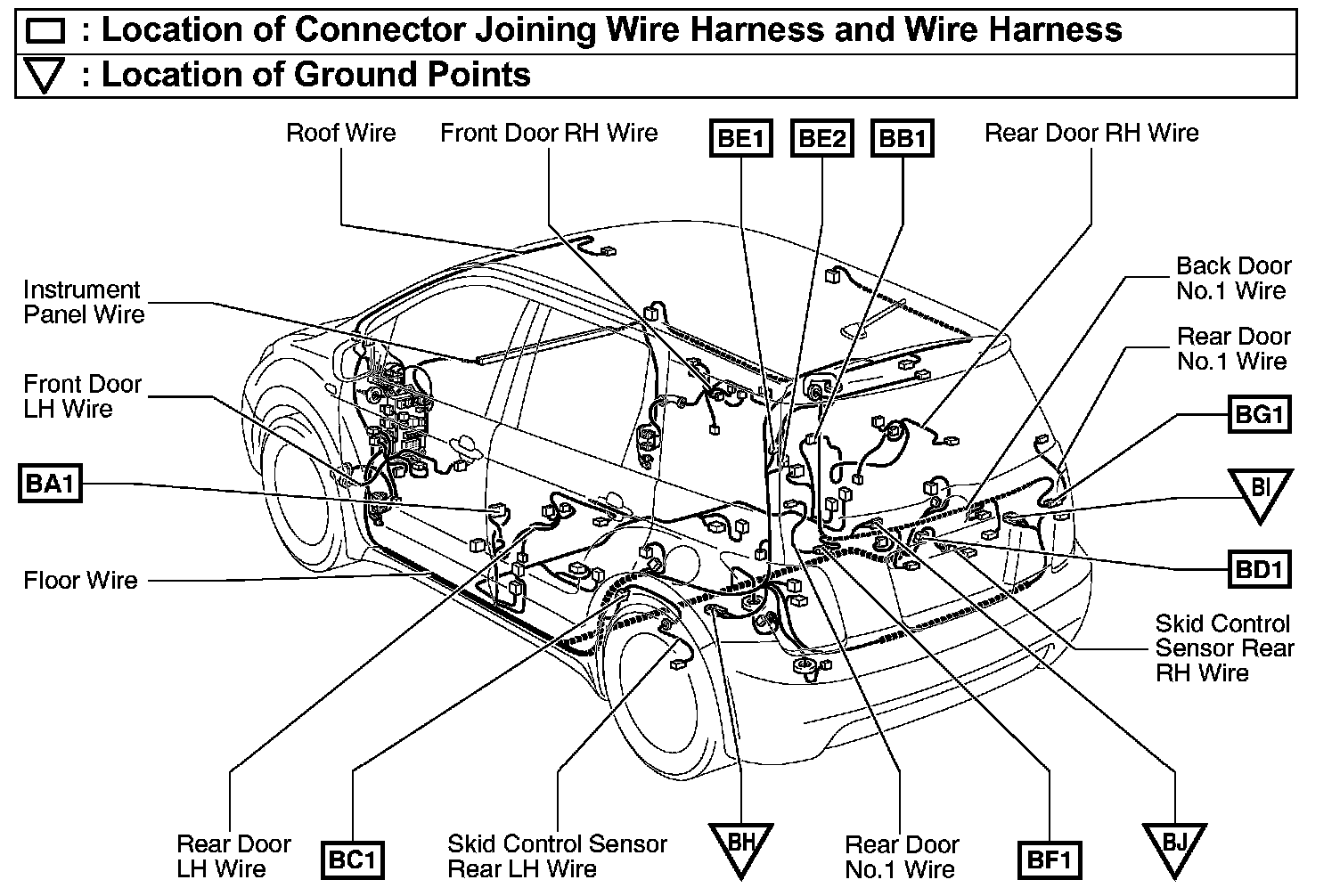

BA1 - BG1, BH - BJ:
